Trumpai apie prekę

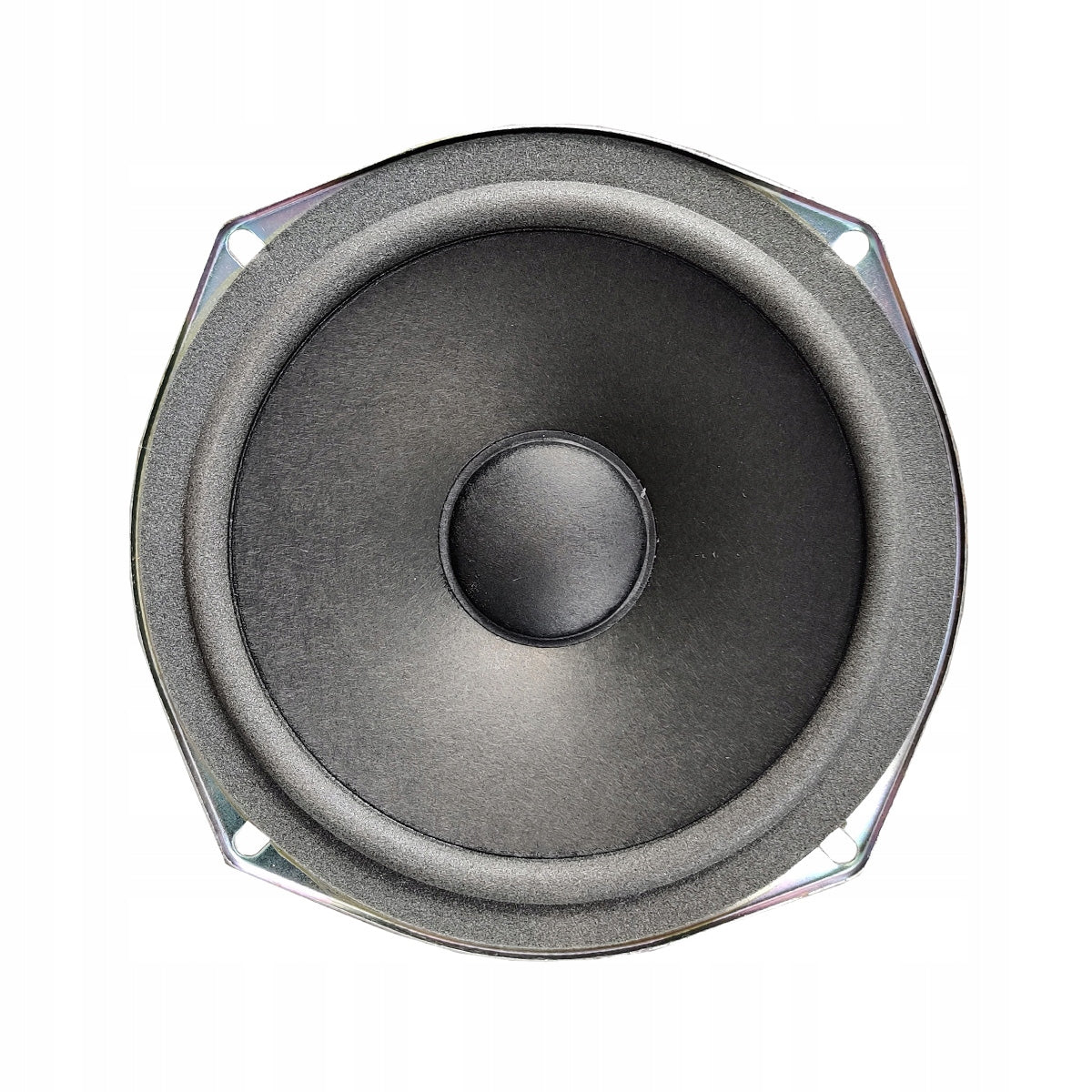

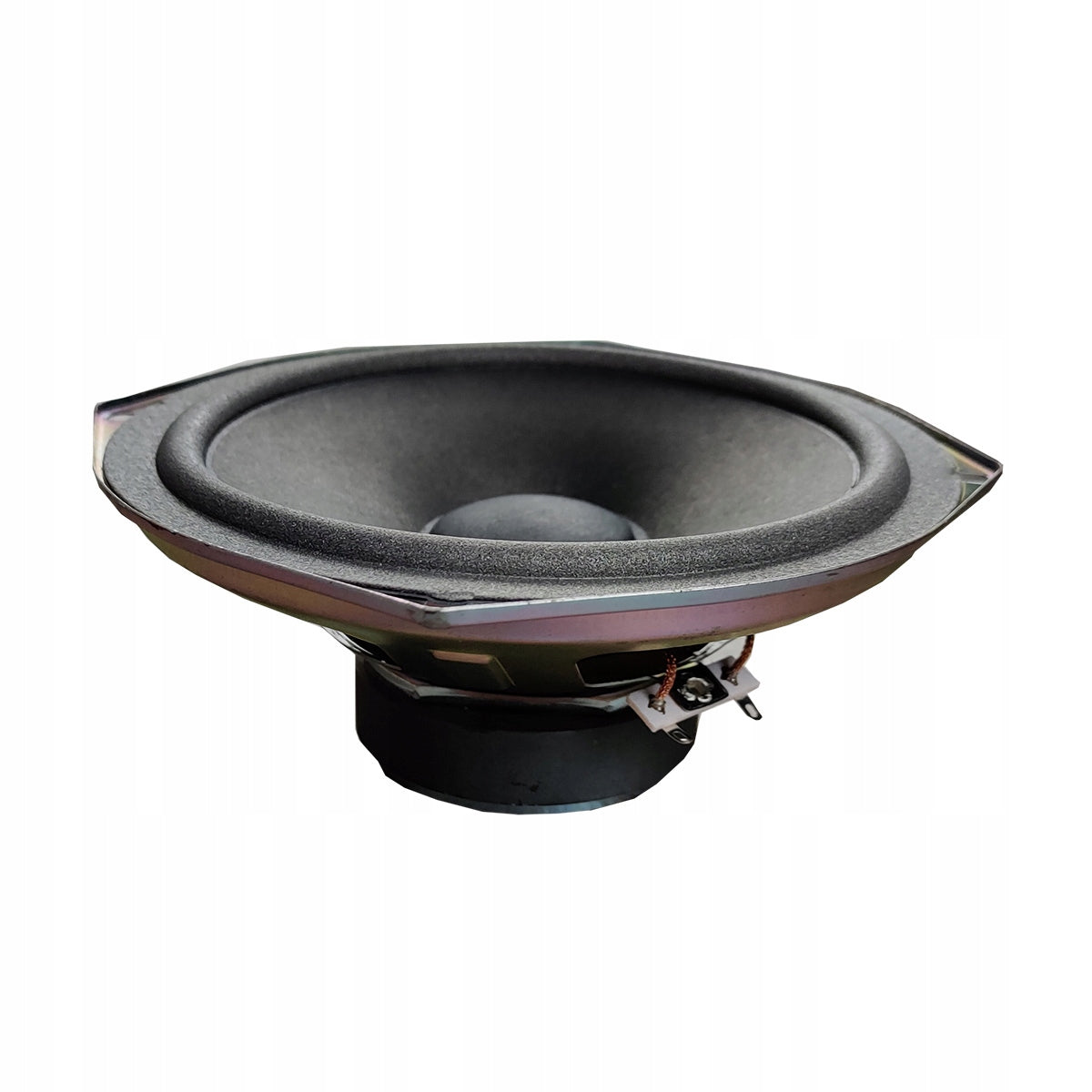

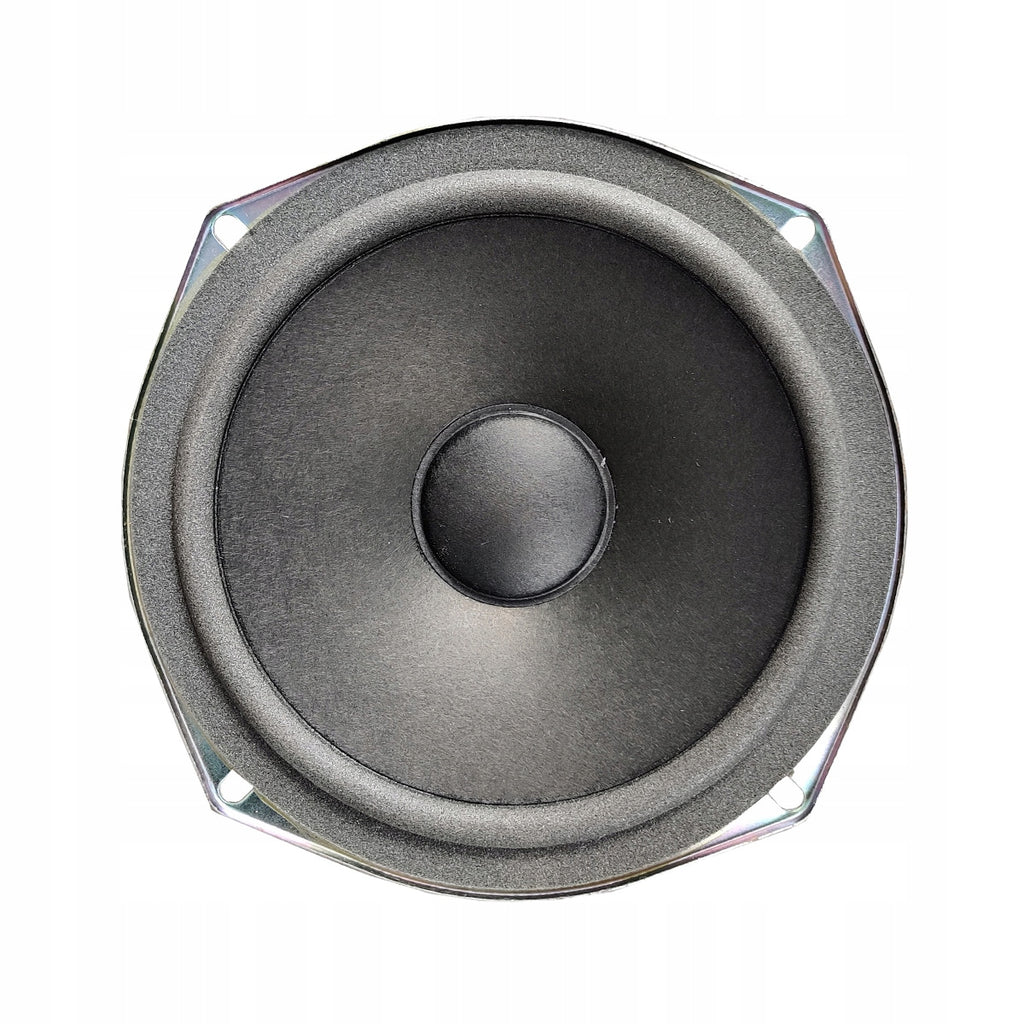

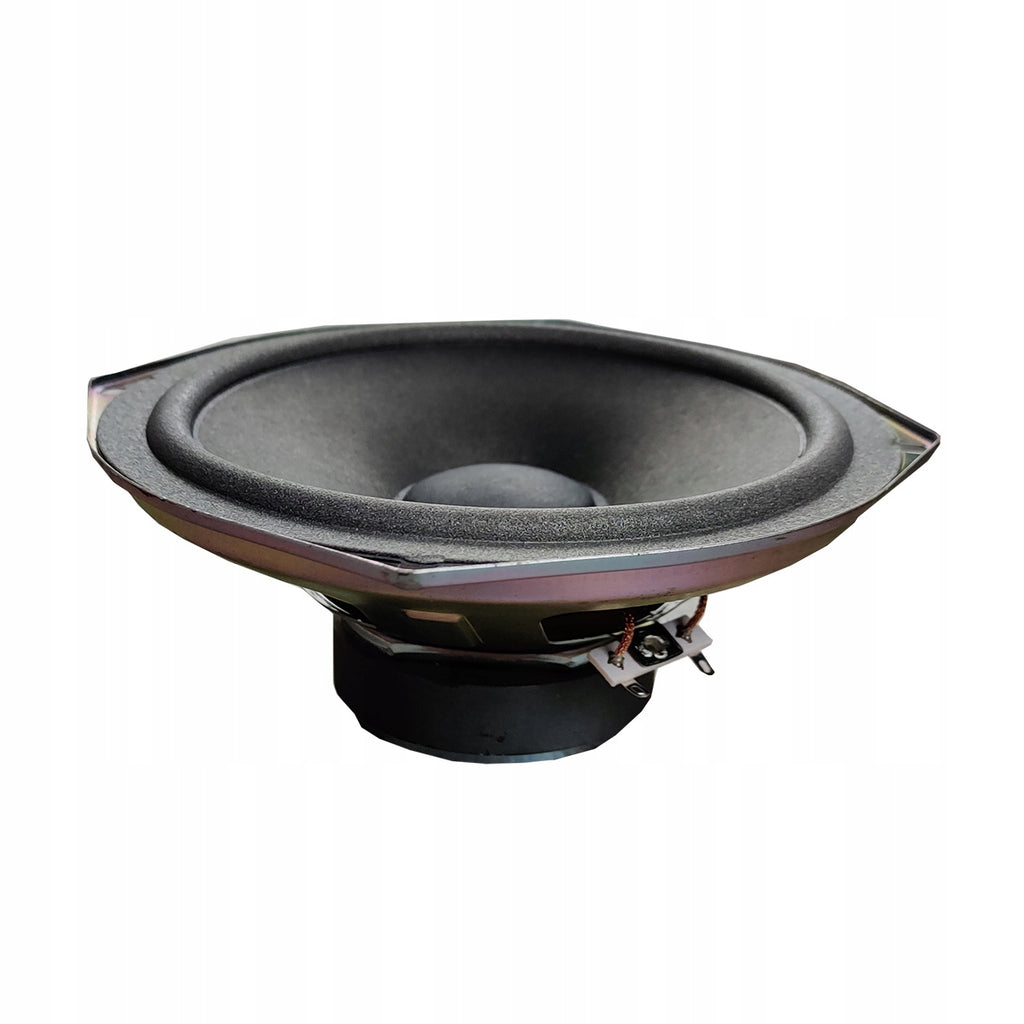

Prekė: Dome tweeter Tonsil GDN 16/30 8 Ohm juodas. Kategorija: Žemieji garsiakalbiai.
- Gamintojas: Tonsil
- Modelis: GDN 16/30
GNN 16/30 8 Ohm speaker with cellulosic membrane.
Basket in galvanized (silver)
- Impedance: 8 Ohms
- Transmission bandwidth: 100 - 5 000 Hz
- Nominal power (enclosure 9 dm^3, 100 hrs. continuous operation): 30 W
- Maximum power: 60 W
- Efficiency: 87 dB
- Resonant frequency FS: 54 Hz
- Coil resistance: 7,7 Ohm
- Coil height: 7,4 mm
- Coil core diameter: 25 mm
- Height of slot: 4,6 mm
- Slot width: 1,5 mm
- External diameter of the magnet: 70 mm
- Internal diameter of the magnet: 32 mm
- Magnet height: 15 mm
- Magnet weight: 0,23 kg
- Induction in slot B: 0,67 T
- Energy in the gap: 102,4 mJ
- Magnet material: ferrite
- Membrane material: cellulose
- Suspension material: foam
- Coil body material: nomex
- Coil material: copper
- Basket material: steel sheet
- VAS equivalent volume: 0,019 m^3
- Mechanical goodness QMS: 4,9 -
- QES electric goodness: 0,6 -
- DTotal QTS: 0,54 -
- Total moving weight MMS: 9,2x10^-3 kg
- Mechanical susceptibility of CMS suspensions: 94x10^-5 m/N
- BI strength index: 6,4 Tm
- Active surface of SD membrane: 12,2x10^-3 m^2
- Speaker weight: 0,62 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Design | one-way |
| Parametry | Brand | Tonsil |
| Parametry | EAN (GTIN) | 5904209571109 |
| Parametry | Model | GDN 16/30 |
| Parametry | Manufacturer code | GDN 16/30 |
| Parametry | Rated impedance | 8 Ω |
