Diagnozavimo sąsaja KINGBOLEN K8 ELITE OBDII DoIP PRO

Trumpai apie prekę

Prekė: Diagnozavimo sąsaja KINGBOLEN K8 ELITE OBDII DoIP PRO. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Kingbolen
• Modelis: K8 Elite

Kingbolen K8 Elite

Kingbolen Professional Diagnostic Interface with wired connection

• The software supports 41 languages, including Polish, Czech, Slovak, Slovenia, Hungarian, English and Russian.
• 10 user manual languages, including English, Polish, Hungarian and Russian.
• Wire diagnostic connection with built-in DoIP protocol support.
• VAG guided function support
• FCA security gateway support (paid account needed)
• Renault security gateway support (paid account needed)
• Lifetime software update access, lifetime software access
• 8 inches HD display
• Advanced diagnostic functions, e.g. reading and erasing error codes, matching and coding, actuator tests and more.
• Comes with 34 free special functions, including steering wheel angle sensor reset, ABS bleeding, battery matching and more
• Supports multiple extended accessories, e.g. oscilloscopes, videoscopes, battery testers, TPMS extensions. (compatible with ThinkCar accessories)
• Supports 110 vehicle brands, including Audi, Porsche, VW, Opel, Citroen, Hyundai, IVECO, Land Rover, Mazda and more...
• The software functions are completely same as the Kingbolen K8 Pro, except for the hardwares.

Notice Before Purchase

• Kingbolen K8 Elite does not have a VCI dongle, it comes with wired diagnostic connection. The set comes with a 1.2M diagnostic cable with DoIP protocol support.
• When you received the device, please activate the device before the use. The activation code can be found in a letter in the box.
• The power adapter could be different due to different batch of production. We guarantee that all the K8 Elite we're selling are authentic, all the serial numbers can be verified by the official.
• Differ to the K10 series, the K8 Elite / Pro does not have a feature of displaying error codes in a topology form.

Advanced Full-system Diagnostics

• Reading ECU info
• Reading Error Codes
• Erasing Error Codes
• Real-time Vehicle Module Data
• Reading Freeze Frames
• Active Tests
• Initializing Immobilizers
• Matching
• Coding

Also have the basic diagnostic functions for OBD2/EOBD standard:

• Mode $01：I/M Readiness, Current Data
• Mode $02：Freeze Frame Data
• Mode $03：Stored DTCs
• Mode $04：Clear DTCs / Reset
• Mode $05：Oxygen Sensor Monitoring
• Mode $06：On-Board Monitoring Test Results
• Mode $07：Pending DTCs
• Mode $08：On-Board System Control
• Mode $09：Vehicle Information
• Mode $0A：Permanent DTCs

Lifetime Software Update Access

• The latest version of Kingbolen K8 Pro now brings you a lifetime software update access.
• Software updates come from time to time, keeping your professional diagnostic ability always the most capable.
• When the server pushes the software updates, there will be a page of new feature descriptions.

34 Special Functions

These functions cover scenarios like vehicle repair, maintenance, and vehicle part replacements.

1. steering angle sensor reset
2. brake reset (including the brake pad reversing progress)
3. gear reset
4. oil indicator reset
5. immobilizer reset
6. fuel injector coding
7. TPMS reset (only for TPMS modules without the ECU)
8. battery matching
9. ABS bleeding
10. ETS (electronic throttle system) reset or adaption
11. DPF regeneration
12. suspension reset
13. headlamp (AFS) reset
14. sunroof reset
15. gearbox learning
16. EGR adaption
17. changing UI language (e.g. the panel's display language)
18. Air/Fuel calibration
19. coolant bleeding
20. NOx sensor reset
21. seat calibration
22. Stop/Start service activation
23. transportation mode deactivation
24. tire reset
25. window calibration
26. AdBlue reset
27. odometer reset
28. airbag reset
29. ECU reset
30. FRM matching
31. clutch reset
32. gateway module reset
33. turbo reset
34. rain light sensor reset

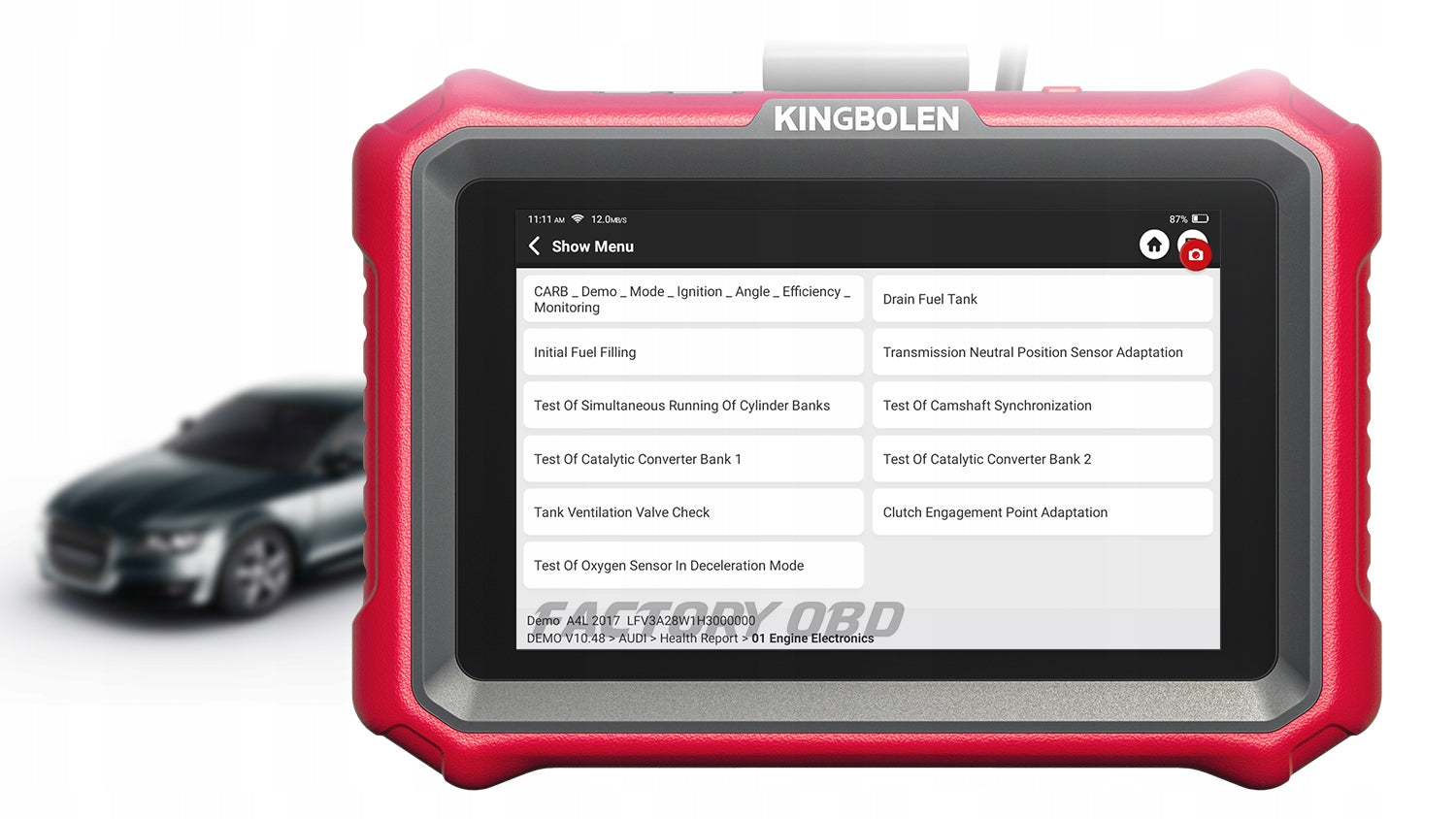

Actuator Tests

Troubleshoot the vehicle active parts by manipulating directly from the ECU.

e.g.

• Test the windows by rolling up and down
• Test of simultaneous running of cylinder banks
• Test of oxygen sensor in deceleration mode
• Draining the fuel tank
• and many more...

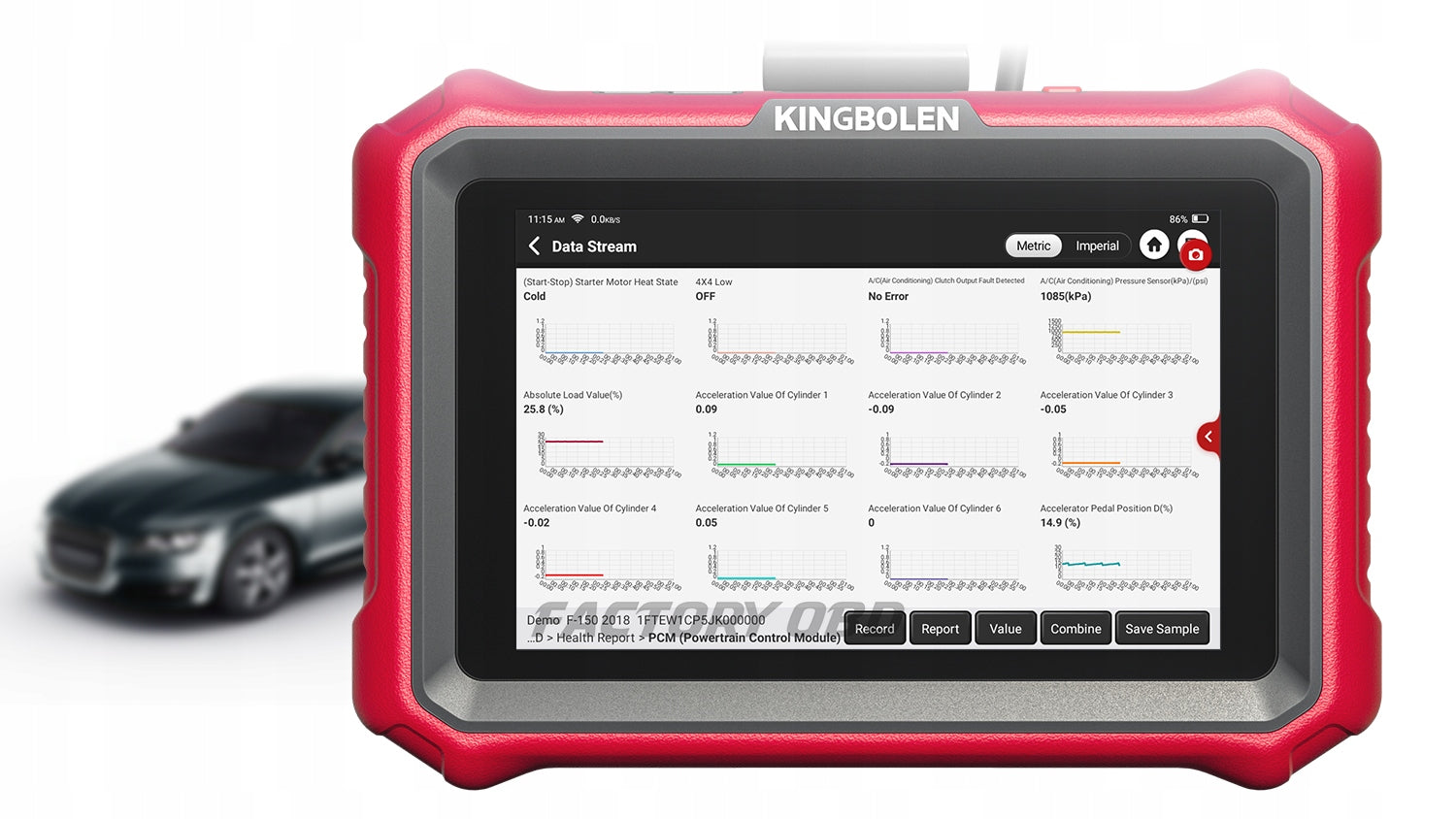

Live Data Graphs

K8 Pro shows up to 12 real-time data graphs together in one screen, allowing you to easier monitor the current status of the vehicle modules.

Supported Vehicle Brands

• A: Aston Martin / Audi / AUSTFORD / AUSTHOLDEN
• B: Beijing Auto / Bentley / BMW / BXFIAT / BXGM / Baojun / Brilliance
• C: Changan / Chery / Chrysler / Citroën / CMC / Changhe
• D: Daewoo / Daihatsu / Dongfeng Xiaokang / Dongnan / DR
• E: Ediag
• F: Ferrari / Fiat / Ford / Foton / Force / FUSO
• G: Geely / GAC / GAZ / GiAO
• H: Hafei / Haima / Hino / Honda / Hyundai / Hyundai PLUS / Huachen
• I: IKCO / Indian Force / Indian Mahindra / Indian Maruti / Indian Tata / ISUZU / Iveco / IZH
• J: Jiangling / JAC / Jiulong / Jinlong / Jinbei
• K: Kia / Korean Kia / King Long
• L: Land Rover / Leapmotor / Lifan
• M: Mahindra / Maserati / Mazda / Maxus / Maruti / Mitsubishi / MVM / MG / Malaysia Perodua / Malaysia Proton
• N: Naza / Nanjing / Nissan / Neta / NIO
• O: Opel
• P: Peugeot / PAZ / Perodua / Proton / Porsche
• R: Renault / Roewe / Rover
• S: SAIPA / SAMSUNG / SEAZ / Skoda / Smart / Spark / SsangYong / Subaru / Suzuki / SWM / SAIC Motor
• T: Tata / Toyota
• U: UAZ
• V: VAZ / VinFast / Volkswagen / Volvo
• W: Wuling / WEILI
• X: Xinyuan / Xiaokang
• Z: ZAZ / Zhidou / Zotye / Zhongxing / Zhongshun

For the availability of one specific vehicle model, please refer to the manufaturer's page:

https://h5.thinkcar.com/coverage/all

Please notice that Kingbolen K8 Elite/K8 Pro supports passenger vehicles with 12V outputs only, the commercial vehicle, electric vehicle block on the page is unavailable for Kingbolen K8 series.

Other Useful Functions

• DTC lookup library (Fault code look up library)
• Vehicle coverage inquiry
• Video
• Tutorials
• Camera
• User manual
• Web browser
• File manager
• Feedback*

*: When you're encountering problems during using the K8 Pro, please submit a feedback, the system will return a feedback id; Please send this id to us, and we will do our best to resolve your issue.

Supported Accessories

• Printer
• Videoscope
• Oscilloscope
• Bluetooth Battery Tester (e.g. ThinkEasy bluetooth battery tester)
• TPMS Extension Unit (e.g. Thinkcar Venu series)

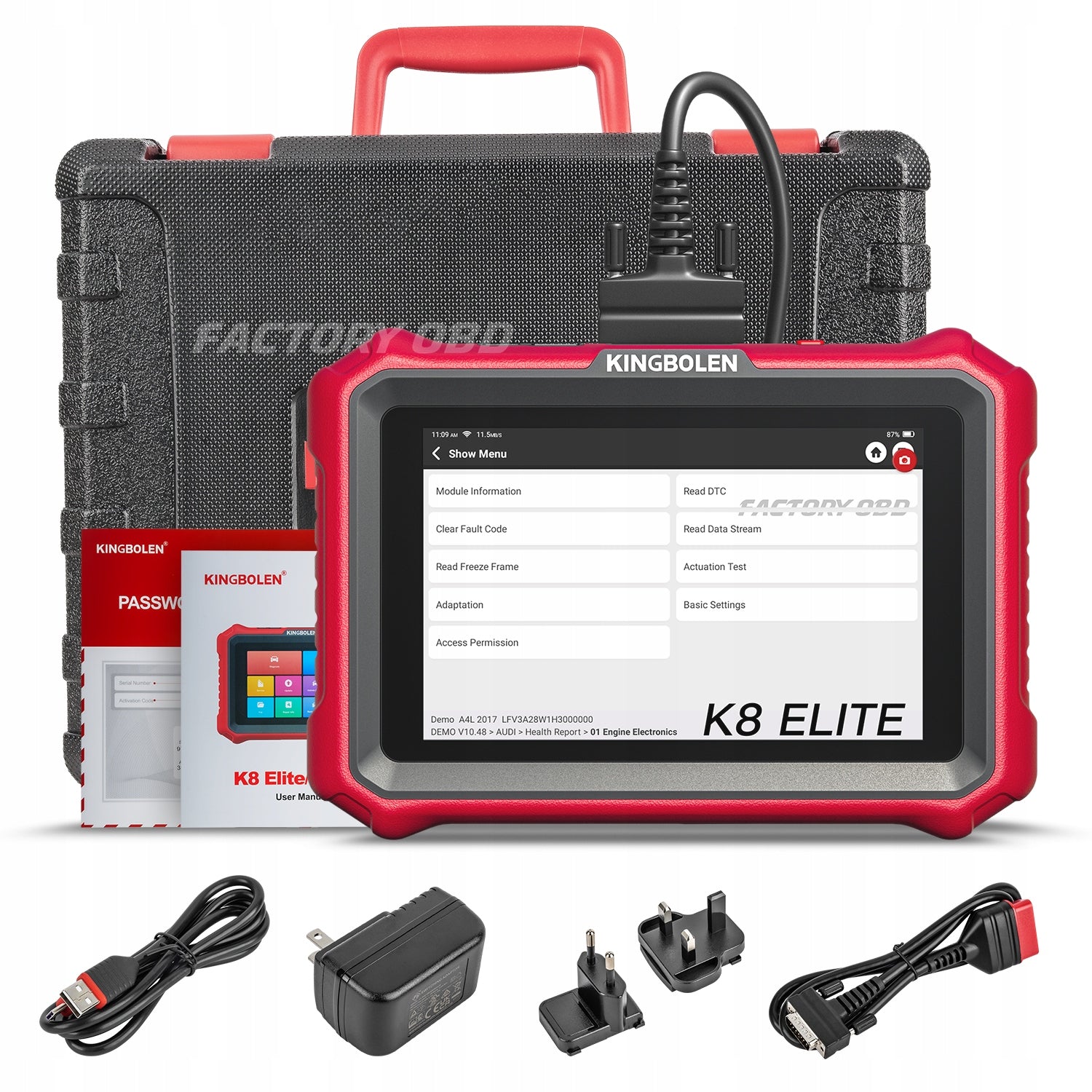

What's in the Box

1. Kingbolen K8 Elite Diagnostic Tablet
2. Diagnostic Main Cable (1.2M) with DoIP Protocol Support
3. USB-A to USB-C Cable
4. Charger Plug in US/UK/EU Standards (3 in 1)
5. Packing List Paper
6. User Manual (10 languages)
7. Activation Code Paper*
8. Plastic Portable Case

*: The device needs to be activated before use.

Tech Specs

• Screen Size: 8 inches
• Resolution: 1280*800
• OS: Android 10
• CPU: MediaTek MT8365
• RAM: 4Gb
• Storage: 64Gb
• Battery: 3.7V / 12600mAh
• Rear Camera: 8 megapixels
• Front Camera: none
• Network: WiFi (2.4/5.0GHz)
• Package Dimension: 364*300*136mm
• Total Weight: 3.3Kg
• Charging Input: 5V/2.5A

------

• Diagnostic Connection: Wired
• Diagnostic Cable Length: 1.2 meters
• Built-in DoIP Protocol Support: Yes
• FCA Security Gateway Support: Yes
• Renault Security Gateway Support: Yes
• VAG Guided Function: Yes
• Bluetooth VCI Dongle: No
• Diagnostic Software Update Access: Lifetime
• Diagnostic Software Access: Lifetime
• Third-party Application Install: Not Supported
• 24V Truck Diagnostics: Not Supported
• Diagnostic Software Language: English, Arabic, Bulgarian, Polish, Persian, Danish, German, Russian, French, Finnish, Khmer, Korean, Dutch, Czech, Croatian, Romanian, Bengali, Burmese, Norwegian, Portuguese, Japanese, Swedish, Serbian, Sinhala, Slovak, Slovenian, Tamil, Thai, Turkish, Urdu, Spanish, Greek, Hungarian, Italian, Hindi, Indonesian, Vietnamese, Traditional Chinese (Hong Kong), Traditional Chinese (Taiwan), Nepali, Telugu
• User Manual Language: English, French, Spanish, German, Russian,Italian, Portuguese, Polish, Dutch, Swedish.
