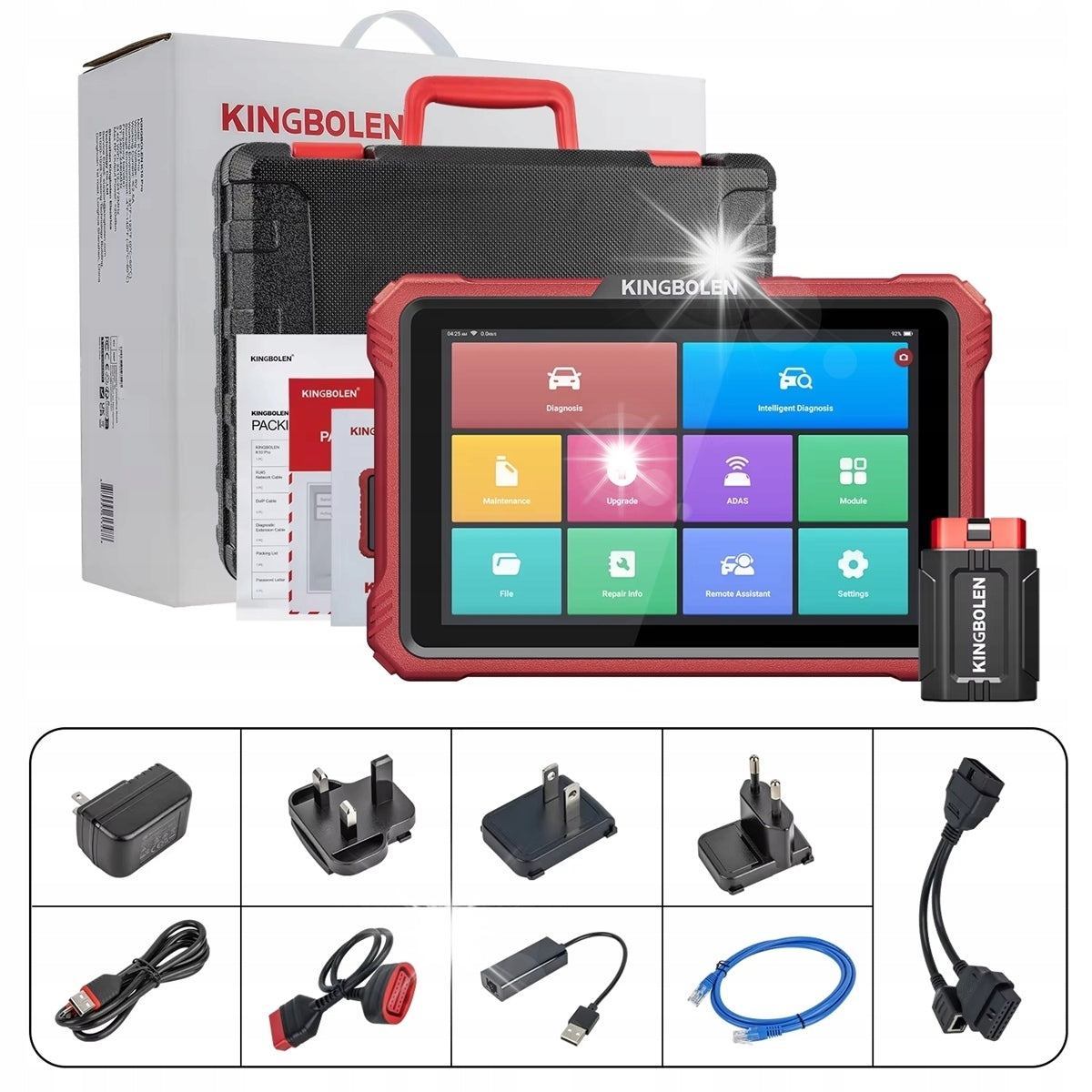

Diagnostinis testeris Kingbolen K10 Pro 10" OBD2 su PL atnaujinimais

Trumpai apie prekę

Prekė: Diagnostinis testeris Kingbolen K10 Pro 10" OBD2 su PL atnaujinimais. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Kingbolen
• Modelis: 158515772

• Polish
• NO SUBSCRIPTIONS - NO BLOCKAGES
• WORKS INDEFINITELY
• PASSENGER AND COMMERCIAL VEHICLES
• ECU ENCODING
• EXECUTIVE TESTS (two-way)
• Access to AutoAuth FCA SGW
• Support Auto VIN Scan + intelligent diagnostics + remote diagnostics
• Supports a unique Topological Map that displays the location of the problem
• 10 inch touch screen
• Support more than 100 car brands from the European, Asian, American, etc. market.
• PASSENGER AND COMMERCIAL VEHICLES
• 40+ SERVICE FUNCTIONS

Supported 27 languages:

English, German, Spanish, French, Russian, Korean, Japanese, Portugal, Italian, Polish, Turkish, Dutch, Hungarian, Traditional Chinese, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Finnish, Czech, Swedish, Danish, Permanent, Serbian, Vietnamese

The device has support for the Polish language, most of the devices have translated Polish. If no translation is required Internet access for online translation.

With each new software update, the translation functions into Polish are extended and support for online translation for Polish is added.

Technical data:

• Display: 10″ touch screen, 1280*720
• System: Android 10.0
• Memory: 4 GB RAM
• Hard Drive: 128 GB of built-in memory
• Battery: 12600mAh
• Processor: 4 core 1.8GHz
• Operating Voltage: 9V~18V
• Wifi 2.4GHz, 5.0Ghz dual frequency

It has the most advanced diagnostic functions such as programming, calibration, parameterization, online login, etc. !

• hidden functions: BMW / MINI / MERCEDES / VW / AUDI / SEAT / SKODA / SEAT / PORSCHE / LAND ROVER / JAGUAR
• operations: VW / AUDI/ SEAT / SKODA
• online coding: VW / AUDI / SEAT / SKODA / MERCEDES / MAYBACH / BMW / MINI / PORSCHE and many more...
• personalizations: BMW / PORSCHE / TOYOTA / SUBARU
• installation of programmable module: FORD / MAZDA
• power balancing: CHRYSLER / GM / FORD
• component programming: VW / AUDI / SEAT / SKODA / BMW / MINI / CHRYSLER / GM / FORD / OPEL / MAZDA / FIAT / HONDA / ACURA / NISSAN / HYUNDAI / KIA / SUBARU / SUZUKI and many more...
• online parameterization: VW / AUDI / SEAT / SKODA
• online calibration: VW / AUDI / SEAT / SKODA
• login to the online service: VW / AUDI / SEAT / SKODA
• component protection: VW / AUDI / SEAT / SKODA
• authorization of geteway SGW: CHRYSLER / FIAT / ALFA / LANCIA
• and many more...

ECU coding - 2 years free update!

We use for reprogramming vehicle control modules, allows you to reprogram adaptive data for specific components after repairs or replacements. You can use the KINGBOLEN K10 to simulate all the possibilities of vehicles.

After replacing control units, damaged actuators or certain parts, we must carry out coding so that the replaced parts are stored and recognized by the ECU. Almost all systems, including engine, fuel system, injectors, gear shifting, ABS, airbag system and others can be coded with this scanner. Before coding, please read and save the information about the original module.

Re-encoding of revised modules/ Vehicle performance optimisation/ Reprogramming/ Hidden functions/ Renewal of ECU coordination/ Reprogramming/ Adaptive data/ Improving fuel efficiency/ Reduction of power losses/ Improving durability of mechanical parts.

KINGBOLEN K10 supports other functions:

Quick check.

It adopts intelligent detection mode. When the vehicle is connected, the system automatically recognizes vehicle information, automatically checks the vehicle and automatically generates a report. Automatic printing can be set, so that no human intervention is needed throughout the process.

Remote support, Our professional team will help you solve your maintenance problems.

In this feature, you can request remote support through third-party software. By sending your device ID to a remote technician or after-sales staff, you can authorize the other party to operate your device remotely to guide you through the issues you encounter while using your device.

Support for Intelligent Diagnostics and Auto VIN.

First, connect the vehicle, press "Intelligent Diagnostics" on the home page, the device will start the intelligent diagnostic program and automatically read the VIN of the vehicle.

Active test (two-way control) 2 years free update

The KINGBOLEN K10 car scanning diagnostic tool offers full two-way control capability to send commands to vehicle systems/components to verify system input/output without the use of vehicle control, e.g.:

• switching on the radiator fan,
• modulation of throttle,
• opening/closing windows,
• operation of mirrors,
• injector buzzer test,
• switching on internal and external lights,
• the sound of the horn,
• Testing of door lock actuators
• and much more

Has access to 34 MOST IMPORTANT SERVICE PROCEDURES:

1. reset service inspection, oil
2. full operation of the EPB electric parking brake (retracting terminals when replacing pads, setting the pressure force of pistons, thickness of pads)
3. ABS brake system venting
4. regeneration of DPF filter (checking dust status, firing, regeneration, adaptation)
5. airbag reset
6. adaptation of automatic transmission
7. training gears in automatic transmissions
8. calibration of the sensor steering angle
9. adaptation of the new battery
10. adaptation of the throttle
11. IMMO support (immobilizer)
12. injector encoding
13. regulation of reflectors
14. regulation of suspension
15. mileage correction ODOMETER
16. Resetting AFS reflectors
17. initialization of szyberdach
18. adaptation of the EGR
19. disabling transport mode
20. STOP/START system reset
21. NOX sensor reset
22. AdBlue reset
23. reset the size of mounted tires
24. calibration foteli
25. TPMS reset (pressure sensors)
26. venting of the refrigeration system
27. calibration of window system, glass
28. change of on-board language
29. Re-initialisation/learning of the AC air conditioning system.
30. Intelligent speed control system.
31. Monitoring the balance of engine power.
32. Calibration of the engine angle.
33. High voltage battery diagnostics.
34. Regeneration of particulate filter (GPF regeneration).

The tester supports virtually all control modules fitted to a given vehicle, including the latest models from the current year:

• engine
• ABS braking system
• airbags
• automatic gearbox
• comfort module
• brake electronics
• ESP/ASR/EBD traction control
• TMPS tire pressure system
• air conditioning
• power steering
• dashboard
• navigation
• audio system
• central locking
• anti-burglary system
• light electronics
• 4x4 drive
• seat memory
• door electronics
• navigation
• parking assistance
• lane keeping assistant
• reversing camera
• cruise control
• and many other vehicle equipment systems. .

KINGBOLEN K10 with over 34 services and reset functions that allow you to reset various systems in your vehicle. Supports more features than other scanners at a similar price (updates added constantly).

1. Oil reset. When your car's service light comes on, it indicates that your vehicle needs servicing. After servicing, you reset the mileage or driving time, the service light will go out and the system will start a new maintenance cycle.
2. Electric throttle adaptation. Electric throttle adaptation involves using the car's decoder to initialize the throttle actuator so that the ECU's learning value returns to its initial state. This allows the throttle (or engine idle) movement to be controlled more precisely, thereby regulating the intake volume.
3. Steering angle reset (SAS). To reset the steering wheel angle, first find the relative zero point for driving the car straight ahead. Taking this location as a reference point, the ECU can calculate the exact left and right steering angle. After replacing the steering angle position sensor, replacing mechanical parts of the steering system (such as the steering box, steering column, tie rod end, steering knuckle), performing a wheel alignment, or repairing the bodywork, you need to reset the steering angle.
4. Battery matching. This function allows you to perform a reset operation on the vehicle's battery monitoring unit where the original low battery voltage information will be cleared and battery matching will be performed.
5. ABS bleeding. When there is air in the ABS system, the ABS bleeding procedure must be performed to bleed the brake system and restore ABS braking sensitivity. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake hose or brake fluid are replaced, the ABS bleeding procedure must be performed to bleed the ABS.
6. Brake reset. If the brake pad wears out on the brake pad sensor line, the sensor line sends a signal to the on-board computer to replace the brake pad. After replacing the brake pad, you need to reset the brake lining. Otherwise, the car signals an alarm.
7. DPF regeneration. DPF regeneration is used to remove particulate matter (PM) from the DPF filter through a continuous combustion oxidation mode (such as high-temperature combustion, fuel additive, or PM reduction catalyst ignition) to stabilize filter performance.
8. Learning how gears work. The crankshaft position sensor learns the machining tolerances of the crankshaft teeth and stores them in the computer to more accurately diagnose engine misfires. If the transmission operation has not been learned for a car equipped with an engine, MlL lights up after starting the engine. The diagnostic tool detects DTC P1336 "gear not learned". In this case, you need to use a diagnostic device to learn the operation of the car's transmission. After successfully learning the transmission operation, the MIL goes out. After replacing the engine ECU, crankshaft position sensor, crankshaft flywheel, or if a "gearbox not learned" error occurs, the gear box must be relearned.
9. IMMO service. To prevent unauthorized keys from using your car, an anti-theft key matching function must be performed so that the car's immobilizer system identifies and authorizes the remote control keys for normal use of the car. When the ignition key, ignition switch, integrated instrument panel, ECU, BCM, or remote control battery is replaced, the anti-theft key matching procedure must be performed.
10. Injector coding. Record the actual injector code or rewrite the code in the ECU to the injector code of the corresponding cylinder to more accurately control or correct the injection quantity in the cylinder. After replacing an ECU or injector, the injector code of each cylinder must be confirmed or re-coded so that the cylinders can better identify the injectors for accurate fuel injection control.
11. TPMS reset. Once the tire pressure warning light has illuminated and maintenance has been performed, the tire pressure reset function must be performed to reset the pressure and turn off the warning light. Tire pressure reset must be performed after maintenance is performed in the following cases: tire pressure is too low, tires are leaking, a tire pressure monitoring device is replaced or installed, tires are replaced, a tire pressure sensor is damaged, and tires are replaced for a car with a tire pressure monitoring function.
12. Suspension adjustment. This function can adjust the body height. After replacing the body height sensor in the air suspension system or control module, or if the vehicle level is incorrect, you must perform this function to adjust the body height sensor to the level calibration.
13. AFS reset. This function is used to initialize the adaptive headlight system. Depending on the outside light intensity, the adaptive headlight system can decide whether to automatically turn on the headlights and then adjust the headlight beam angle accordingly by monitoring vehicle speed and body attitude.
14. A/T Learning. This function can complete the transmission self-learning process to improve shift quality. When the gearbox is disassembled or repaired (after disconnecting the power in some cars), it can lead to delays or thumps when changing gears. In this case, this function is needed so that the gearbox can automatically compensate according to driving conditions, thus achieving a more comfortable and better gear shift quality.
15. Sunroof initialization. This feature allows you to set the sunroof lock, rain closing, sunroof tilt/slide memory function, outside temperature thresholds, etc.
16. EGR adaptation. This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it has been cleaned or replaced.
17. Resetting ODO. a) ODO resetting involves copying, writing or rewriting the mileage value in the odometer chip using the car's diagnostic computer and data cable so that the odometer shows the actual mileage. b) Typically, when the mileage is not correct due to a damaged vehicle speed sensor or odometer failure, it is necessary to reset the ODO after maintenance.
18. Airbag reset. This function resets the airbag data to clear the airbag crash failure indicator. When a vehicle is involved in a collision and the airbag is deployed, the appropriate crash data fault code appears, the airbag indicator illuminates, and the fault code cannot be cleared. Since the data in the airbag computer is one-time use, it is required that all new parts be replaced, but after performing this function, the airbag computer data can be retrieved and the fault code can be cleared, the airbag warning light will turn off, and the airbag computer can continue to be used.
19. Transport mode. To reduce power consumption, the following features may be disabled, including limiting vehicle speed, not waking the door opener network and disabling the remote control key, etc. In this case, transport mode must be deactivated to return the vehicle to normal condition.
20. A/F Reset. This function is used to set or learn the air/fuel ratio parameters.
21. Stop/Start Reset. This function is used to open or close the auto start and stop function by setting a hidden function in the ECU (provided the vehicle has a hidden function and is supported by the hardware).
22. NOx sensor reset. A NOx sensor is a sensor used to detect nitrogen oxides (NOx) in engine exhaust gases. If a NOx error occurs and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine ECU.
23. AdBlue (diesel exhaust filter) reset. After replacing or topping up the diesel exhaust gas treatment fluid (automotive urea), a urea reset operation is necessary.
24. Seat calibration. This feature is used to adjust memory seats that have been replaced and repaired.
25. Bleeding the cooling system. Use this function to activate the electronic water pump before bleeding the cooling system.
26. Tire reset. This function is used to set the size parameters of the modified or replaced tire.
27. Window calibration. This function is designed to adjust the door windows to restore the initial ECU memory and restore the automatic window up and down function.
28. Change language. This function is used to change the vehicle system language on the vehicle control panel.
29. Reinitialize/learn the AC system. If the vehicle's ECU or A/C actuator is replaced, or the ECU memory is lost, the A/C initialization must be relearned.
30. Intelligent speed control system. When replacing the intelligent vehicle speed control system and fitting after repair.
31. Monitoring engine power balance. During the power stroke of each cylinder, the power balance monitor controls the acceleration of the crankshaft, thus determining the relative power delivered by each cylinder.
32. Motor angle calibration. There is a discrepancy between the rotor position detected by the motor angle position sensor and the actual rotor magnetic field position, so motor angle calibration is necessary.
33. High voltage battery diagnostics. For diagnosis and detection of high voltage battery status information.
34. Diesel particulate filter regeneration (GPF regeneration). After long-term use of the particle trap, fuel consumption may increase, engine power output may decrease, in which case the GPF should be replaced or regenerated.

Abarth, Acura, Alfa, Audi, Bentley, BMW, Bugatti, Chrysler, Citroen, Dacia, Daewoo, Daihatsu, Dodge, Fiat, Ford, Ford, GM, GTR, Honda, Hyundai, Infiniti, Isuzu, Jaguar, Jeep, Kia, LamborGhini, Lancia, Land Rover, Lexus, Suzuki, Maserati, Maybach, Mazda, Mercedes, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Saab, Scion, Seat, Skoda, smart, Sprinter, SsangYong, Subaru, Suzuki, Toyota, Vauxhall, Volkswagen, Volvo and others less popular in the EU.

FEATURES AND FUNCTIONS:

• Serving over 100 brands, EUROPE, USA, ASIA.
• Support for all electronic systems.
• Reading and clearing error codes, ECU information, Live data.
• Lots of service functions such as Oil Reset, EPB, BMS, SAS, DPF, Injector, Trans adaption and more.
• Smart AutoVIN technology for easy vehicle identification.
• Automatic software update system with real-time push-up notifications via Wi-Fi.

The tester is a standalone workshop device, a diagnostic combine equipped with a 10-inch touch screen, armored, rugget workshop housing! It is powered by a very fast Android operating system and allows for wireless diagnostics via a Bluetooth interface.

Original, legal equipment with 2 years of online software updates from the diagnostic tool!

Diagnoskop works in Polish , it is the NEWEST and MOST ADVANCED version of the software created by Kingbolen engineers!!!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kingbolen
Parametry	Product weight with unit packaging	3.8 kg
Parametry	EAN (GTIN)	5907919168638
Parametry	Manufacturer code	158515772
Parametry	Batteries included	yes
