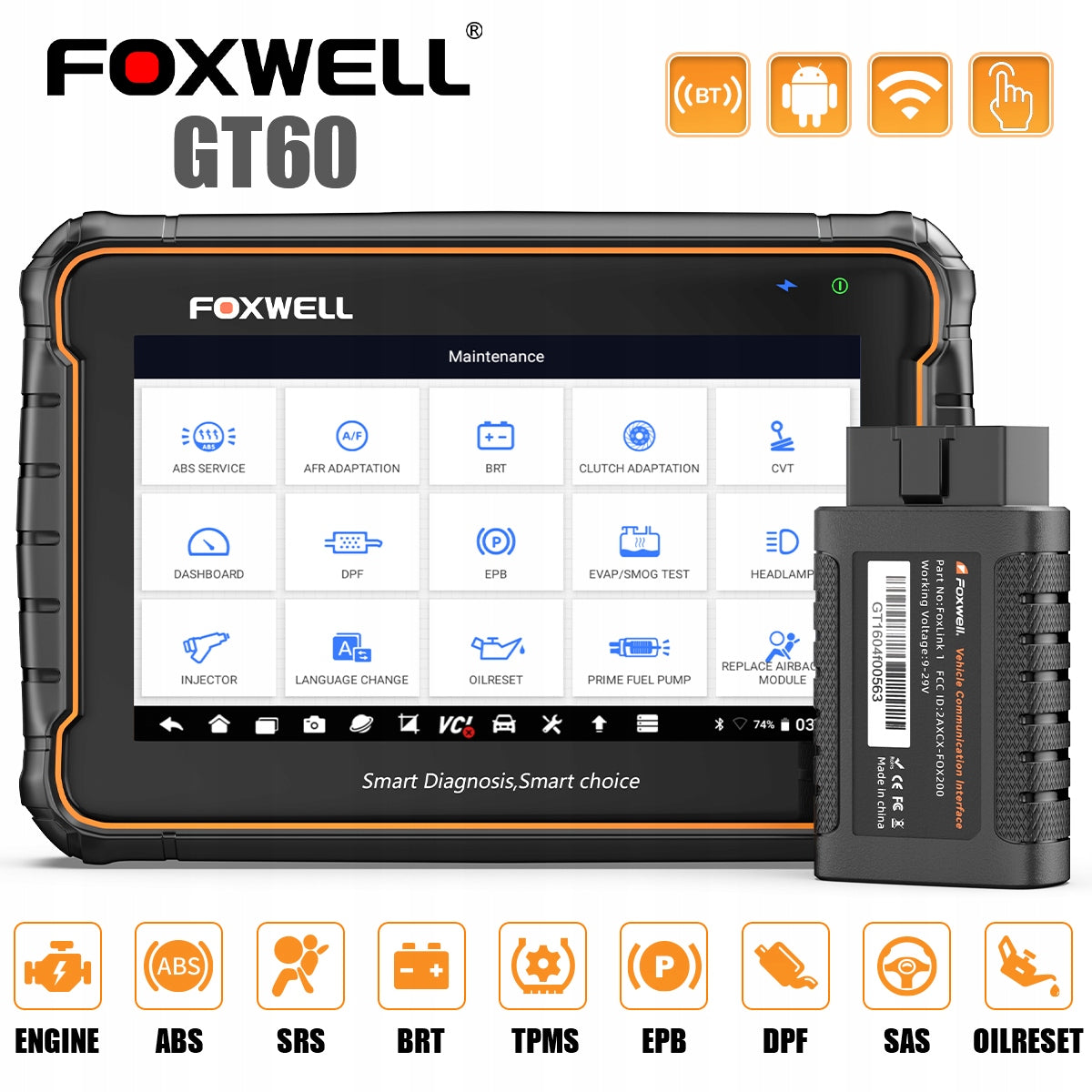

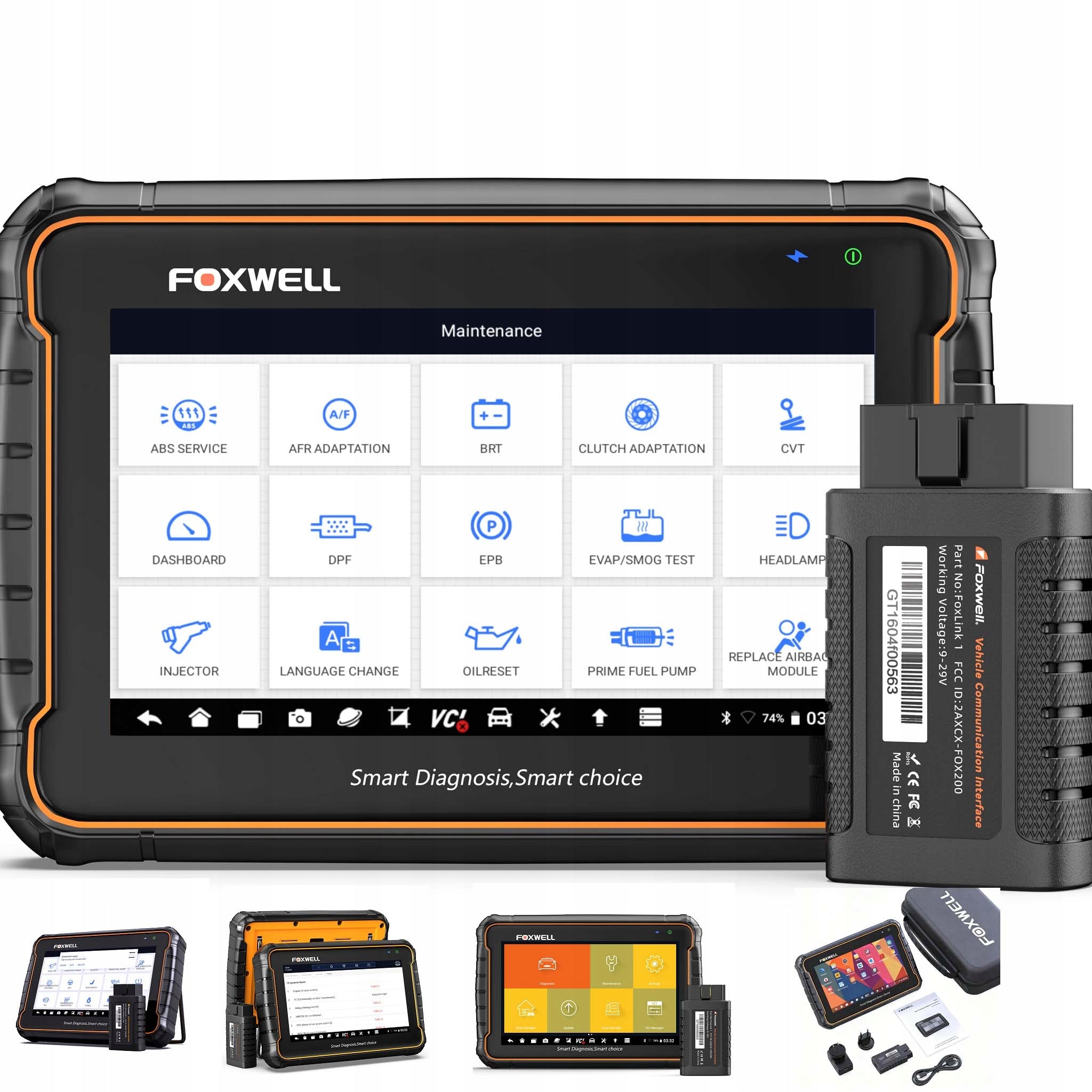

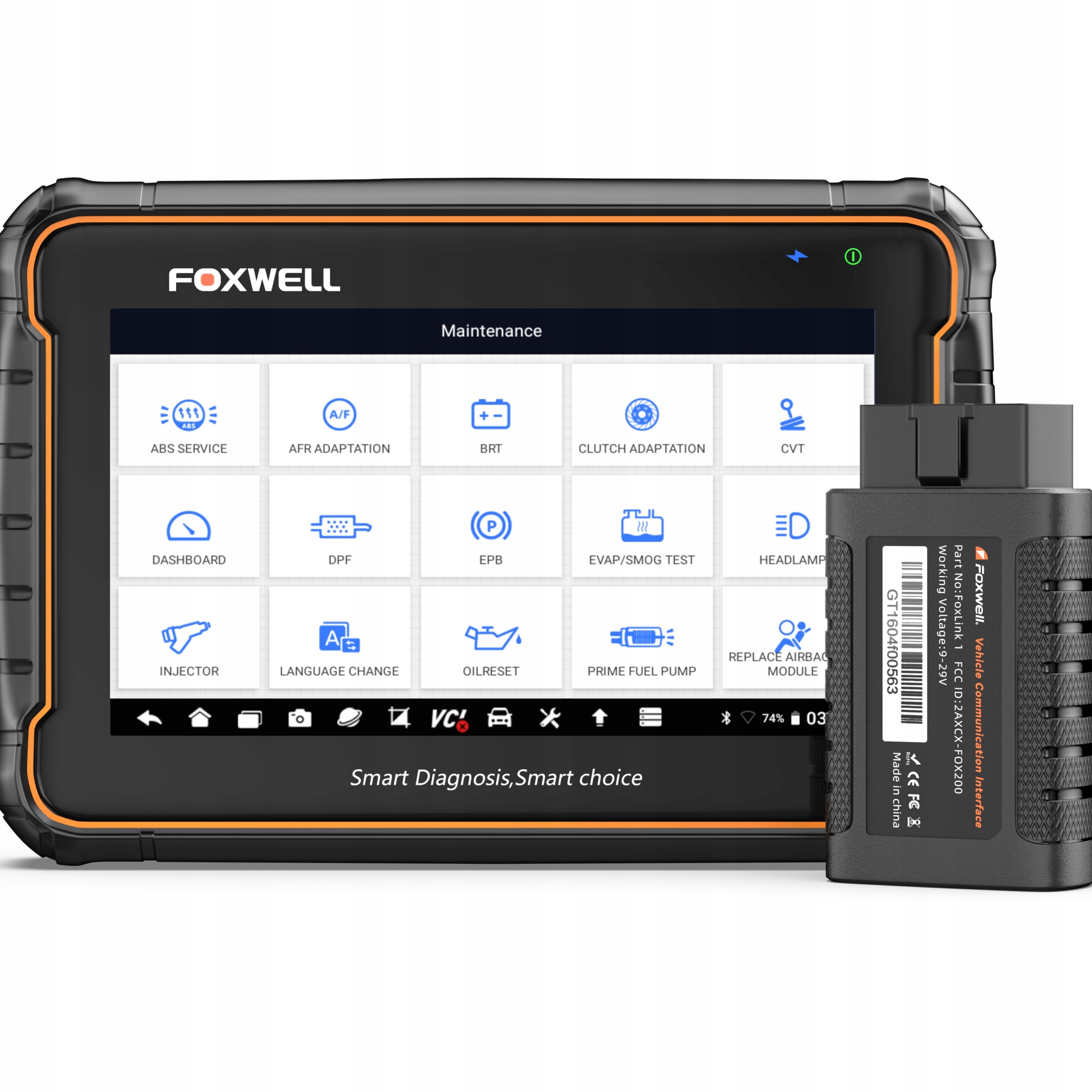

Diagnostinis testeris FOXWELL GT60 2026 7" Android 9.0 OBD2

Trumpai apie prekę

Prekė: Diagnostinis testeris FOXWELL GT60 2026 7" Android 9.0 OBD2. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Foxwell
• Modelis: BC00395_4

The auction is for the FOXWELL GT60 diagnostic tester visible in the photo, which is the latest product from FOXWELL company

This tester is an independent maintenance workshop equipment, equipped with a 7-inch touch screen, armored waterproof and workshop carpet shell! It is supported by the Android 9.0 operating system. Equipped with a 4000mAH battery, it supports complete full OBD functionality, 31 envoy functions, motion testing, bidirectional functionality, 2-Year Free Updatesand more.

Product Introduction

Model:GT60

Screen:7"diagonal,daylight readable color LCD screen:1024*600 pixel

Touch with Gloves:Supported

Operating System:Android System，Android 9.0

CPU:Quad-Core.1.3Ghz

Memory:1GB DDR3L

SSD Hard drive:

Communication Interface.32GB

Battery:4000mAh, lithium-polymer battery. Chargeable via 5VACDC power supply

Protocols:ISO9141-2 ISO14230-2(KWP2000),SAEJ1850-PWMSAEJ1850-VPW,SAEJ2740(GM UART). UART Echo ByteProtocol(SAEJ2809、SAEJ2818).HondaDiag-HProtocol.SAEJ2610(SCI.ISO 11898.ISO15765-4.KW81.KW82,GWM3089(Single WireCAN,SAEJ2819(TP2.0).SAEJ3054(TP1.6)IS011898-3Low SpeedFaut-Tolerant CAN), SAE J2284(High Speed CAN)

Dimensions:205*135*30mm

FOXWELL GT60- Wireless diagnostic scanner, suitable for OBD2 vehicles, capable of reading all systems

GT60 diagnostic tester is a newly developed diagnostic scanner equipped with the Android 9.0 operating system. It inherits Foxwell's advantages in automotive fault diagnosis technology, such as covering multiple suppliers, rich service functions, and accurate testing data. For busy repair shops or workshops that require the latest technology at highly competitive prices, it is undoubtedly an ideal choice.

The most important reason for choosing Foxwell GT60:

Compatible with the latest 2023/2024 models, including passenger cars sold worldwide SUV、 Small trucks and light trucks. It is crucial for car repair shops to have comprehensive support and be able to efficiently and quickly repair each car. The GT60 provides fast and convenient diagnostic services for over 108 models in the United States, Asia, and Europe.

If you have any questions about model compatibility.

Please leave us a message in the following format and we will reply within 24 hours.

For example: xx, 2005, 2.0cc, diesel

Supports 24+reset services

Complete OBD2 basic functions

01- Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

02- EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

03- BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

04- DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

05- SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

06- TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

07- ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

08- Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

09- Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

10- Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY.  Start the car and drive.  Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern.  After you follow this programming method of the TCU / ECU drive the car.

11- AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

12-Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled.  Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

13-Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine.  In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors.  It must need re-learning throttle sensor position after clearing or repair.

14-Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

15-EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

16-A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

17-Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

18-Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

19-Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

20-AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality.  When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem.  In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

21-Language Change

This function is used to change the system language of the vehicle central control panel.

22-Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust.  lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

23-KM Reset

a) KM reset is to copy,write, or rewrite the value of kilometers in the chip of KM by using a car diagnostic computer and data cable, so that the KM shows the actual KM.

24-Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

25-Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

26-Special features are still being added

One click update via Wi Fi

Easily download software updates, make it simple, connect your car with just one click, and solve almost all your car problems!

Supports over 90 brands and over 20000 models

American influence:

Chrysler, Dodge, Jeep, Ford, General Motors, General Motors Brazil (applicable only to the Brazilian market)

Asia coverage:

For Toyota, For Acura,For Daihatsu, For Daewoo,For Fuso (benz), For Gtr,For Hyundaicv,For Hyundai For Honda,For lsuzu,For Infiniti,For Kia.For Lexus, For Mitsubishi, For Mazda,For Marut, For Nissan For Proton,For Perodua, For Suzuki, For Subaru, For Ssangyong, For Scion, For Samsung

European coverage:

For Audi, For Astonmartin, For Alfa, For Abarth, For Bugatti, For Bmw,For Bentley, For Citroen For Ds, For Dacia, For Fordeu, For Fiat, For Ferrar,For lvecold, For Jaguar, For Landrover For Lancia, For Lamborghin, For Mini,For Maybach, For Maserati,For Anld,For Mercedes For Opel, For Porsche,For Peugeot, For Rolls-royce, For Renault, For Sprinter, For Smart For Skoda,For Seat, For Saab, For Volkswagen Cv, For Volkswagen, For Volvo, For Vauxhall

Chinese Coverage:

For BYD, For Briliance, For Brilbmw,For Bjev, For Baicsenova, For Baicmotor,For Baichuansu For Chery Ne,For Chery, For Changhesuzuki, For Changheauto,For Changan, For Defg For Dexk, For Devenucia, For Denissan, For Englon,For Emgrand, For Fordchina, For Foton For Fawdaihatsu, For Guangqimit,For Greatwall, For Gleagle, For Geely, For Haima,For Hafei For Jiangling,For JAC, For Karry, For Lifan, For Landwind, For Mazdachina, For MapleFor Qorosauto,For Rich, For Rely, For Sgmw, For Saicmg, For Saicmaxus,For Tifaw, For Zotye

The GT60 provides comprehensive testing for all systems, including ABS, SRS, engine, transmission, braking system, emissions system, fuel system, lighting system, wiper system, etc. It also includes 24 (still growing) commonly used hot services for achieving complete diagnostic and reset functions in daily maintenance.

The GT60 diagnostic tester provides comprehensive testing for all systems, including ABS, SRS, engine, transmission, braking system, emissions system, fuel system, lighting system, wiper system, etc. It also includes 24 (still growing) commonly used hot services for achieving complete diagnostic and reset functions in daily maintenance.

In addition, it supports 4 OBDII modes with 10 display modes (analog indicator, text, odometer, and digital indicator), and the GT60 wireless connection provides better diagnosis for garages and DIY enthusiasts who frequently need to repair their cars.

Real time data recording and playback allow you to combine 4:1 real-time data+single and multiple chart types in a chart. It also covers over 108 car brands worldwide and has more than 20000 models.

Other functions include one touch AutoVIN and AutoScan for intelligent diagnosis, using Android 9.0 for intelligent scanning of the system, one touch software update via Wi Fi, free Wi Fi upgrade, generating and saving diagnostic reports in PDF format, sharing diagnostic results via email/Bluetooth/printer (when connected to the same Internet) and multilingual support (13): Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Greek.You can transmit any language you need through the device SN code

Finally, TeamViewer provides real-time support for the technical team using the TeamViewer remote control. This device adopts bidirectional technology, which can not only diagnose problems, but also take action to start repairing. The GT60 BT can activate and trigger all available modules, which is essential when you want to check if the actuator or sensor is working properly.

Support complete system diagnosis:

Read and clear the code of all electronic modules: This option can help you accurately identify the problem with the car! It allows you to check if the system parameters are normal.

Including: Read and Clear Codes of All Electronice Modules, Help you accurately identify car’s problem! This option allows you to detect whether the system parameters are normal or not. Including : Engine System, Airbags System, ABS System, Transmission System, Brake System, Alarm System, Keyless Entry System, TPMS System, Steering System, Wheel System, Fuel System, etc.

Read and clear all available system codes, turn off MIL (indicator lights), and display real-time data in text, graphics, and simulation form for easy data viewing.

Foxwell GT60 Diagnostic Interface – Smart Diagnostic Features

Time-Saving Tools:

✔ Auto VIN Scan - Instant vehicle ID

✔ Data Graphing - Visual parameter analysis

✔ Remote Support - Expert help on-demand

Workflow Boosters:

• One-click online feedback

• Printable diagnostic reports

• Cloud data storage

Pro Advantage:

• 50% faster diagnostics
• Reduces comebacks
• Workshop efficiency tool

Foxwell GT60 – Professional Bi-Directional Auto Scanner

Key Features:

✔ 24+ Special Functions - Advanced diagnostics & resets

✔ Bi-Directional Control - Active component testing

✔ Auto VIN Detection - Instant vehicle recognition

Smart Technology:

• 2-Year Free Online Updates

• Remote control capability

Professional Use:

• Full-system diagnostics
• Oil/fuel level monitoring
• Dealer-level programming
