Diagnostinis skeneris Universalus OBD2 su viso gyvenimo atnaujinimu

Trumpai apie prekę

Prekė: Diagnostinis skeneris Universalus OBD2 su viso gyvenimo atnaujinimu. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Kingbolen
• Modelis: CAN FD TESTER THINKDIAG EDIAG ELITE THINKTOOL

DIAGNOSTIC SCANNER KINGBOLEN EDIAG ELITE（Shipment is sent from Allegro warehouse, and some packages can be delivered even on the same day! ）

Language: Polish

Compatibility: Android/iOS

Updates: Free, online, lifetime

Vehicles: Passenger and Commercial

Brands: Support more than 120 brands

Diagnostic functions: Full OBD2 functions

Service functions: 15 most important procedures (e.g. oil reset, EPB, DPF regeneration)

Active Test: Two-way communication and control of actuators

Protocols: CAN FD

Intelligent Functions: Automatic VIN Recognition

AutoAuth: FCA SGW (account must be purchased by yourself)

Connectivity: Bluetooth

Hardware: Latest version, high functionality and great value for money

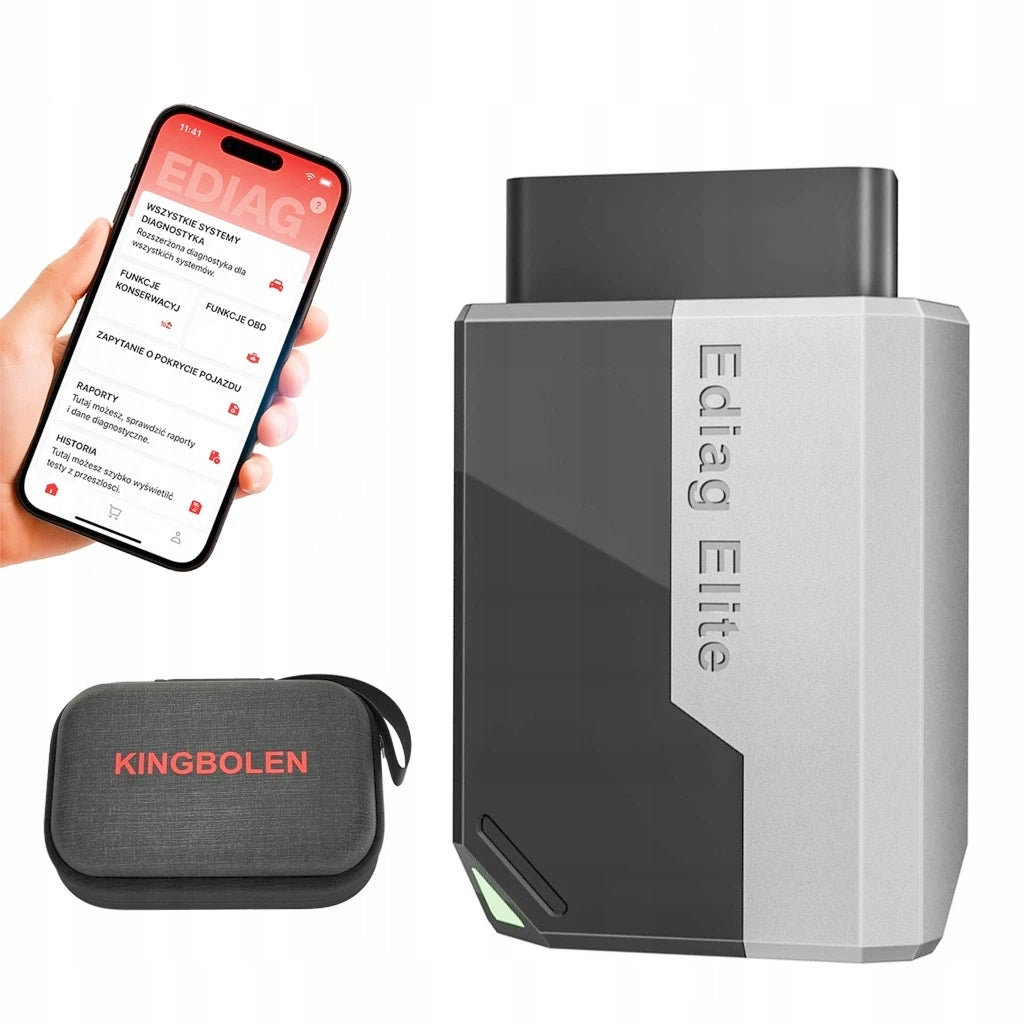

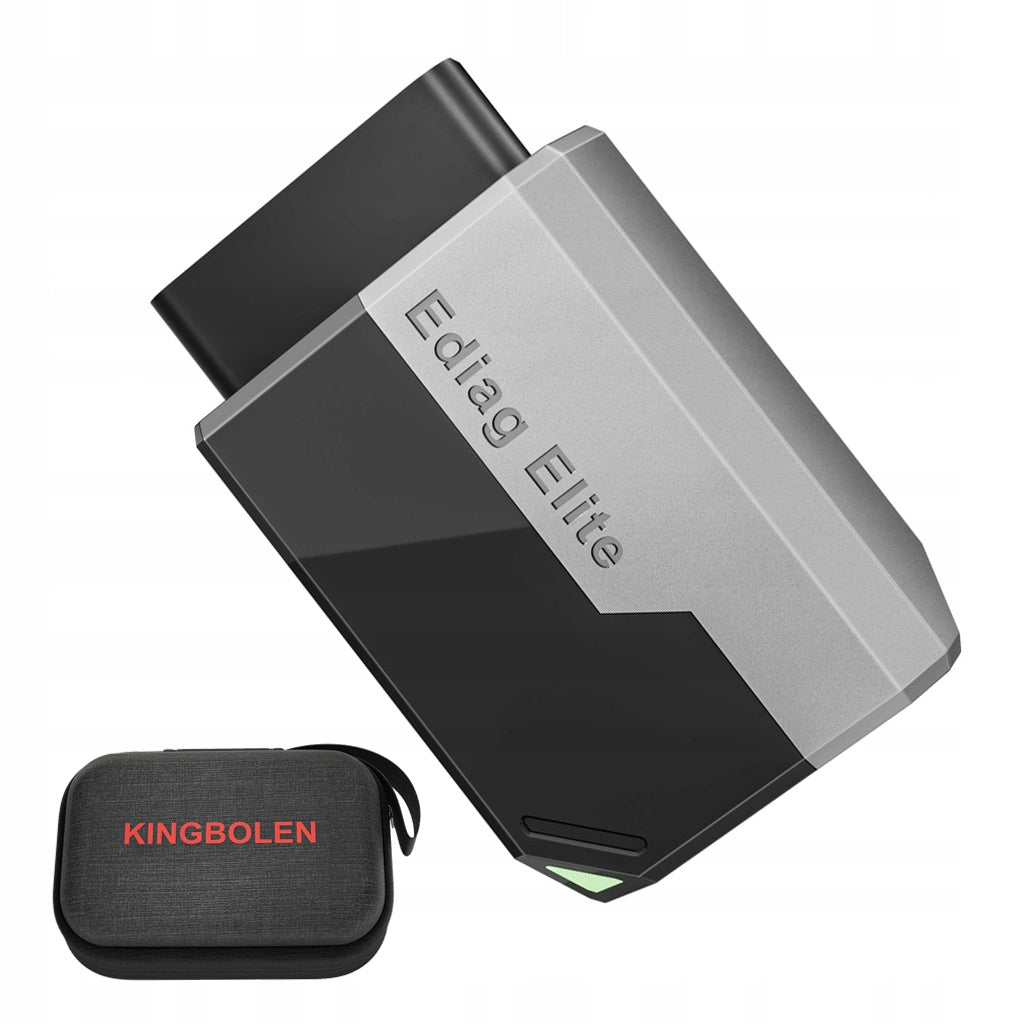

The set includes:

KINGBOLEN EDIAG ELITE

Sturdy case with logo

Original packaging

Instructions for registration and update in Polish

Supported languages:

The device supports 22 languages: English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai.

Support for Polish language:

Most of the interface is already translated into Polish. In case of missing translations, an Internet connection is required in order to use online translation.

Updates:

Each new software update extends polish translations and adds support for online translations, ensuring full functionality of in Polish.

Key features of the device:

Lifetime free updates: car software, reset functions and active tests.

CAN FD protocols: compatible with modern vehicles (e.g. GM since 2020).

Support for 22 languages, including full support for Polish.

Full OBD2 functionality: all 10 modes permanently available.

Additional features: automatic VIN recognition, diagnostic data recording, email reports, and more.

Supported protocols: ISO 14230-4 (KWP2000), ISO 15765-4 (CAN), ISO 9141-2, SAE J1850 and others.

OE diagnostics at the level of systems: ABS, SRS, engine, gearbox, brakes, battery, TPMS and others.

15 service functions: oil reset, steering angle calibration, DPF filter regeneration and more.

Support for CAN FD protocol

The Ediag Elite interface is equipped with CAN FD protocol, thanks to which it supports a much larger number of vehicles. It is the only product in this price range compatible with CAN-FD, enabling diagnostics of the latest GM models and other brands produced after 2020.

The use of advanced CRC algorithms allows you to transfer more data – from 8 to 64 bytes in one CAN frame. This ensures faster communication, lower risk of undetected errors and significantly higher comfort compared to standard scanners.

Two-way communication – Active Test

Active Test allows direct control of vehicle actuators from the application, m.in.:

Starting the radiator fan

throttle control

opening and closing of windows

Turning lights and horn on and off

Software installation and device registration

The installation and registration process is quick and intuitive:

Download the Ediag app from the Google Play Store (Android) or App Store (iOS).

Sign up for the app by entering your email address and setting your password.

Enter the Serial Number and Activation Code in the manual.

Connect the device to the OBD diagnostic socket in the vehicle and pair it in the application – pairing is done automatically.

Download the software of selected brands and service functions and start vehicle diagnostics.

Original, legal equipment with free updates indefinitely.

Tester capabilities

(depending on the make, model and year of the vehicle)

• reading fault codes
• erasure of fault codes
• preview of real parameters (live data) – charts, indicators, several display modes
• coding of subassemblies
• calibration of the gearbox
• Reset service and oil inspections
• coding of injectors
• key encoding
• DPF particulate filter support
• Operation of the EPB electric parking brake
• automatic scanning of all vehicle modules
• reading information about control modules (ECU)
• erasure / cleaning of learned values
• reading the VIN number
• bleeding of the braking system
• Steering wheel angle sensor calibration
• adaptation of idling
• reading the ignition advance angle
• and many other diagnostic functions

Access to 15 most important service procedures:

• Reset service and oil inspection
• full operation of the EPB electric parking brake
• (retracting clamps when replacing blocks, setting the pressure force of pistons, configuration of the thickness of blocks)
• ABS brake system venting
• DPF filter regeneration (checking the degree of clogging, firing, regeneration, adaptation)
• adaptation / training of gears in automatic transmissions
• Steering wheel angle sensor calibration
• adaptation of the new battery
• throttle adaptation
• IMMO system support (immobilizer)
• coding of injectors
• adjustment of AFS headlamps
• suspension adjustment
• Initialization of sunroof
• adaptation of the EGR
• TPMS reset (tire pressure sensors)

⚙ Supports virtually all control modules with which a given vehicle is equipped, depending on the make, model of the vehicle:

• engine and automatic transmission
• ABS/ESP/ASR/EBD braking system
• airbags and curtains
• comfort module
• Automatic air conditioning
• power steering
• dashboard
• Navigation and audio system
• central lock and anti-burglary system
• light electronics
• 4WD/4x4/AWD drive
• memory of armchairs
• door electronics
• Parking assistance and reversing camera
• Lane maintenance assistant
• rain and dusk sensor
• cruise control ASC/DSC
• and many other vehicle equipment systems.

Supported control modules

(depending on make and model of vehicle)

The device supports virtually all control modules that the vehicle can be equipped with, m.in.:

• engine and automatic transmission
• ABS / ESP / ASR / EBD braking system
• airbags and curtains
• comfort module
• Automatic air conditioning
• power steering
• set of indicators / dashboard
• Navigation and audio system
• central lock and anti-burglary system
• lighting electronics
• 4WD / 4x4 / AWD drive
• memory of seat settings
• door electronics
• Parking assistance system and reversing camera
• Lane maintenance assistant
• rain and dusk sensor
• cruise control ASC/DSC
• and many other vehicle equipment systems

This versatile device has an extensive diagnostic system coverage for more than 120 makes and models worldwide.

The professional device offers OE-level diagnostics such as full vehicle scanning, reading and erasing fault codes, real-time data stream, special functions, 15 different maintenance reset functions, module replacement, modifications, personalization, adaptations and many more...

This intelligent diagnostic system has been specially developed for individuals and small workshops.

Diagnoscope works in Polish, this is the LATEST and MOST ADVANCED version of the software created by ThinkCar engineers!!!

✅SUPPORTED BRANDS:

Abarth, Acura, Alfa, Audi, Bentley, BMW, Bugatti, Chrysler,Citroen, Dacia, Daewoo, Daihatsu, Dodge, Fiat, Ford,Ford, GM, GTR, Honda, Hyundai, Infiniti, Isuzu, Jaguar,Jeep, Kia, LamborGhini, Lancia, Land Rover, Lexus, Suzuki,Maserati, Maybach, Mazda, Mercedes, Mini, Mitsubishi,Nissan, Opel, Peugeot, Porsche, Renault, Saab, Scion,Seat, Skoda, smart, Sprinter, SsangYong, Subaru, Suzuki,Toyota, Vauxhall, Volkswagen, Volvo and others less popular in the EU.

FEATURES AND FUNCTIONS :

Support more than 120 brands, EUROPE, USA, ASIA. Support all electronic systems.Reading and erasing error codes, ECU information, Live data.Smart AutoVIN technology for easy identification of vehicles.Automatic software update system with real-time push-up notifications via Wi-Fi.
