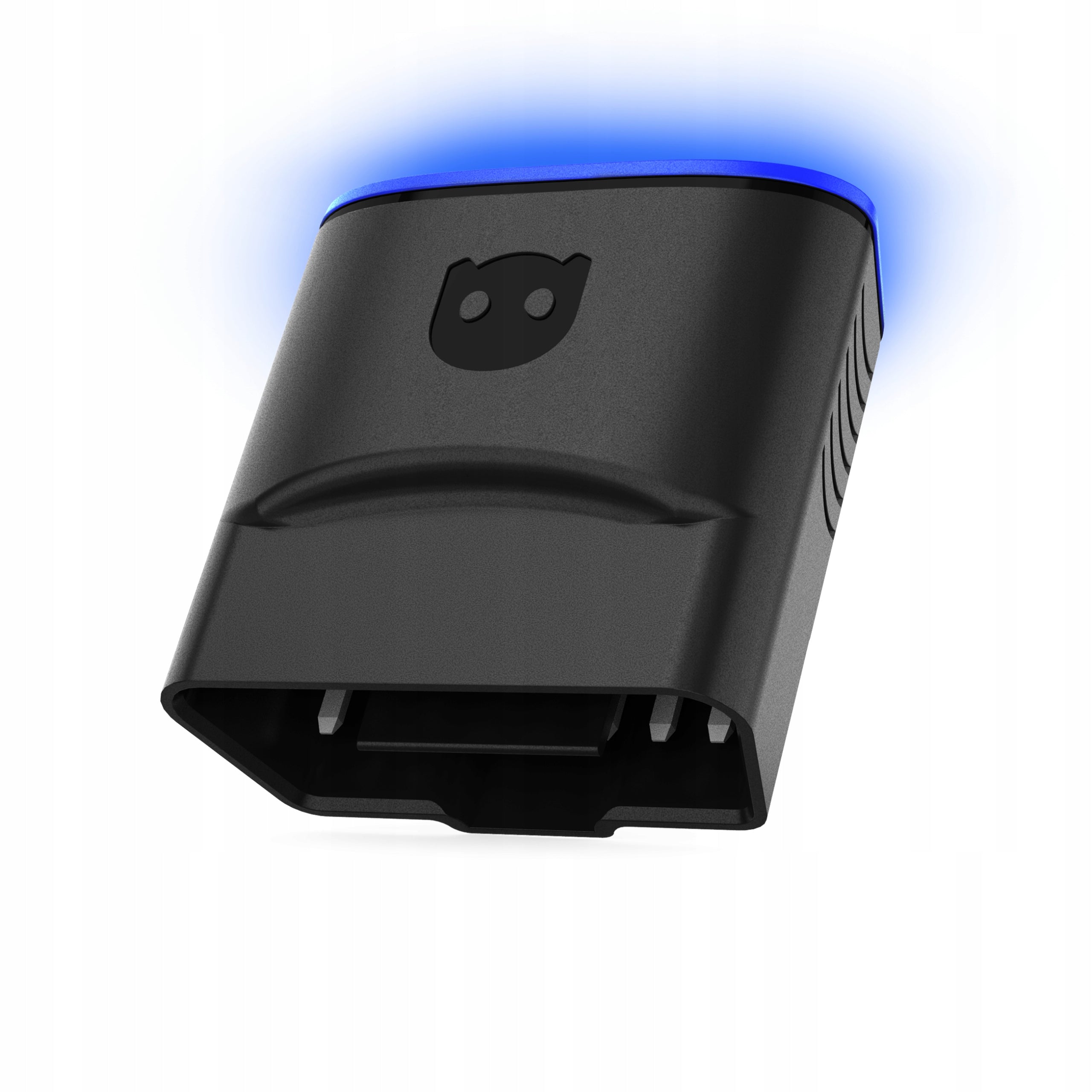

Diagnostinis įrenginys OBD Eleven NextGen 3 ULTIMATE VAG BMW Toyota Ford

Trumpai apie prekę

Prekė: Diagnostinis įrenginys OBD Eleven NextGen 3 ULTIMATE VAG BMW Toyota Ford. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: OBDeleven
• Modelis: P1058

On-board computer / OBD-2 diagnostic interface for Android/iOS/Huawei

OBD Eleven Next Generation Ultimate is the best easy-to-use diagnostic interface for VAG, BMW, Toyota and Ford cars:

• Volkswagen
• Audi
• Skoda
• Cupra
• Seat
• BMW
• Mini
• Rolls-Royce
• Bentley
• Lamborghini
• Toyota
• Lexus
• Ford (US models only).

Key Features and Functions of the ULTIMATE PACK:

• Features included in the PRO license, e.g., access to manual coding and adaptations (VAG Group vehicles only) for one year
• Unlimited access to One-Click Apps for one year - quick car personalization without difficult manual coding
• Priority customer support
• Magnetic phone holder and a stylish case for the interface included
• Latest version - NextGen 3 - also supports the FORD brand (US models - Fusion, Escape, Edge, Explorer, Bronco, Ranger (USA), F-150 / Raptor, Mustang, Transit.)
• Support for modern CAN-FD buses (5x faster data transfer)
• Full vehicle diagnostics - scanning all control units (ECU), reading and clearing errors, generating diagnostic reports
• Support for VAG, BMW, Toyota, and **Ford brands** - extended diagnostic and coding functions for Volkswagen, Audi, Škoda, SEAT, BMW, MINI, Toyota, Lexus, and Ford
• Basic OBD2 diagnostics - for all other brands supporting the CAN-bus protocol (reading engine errors, clearing Check Engine light)
• One-Click Apps (additional fee applies) - activate pre-made functions and car personalization (e.g., automatic mirror folding, welcome lighting, start-stop deactivation) with one click
• Live Data - view real-time vehicle operating parameters (engine RPM, fluid temperatures, turbo pressure, battery voltage, etc.)
• Simple Bluetooth connection - just plug the device into the OBD2 port and pair with your smartphone (Android, iOS, Harmony OS)
• Intuitive mobile app OBDeleven - modern interface, reports, personalization, and management of multiple vehicles under one account
• Official manufacturer licenses and regular software updates - full compatibility with VW Group, BMW Group, Toyota Group, Ford Group systems without risk of communication errors
• Universal application - for drivers, workshops, and car tuning enthusiasts.

Comparison table of OBDeleven models:

http://blog.konektor5000.pl/index.php/poradniki/64-motoryzacja/206-obd-eleven-porownanie-wersji-interfejsow-przewodnik-tabela

The OBD Eleven application is in Polish.

OBDeleven 3 ULTIMATE is the most extensive version of the well-known Bluetooth diagnostic interface.

Due to its huge functionality, OBD Eleven is often called mobile VCDS.

In combination with the OBDeleven mobile application for Android, iOS or HarmonyOS, the device allows you to perform advanced diagnostics, read and delete errors, monitor parameters in real time, as well as adjust the vehicle functions to your preferences.

Designed for drivers who want to have complete control over their car - from diagnostics and maintenance, to deep customization of settings and activation of hidden functions.

As part of the ULTIMATE license, you get unlimited access to the "One-Click Apps" function - ready-made packages for modifying the comfort and functionality of the vehicle, which you activate with one click in the application.

Another advantage is the expanded capabilities for the VAG group, e.g. long coding, adaptations (“long adaptation”), control unit reset (UDS) and creating your own applications using the OCAbuilder tool - all this makes ULTIMATE Pack a professional tool.

Thanks to the next-generation 5x CAN-FD interface, the device provides much faster communication with vehicle control units, wider compatibility and more accurate readings.

Connection to the vehicle is quick and convenient - just connect the device to the OBD2 port, start the application and start working.

One-click activated functions are designed for ordinary users and do not require additional knowledge in the field of vehicle programming.

Experienced users can encode and change settings on their own - that's why we also recommend this interface to mechanics and users of VAG Internet forums where there is a lot of information.

Currently, more than 500 different functionalities are available for different vehicles.

Additional app features - one click activated - One Click:

• performing service operations (resetting the oil condition, replacing brake pads, etc. )
• adjustment of car lights (daylights, cornering direction lights, etc. )
• controlling the comfort system settings (automatic door lock, opening/closing windows, etc. )
• activation of the function after completion/replacement of elements (LED lights illuminating the registration, washer fluid level sensor, etc. )
• activation of attractive visual functions (indicator animations, optical parking system, etc. )
• adding additional functions (lap timer, media control menu, etc. )
• disabling unwanted functions (voice reminders, warnings about not fastening belts, etc. )

Check out the available features for your model:

https://obdeleven. com/customizations

Ultimate gives much more than simple diagnostics - the main functions are:

• encoding - modifying driver settings (e.g. Enabling/disabling various functions)
• adaptations - adjusting the parameters of control units, e.g. calibration of sensors
• driver reset (UDS) - the ability to reset control units
• advanced diagnostics - e.g. reading frozen frames of error codes (freeze frame), basic settings (basic settings) after repairs, etc.
• Hybrid / EV - for hybrids and EVs it is possible to check the status of the hybrid battery live (temperature, balance) - this is very useful for VAG-hybrids
• Priority customer support – PRO subscribers have priority in technical support

OBDeleven PRO VAG Plan is an advanced license designed for users of Volkswagen Group cars (VW, Audi, Skoda, SEAT/CUPRA, as well as Bentley or Lamborghini).

It opens up full possibilities of working with vehicle controllers, so you can independently carry out diagnostics, modifications and configurations that normally require a visit to the service.

The PRO plan allows for manual coding and adaptations, which means that you can make changes to your car settings in the same way as specialists do.

It gives access to all diagnostic functions, such as reading and analyzing frozen error frames, performing basic settings after repairs, resetting drivers and creating backups of their configuration.

Thanks to this, you can carry out any action safely and consciously.

The PRO subscription also includes unlocking the latest SFD protections used in new VAG models, which allows modifications to drivers protected from unauthorized changes.

This is a great solution for those who want to quickly activate popular features, such as Clock hands test, cornering lights or hidden media options.

Application features from the PRO version for VAG:

• stop-frame with problem code (frozen frames)
• advanced information from the control unit
• Live data
• graphs
• coding
• coding II
• long coding
• information from subordinate control units
• coding of subordinate control units
• list of gate installations
• adaptation
• long adaptation
• Basic settings
• Exit test
• access security
• Finding login credentials
• Control unit reset (UDS)
• change of diagnostic service
• backup of the control unit
• history of programming of the control unit
• history of car programming.

The above features require advanced knowledge of vehicle programming and are recommended only for professionals (and brave ;)).

Compatibility and availability of functions

OBDeleven 3 is officially licensed by leading car manufacturers and developed in collaboration with their technical departments.

Feature availability varies by region and licensing policy.

VAG

(VW, Audi, Škoda, Cupra, Seat, Bentley, Lamborghini)

• Advanced VAG diagnostics and coding: whole world (except China)
• One-Click Apps: available globally
• OBD2 diagnostics: globally

BMW Group

(BMW, MINI, Rolls-Royce)

• Advanced diagnostics: EEA countries*, USA**, United Kingdom, Switzerland, Turkey
• One-Click Apps: same regions
• OBD2 diagnostics: globally

Toyota Group

(Toyota, Lexus)

• Advanced diagnostics: EEA countries*, USA**, United Kingdom
• One-Click Apps: same regions
• OBD2 diagnostics: globally

Ford Group (American models)

• Advanced diagnostics: USA
• One-Click Apps: USA
• OBD2 diagnostics: globally

Other brands

• OBD2 diagnostics: globally

* EEA countries: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland.

** USA includes: American Samoa, Guam, Northern Mariana Islands, Puerto Rico, U.S. Virgin Islands.

*** One-Click Apps is a proprietary OBDeleven solution that does not require a manufacturer's license.

The current list of vehicles with a description of the functionality for a specific model is always available here:

https://obdeleven. com/supported-vehicles

With each month, the functionality of OBD Eleven increases - it is worth monitoring the changes.

Specification:

• supported platforms: Android, iOS, Harmony OS
• Connection: bluetooth 4.2 BLE
• password connection protection: yes
• Diagnostic protocols: KKL, CAN and CAN-UDS
• ISO 9141 (K-Line)
• ISO 14230 (KWP2000)
• ISO 15765 (UDS)
• SAE J2818 (KW1281)
• SAE J2819 (TP2.0)
• Voltage: 9 - 16 V
• Operating temperature: -20~80°C
• Current Consumption: 45 mA

Comparative table of OBDeleven models:

http://blog.konektor5000.pl/index.php/poradniki/64-motoryzacja/206-obd-eleven-porownanie-wersji-interfejsow-przewodnik-tabela

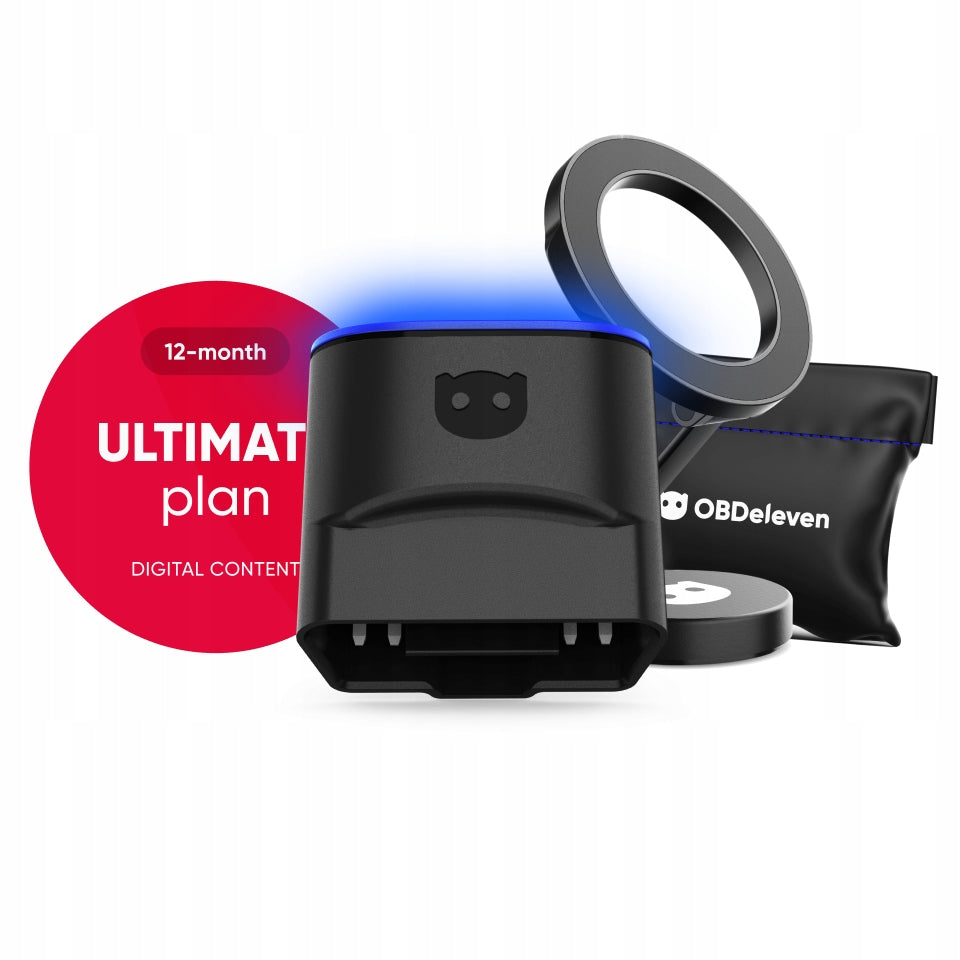

Content of shipment from Konektor store:

• OBDeleven 3 (NextGen)
• 12-month ULTIMATE plan (activated in the mobile app)
• magnetic phone holder
• transport sachet OBDeleven
• Online manual and manufacturer's technical support
• handle for easy disassembly

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	OBDeleven
Parametry	Product weight with unit packaging	0.23 kg
Parametry	EAN (GTIN)	4779060890222
Parametry	Manufacturer code	P1058
Parametry	Batteries included	no
