Diagnostinė sąsaja OBDeleven 2 Pro Pack

Trumpai apie prekę

Prekė: Diagnostinė sąsaja OBDeleven 2 Pro Pack. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: OBDeleven
• Modelis: 0758277987813

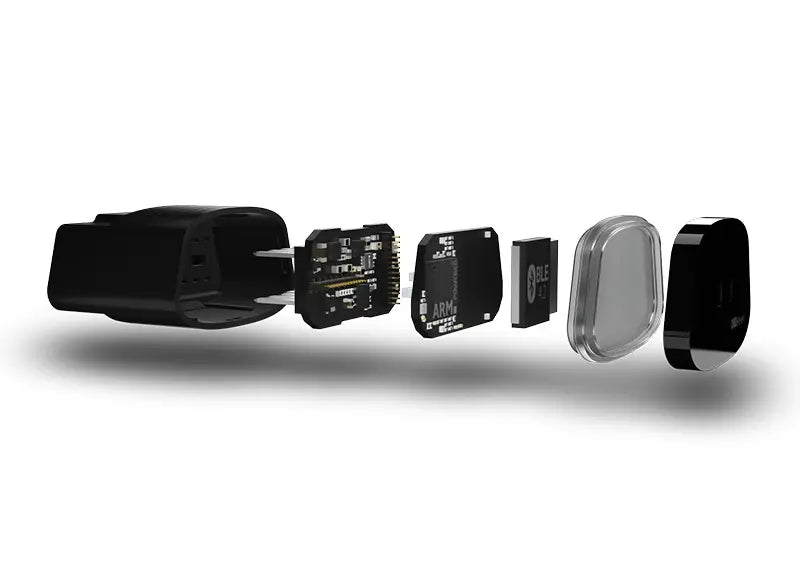

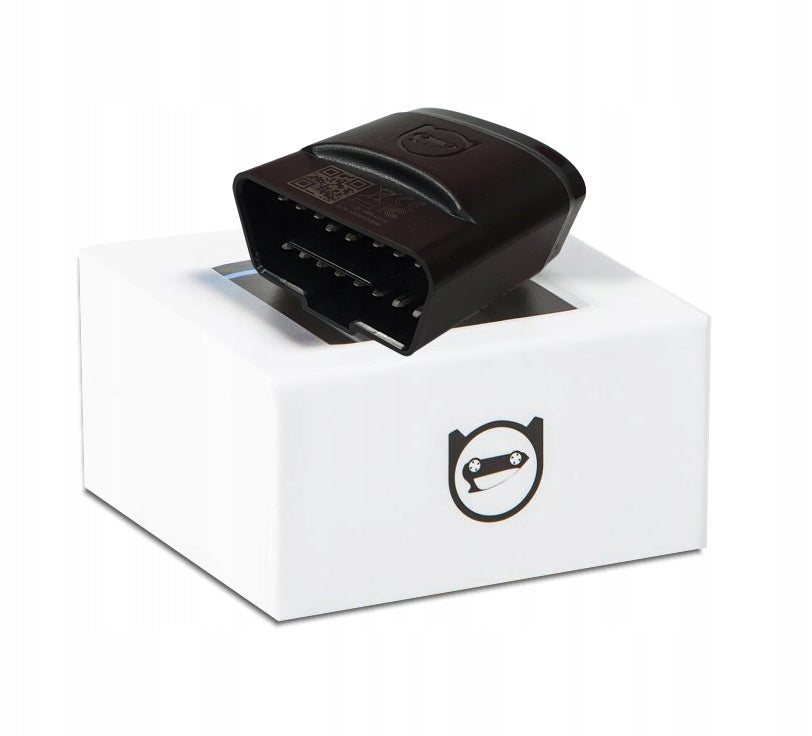

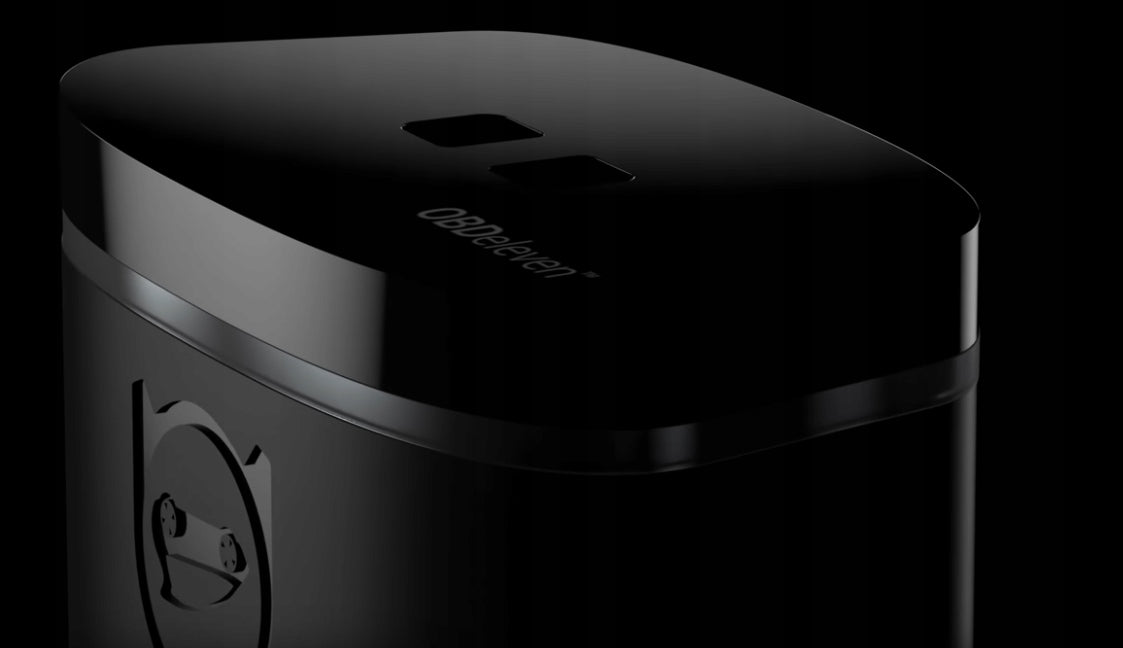

OBD Eleven Next Generation PRO is the best easy-to-use diagnostic interface for VAG cars:

• Volkswagen
• Audi
• Skoda
• Seat
• Bentley
• Lamborghini.

The OBD Eleven app is in Polish. The latest version of OBDEleven works on the Android and iOS mobile platform (iPhone, iPad).

PRO PACK version:

• Enhanced functionality (e.g. coding) - PRO license
• 200 credits to use in the app

Functionality for iOS is currently in beta (that is, it is constantly being developed and enriched with new functionality - it is not as functional as Android at the moment).

Due to its huge functionality, OBD Eleven is often called mobile VCDS.

Thanks to support for communication protocols KKL, CAN and UDS OBD 11 works with both older and the latest models of VAG cars.

The latest CAN-UDS protocol allows you to unlock additional functions (e.g. comfort or navigation module) - you can make a retrofit at a low cost.

• full scan
• Automatic identification of the vehicle based on VIN
• reading and erasing errors from all control units installed in the car (e.g. engine, gearbox, ABS, airbags, multimedia, air conditioning, etc. )
• multilingual database
• reading information about the control unit (e.g. Part number, software number, coding, etc. )
• battery status
• history of connected cars
• search for engine, equipment and fault codes
• advanced information about the control unit
• Live data
• graphs
• indicators (clocks, e.g. tachometer)
• information on the subordinate control unit
• manual programmer
• workshop
• driver data backup and programming history
• self-service instructions (do it yourself - DIY)
• Exit test

Application features only for the PRO version:

• coding / long coding
• coding II
• coding of subordinate control units
• change of diagnostic service
• Control unit reset (UDS)
• login search engine
• secure access
• secure database
• adpatation / long adaptation
• stop-frame fault code
• Basic settings
• automatic gatecode
• Encoding the gateway installation list
• development of coding labels / long coding / adaptation
• Developing live labels
• backup of the control unit
• EEPROM

The above features require advanced knowledge of vehicle programming and are recommended only for professionals (and brave ;)).

One-click activated functionalities are designed for ordinary users and do not require additional knowledge in the field of vehicle programming.

Currently, more than 500 different functionalities are available for different vehicles.

In addition, paid app features - activated with one click - One Click:

• performing service operations (resetting the oil condition, replacing brake pads, etc. )
• )
• controlling the comfort system settings (automatic door lock, opening/closing windows, etc. )
• activation of the function after completion/replacement of elements (LED lights illuminating the registration, washer fluid level sensor, etc. )
• activation of attractive visual functions (indicator animations, optical parking system, etc. )
• adding additional functions (lap timer, media control menu, etc. )
• disabling unwanted functions (voice reminders, warnings about not fastening belts, etc. )

A full list of supported functionalities can be found in the OBDeleven mobile application.

The use of additional functionalities involves the use of credits (even in the PRO version).

The OBD Eleven diagnostic interface is connected to the OBD-II connector in the car. The application is compatible with Android (smartphones, tablets) and iOS (iPhone, iPad). Bluetooth BLE 4.2 wireless connectivity.

How does it work?

1. Connect the adapter to the OBD II socket in our car.

2. Turn on the adapter with a button.

3.

4. Open the OBDeleven application.

5. We choose our car model, connect to the adapter.

6. We proceed to diagnostics, measurement of parameters or coding.

Supported Volkswagen models:

• UP!
• Polo
• Golf
• Beetle
• Bora
• Corrado
• Scirocco
• Ms Jetta
• Vento
• Touran
• Tiguan
• Eos
• Fox
• Lupo
• Passat
• Passat CC
• Sharan
• Touareg
• Phaeton
• Caddy
• Multivan
• Transporter
• Vento
• Amarok
• Atlas
• Arteon

Supported Audi models:

• 80
• 90
• 100
• 200
• A1
• S1
• A2
• A3
• S3
• RS3
• A4
• S4
• RS4
• A5
• S5
• RS5
• A6
• S6
• RS6
• A7
• S7
• RS7
• A8
• S8
• RS8
• Q3
• SQ3
• Q5
• SQ5
• Q7
• SQ7
• TT
• TTS
• TT RS
• R8
• R8 Spyder

Supported Seat Models:

• Mia
• Ibiza
• Toledo
• Leon
• Altea
• Alhambra
• Arosa
• Cordoba
• Exeo
• Inca
• Ateca

Supported Skoda models:

• Citigo
• Fabia
• Felicia
• Rapid
• Octavia
• Superb
• Yeti
• Roomster
• Praktik
• Kodiaq

Supported Bentley models:

• Bentayga
• Continental
• Flying Spur
• Mulsanne

Supported Lamborghini models:

• Aventador
• Centenario
• Gallardo
• Hurracan
• Urus
• Veneno.

The current list of vehicles with a description of the functionality for a specific model is always available here:

With each month, the functionality of OBD Eleven increases - it is worth monitoring the changes.

Specification:

• supported platforms: Android, iOS (beta)
• Connection: bluetooth 4.2 BLE
• password connection protection: yes
• Diagnostic protocols: KKL, CAN and CAN-UDS
• ISO 9141 (K-Line)
• ISO 14230 (KWP2000)
• ISO 15765 (UDS)
• SAE J2818 (KW1281)
• SAE J2819 (TP2.0)
• Voltage: 9 - 16 V
• Operating temperature: -20~80°C
• Current Consumption: 45 mA

• diagnostic interface OBDeleven NextGeneration Android/iOS
• activation code - PRO license annual subscription - extended functionality
• 200 credits activated after pairing the interface with the app

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	OBDeleven
Parametry	Product weight with unit packaging	0.25 kg
Parametry	EAN (GTIN)	758277987813
Parametry	Manufacturer code	0758277987813
Parametry	Batteries included	no
