Diagnostinė sąsaja OBD2 LAUNCH CREADER ELITE V3 Citroen Peugeot

Trumpai apie prekę

Prekė: Diagnostinė sąsaja OBD2 LAUNCH CREADER ELITE V3 Citroen Peugeot. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Launch
• Modelis: 29886-CREV3PC

CREADER ELITE V3 (Peugeot Citroen version)

by LAUNCH

• Creader Elite new version launched in December 2025.
• Advanced full-system diagnostics, capable of offline coding (if ECU supported).
• The diagnostic software supports 12 languages, including English, Polish, Russian, German.
• Lifetime free software access & software updates for Pergeot and Citroen brand.
• Capable of exten to other brands like BMW, VAG via in-app purchases.
• Automatically recognizes VIN** for most of the vehicles.
• Lifetime software access, software updates.
• Hundreds of potential special functions***.
• Added support for CAN-FD, DoIP adapter*.
• Hundreds of potential special functions.
• EOBD/OBDII diagnostics.
• *: The set does not include CAN-FD, DoIP adapters.
• **: Not every vehicle's VIN can be recognizes automatically, in this case you need to enter the VIN or select the vehicle model manually.
• ***: Creader Elite's available special functions depend on an actual connection with the vehicle, they were not listed as individual softwares.

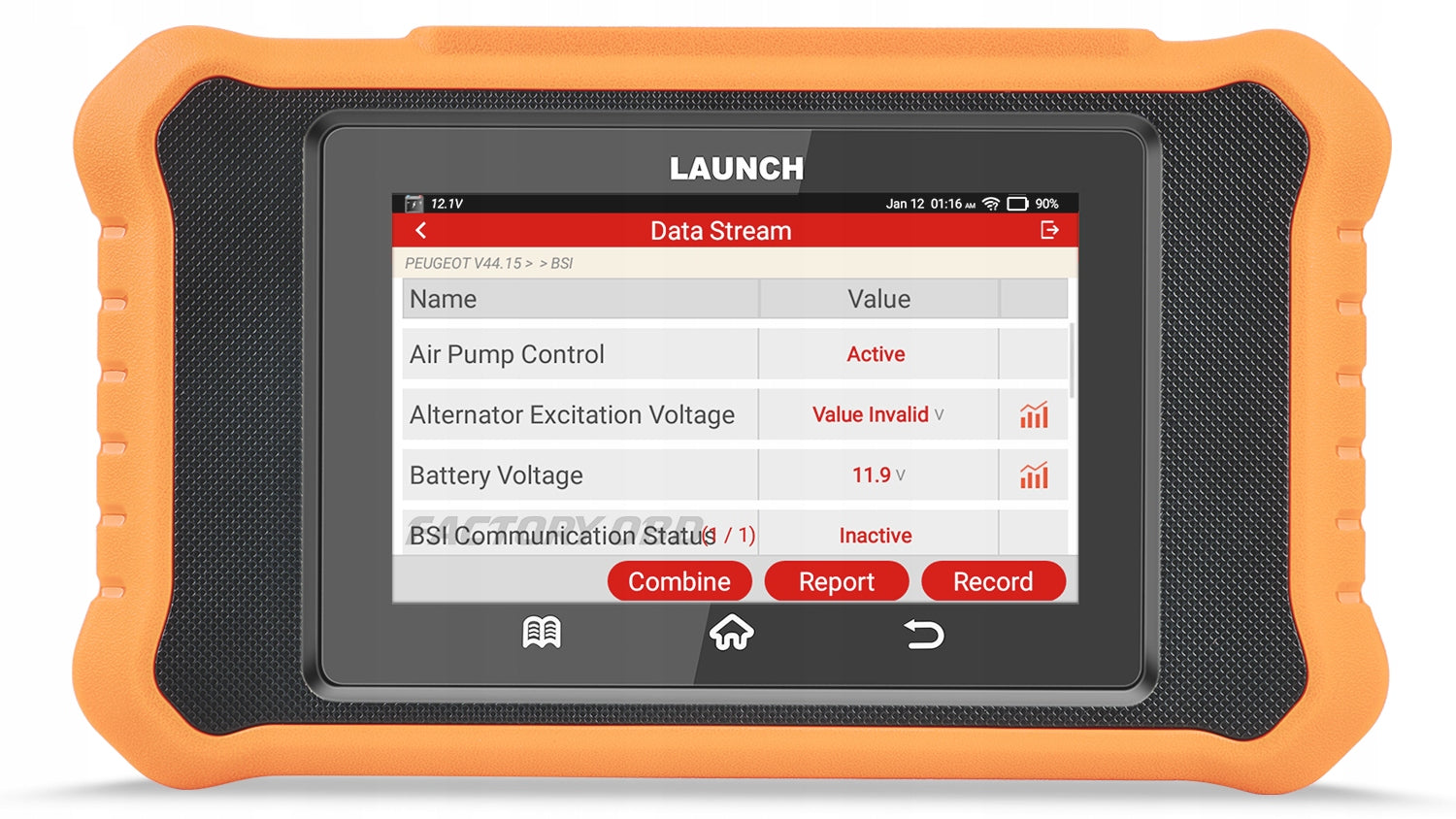

Real-time Data Monitor

Monitor real-time data from the ECU for the entire vehicle system. (The available items depend on whether the ECU collects this data)

Example:

• Air Pump Control: Active / Inactive
• Alternator Excitation Voltage
• Battery Voltage
• BSI Communication Status: Active / Inactive
• many more...

Advanced Full-system Diagnostics

• ECU information reading (Basic)
• Error Code Reading (Basic)
• Error Code Erasing (Basic)
• Live-data reading (Basic)
• Freeze frame reading (Advanced)
• Bi-directional Control (Active Test) (Advanced)
• Immobilizer Initializing (Advanced)
• Matching (Advanced)
• Coding (Advanced)

Notice:

• The immobilizer initialization function supports very less of the models, if this function is your nessesity, please send us a model name and year for a verify cation.
• The availability of the items of life-date reading (i.e. Real-time data monitor), and active test function depend on a physical connection between the diagnostic device and the vehicle, we're unable to guarantee which items are available, but you can test it in the trial period.

Compatibility

Check for available Peugeot, Citroen models, functions here:

https://qcar.x431.com/qcar/#/index?default_lan=1001&lan=1001&theme=red&custom=channel&channel=4&source=app&pdtAliasId=1229&pdt=div

Please note that we don’t guarantee that every single function listed is working. The compatibility of the device may depend on whether the vehicle has been modified, repaired, or undergone other operations before. To confirm if the device supports your vehicle model or the specific functions you need, please send us a message.

Special Functions

Creader Elite offers over 100 potential special functions, but these aren’t visible next to the diagnostic software.

To access these special functions, you must first run a full-system diagnosis. The available functions will then appear on the diagnostic result menu.

While these functions may not be immediately visible, the potential for a larger number of features makes Creader Elite more cost-effective compared to other devices like the CRP 919E BT.

Dedicated for Citroen and Peugeot

• This Creader Elite V3 comes with lifetime free access to the software of Citroen and Peugeot, you will enjoy a full-system diagnostic access with no limits.
• You can add supports for other brands in the future by making a monthly subscription.

Notice: If you decide to purchase extra softwares like FCA, Renault, Dacia, please make sure that your vehicle model does not require a SGW license, because Creader Elite does not support SGW license login.

EOBD/OBDII Diagnostics

This diagnostic software is available for all of the vehicles under OBDII standard, even if it's not Peugeot and Citroen.

• Mode $01：I/M Readiness, Current Data
• Mode $02：Freeze Frame Data
• Mode $03：Stored DTCs
• Mode $04：Clear DTCs / Reset
• Mode $05：Oxygen Sensor Monitoring
• Mode $06：On-Board Monitoring Test Results
• Mode $07：Pending DTCs
• Mode $08：On-Board System Control
• Mode $09：Vehicle Information
• Mode $0A：Permanent DTCs

Toolbox - Other Useful Functions

• Firmware Fix: It allows you to reset the firmware when meeting a diagnostic failure.
• Feedback: When you encounter a diagnostic failure or a bug in the diagnostic process, submitting a feedback to the manufaturer can help fixing the software in the next updates. By sending us with the feedback id can expidite the process.

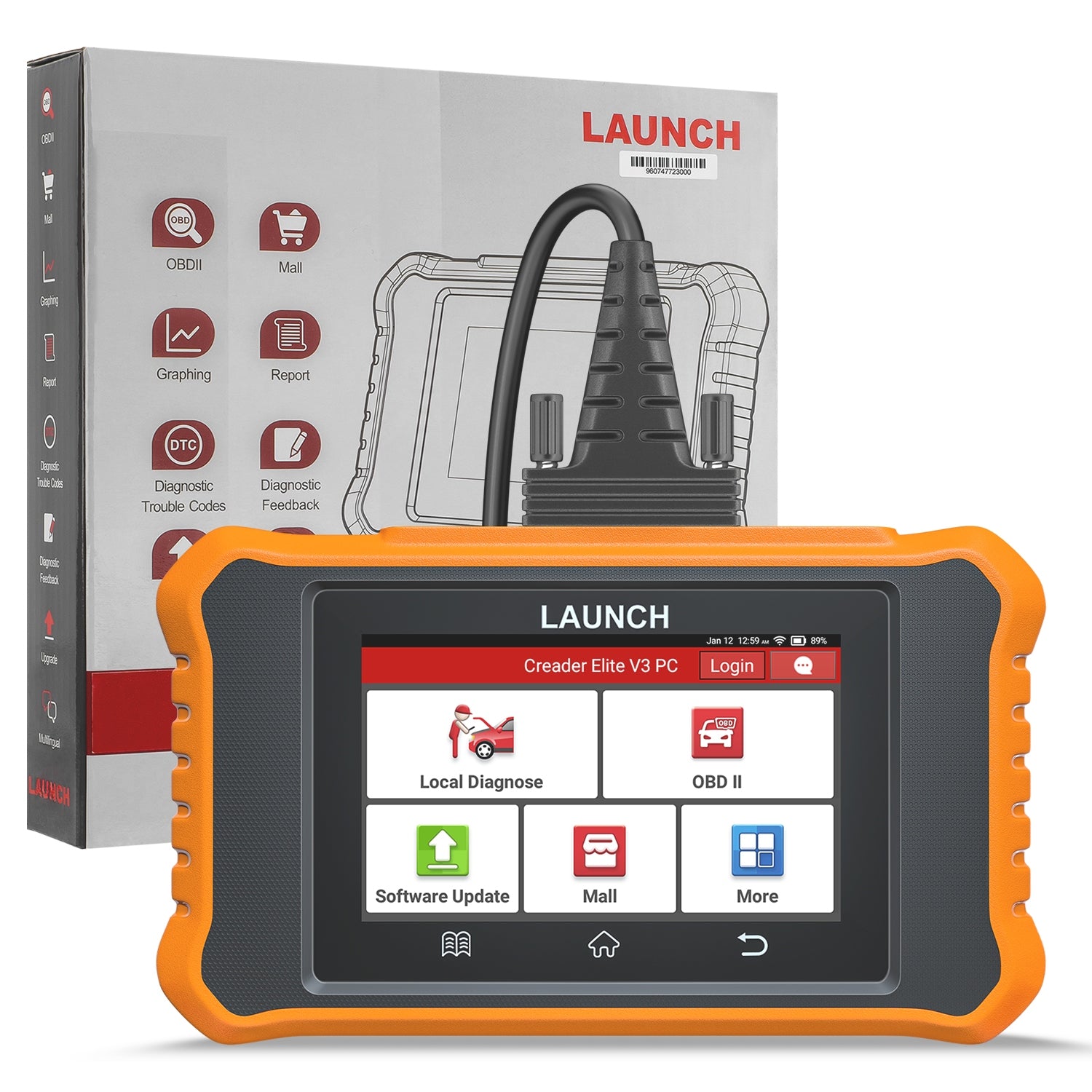

What's in the Box

• Creader Elite V3 Tablet
• Diagnostic Cable (1.17 meters)
• User Manual (English language only)
• Quick Start Guide
• USB-A to USB-C Cable

Notice: The manuals do not have the Polish version. But the diagnostic software supports Polish language.

Tech Specs

• Screen size: 3.97 inches
• Resolution: 800*480
• OS: Android 8.1
• Battery capacity: 3000 mAh
• Diagnostic cable length: 117 centimeters
• USB cable length: 73.5 centimeters
• RAM: 2Gb
• Storage capacity: 32Gb (24.31Gb available)
• Network: Wi-Fi (2.4/5.0GHz)
• Total weight: less than 540g

Specifications
