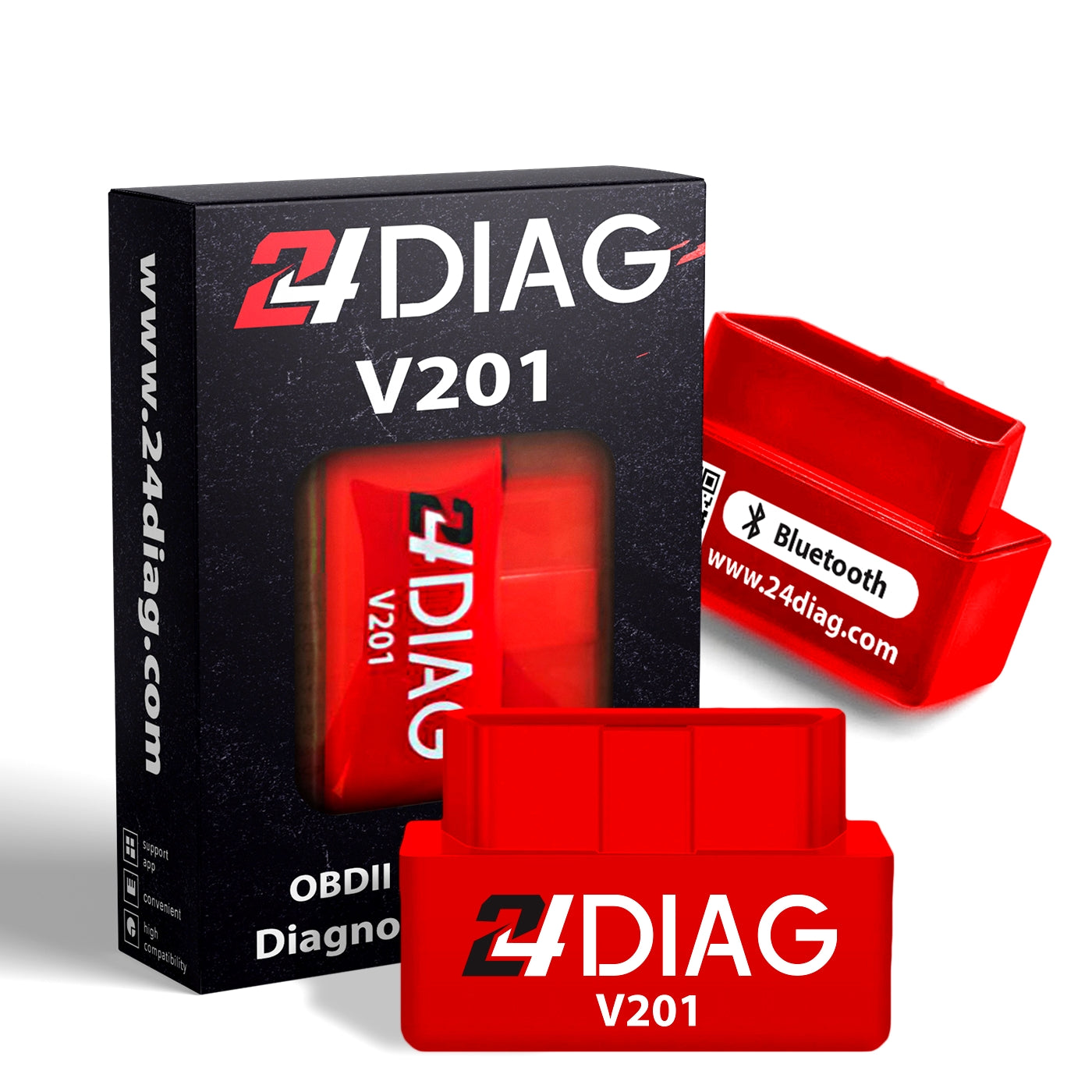

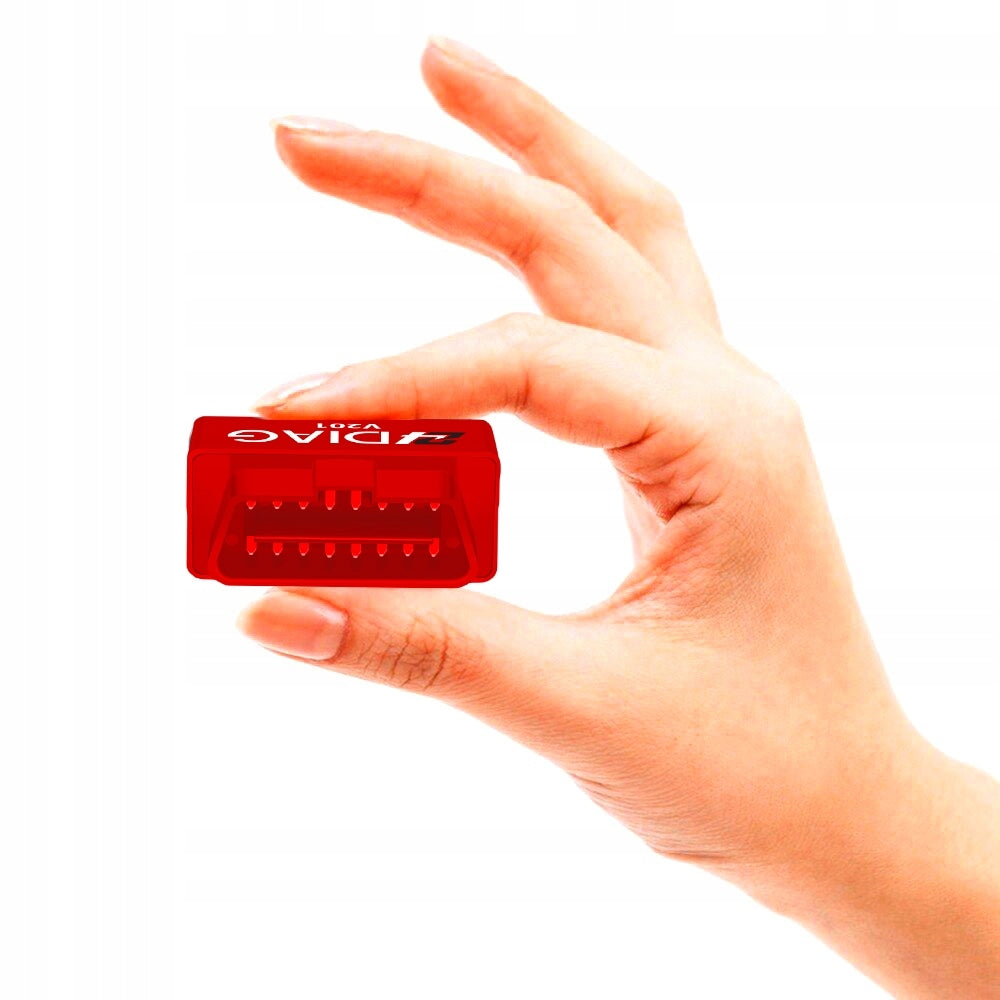

Diagnostinė sąsaja ELM327 Bluetooth OBD2 Android 24DIAG V201

Trumpai apie prekę

Prekė: Diagnostinė sąsaja ELM327 Bluetooth OBD2 Android 24DIAG V201. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: 24Diag
• Modelis: V201 SKANER TESTER BT ANDROID WINDOWS

DIAGNOSTIC INTERFACE 24DIAG V201 BLUETOOTH

The product is new, original and exclusively packaged.

The interface must work with the appropriate software, and enables:

• Reading and erasing OBD-II errors
• Deleting the CHECK ENGINE lamp
• Read error codes waiting when the MIL light is not yet on
• Reading the error codes recorded that caused the MIL lamp to light
• Reading general and manufacturer characteristic error codes
• Preview of frozen frames - FREEZE FRAMES
• Monitoring engine operating parameters in real time - LIVE DATA
• Reading real parameters on an ongoing basis
• Checking the meaning of error codes
• Engine power measurement (HP)
• Measurement of parameters such as time from 0-100 km/h

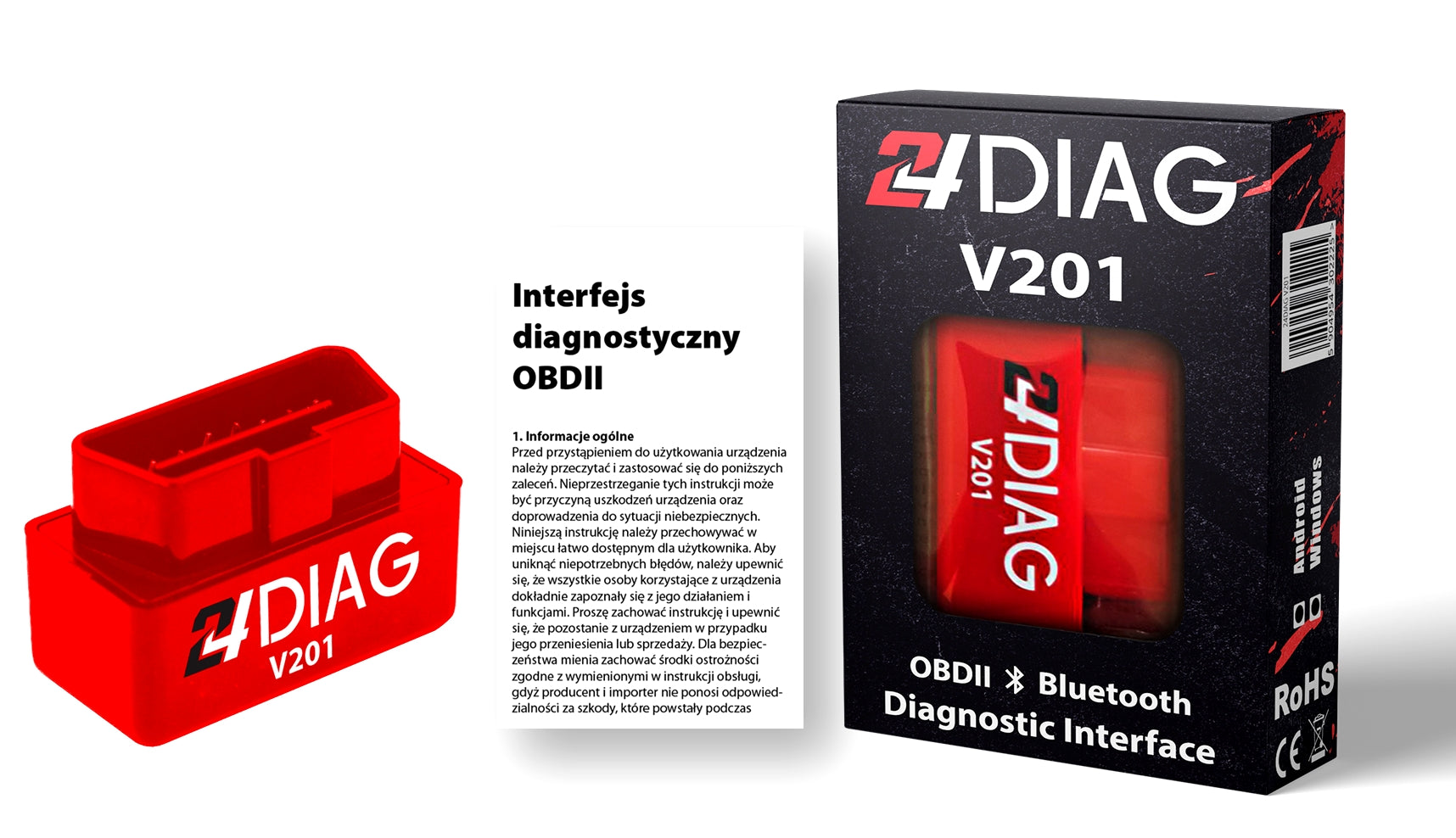

The set includes:

• Diagnostic interface 24DIAG V201
• Box
• Paper instruction in Polish

Supported protocols :

• 1. SAE J1850 PWM (41.6Kbaud)
• 2. SAE J1850 VPW (10.4Kbaud)
• 3. ISO9141-2 (5 initiating bytes, 10.4Kbaud)
• 4. ISO14230-4 KWP (5 bit, 10,4 Kbaud)
• 5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
• 6. ISO15765-4 CAN (11-bit ID, 500 Kbaud)
• 7. ISO15765-4 CAN (29-bit ID, 500 Kbaud)
• 8. ISO15765-4 CAN (11-bit ID, 250 Kbaud)
• 9. ISO15765-4 CAN (29-bit ID, 250 Kbaud)
• A.SAE J1939 CAN (29-bit ID, 250 * Kbaud)
• B.USER1 CAN (11 * bit ID, 125 * Kbaud)
• C.USER2 CAN (11 * bit ID, 50 * kbaud)

We encourage you to purchase Polish application. Available as a set or on our other allegro auctions:

• Lifetime and free software updates.
• Supports all cars compliant with OBDII/EOBD system/standard.
• Reading codes: saved, pending, constant, generic
• Obtaining additional repair instructions
• Deleting fault codes and possible causes
• Possible symptoms, principle of operation of the component
• Current parameters from engine operation, sensors
• Turbocharger boost pressures
• many others

After purchase, you receive the full Graphic Manual in the form below with descriptions of the entire process of downloading the application and connecting to the car. You will receive the instructions in paper form along with the device.

Will the interface work with my car?

The interface is a universal device and works with almost all models of vehicles with a standard OBD2 connector. Approximate dates of introduction of OBD2 system in the world: USA and Asia: from 1996, Europe and others: from 2001 cars with gasoline engine, from 2004 cars with diesel engine.

Where is the OBD2/eOBD socket?

It is often under the steering wheel or in the central part. Find and verify the socket before purchasing.

Next to the OBD2 socket photo, if you have one, v201 is for you.

Our manual is in Polish - printed and included in the box. This makes it easier for people to use the product as a gift.

Displays current sensor data, including:

• Engine speed
• Calculated load value
• Coolant temperature
• Status of fuel system
• Vehicle speed
• Short-term fuel finish
• Long-term fuel finish
• Pressure in the intake manifold
• Time shift
• Inlet air temperature
• Air flow rate
• Absolute throttle position
• Oxygen sensor voltages / related short-term fuel elements
• Status of fuel system
• Fuel pressure
• Many others...

How to connect to the interface/controller in the vehicle?

1. Install on Android or laptop free application from Google Play Store.
2. Connect the interface to the OBD II socket.
3. We turn on Bluetooth on the phone, set visibility and search in the list of devices called 24DIAG
4. We connect to it by entering the standard code 1234. Only after this step we turn on the application.
5. In the installed application, in the settings, select rreturn connections to Bluetooth and indicate paired interface 24DIAG.
6. We proceed to the connection with the vehicle controller (ignition on, engine running).

Additional features:

• Bluetooth - stable
• Left in the OBD2 socket will not discharge the battery. Very low power consumption.

Works with free apps that are available on the Google Play/iStore:

1. Car Scanner ELM OBD2
2. OBD Harry
3. Torque Lite (OBD2 & Car)

LIST OF SUPPORTED CAR MODELS

(99% of models of cars since 2001 with a gasoline engine and since 2004 with a diesel engine meeting the eOBD standard):

European passenger cars, off-road vehicles and vans:

• Alfa Romeo: 147, 156, 159, 166, GT, GTV, Giulia, Stelvio, Brera, Crosswagon, Spider, Sportwagon
• Audi: A2, A3, S3, A4, S4, A6, S6, A8, S8, Allroad, Cabriolet, Coupe, Q3, Q5, Q7, Q8, Quattro, RS2, RS4, RS6, TT, V8
• BMW: Series 1 - 116, 118, 120, 130, Series 3 - 316, 318, 320, 323, 325, 328, 330, 335, Series 5 - 518, 520, 524, 525, 528, 530, 535, 540 , 545, 550, series 6 - 630, 635, 645, 650, series 7 - 725, 728, 730, 732, 735, 740, 745, 750, 760, series 8 - 840, 850, MPower - M1, M2, M3, M4, M5, M6, Z4 M, X-series - X3, X5, Z-series - Z3, Z4, Z8
• Citroen: Berlingo, C1, C2, C3, C4, C5, C6, C8, CX, Evasion, Jumpy, Saxo, Xantia, Xsara, Xsara Picasso
• Dacia: Logan, Pick up
• Fiat: Albea, Barchetta, Brava, Bravo, Coupe, Croma, Dino, Doblo, Ducato, Grande Punto, Idea, Marea, Marengo, Multipla, Palio Weekend, Palio, Panda, Punto, Scudo, Sedici, Siena, Stilo, Ulysse
• Ford: Aerostar, Bronco, Cougar, Courier, Crown, Ecoline, Escape, Escort, Excursion, Expedition, Explorer, Express, F150, F250, F350, Fairlane, Falcon, Fiesta, Focus, Focus C-Max, Fusion, GT, Galaxy, Granada, Ka, Maverick, Tour, StreetKa, Ka, Maverick, Mondeo, Mustang
• Jaguar: Daimler, E-type, S-type, X-type, XJR, XJS, XJ, XJ6, XJ8, XJ12, XJ40, XJR, XJS, XJSC, XK, XKR
• Lancia: Gamma, Kappa, Lybra, Musa, Phedra, Thema, Thesis, Ypsilon, Zeta
• Land Rover: Defender, Discovery, Freelander, Range Rover, Range Rover Sport
• Mercedes-Benz: A-Class, B-Class, C-Class, CE-Class, CL-Class, CLK-Class, CLS-Class, E-Class, G-Class, GL-Class, ML-Class, R-Class, S-Class, SL-Class, SLK-Class, SLR, Sprinter, V-Class V200, V220, V230, V280, Vaneo, Vario, Viano, Vito
• Mini: Cooper, Cooper S, ONE
• Opel: Agila, Antara, Arena, Astra, Calibra, Campo, Cavalier, Combo, Corsa, Frontera, GT, Insignia, Merita, Monterey, Movano, Nova, Omega, Signum, Sintra, Speedster, Tigra, Vivaro, Vectra, Zafira
• Peugeot: 106, 107, 206, 207, 306, 307, 406, 407, 605, 607, 806, 807, 1007, Boxer, Expert, J5, Partner
• Porsche: 911, Boxster, Carrera GT, Cayenne, Cayman
• Renault: (Only new models after 2002) Avantime, Clio, Coupe, Espace, Express, Fuego, Grand Espace, Grand Scenic, Kangoo, Laguna, Mascott, Master, Megane, Modus, Safrane, Scenic, Spider, Trafic, Twingo, Vel Satis
• Rover: 75, 600, 618, 620, 623, 800, 820, 825, 827
• Saab: 9-3, 9-5, 9-7X
• Seat: Alhambra, Altea, Arosa, Cordoba, Ibiza, Inca, Leon, Terra, Toledo
• Skoda: Fabia, Felicia, Octavia, Roomster, Superb
• Smart: Crossblade, ForFour, ForTwo, Roadster
• Volvo: 850, C70, Polar, S40, S60, S70, S80, S90, V40, V50, V70, V90, XC 70, XC 90
• Volkswagen: Bora, Buggy, Caddy, Corrado, Eos, Fox, Golf, Iltis, Jetta, Karmann Ghia, Kafer, LT, Lupo, New Beetle, Passat, Phaeton, Polo, Sharan, T3, T4, T5, Caravelle, Multivan, Shuttle, Taro, Touareg, Touran, Vento

American cars, off-road vehicles and vans:

• Buick: Century, Elektra, Le Sabie, Park Avenue, Regal, Riviera, Roadmaster, Skylark
• Cadillac: Allante, BLS, CTS, Deville, Eldorado, Escalade, Fleetwood, SRX, STS, Seville, XLR
• Chevrolet: 2500, Alero, Astro, Avalanche, Aveo, Beretta, Blazer, C1500, Camaro, Caprice, Captiva, Cavalier, Chevelle, Chevy Van, Citation, Colorado, Corsica, El Camino, Epica, Evanda, G, Impala, K30, K1500, Kalos, Lacetti, Lumina, Malibuiz,
• Chrysler: 300M, 300C, Crosssfire, Daytona, ES, GS, GTS, Grand Voyager, Le Baron, Neon, New Yorker, PT Cruiser, Pacifica, Saratoga, Sebring, Stratus, Valiant, Viper, Vision, Voyager
• Corvette: C3, C4, C5, C6
• Dodge: Caliber, Charger, Dakota, Durango, Grand Caravan, Hornet, Magnum, Neon, RAM, Stealth, Viper
• GMC: Envoy, Safari, Savana, Sierra, Sonoma, Syclone, Typhoon, Vandura, Yukon
• Hummer: H1, H2, H3
• Jeep: Cherokee, CJ, Comanche, Commander, Grand Cherokee, Renegade, Wagoneer, Liberty, Wrangler
• Lincoln: Aviator, Continental, LS, Mark VIII, Navigator, Town Car
• Oldsmobile: Bravada, Custom Cruiser, Cutlass, Delta 88, Silhouette, Supreme, Toronado
• Pontiac: 6000, Bonneville, Fiero, Firebird, G6, GTO, Grand-Am, Grand-Prix, Montana, Solstice, Sunbird, Sunfire, Targa, TransAm, Trans Sport, Vibe

Japanese and Asian cars, off-road and vans:

• Acura: MDX, NSX, RL, RSX, TL, TSX
• Daewoo: Espero, Evanda, Kalos, Komando, Lacetti, Lanos, Leganza, Matiz, Musso, Nexia, Nubira, Tacuma, Tico
• Daihatsu: Applause, Charade, Charmant, Copen, Cuore, Feroza / Sportrak, Freeclimber, Gran Move, Hijet, Move, Rocky / Fourtrak, Sirion, Terios, YRV
• Honda: Accord, Aerodeck, City, Civic, Concerto, CR-V, CRX, Element, FR-V, HR-V, Integra, Jazz, Legend, NSX, Odyssey, Prelude, S2000
• Hyundai: Accent, Atos, Atos Prime, Coupe, Elantra, Galloper, Getz, Matrix, Pony, Excel, S-Coupe, Santa Fe, Santamo, Sonata, Terracan, Trajet, Tucson, XG 30, XG 350
• Infiniti: FX, G35, Q45, QX56
• Isuzu: Campo, Gemini, Midi, Pick up, Troper
• Kia: Besta, Carens, Carnival, Cerato, Clarus, Opirus, Picanto, Shuma, Sorento, Sportage
• Lexus: GS300, GS430, GS450, GS470, IS200, IS220, IS250, IS300, LS400, LS430, LS460, LX470, RX300, RX330, RX400, SC400, SC430
• Mazda: 2, 3, 5, 6, 121, 323, 323F, 626, 929, MPV, MX-3, MX-5, MX-6, Millenia, RX-6, RX-7, RX-8, Xedos
• Mitsubishi: 3000GT, Carisma, Colt, Eclipse, Galant, Galloper, L200, L300, L400, Lancer, Pajero, Pajero Pini, Space Runner, Space Star, Space Wagon, Starion
• Nissan: 200SX, 240SX, 280SX, 300SX, 350Z, Almera, AlmeraTino, Laurel, Maxima, Micra, Murano, Navara, Note, Pathfinder, Patrol, Primera, Terrano, Urvan, Vanette, X-Trial
• SsangYong: Family, Korando, Kyron, Musso, Rexton, Rodius
• Subaru: Forester, Party, Justy, Legacy, Libero, OUTBACK, SVX
• Suzuki: Alto, Baleno, Cappuccino, Carry, Grand Vitara, Ignis, Jimny, LJ, Liana, SJ, SX4, Super-Carry, Swift, Vitara, Wagon R+, X-90
• Toyota: 4-Runner, Avalon, Avensis, Aygo, Camry, Carina, Celica, Corolla, Cressida, Crown, Dyna, FJ, Hiace, Hilux, Land Cruiser, Lite-Ace, MR 2, Paseo, Picnic, Previa, Prius, RAV 4, Sequoia, Sienna, Starlet, Supra, Tacoma, Tercelund,

The OBDII system is mandatory for cars:

• sold after 1 January 1996 in the USA
• sold after 1 January 2001 in the European Union
• sold after 1 January 2002 in Poland
• Diesel cars sold after 1 January 2004

There is also the possibility that cars sold earlier could also have an OBDII system, but at that time it was not mandatory for manufacturers.

Cars equipped with OBDII system have:

• characteristic 16-pin connector,
• two or more oxygen sensors (probe λ),
• should have a sticker informing about exhaust emissions, which is most often placed in most vehicles under the hood or at the radiator. This sticker has information whether the vehicle is OBDII certified.

The mere possession of a characteristic connector by the vehicle is not an indicator of OBDII system operation - all 3 of the above conditions must be met.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	24Diag
Parametry	Product weight with unit packaging	0.04 kg
Parametry	EAN (GTIN)	5904954302225
Parametry	Manufacturer code	V201 SKANER TESTER BT ANDROID WINDOWS
