Trumpai apie prekę
Prekė: Diagnostinė sąsaja AUTOPHIX VAG 9610. Kategorija: Diagnostiniai testeriai ir sąsajos.
- Gamintojas: Autophix
- Modelis: 9610

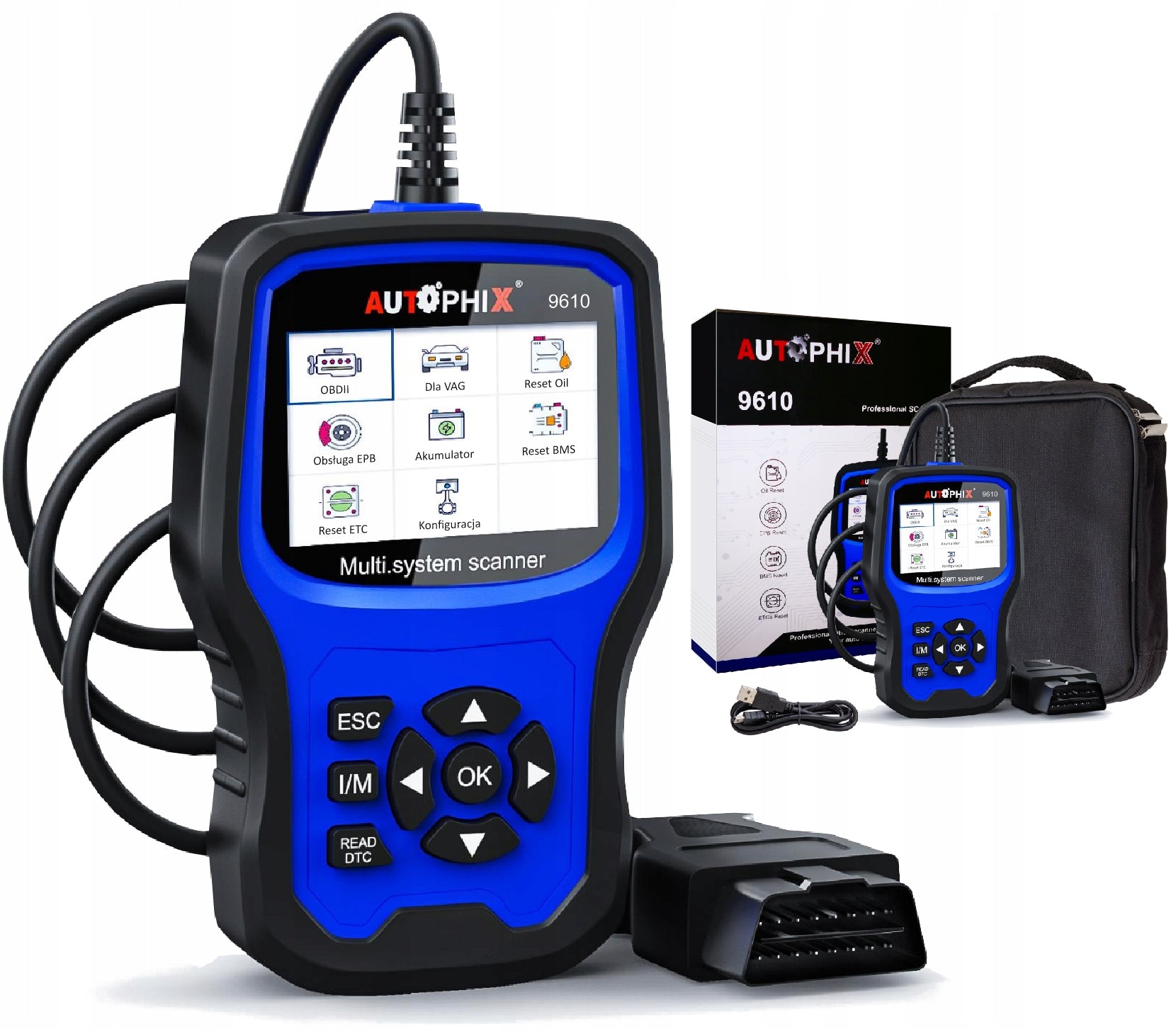

This tester is a combination of 2 testers in one. VAG professional + OBDII/EOBD CHECK ENGINE. It is a standalone device equipped with a high-resolution color display, a solid rubber housing, a fast ARM processor. (very fast work-refreshing current parameters). It is powered directly from the vehicle diagnostic connector and has a full POLISH menu (including full Polish descriptions of fault codes).
For VW, AUDI, SEAT, and SKODA vehicles, this diagnostic tool supports virtually all control modules the vehicle is equipped with, including the newest models from the current year:
- Engine
- ABS braking system
- Airbags
- Automatic transmission
- Comfort module
- Automatic transmission
- Airbags
- Brake electronics
- Traction control ESP/ASR/EBD
- Tire pressure monitoring system (TPMS)
- Air conditioning
- Power steering
- Instrument cluster
- Navigation
- Audio system
- Central locking
- Anti-theft system
- 4x4 drive
- And many more...
As a small tester for VAG vehicles, it fully supports the UDS protocol!!! (models after 2010) and connects to the COMFORT MODULE!!! (item module 46)
In VW, AUDI, SEAT, SKODA vehicles, the tester enables:
- reading fault codes
- erasure of fault codes
- preview of real parameters
- component test
- throttle adaptation
- adaptation of the EGR valve
- ABS pump venting
- reversing of electric parking brake calipers
- Electric parking brake test
- setting the thickness of the blocks
- coding of injectors
- change of language on the indicator panel
- tempomat activation
- idling adjustment
- Basic settings of the automatic transmission
- Service reset
- deleting/training the remote control
- cleaning of learned values
- training the zero position of the steering angle sensor
- coding of a new counter
- adaptation of the fuel level sensor
- Restoration of basic settings for air conditioning
- coding of a new airbag controller
- injection dose
- maximum speed limit
- calibration of the air conditioning compressor
- cooling temperature calibration
- immobilizer training
- checking the air flow meter
- vacum pump test
- ABS pump test
- knock sensor test
- Lambda probe control
- regulation of EGR
- camshaft sensor adjustment
- adaptation of the fuel pump
- fuel injection
- engine cooling
- EGR temperature sensor test
- activation of the ESP system
- deactivation/activation of the sensor longitudinal acceleration, lateral acceleration
- tyre pressure monitor
- adjustment of the side acceleration sensor
- adjustment of the brake pressure sensor
- adjustment of air conditioning flap potentiometers
- control of air conditioning flap motors
- additional heating
- adjustment of mirror heating time
- activation of the washing time of headlamps
- daily
- remote unlocking of the fuel flap
- activation/twisting
- heating of windows, wipers
- display of fuel consumption
- language for fault messages and navigation
- maximum distance for oil change
- adaptation of the key to the immobilizer
- miles/kilometres
- Scandinavian mode
- automatic locking of locks
- internal monitoring
- setting the country for the alarm sound
- auto adaptation of the remote control
- and many others...
In addition to full service of cars from the VAG group, the tester also supports all other vehicles in the OBDII/EOBD standard.
- engine
- Engine accessories
- automatic transmission
Europe-petrol from 2000 to 2019, diesel from 2004 to 2019
- Alfa Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Lancia, Land Rover, Mercedes Benz, Mini, Opel, Peugeot, Porsche, Renault, Rover, Saab, Seat, Skoda, Smart, Volvo, Volkswagen
America-from 1996 to 2019:
- Buick, Cadillac, Chevrolet, Chrysler, Dodge, GMC, Hummer, Jeep, Lincoln, Oldsmobile, Pontiac
Asia-from 1999 to 2019:
- Acura, Daewoo, Daihatsu, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota
and any other not mentioned above.
Includes the latest vehicles equipped with the protocol (CAN) and (UDS) from this year.
Using OBDII/EOBD function, the tester enables:
- error reading: P0, P2, P3, U0, and brand specific codes: P1, P3, U1
- reading and deleting the status of the MIL (check engine) control
- reading and deleting instantaneous error codes, including fixed ones
- Vehicle information (VIN CIN CVN)
- reading frozen frames
- reading of real data (also in the form of charts)
- Lambda probe test
- components
- readiness monitors
- and many others...
Works with protocols:
- CAN
- UDS
- SO9141
- KWP2000
- J1850
- VPW
- J1850 PWM

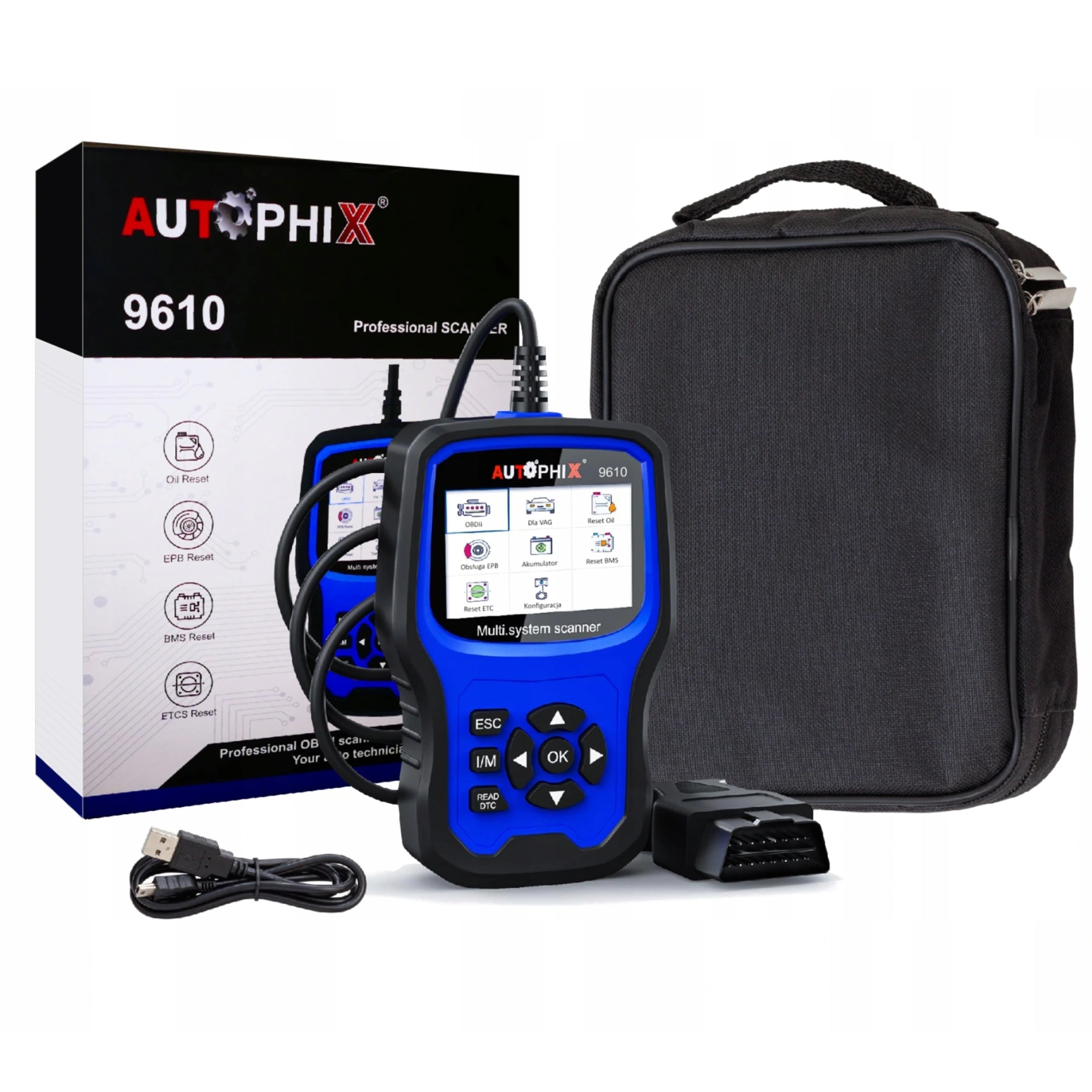

The set includes:
- Tester AUTOPHIX 9610 VAG + OBDII/EOBD, including integrated OBDII cable
- USB cable
- Material cover
- User manual in Polish (electronic version)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Autophix |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | EAN (GTIN) | 4059954301189 |
| Parametry | Manufacturer code | 9610 |
| Parametry | Batteries included | no |
