Diagnostinė programinė įranga VOLVO SDPROG su iCar PRO BT 3 OBDII Android sąsaja

Trumpai apie prekę

Prekė: Diagnostinė programinė įranga VOLVO SDPROG su iCar PRO BT 3 OBDII Android sąsaja. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: SDPROG
• Modelis: SDPROG iCar PRO BT 3.0 ANDROID VOLVO

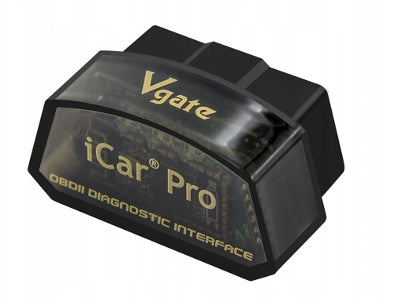

Diagnostic interface iCar PRO BT 3.0 with Bluetooth 3.0 communication and SDPROG in box version. Available for Android download in:

– Google Play

– AppGallery

Important!

To use the SDPROG diagnostic program, log in to your MySDProg account. To create a MySDProg account, you must provide the activation code received after purchasing the product in the form of a scratch code.

The program diagnoses all makes and models of cars that have been manufactured in accordance with the OBDII system. The application supports gasoline, diesel and hybrid electric cars. Introduction of OBDII standard in the world:

USA and Asia:

– since 1996

Europe:

– since 2000 in the case of petrol engines

– since 2004 in the case of diesel engines

In the case of the VOLVO brand, a wider diagnostic range beyond the standard OBDII functions is possible for selected models.

List of supported VOLVO models: XC90 (2006-2014),XC70 (2008-2015), XC60 (2008-2015), XC70/V70 XC (2006-2007),V70 (2008-2015), V70 (2006-2008), V60 (2011-2015), V50 (2006-2012),V40 Cross Country (2013-2015), V40 (2013-2015), S80L (2008-2012),S80 (2007-2015), S80 (2006-2006), S60 (2011-2015), S60 (2006-2009),S40 (2006-2012), C70 (2006-2013), C30 Electric (2011-2013),C30 (2017-2013), XC90 (2016-2023), XC70 (2016-2016),XC60 (2018-2023), XC60 (2016-2017), XC40 (2018-2023),V90 Cross Country (2017-2023), V90 (2017-2023), V70 (2016-2016),V60 Cross Country (2019-2023), V60 Cross Country (2016-2018)V60 (2019-2023), V40 Cross Country (2019-2023), V40 (2016-2019),S90L (2019-2022), S90 (2017-2023), S80 (2006-2006),S60 Cross Country (2016-2018), S60 (2019-2023), S60 (2016-2018), C40 (2022-2023)

List of supported modules in the above-mentioned VOLVO models:

ECM (Engine Control Module)

CEM (Central Electronic Module)

TCM (Gearbox Control Module)

ABS/BCM (Brake Anti-Block System Module)

SRS (Module of the Additional Protection Measures System)

DIM (Driver Information Module)

CEM-HS (Central Electronic Module B)

DDM (Driver Door Module)

PDM (Passenger Door Module)

CCM (Air Conditioning Control Module)

ICM (Entertainment Control Module)

KVM (Keyless Module)

AEM (Additional Electronics Module)

EPS (Electric Steering Module)

PAM (Parking Assistance Module)

AUD (Audio module)

PSL (Left Seat Adjustment Module)

PSR (Right Armchair Adjustment Module)

AUU (USB Additional Unit)

TRM (Trailer Module)

SWM (Management Module)

IAM (Integrated Audio Module)

SUB (Woofer Module)

PHM (Phone Control Module)

RDAR (Remote Digital Audio Receiver)

MMM (Multimedia Module)

CPM (Engine Pre-Start Heating Module)

CRM (Convertible Roofing Module)

ECM (Engine Control Module)

PBM (Park Brake Module)

SAS (Steering Wheel Angle Sensor Module)

PSM (Seat Adjustment Module)

DEM (Differential Electronic Module)

PSCM (Steering Control Module)

SUM (Suspension module)

POT (Electric Rear Flap Module)

CVM (Closing Speed Module)

SODL (Left Hand Obstacle Detection Control Module)

SODR (Obstacle Detection Control Module on the Right)

PAC (Parking Assistance Camera Module)

FSM (Front Obstacle Detection Module)

BECM (Battery Energy Control Module)

ASDM (Active Home Security Module)

AGU (Accessories Gate Unit)

ATM (Additional Telematics Module)

BBS (Battery Powered Sound Module)

BCM 2 (Brake Control Module 2)

BMS (Battery Monitoring Module)

CSD (Center Console Display)

ECCM (Electric Charging Air Compressor Module)

EGSM (Electronic Gear Selector Module)

ESM (External Sound Module)

ESMR (External Sound Module – Back)

FLC2 (Front-looking camera 2)

FLR (Front-From Radar)

HCML (Floodlight Control Module Left)

HCMR (Right Headlight Control Module)

HUD (Head-Up Display)

IEM (Electric Inverter Rear Axle Drive Module)

IGM (Inverter Generator Module)

IHU (Information and Entertainment Centre Unit)

IMS (Internal Movement Sensor)

ISGM (Integrated Starter-Generator Module)

LCPM (Living Room Console Power Module)

MVBM (Mid-Voltage Battery Module)

MVCM (Mid-Voltage Converter Module)

NRCM (NOX Reduction Control Module)

OBC (On-board Charging Module)

OFM (OBD Firewall Module)

OHC (Upper Console Control Module)

PAC (Parking Assistance Camera Module)

PSCR (Rear Steering Control Unit)

PSCB (Reserve Steering Control Module)

PSMD (Passenger Seat Module)

PSMP (Driver Seat Module)

RBCM (Side Strip Control Module)

RBMS (Redundant Battery Monitoring Sensor)

RML (Safety Belt Module Left)

RMR (Right Belt Module)

SCL (Steering Column Lock Module)

SOLD (Side Obstacle Detection Control Module Left)

SODR (Right Side Obstacle Detection Control Module)

ASSM (Active Spoiler Curtain Module)

SSMB (Reserve Alloy Safety Module)

TACM (Gearbox Actuator Control Module)

TCAM (Telematics and Antennas module)

TVM (TV Module)

VCM (Vehicle Communications Module)

VCU1 (Vehicle Computing Unit 1)

VDDM (Vehicle Dynamics Domain Main Module)

VGM (Vehicle Gateway Module)

WAM (Wide-angle Vision Module)

WPC (Wireless Phone Charging)

UEM (Upper Electronic Module)

HCM (Floodlight Control Module)

GPS (Global Positioning System Module)

PAC (Parking Assistance Camera Module)

BPM (Bluetooth Phone Module)

REM (Rear Electronic Module)

RDAR (Remote Digital Audio Receiver)

AEM (Electronic Additional Equipment Module)

List of supported engines for DPF parameters

D5244T8, D4204T

In addition to the above-mentioned service diagnostics for the VOLVO brand, the SDPROG program enables OBDII diagnosis for other vehicles:

• reading the cause of the glowing Check Engine/MIL control
• reading error codes: saved, pending, constant, generic and manufacturer-specific
• erasure of errors and fault codes
• obtaining useful information on the probable cause of the accident and how to remove it

Available for systems:

• Android 5.0 and later

SDPROG is an advanced diagnostic software that allows you to connect to the controller and on-board computer of the car, providing the most important information and parameters related to the operation of the vehicle.

The tool is very intuitive and easy to use. It is a very good solution for people who value having more control over their car. It allows you to monitor the operating parameters of the vehicle in real time.

SDPROG supports all makes and models of cars manufactured so far, regardless of their country of origin. This is made possible by the OBDII/EOBD system, which was introduced by all manufacturers with the advent of environmental standards, forcing the use of a uniform diagnostic system in cars.

For operation, a diagnostic interface is necessary, supporting the OBDII/EOBD system, which must be connected to the OBD2 connector. The most popular diagnostic interface is ELM327, which comes under different names. The device allows you to get communication with the car using Bluetooth 3.0 and Bluetooth 4.0 LE.

The program is equipped with a rich database of technical tips, thanks to which the user is able to easily locate and remove the fault in his car.

OBDII mode

The OBDII/EOBD module supports all makes and models of cars until 2024, regardless of the country in which they were manufactured. This is possible due to the fact that the OBDII/EOBD system has been installed in cars with the emergence of environmental standards that force car manufacturers to use a uniform diagnostic system.

Rich database of technical tips:

• possible causes of the defect
• Reasons for the error code
• Possible symptoms
• principle of operation of the subassembly

Useful information when buying a car:

• distance travelled from the moment of activation of the MIL control
• time after removal of fault codes
• time after the MIL control is activated

Monitoring of the operation of individual sensors in the car:

• temperature of engine, intake air and environment
• Accelerator pedal position
• voltage in the electrical system
• turbocharger boost pressure
• Lambda probe voltage

Testing the condition of the battery and voltage regulator:

• battery voltage at rest during standstill
• voltage drop during start-up
• charging status during operation at slow speed
• charging status when operating under load

Additional:

• Diagnostic monitors

Insight into this function gives quick, simple and at the same time very valuable information about the condition of a given vehicle.

With its help, we can determine whether a given defect occurs and whether it has been correctly removed.

We can also find out if the fault codes were deleted a moment earlier to hide the damage to the vehicle.

In addition, it will protect us from serious defects that occur sporadically.

• Monitoring of parameters

Easy monitoring of selected car parameters allows the option of clocks and charts with the possibility of personalization. The list of supported parameters and data is closely related to the connected car.

• Checking overloads in the car

The function allows you to check overloads in the car based on the clock. The function is to enable the user to read the current overloads while driving. The function presents the current and maximum overload value.

• Race mode

Race mode is a configurable functionality that allows you to assign visual and audible signals to the user-defined engine speed value. It is possible to set the function in such a way that the gear change takes place at an ideal moment in terms of acceleration.

Information about the speed at which the engine reaches its maximum power should be sought from publicly available sources, such as online forums or press articles.

Service mode

Service mode in SDPROG offers users the ability to perform the following actions:

• Reading and diagnosing each module in the car, which enables a full analysis of the condition and operation of individual vehicle systems.
• Deleting fault codes from the selected car module, which allows you to quickly remove errors and improve the operation of the vehicle.
• Reading available car parameters, including particularly important DPF, GPF, PEF and FAP parameters in diesel engines. This allows users to track and monitor the status of the particulate filter, which affects the efficiency and effectiveness of the engine and the overall performance of the vehicle.

Diagnostics in modules also provides insight into other key parameters and technical data of the vehicle, providing a comprehensive assessment of the condition and operation of selected systems for specific engines.

Where it will be most useful

Car workshop

• possible causes of the defect
• Reasons for the error code
• Possible signs of malfunction
• principle of operation of the subassembly
• reading the error codes of modules available in the car
• Error code types and statuses to help diagnose a fault

Conscious driver

• monitoring of engine temperature, intake air and environment
• monitoring of the accelerator pedal position
• monitoring of electrical system voltage
• monitoring of turbocharger boost pressure
• DPF, GPF, PEF and FAP filter monitoring
• monitoring of injection corrections in combustion cars
• many others

Car Seller

• distance travelled since the appearance of the MIL control
• time after removal of fault codes
• time since the MIL control appeared

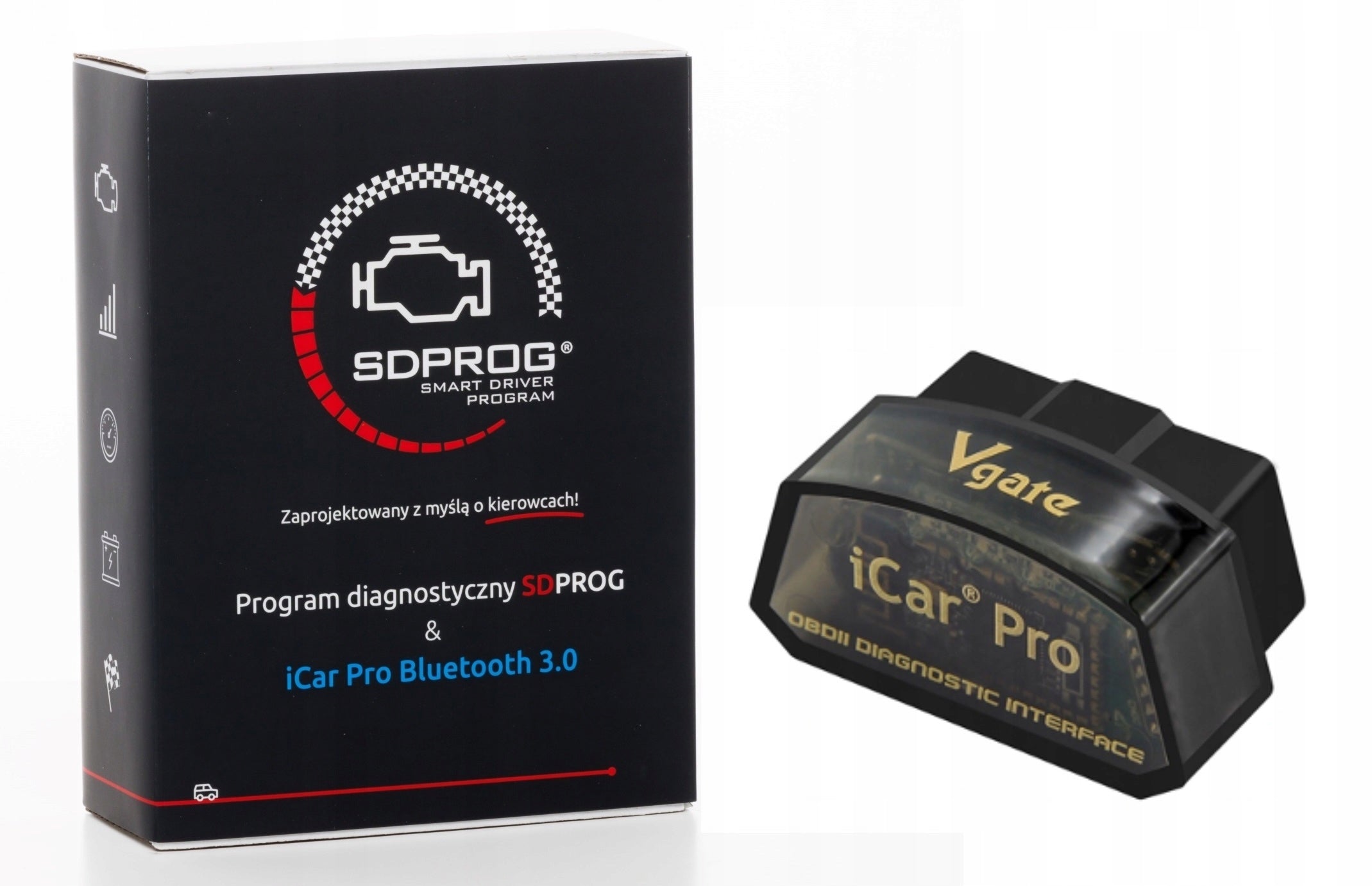

The set includes

• SDPROG software for Android mobile devices
• iCar Pro OBDII/EOBD Bluetooth 3.0 interface
• Instructions
• Access to updates
• Activation code providing free polish updates and technical support

Language versions:

• Poland (PL)
• English (EN)
• Hungarian (HU)
• Romanian (RO)
• Spanish (ES)
• Portuguese (PT)
• Hindi (HI)
• German (DE)
• Czech (CS)
• Slovak (SK)
• Bulgarian (BG)
• Russian (RU)
• Serbo-Croatian (SH)

Specifications
