Diagnostikos įrenginys LAUNCH X431 PRO3S ELITE passthrue, 2 metų atnaujinimas, CANFD, DoiP

Trumpai apie prekę

Prekė: Diagnostikos įrenginys LAUNCH X431 PRO3S ELITE passthrue, 2 metų atnaujinimas, CANFD, DoiP. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Launch
• Modelis: skaner tester komputer 987987654

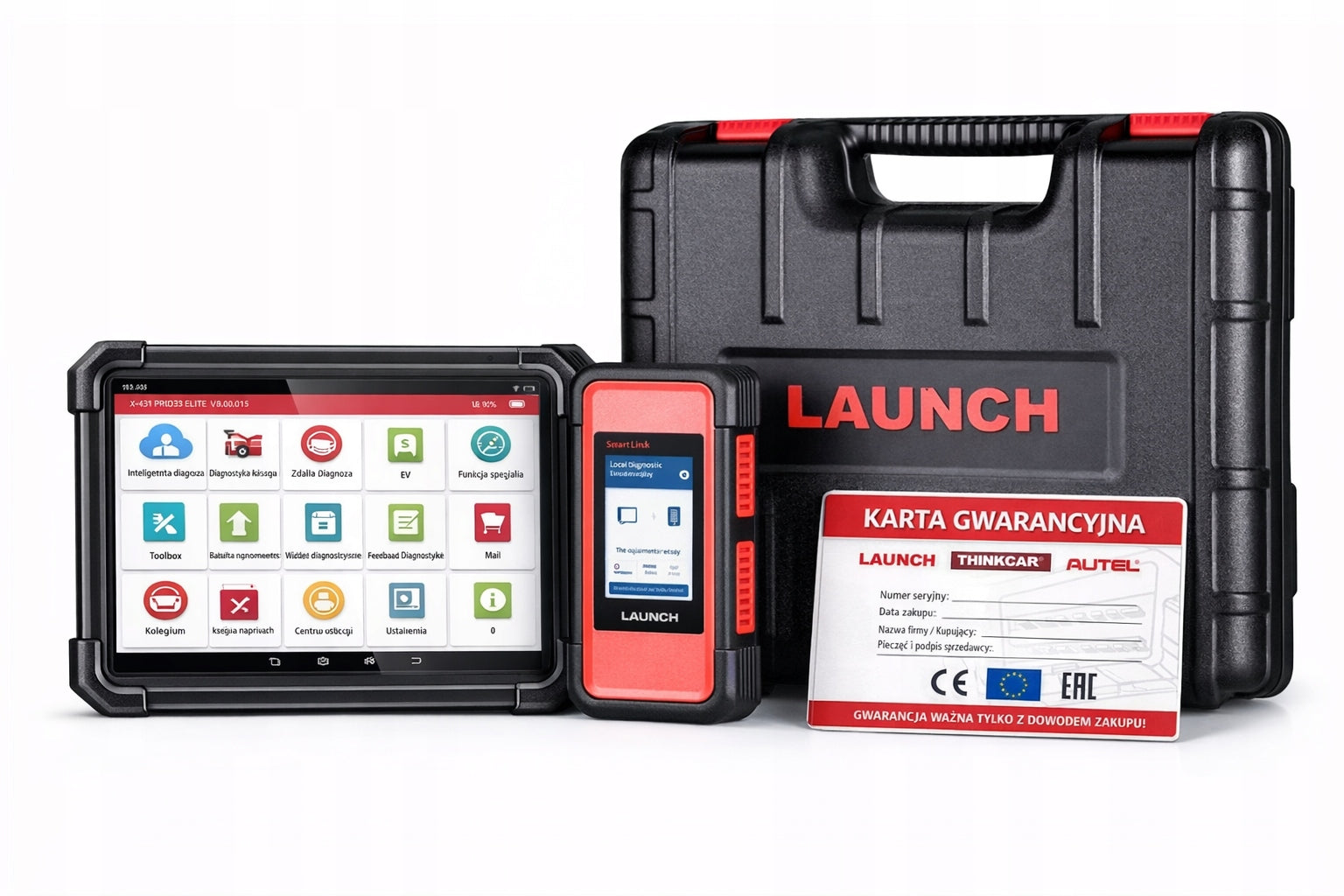

LAUNCH Pro3S Elite + SmartLink C – professional diagnostic tester PASS THRU

LAUNCH Pro3S Elite is an advanced, professional OEM diagnostic device, designed for car workshops, ASO services and diagnosticians requiring full online diagnostics and Pass Thru support.

The kit is equipped with a SmartLink C head, which allows you to program and encode drivers directly on the servers of vehicle manufacturers.

It is one of the most powerful diagnostic solutions LAUNCH, designed to work with modern passenger, delivery and hybrid vehicles.

PASS THRU SUPPORT (J2534 / DOIP / CAN FD)

Thanks to the SmartLink C head, the device supports Pass Thru function, which means the ability to:

• ECU software updates
• programming of online controllers
• module coding
• adaptation after replacement of components

✔ Compliance with Manufacturers' Requirements (OEM)

✔ work on original brand portals (online)

✅ Main diagnostic functions

• full diagnostics of all systems (engine, ABS, SRS, transmission, BCM, EPB, HVAC, etc. )
• reading and erasing errors
• real data (live data – charts)
• tests of implementing elements
• coding and adaptations
• Reset service inspections
• DPF regeneration
• sensor calibration (SAS, TPMS, ADAS – depending on the vehicle)
• Online programming (Pass Thru)

Yellow connectors are an option that does not fall within the scope of the truck reading base. Possible to buy

Tablet Pro3S Elite – specifications

• 10,1” touch screen
• Android system
• high-speed industrial-grade processor
• high-capacity internal memory
• Communication: Wi-Fi / Bluetooth
• solid, workshop housing

🚘 Supported Brands

• European cars
• Asian
• American

  (passenger cars and vans)

Device functions:

The tester is used for comprehensive operation of vehicle electronics, provides the possibility of full diagnostics, coding, personalization of controllers and performing the main service functions of the so-called. executive functions.

Due to the enormity of inquiries and discussions on the subject. range of precise service, I will allow you to list basic, verified capabilities. However, please note that with each software update, the functionality of the tester changes and various functions can be activated. We will also list confirmed problems that the user of a particular vehicle model may face.

• General system scanning: All passenger and commercial vehicles.
• Smart scanning (reading by VIN): vehicles with OBD II after 2001. The model base is constantly growing, of course, please remember that not every model will be able to verify without incorrectly after VIN
• Online coding: BMW/VAG group/MB models until 2016 model,GM (without Saab)
• Personalisation: BMW/VAG/MB Group to 2022/PSA/FCA(excluding Iveco)/Nissan/Mazda/GM
• Driver programming: Most EU and Japan brands and Ford USA and GM until 2019 (April) then full online service. USA other brands for detailed verification.
• Online PIN: BMW/VAG/Toyota/FCA/PSA(until 16r)/Renault/Nissan
• Modification in vehicle soft number: Mainly VAG Group models
• Configuration/ parameterization PROXY: FCA, Stelantis( PSA,Opel,FCA)/Nissan
• Offline programming read. (programming, adaptation of new drivers and components) NEW, not used from another car (it is about drivers, e.g. motorrol,continental,siemens); most popular models since 2001-2022

In most vehicles you can come to the same function by different routes, you can use function shortcuts, you can use the direct function so-called. the way through the controller. You can also perform general parameterization after a VIN scan.

Please remember that these are advanced devices and their operation requires at least a little knowledge of the subject of diagnostics, of course everything is to be learned, but it requires a little time and most importantly willingness.

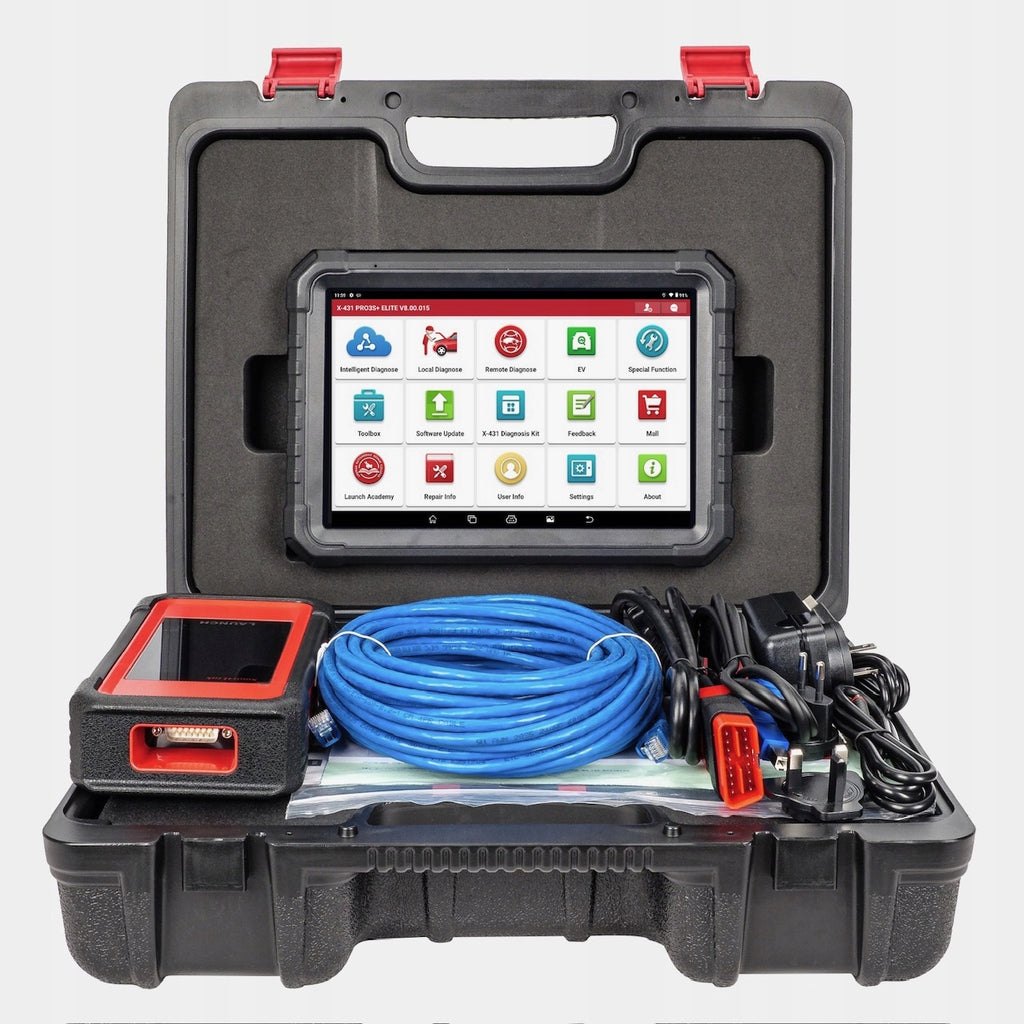

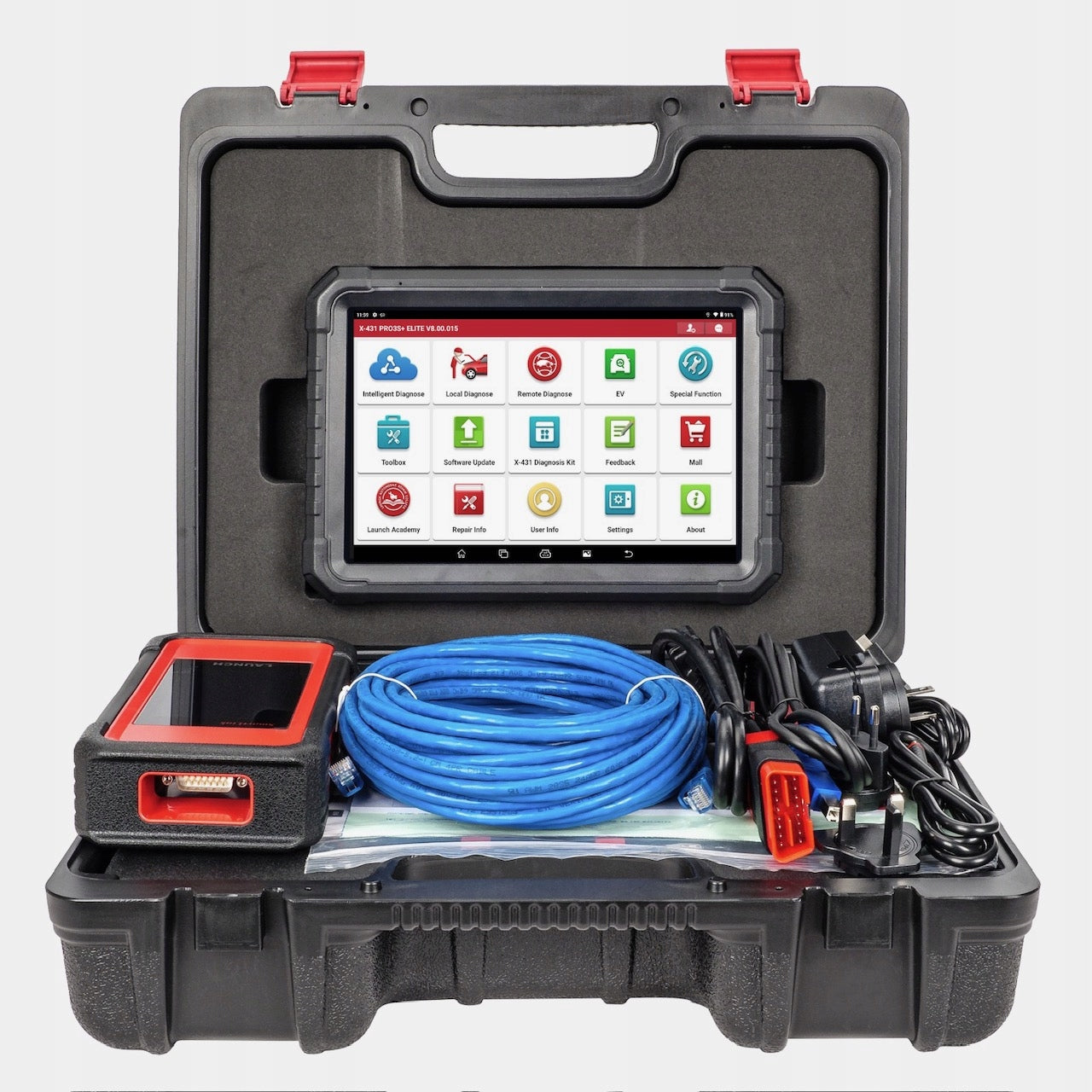

SET COMPOSITION

• Protective case
• Main Device/ Tablet
• OBD 16 pin Bluetooth interface
• Slider Obd for hard-to-reach sockets/grommet
• Charger for tablet
• Authorization documents and licensing codes
• Car charger
• Table of contents of the suitcase
• User manual

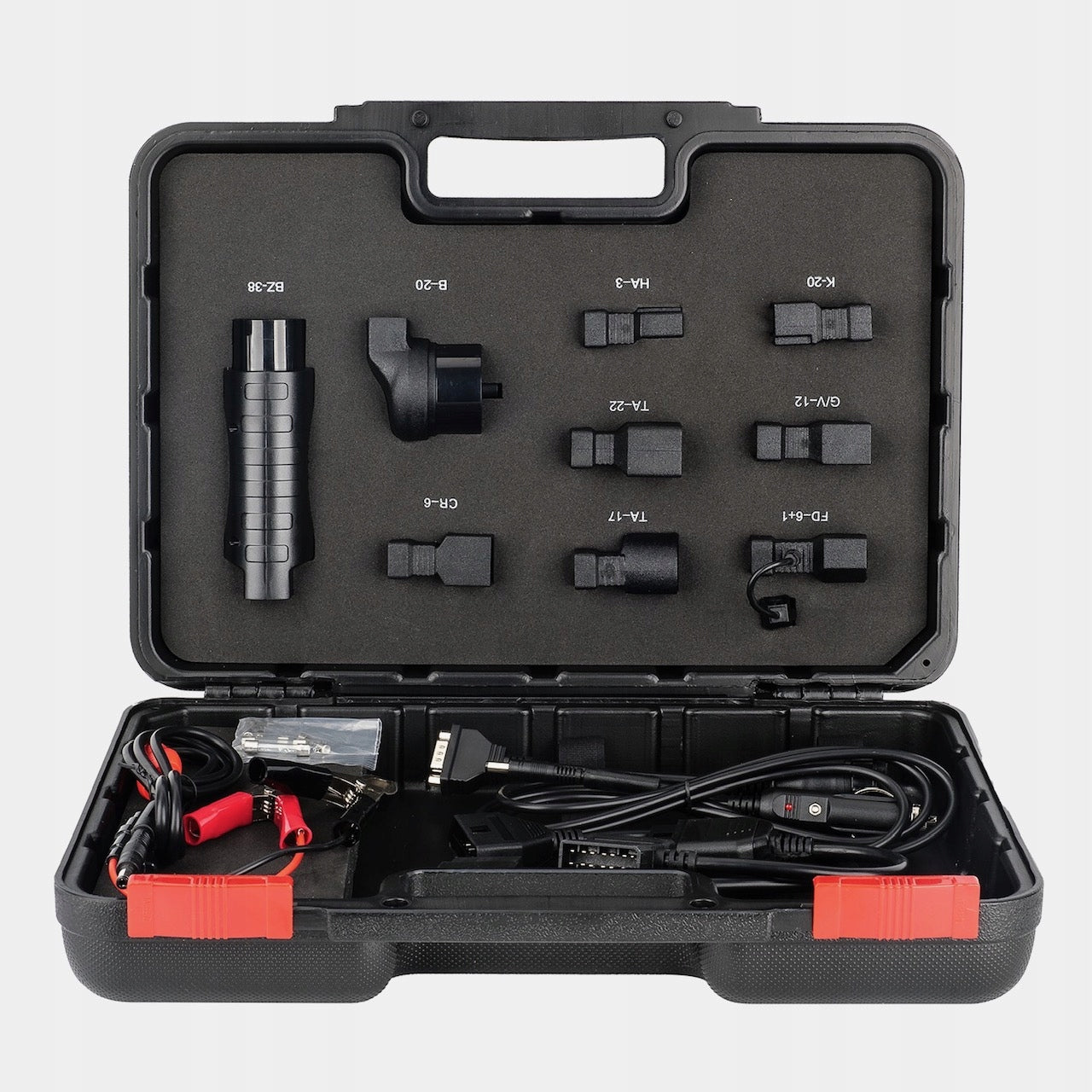

• Adapters for older OBDs

Each model from Launch has a Bluetooth interface, in addition, the set is enriched with OBD adapters supporting older types of connectors.

The set includes all the cables needed to connect vehicles from each model year

• Mercedes 38 pin round
• Mercedes 14 pin
• BMW 20 pin round
• Honda 3 pin
• Kia 20 pin
• Ford 6+1
• Audi 4 pin
• Nissan 16/14 pin
• Fiat 3 pin
• PSA old
• Toyota 17 and 22 pin
• Hyundai 12 and 18 pin
• Mazda 17pin
• GM 12 pin
• Chrysler 6 pin
• Suzuki 3 pin
• Ssangyong 20 pin
• Subaru 9 pin

Advanced diagnostics

• full diagnostics of all controllers in the vehicle
• Quick scanning of the entire car
• Vehicle identification after VIN
• preview of real parameters while driving
• Comparing data before and after repair
• records and diagnostic reports

🔹 Service Functions

The device supports several dozen service procedures, m.in.:

• Oil inspection reset
• ERA parking brake service
• DPF regeneration and adaptation
• throttle adaptations
• coding and adaptation of injectors
• Gearbox reset and calibration
• BMS reset (battery)
• calibration of steering angle sensors (SAS)
• TPMS support and reset
• procedures after replacement of subassemblies

🔹 ECU programming and coding – PASS THRU

With Pass Thru support, the device allows you to:

• programming of ECU controllers
• Online software updates
• coding of modules after exchange
• work on original vehicle manufacturers portals
• meeting EU requirements for access to service data

This solution allows the workshop to perform operations that were previously possible only in the ASO.

🔹 Support for modern protocols

• CAN
• CAN FD
• DOIP

  (which guarantees compatibility with the latest vehicle models)

🔹 Workshop and remote work

• stable communication with the vehicle
• possibility of local and remote work (online diagnostics)
• Quick software updates
• Preparedness for future car models
