Desolderavimo stotis YIHUA 948D-I 110W LCD, 3 atmintys, automatinis miego režimas, kalibravimas

Trumpai apie prekę

Prekė: Desolderavimo stotis YIHUA 948D-I 110W LCD, 3 atmintys, automatinis miego režimas, kalibravimas. Kategorija: Lituokliai.

• Gamintojas: Techrebal
• Modelis: 4D63-2683E
• Galia: 110 W

The Yihua 948D-I desoldering station is designed with your convenience and efficiency in mind. The device is distinguished by quiet operation, easy-to-read display and functions that improve everyday operation. With the help of three programmable memory channels, you can instantly switch between settings, and the desolder gun will take care of controlling the filling of the tin tank. The built-in sleep system and calibration function enable even more precise and safe operation. An additional advantage is the ergonomic display, which you can set at any angle.

❇ Product Features:

✅ The built-in automatic sleep and shutdown system increases work safety and saves energy when the station is not in use for a long time.

✅ 1,1 inch LCD display with adjustable tilt angle provides excellent visibility of settings regardless of where the device is installed.

✅ The function of three programmable channels allows you to save and quickly recall your favorite temperature settings, which significantly speeds up the work.

✅ The desolder gun equipped with a system that monitors the level of filling of the tin tank tells you when it needs to be emptied or replaced with a filter, which eliminates the risk of downtime.

✅ The ability to calibrate the temperature gives you full control over the accuracy of the work, which is especially important when replacing heating elements or nozzles.

✅ The quiet operation of the device allows you to focus on precise tasks without annoying background noise.

✅ The clear interface and logical layout of the buttons ensure intuitive operation, even if you are using the station for the first time.

⚙ Specification:

• Power supply voltage: 220V~240V AC, 50Hz
• Power: 110W
• Temperature range: 380°C ~ 480°C (716°F ~ 896°F)
• Ambient temperature range: 0°C ~ 40°C (32°F ~ 104°F)
• Display type: LCD
• Station dimensions: 220 × 120 × 156 mm ±5 mm
• Length of pistol hose: 110 cm
• Power cord length: 110 cm
• Resistance of the tip against the ground: < 2 Ohms
• Vacuum pressure: 0.05 MPa

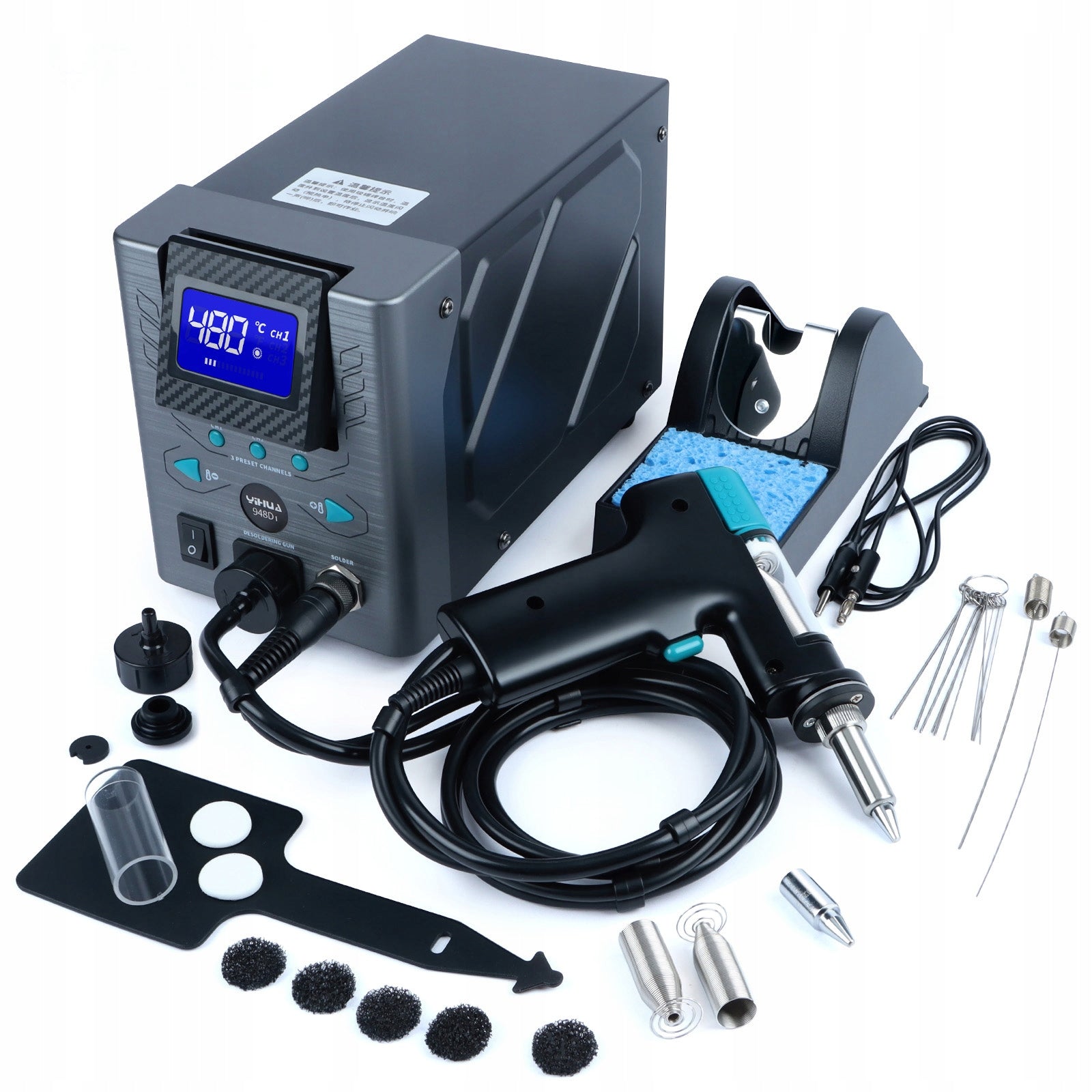

⭐ Included:

• Yihua 948D-I Desoldering Station
• Desoldering gun
• Power cord
• Desolderer gun stand
• Silicone anti-burn handle for tip replacement
• 10x steel cleaner - short
• 2x steel cleaner - long
• Set of filters
• Spare tin container with two separators
• Grounding cable
• Spare tip

✅ Full control thanks to calibration capability

The temperature calibration function of the YIHUA 948D-I is a solution that gives you more confidence and precision in your daily work. With this feature, you can accurately adjust the temperature settings to the real values read with the thermometer.

Calibration becomes essential when you replace a heater or other consumables, which protects your projects from overheating or insufficient heating. The process is intuitive and fast, and following a few simple steps allows you to achieve stable and repeatable results. This solution gives you full control over the operation of the station in any situation.

✅ A gun that works with you

The built-in monitoring system for filling the tin tank in the desolder gun is a real convenience for you. Thanks to it, you have current insight into the filling state, which allows you to avoid sudden interruptions in work caused by overfilling or clogging the system.

Information about the need to empty or replace the filter appears exactly when you need it. This solution increases the comfort of use and minimizes the risk of damage to the equipment. With this approach, you can focus only on precise soldering and desoldering.

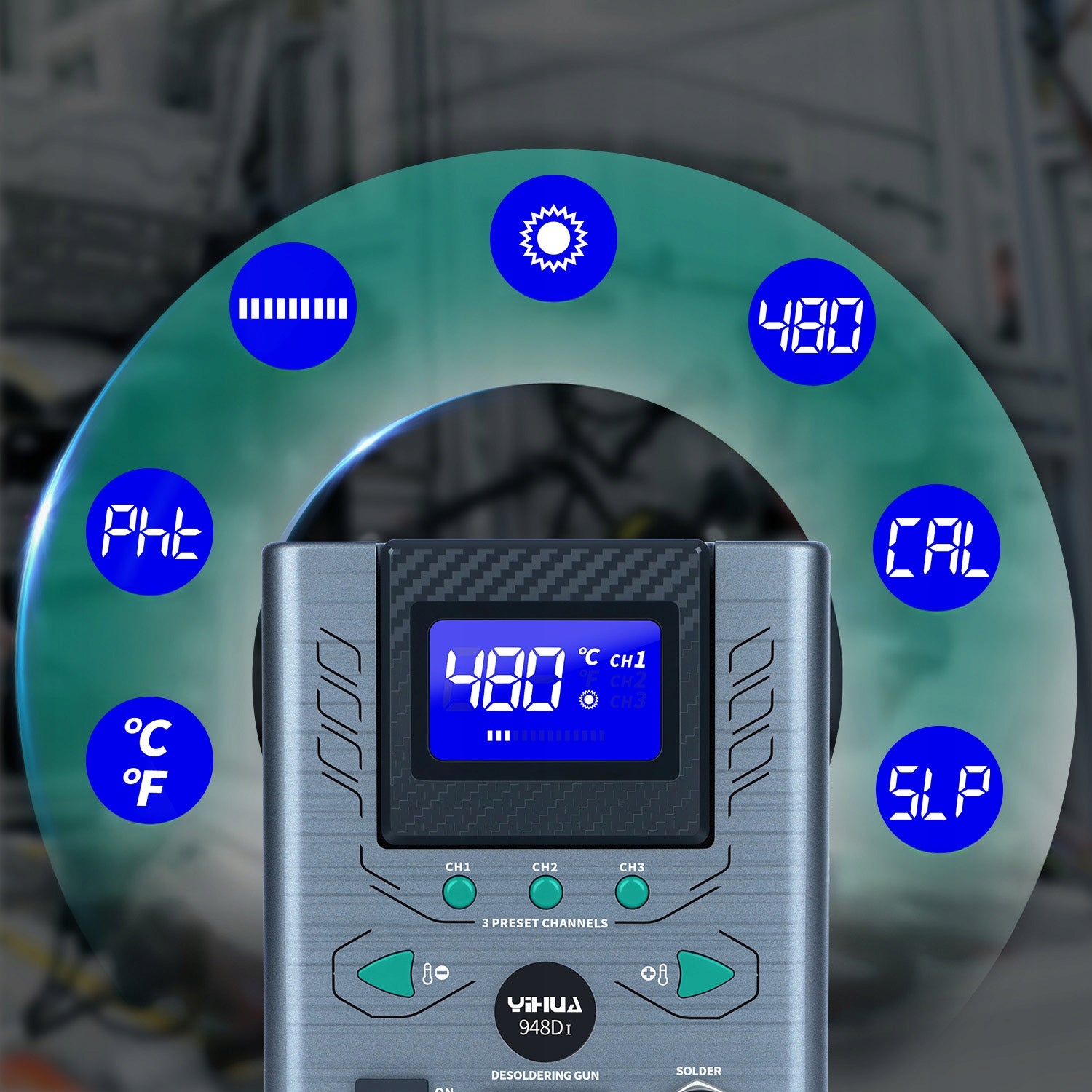

✅ Readability in every position

Adjustable, tiltable 1,1 inch LCD display makes it convenient to use the YIHUA 948D-I regardless of the station setting on the stand. You can adjust the viewing angle to your working position, which eliminates the need to bend over or change the equipment setting.

Regardless of whether the station is high, low or at an angle, all information is always perfectly visible. The display shows the current temperature, operating channel, operating mode and other relevant parameters. Thanks to this, you do not have to guess - you have everything under control.

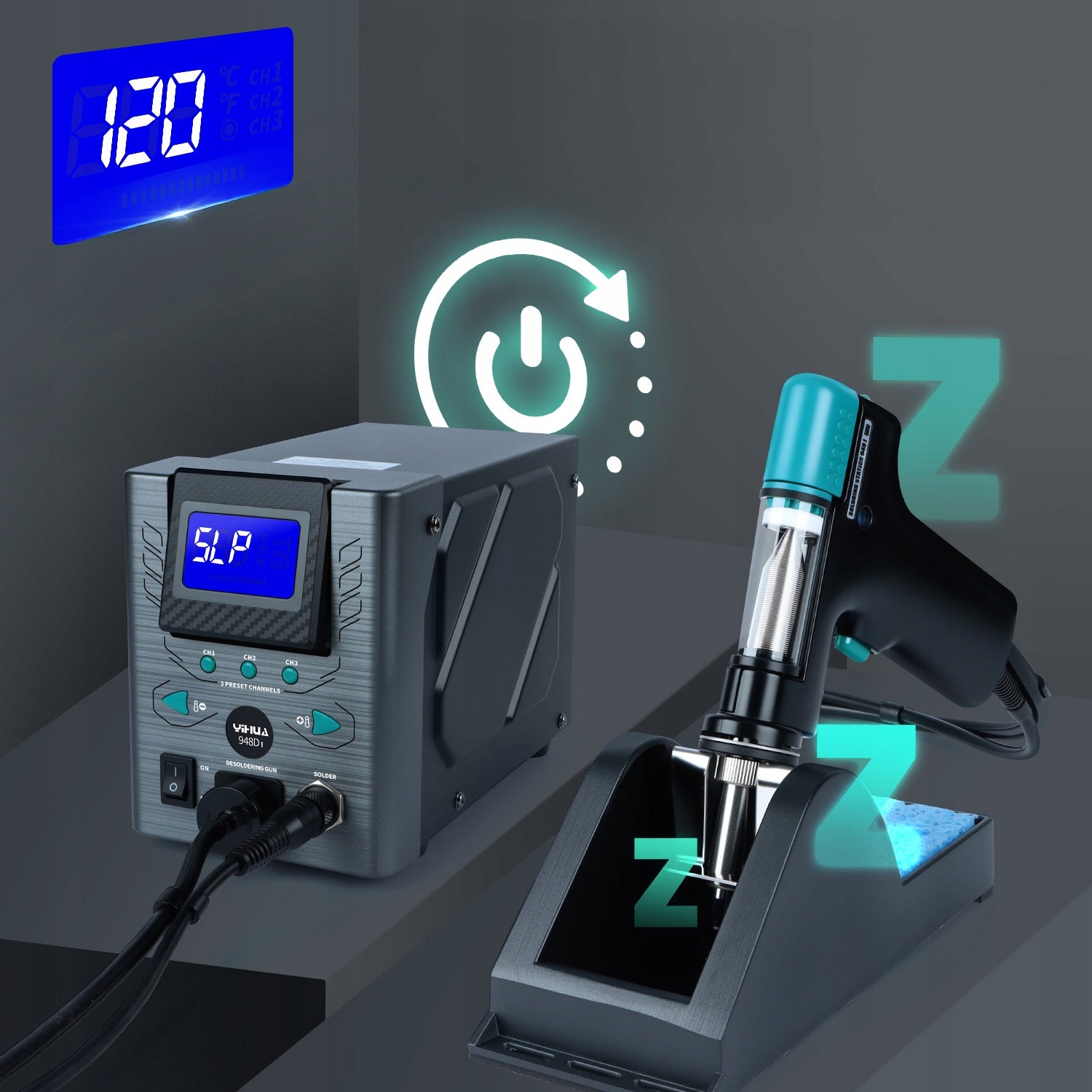

✅ Safe and energy-efficient operation

Automatic sleep and shutdown mode is a smart feature that increases the life of the device and reduces power consumption. You have the option to set the standby time from 0 to 120 minutes, allowing you to customize the device to your individual working style.

If no operation is performed for 30 minutes, the station will turn off automatically, preventing accidental overheating. It is not only a convenience, but also a way to protect components and increase safety. This allows you to leave your equipment with confidence, knowing that it will take care of its shutdown.

❇ Construction of the station:

1 Channel Selector Button CH1/CH2/CH3

2 Desoldering gun holder

3 Power Indicator

4 Temperature display

5 Sponge for cleaning the tip

6 Temperature mode °C/°F

7 Tin suction activation button

8 Currently selected work channel (CH1/CH2/CH3)

9 Desoldering gun

1 0 Main power switch

1 1 Temperature control button

1 2 Chamber for flux residues and tin

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Power	110 W
Parametry	Manufacturer code	4D63-2683E
Parametry	EAN (GTIN)	5905902333407
Parametry	Maximum operating temperature	480°C
Parametry	Brand	Techrebal
Parametry	Minimum operating temperature	380°C
Parametry	Model	4D63-2683E
Parametry	Power supply	mains
Parametry	Kind	other
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
