Trumpai apie prekę
Prekė: Deimantinis diskas 230mm gelžbetoniui Turbo segmentas. Kategorija: Diskiniai ratai.
- Gamintojas: Allbe
- Modelis: A121DT22322

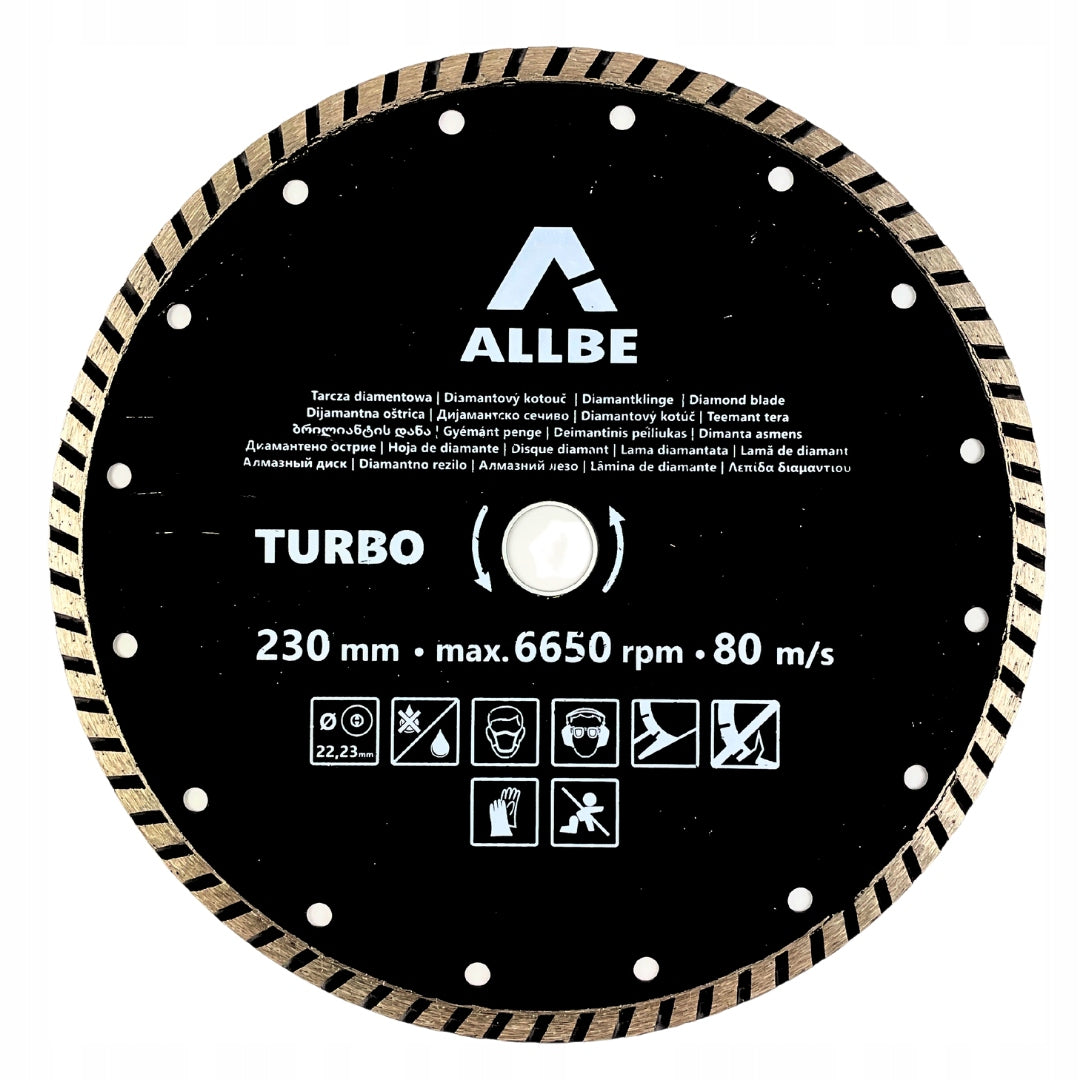

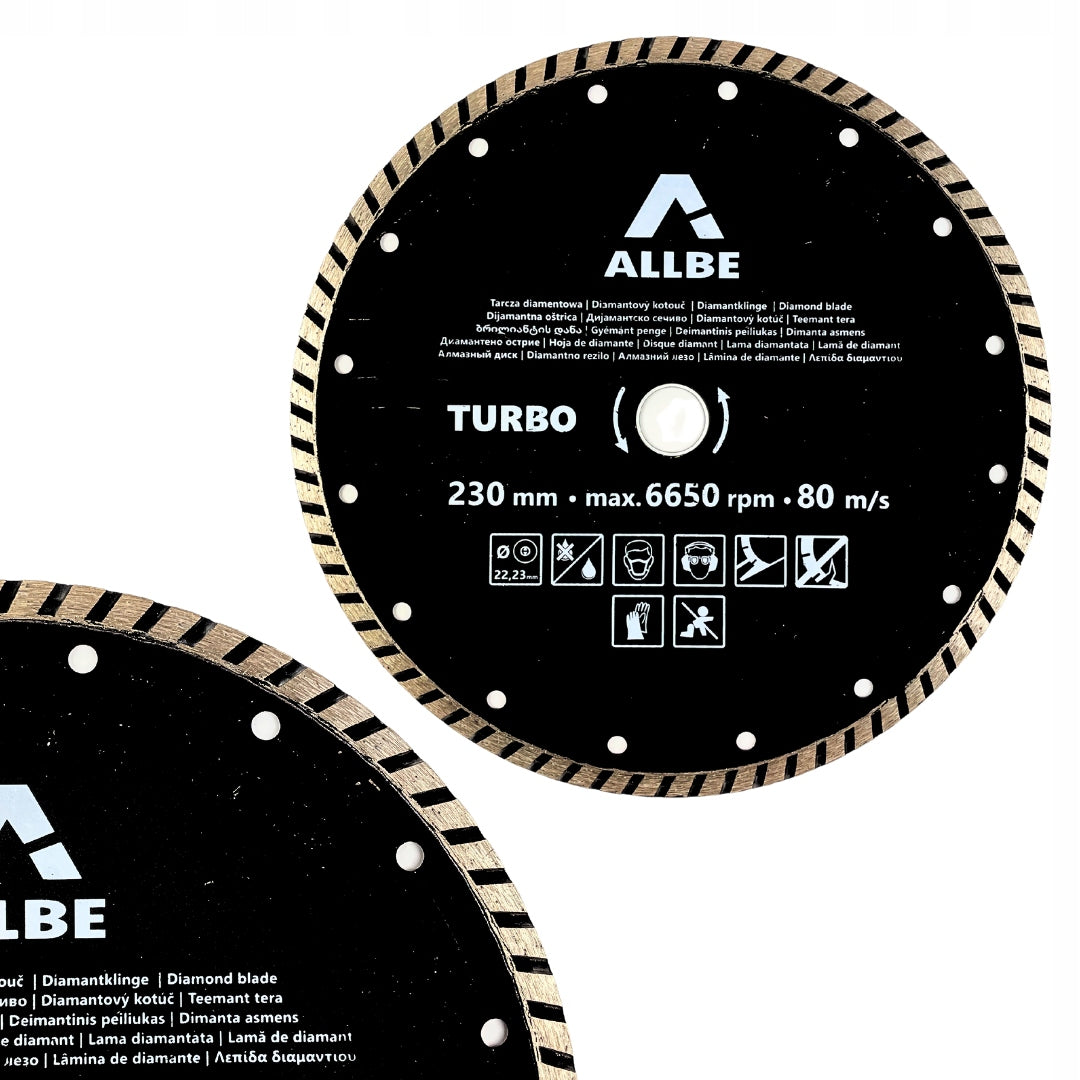

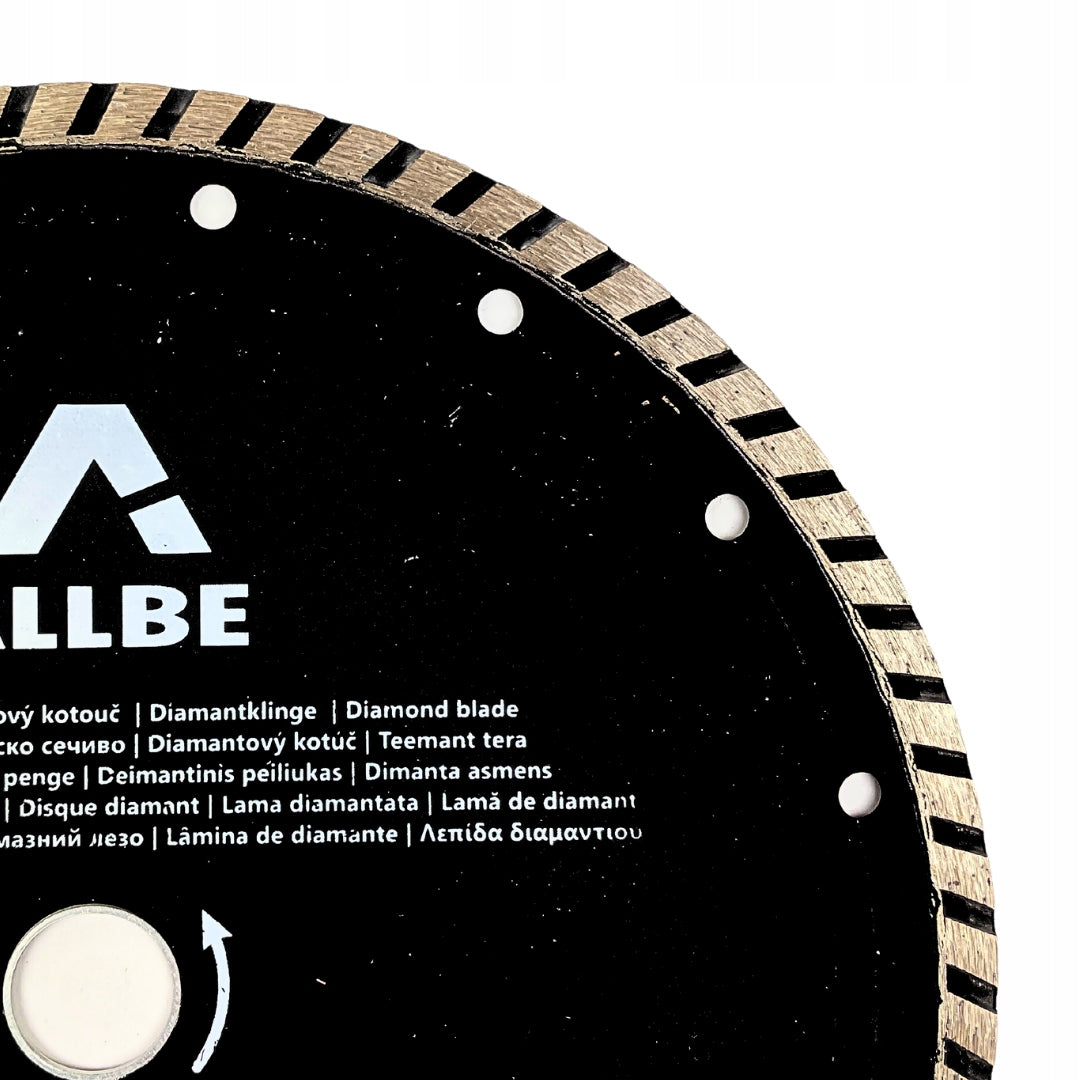

Diamond blade 230 mm with segment 7 mm designed for cutting concrete, reinforced concrete, paving stones, bricks and curbs. The segmented turbo design supports efficient removal and stable operation. The product is designed for use in manual and stationary machines.
Technical specification
- Disc diameter: 230 mm
- Mounting hole diameter: 22,23 mm
- Segment / diamond height: 7 mm
- Disc Type: diamond, segmented, turbo
- Max. Rotation speed: 6 650 rpm /min
- Linear speed: 80 m/s
- Application: concrete, reinforced concrete, brick, paving stones, curbstones, masonry
- Compatibility: manual and stationary machines
Product description and key features
The 230 mm diamond disc is designed for cutting building materials with increased hardness. It works well in the treatment of concrete, reinforced concrete, brick, paving stones and curbs. The 7 mm segment contributes to an extended service life and more possible cuts.
The turbo segmented design supports efficient handling of the disc in the material. This solution helps to maintain proper work efficiency and effective removal of dust and debris from the cutting zone. This makes the disc suitable for renovation, construction and paving works.
Adequate diamond concentration affects the cutting quality and durability of the tool. The disc can be used both in manual devices and in selected stationary machines compliant with the given parameters. Standard 22,23 mm opening ensures compatibility with many popular devices.
In order to maintain high efficiency for a long time, it is necessary to remember about the proper operation of the disc, including its periodic sharpening. The product is designed for technical and workshop applications, where the repeatability and durability of the tool count.
Why is it worth it?
✔ Diameter 230 mm – for popular devices
✔ 7 mm segment – increased durability
✔ Turbo segment type – efficient work in hard materials
✔ Hole 22,23 mm – wide compatibility
✔ For concrete, cubes, bricks and curbs
✔ Suitable for manual and stationary machines
FAQ – Frequently Asked Questions
1. What materials is the shield intended for? The disc is suitable for cutting concrete, reinforced concrete, brick, paving stones, curbs and masonry.
2. What is the diameter of the dial? The outer diameter of the disc is 230 mm.
3. What mounting hole does the disc have? The disc has a standard mounting hole of 22,23 mm.
4. Is the disc suitable for reinforced concrete? Yes, the product is also designed for cutting reinforced concrete.
5. What is the maximum rotational speed? The maximum permissible rotational speed is 6 650 rpm. /min (80 m/s).
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Allbe |
| Parametry | Series | TARCZA DIAMENTOWA |
| Parametry | Disc type | cutting |
| Parametry | Hole diameter | 22,2mm |
| Parametry | Disc diameter | 230mm |
| Parametry | Number of teeth | 100 and more |
| Parametry | Number of pieces | 1 pcs |
| Parametry | Manufacturer code | A121DT22322 |
| Parametry | EAN (GTIN) | 5905176004072 |
| Parametry | Product weight with unit packaging | 0.6 kg |
| Parametry | Packaging status | original |
| Parametry | Purpose | concrete,aerated concrete,bricks,stone,drywall,cement slabs,for bricks,for stone |
