Degalų žarna šienapjovei NAC

Trumpai apie prekę

Prekė: Degalų žarna šienapjovei NAC. Kategorija: Dalys ir priedai.

• Gamintojas: LSP
• Modelis: Przewód, wężyk paliwa świeca filtr do kosy

➡ FAST SERVICE OF COMBUSTION SCYTHE WITHOUT SEARCHING FOR PARTS 🔧

The service kit for the combustion scythe contains the most frequently replaced consumables needed for a basic refresh of the fuel system and ignition.

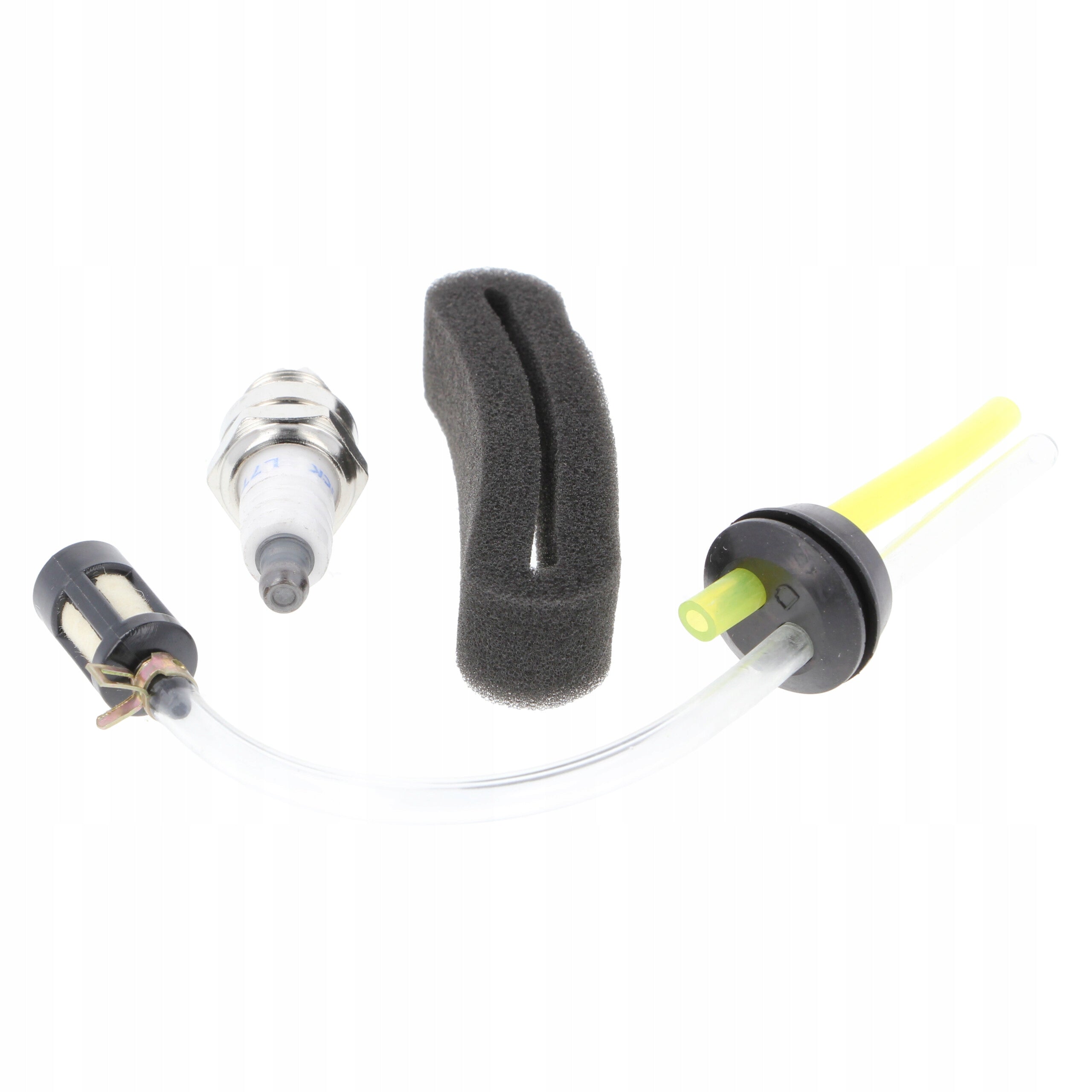

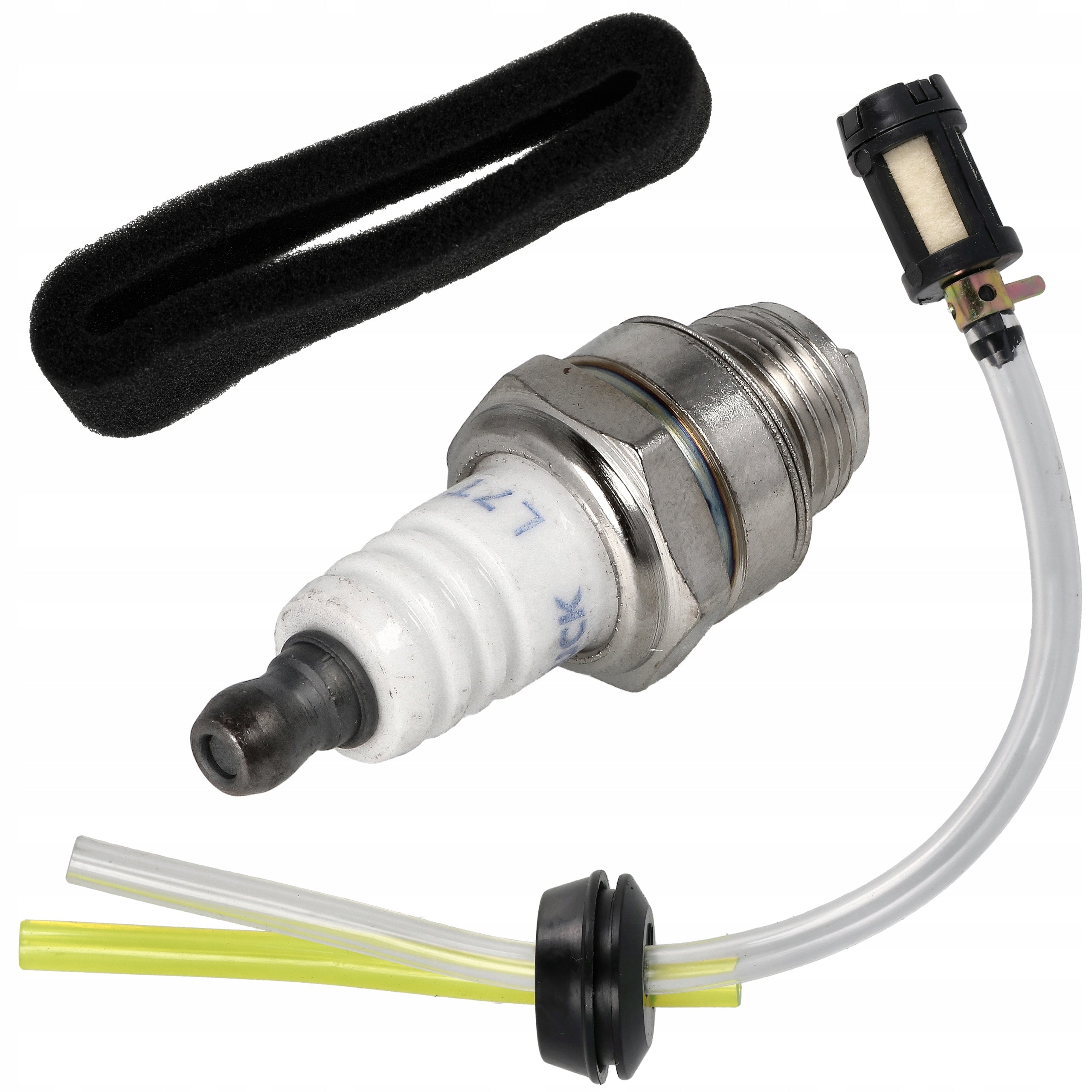

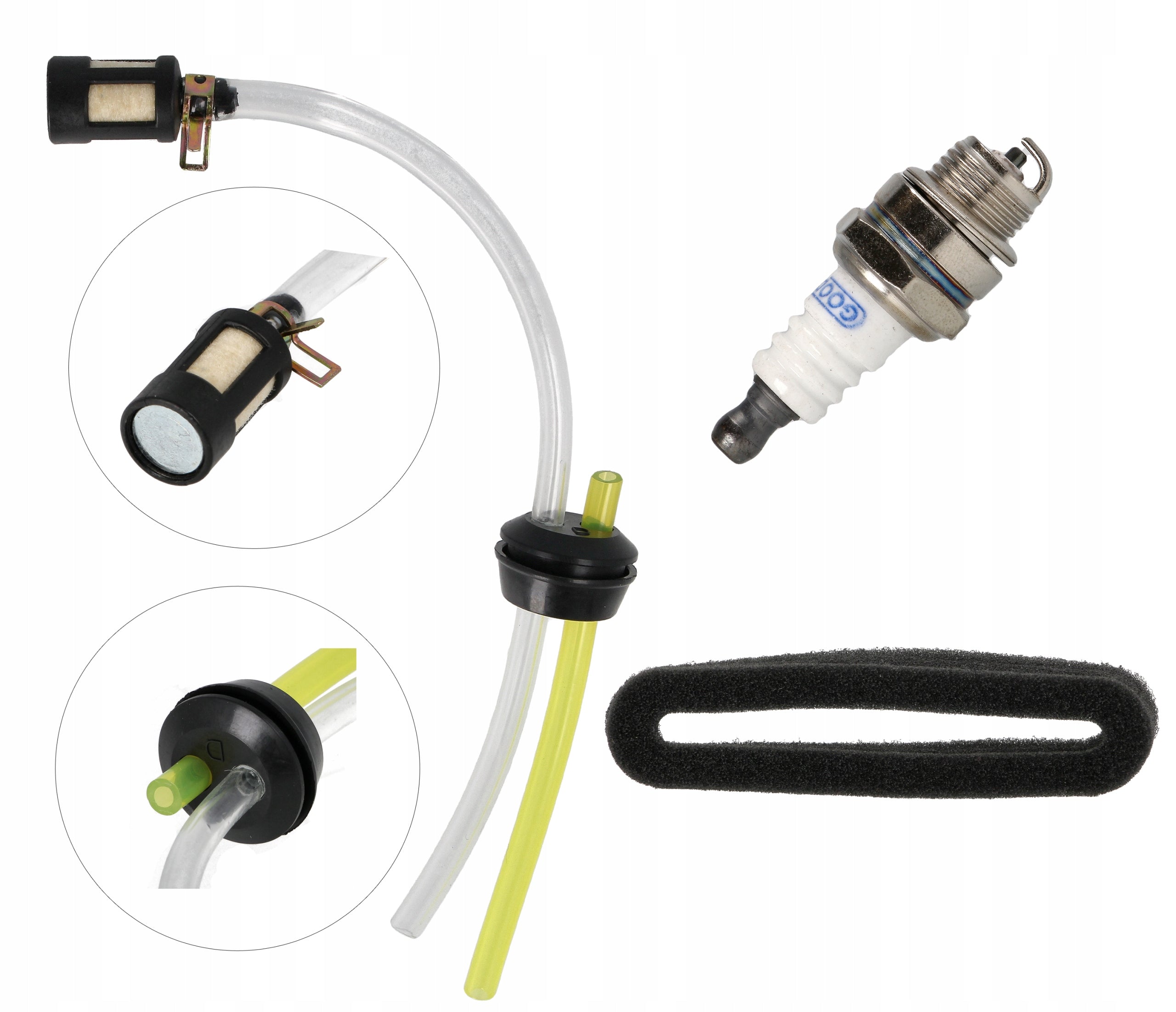

The set includes a L7T candle, an air filter, a fuel filter and a transparent fuel line. Such a set allows you to quickly prepare the scythe for the season or replace worn-out elements without completing the parts separately.

This is a universal set used in many popular Chinese combustion scythes with the designations BC, CG, CYG and RQ.

➡ The set includes:

• ✅ Candle
• ✅ Air filter
• ✅ Fuel filter
• ✅ Fuel line transparent

➡ APPLICATION COMPATIBILITY 🔧

• For combustion scythes up to 52 cm3
• For devices with power from about 2 hp to 5.5 hp
• Fits many Chinese BCxxx CGxxx CYGxxx RQxxx combustion scythes
• Used in brands such as NAC, DEMON, TEXAS, BASS, HARDER, LEADER, VICTUS, MASTIFF and others
• Works well during seasonal service and replacement of worn-out consumables

➡️ For models such as:

• CASTORAMA SPS02-43BC
• DEMONRQ415, RQ430, RQ508, RQ508 PRO, RQ580, RQ580T, RQ680
• DOLMAR MS25, 30, 340
• ECHO SRM 2305, 250, 330, 350, 4000, 5000
• Güde GFS 1503B
• HARDER PNBC 260 - 1T, 415 - 2T
• LIDER GKS 28, GKS 300, TMK52, TMK521, VKS 517
• NAC CG33N, CG260, CG260B, CG330, CG330B, CG360N, BCG430, BCG260, NCG330, CG430N, CG430B, WLBC260B2ZXU, WLBC-520 B, WLBC520B-2ZTU, WLBC580E2ZXU, BP254-10, BP254-10-V, BP427-17-V, BP427-17B-V, BP427CA-T, BP427-16MU-T, BP427-17KA-T, BP52LMT, BP517-20-TS, BP517-20B-V , BP520, BP520-27-T, BP520-30KA-T, BP54, BP540-30B-V, BP540-32B-V, BC580V-2, BP620-36-T, BP620-38KA-T, MEX520-K3A, MEX540-K30, MEX620-K38A, Ru 425
• NAX 800B
• TEXASBC300, BC320, CG260, CG330, CG430B VICTUSBC26, BC32, BC36, BC43, BC301

and others not listed here.

Product Index: 89-012KPL

➡ WHY REGULAR FILTER REPLACEMENT IS IMPORTANT

In Chinese combustion scythes, the air filter and fuel filter are among the consumables that are worth checking regularly – especially during intensive mowing in dust and high grass.

Dirty air filter limits the air supply to the engine. This is often manifested by uneven work, a decrease in power, more smoke and problems with entering the rotation.

A spent or clogged fuel filter can hinder fuel supply, causing the scythe to interrupt during operation, start worse or go out under load.

When working in high dust, the air filter can get dirty very quickly. Regular inspection and replacement of filters helps to avoid firing problems, power drops and uneven engine operation.

It is also worth controlling:

• fuel line condition and possible leaks
• colour and wear of the spark plug
• cleanliness of the fuel tank
• tightness of fuel system connections

Regular service helps to reduce firing problems and maintain stable operation of the scythe throughout the season.

➡ L7T CANDLE

• Thread diameter: 14 mm
• Thread length: 7.5 mm
• Thread pitch:1,25 mm
• Total length of the candle: 53 mm

➡ FUEL LINE AND FILTER

• Total length of hose: 200 mm
• Eraser diameter:24 mm
• Diameter of groove eraser:20 mm
• Filter diameter: 12.5 mm
• Filter length: 22 mm

➡ AIR FILTER

• Outside length: 87 mm
• Inner length: 74 mm
• Width: 25 mm
• Thickness: 7 mm

Due to the susceptibility of the filter to operating forces, the dimensions may vary slightly.

➡ MORE RELIABLE WORK DURING THE MOWING SEASON 🌿

Regular replacement of basic consumables helps maintain an even operation of the combustion scythe and reduce problems during intensive use.

Such a set is especially useful before the season, after a long stop of equipment or when the scythe begins to fire worse and lose stable rotations.

Instead of completing the parts separately, you can immediately replace the most important consumables and prepare the scythe for further work.

➡ FAQ ❓

Does the kit fit 43CC and 52CC Chinese combustion scythes?

Yes, the set is used in many popular BC, CG, CYG and RQ scythes with a capacity of up to 52 cm3.

Is the candle included the L7T?

Yes, the L7T spark plug is included.

Is the fuel line transparent?

Yes, the kit includes a transparent fuel line with a length of 200 mm.

Can an air filter have minimal size differences?

Yes, the filter material is susceptible to deformation, so the dimensions may vary slightly.

What brands does the set fit?

Among others, for devices of brands NAC, DEMON, TEXAS, VICTUS, LIDER, HARDER and many others.

Is the kit suitable for pre-season service?

Yes, it is a set of the most frequently replaced consumables at the basic service of the combustion scythe.
