DDF 40 MAXIMAX gręžtuvas T-MAX Systener Mafell 918602

Trumpai apie prekę

Prekė: DDF 40 MAXIMAX gręžtuvas T-MAX Systener Mafell 918602. Kategorija: Frezos.

• Gamintojas: Mafell
• Modelis: 918626, 918602

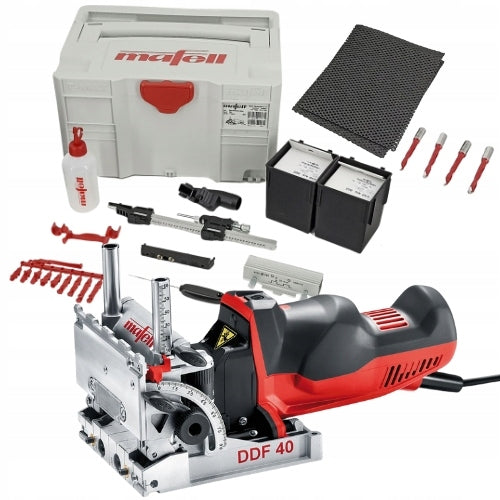

Scope of delivery DDF 40 includes:

♦ 1 additional support ZA

♦ 1 set of additional ZAG bumpers

♦ 1 chip extraction connection

♦ 1 PAZ position indicator

♦ 2 Non-slip mats (265 x 175 mm); Cat. no. 095063

♦ 1 Glue bottle 250 ml (empty); Cat. no. 095059

♦ 1 Allen wrench with handle; cat. no. 093282

♦ 1 Power cable 4 m; Cat. no. 077015

♦ 2 drill-HW d. 8 mm

♦ 2 drill-HW d. 6 mm

♦ 1 pack. pins 8 x 30 mm, 200 pcs.

♦ 1 pack. pins 6 x 30 mm, 350 pcs.

♦ 1 Nozzle per bottle of glue Ø 8 mm; Cat. no. 095060

♦ 1 side sampler SA 320; Cat. no. 206490

♦ 1 additional bumper for LA strips; Cat. no. 206491

Technical data:

♦ Universal motor 230 V~, 50 Hz

♦ Power consumption (normal load) 900 W

♦ Drilling depth 0 – 40 mm

♦ Angle range 0 – 90°

♦ Max drill diameter 12,2 mm

♦ Min drill diameter 3 mm

♦ Tool holder diameter 8 mm

♦ Speed. idling speed 8000 1/min

♦ Diameter of the chip extraction nozzle 29 mm

♦ Weight without power cord 2,8 kg

♦ Dimensions (W) x . debt. x H ) 145 x 300 x 164 mm

♦ The 32 mm spacing between the holes is a standard used by professionals on a daily basis. While other joining systems require additional tooling, the DDF 40 allows you to make a row of holes and mounting holes with a spacing of 32 mm. So all the furniture is easy to assemble.

♦ DDF 40 is a slim design machine with a flat base plate. It creates practical connections for wooden pegs with ease of use as with classic drills.

♦ The patented alignment system with spring-loaded retaining pins in the base plate has been adapted to the new SA 320 side sampler set. They allow you to drill a pair of holes and repeat this operation - at a great distance from the reference edge - very easily and without the need to mark the material.

♦ Proven double doweling technique prevents the elements from twisting after assembly. As a result, leveling items is unnecessary.

Product details

♦ The new DDF 40 introduces greater ease and efficiency in terms of accurate drilling of dowel holes. Its hallmarks are a wide range of applications, a new ergonomic design for easy operation and absolutely even, stable connections.

♦ In the workshop or on the assembly, no other hand-held power tool can create connections of such high quality.

♦ When making corner joints, partitions or rows of holes, DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with the use of standard wooden pegs.

♦ In addition, the double doweling technique allows you to achieve exceptional stability already at the dry assembly stage.

Application of DDF 40 Mafell:

♦ Row of holes

♦ Drilling connectors

♦ Ideal for connecting furniture bodies, frame structures, drawers and stairs both in the workshop and at the customer’s premises

♦ For joining solid wood, slats and wood panels

♦ For connections to wooden pegs by d. 3 - 12 mm

What are the benefits of using the DDF 40 Mafell Doweling Machine? :

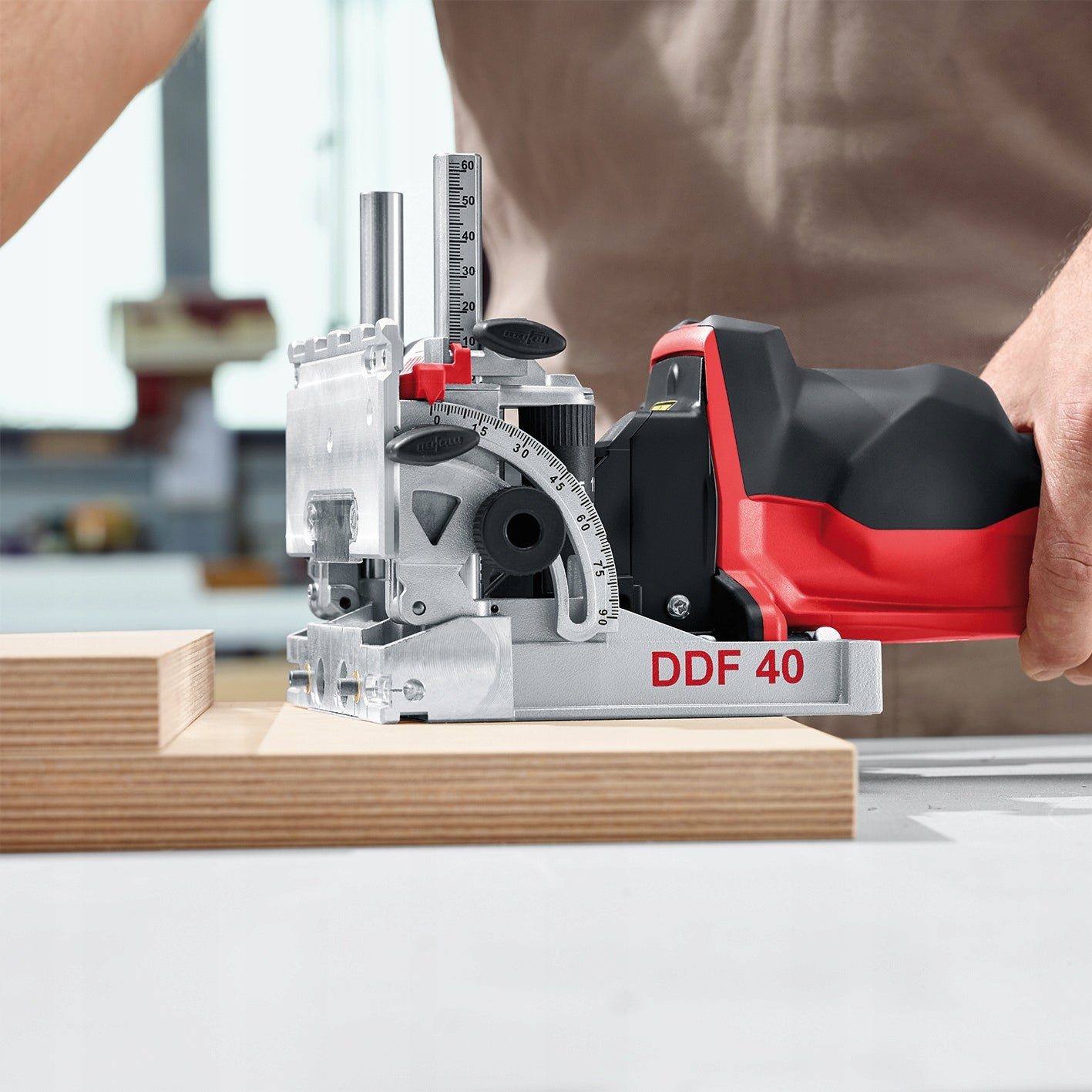

♦ Using the knob and scale, you can precisely adjust the tilting foot of the dowel press up to a height of 62 mm. Typical dimensions can be set using the turret stop.

♦ Two spring-loaded stop pins in the base plate allow the user to drill holes at a consistent distance of 15.5mm from the edge of the material; repeatable drilling without any measuring or marking.

♦ The ergonomic engine housing, with a molded grip at the front and a hump at the rear, gives the operator a perfect grip regardless of the job at hand, while optimally transferring force to the machine.

♦ New ergonomic design for easy handling

♦ Patented alignment system

♦ Slim design machine with flat base plate

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Mafell
Parametry	Series	DDF 40
Parametry	Milling machine type	specialized
Parametry	Power supply	mains
Parametry	Tool holder (mm)	8
Parametry	Maximum no-load speed	8000 RPM
Parametry	Maximum milling depth	40 mm
Parametry	Power cord length	4 m
Parametry	Additional information	transportation box included
Parametry	Device weight	2.8 kg
Parametry	Manufacturer code	918626, 918602
Parametry	EAN (GTIN)	4032689213675
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
