Dažų storio matuoklis Precise and Fast Measurement Tester Coating Thickness Sensor

Trumpai apie prekę

Prekė: Dažų storio matuoklis Precise and Fast Measurement Tester Coating Thickness Sensor. Kategorija: Dažų storio matuokliai.

• Gamintojas: Wintact
• Modelis: WT200A

⭐⭐⭐⭐⭐

WT200A - new improved version

(in blue color)

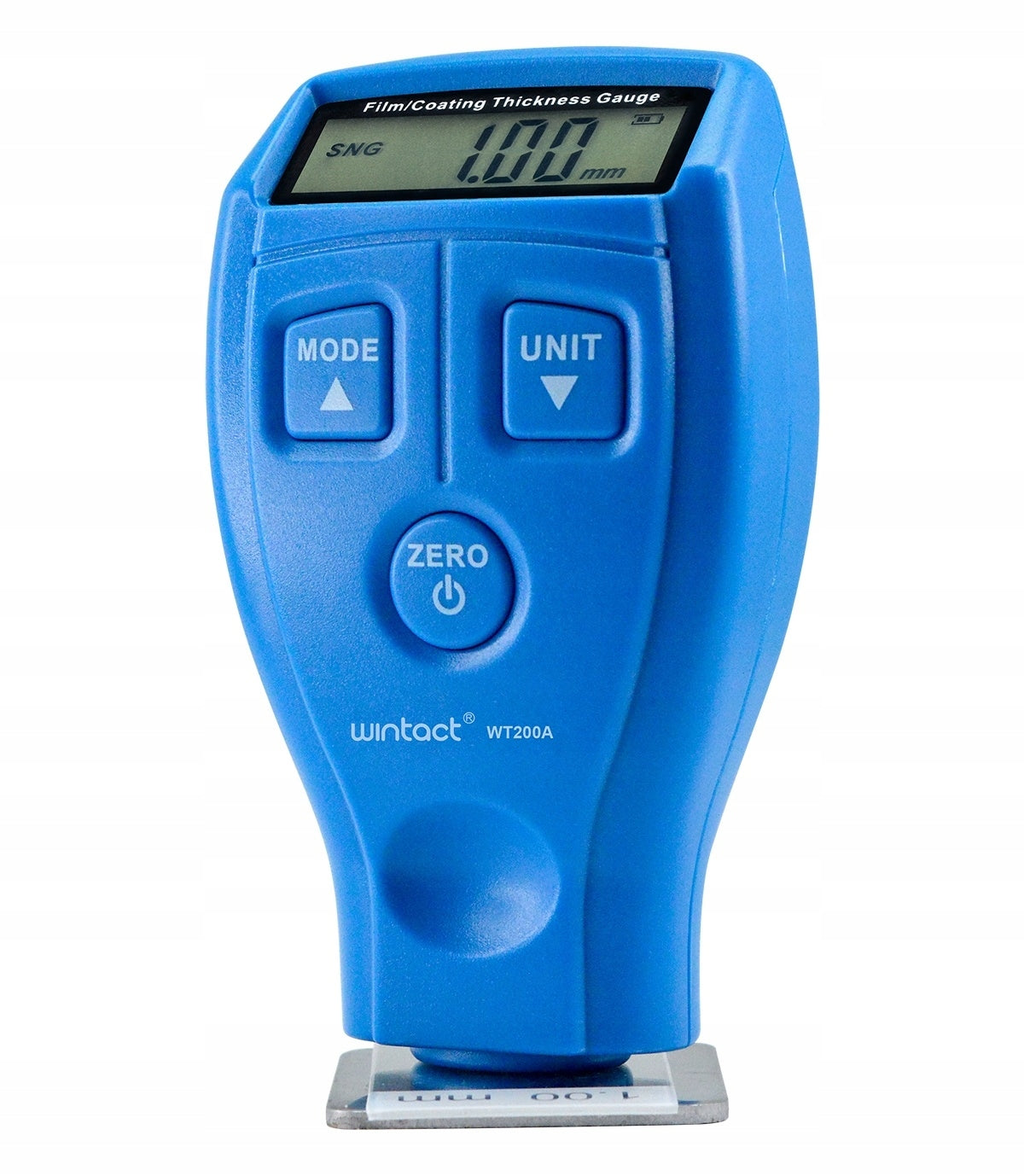

WT200A is a portable device used to quickly and accurately measure the thickness of non-magnetic coatings (like varnish) on metal substrates. The product is widely used in the chemical industry, metallurgy, quality control of goods, especially in the automotive industry and many other fields.

FUNCTIONS OF THE PAINT THICKNESS GAUGE:

⭐⭐⭐⭐⭐

1. Measurement of coating thickness on metal substrate including steel and aluminum.
2. Possibility of measuring single, continuous, as well as the difference between individual measurements.
3. Basic, zero-point and 2-point calibration available.
4. Metric or imperial measurement options (a system of measures used in the UK).
5. Automatic shutdown.

TECHNICAL PARAMETERS OF THE METER:

⭐⭐⭐⭐⭐

1. Measurement range; 0~1,80mm/0~71,0 miles
2. Resolution: 0,01mm/1 mil/10 µm
3. Measurement error: +/- 0,03 mm
4. Min. Substrate diameter: 50 mm
5. Min. substrate thickness: 0,5 mm
6. Power Supply: 2x1,5 V AAA
7. Operating temperature range: 0~40°C
8. Operating Humidity Range: 10-95% RH
9. Dimensions: 65 x 31 x 108 mm
10. Weight: 64 (without battery)

⭐⭐⭐⭐⭐

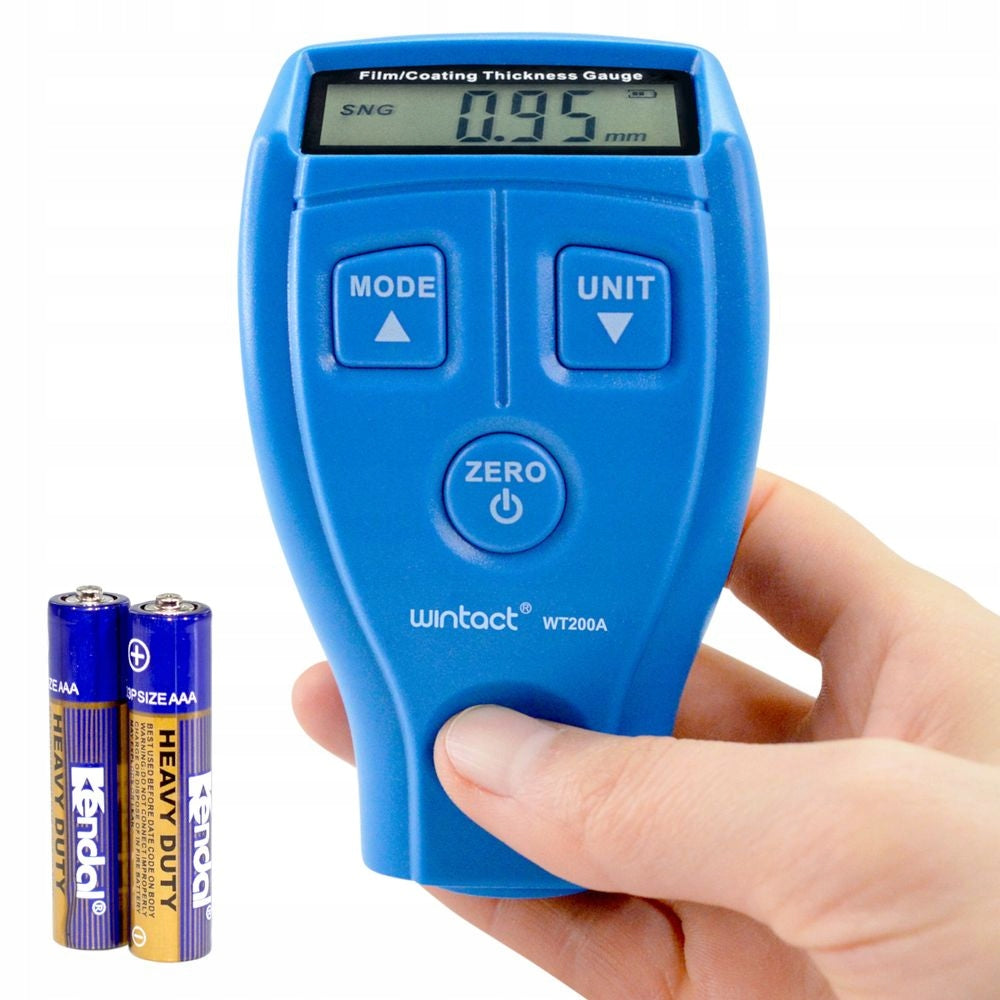

• (A) LCD SCREEN.
• (B) Used as a measurement mode switch and in calibration state.
• (C) Used as a switch for measurement units and in calibration state.
• (D) On/off switch. Zero-point calibration.
• (E) Reader.

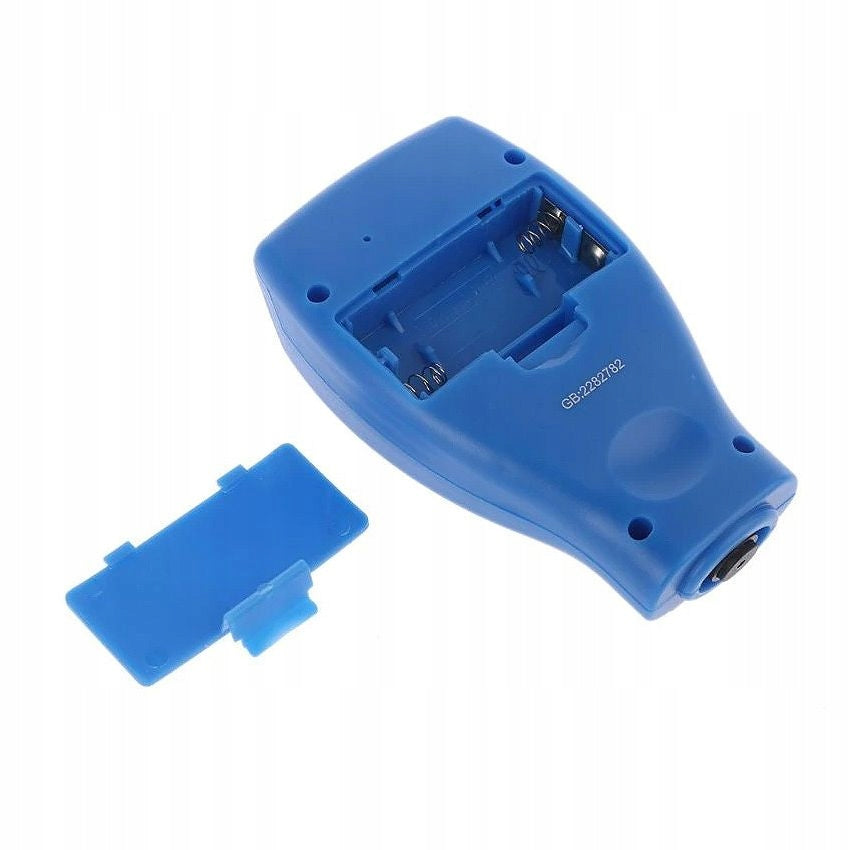

• (F) Battery pocket.

⭐⭐⭐⭐⭐

1. nFe : Not used
2. SNG : Single measurement
3. CTN : Continuous measurement
4. DIF : Differential measurement
5. List of measured values
6. Battery status
7. Not used
8. Metric value (1mil=0.0254mm)
9. Device in calibration state
10. Imperial value (1mm=39.4mil)

⭐⭐⭐⭐⭐

• Thickness gauge WT200A
• User manual in language. Polish
• Samplers (calibration plates)
• Batteries
• Original packaging

In the set you will receive a set of six calibration plates:

• 0.05mm
• 0.10mm
• 0.25mm
• 0.50mm
• 1.00mm
• 2.00mm

BENETECH is a manufacturer of advanced measuring and control equipment. A specialized supplier of professional digital measuring tools, as well as other electronic devices.

BENETECH POLAND is an authorized and direct distributor of this brand in Poland and Europe.

In the brand catalog you will find m.in:

• pyrometers and thermal imaging cameras,
• anemometers (wind meters),
• humidity meters and hygrometers,
• detectors and meters of gases and air quality,
• sonometers (decibel meters) and lux meters (light meters),
• laser rangefinders and tachometers,
• thermometers and pressure gauges,
• thickness and vibration meters (vibrometers),
• tools for electricians and cable detectors,
• electromagnetic radiation meter,
• home and industrial electronics equipment.
