Daugiafunkcis matuoklis Sonel MPI-536 su kalibravimo sertifikatu ir priedais

Trumpai apie prekę

Prekė: Daugiafunkcis matuoklis Sonel MPI-536 su kalibravimo sertifikatu ir priedais. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI536

Catalog index WMPLMPI536

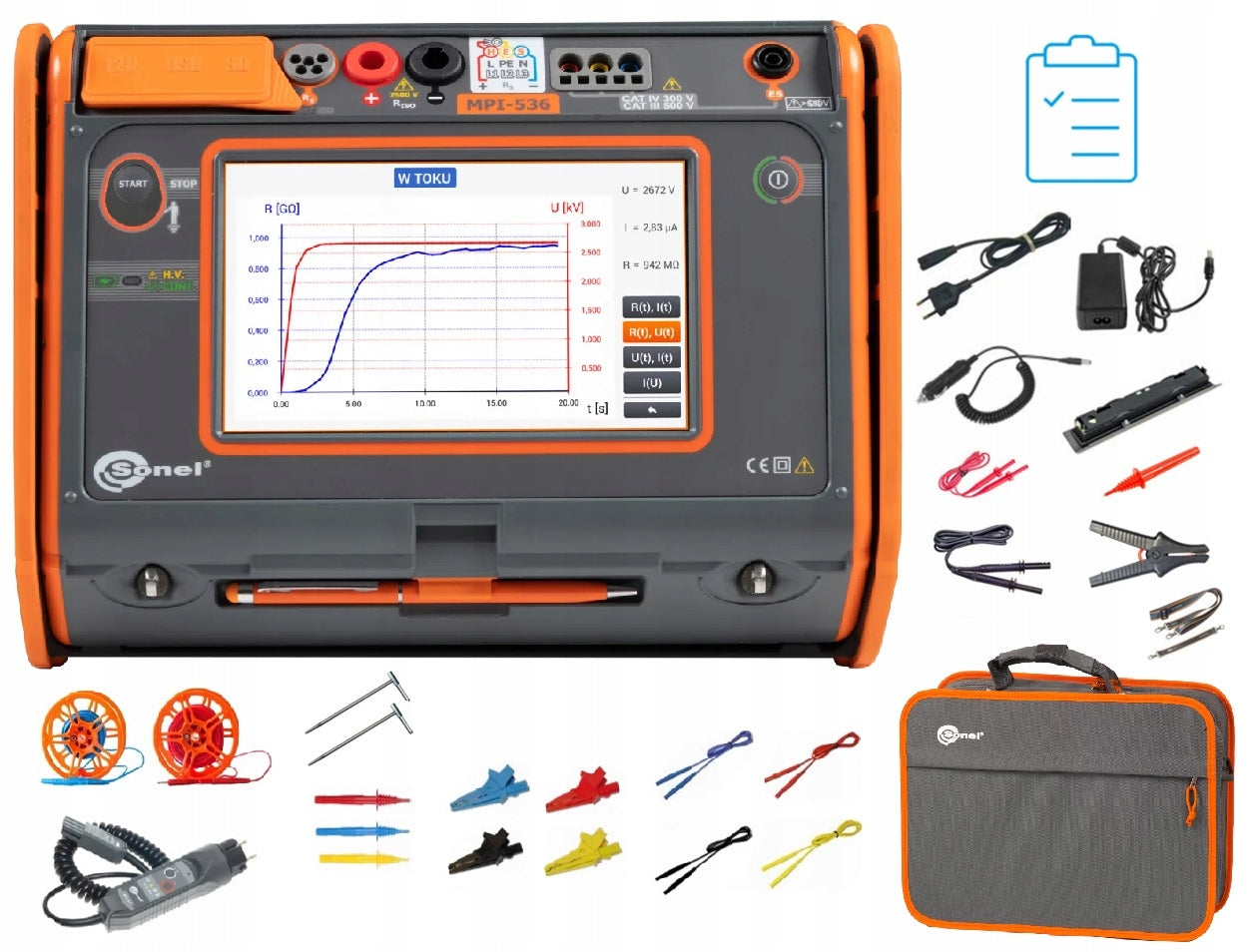

Standard accessories shown in the photo

Calibration certificate is a document issued by the manufacturer in the production process of the meter confirming the granting of metrological properties and maintaining measurement consistency. This is a document issued only for brand new measuring instruments.

On the calibration certificate there is a place to enter the date of commissioning, this is the date of sale of the meter. Another execution of the metrological confirmation (calibration) is recommended to be carried out within 12 months from the date of purchase, but not later than 24 months from the date of manufacture. When purchasing at our auctions, you are entitled to a 10% discount on the next calibration in our laboratory.

AUTHORIZED DISTRIBUTOR OF SONEL - YOU RECEIVE SUPPORT, CONFIDENCE IN THE PURCHASE OF FULL-FLEDGED EQUIPMENT AND PROFESSIONAL ADVICE.

By purchasing a meter from MERAZET S.A. you receive a 10% discount on calibration in the MERAZET laboratory.

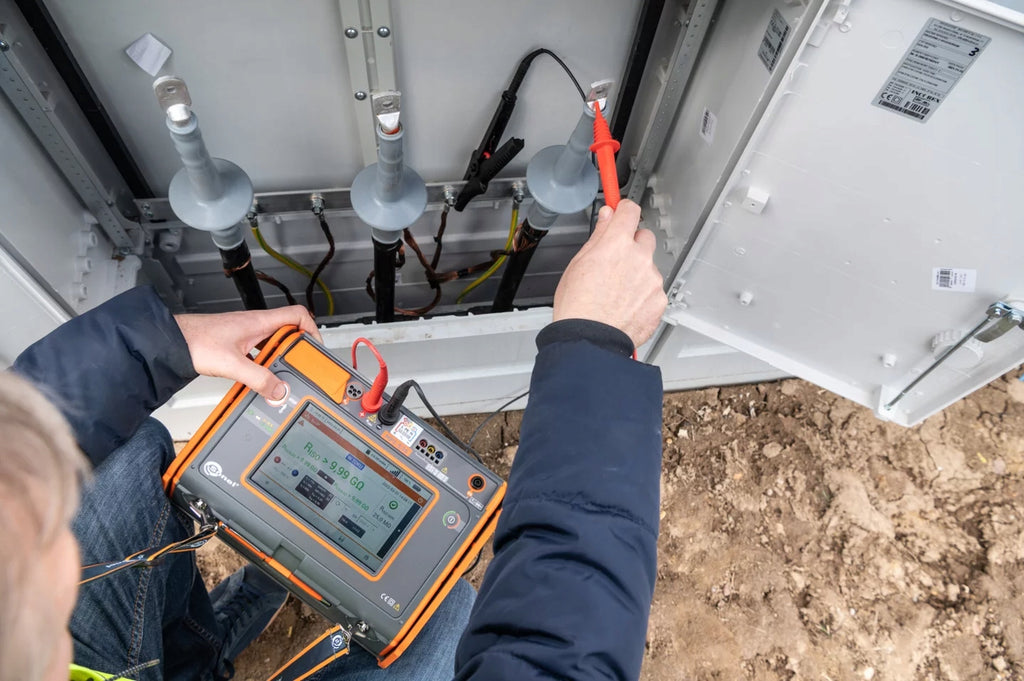

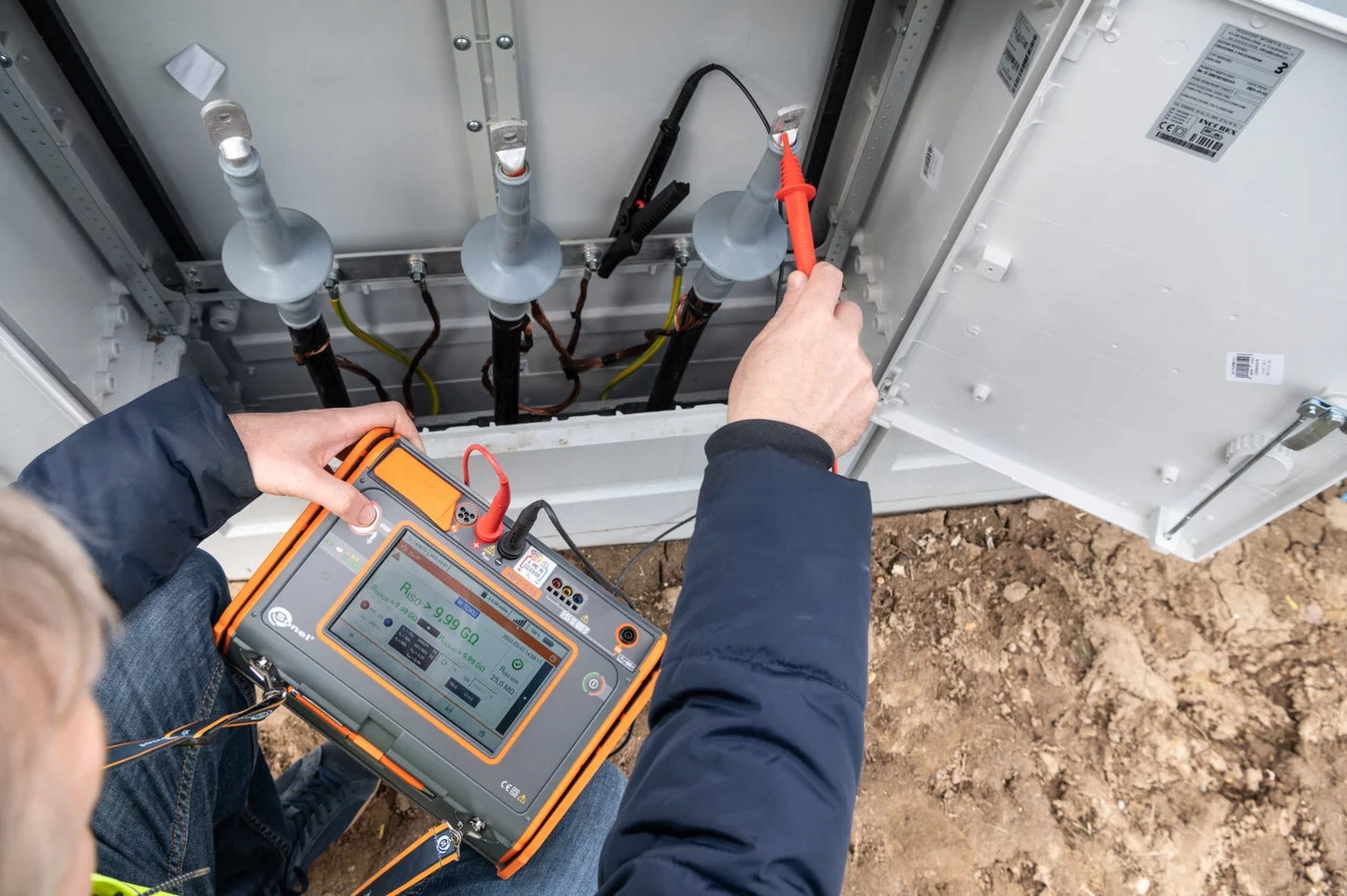

Multifunctional meter for electrical installation parameters Sonel MPI-536 is designed for checking domestic and industrial­ electrical installations. With the help of the instrument, measurements can be made, the results of which determine the safety status of the installation. This makes it possible to measure parameters of shock protection using one uni­versal device.

Measurement of insulation resistance up to 2,5kV

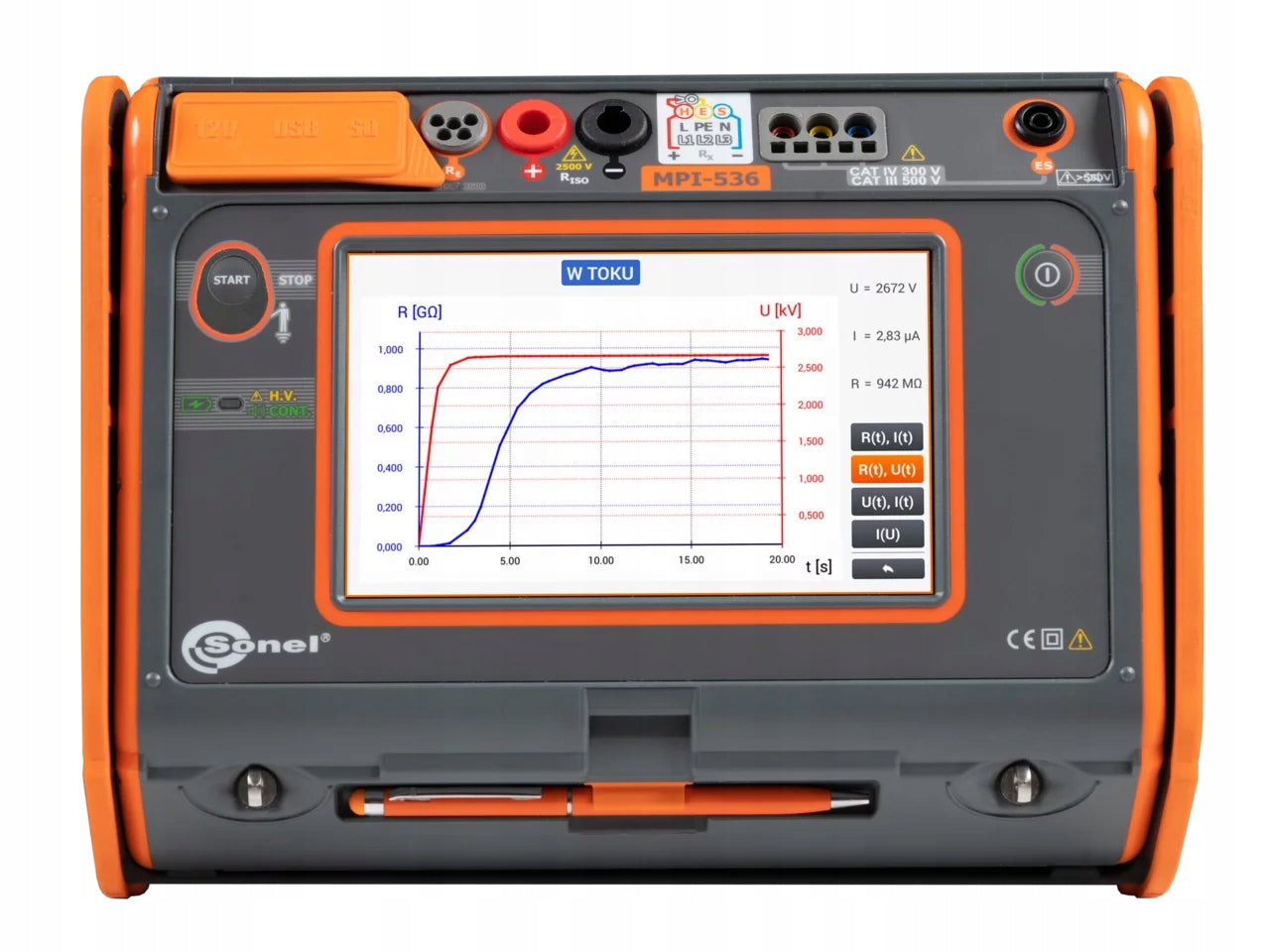

In terms of insulation resistance control, Sonel MPI-536 has very wide possibilities – its maximum measurement voltage is up to 2500 V. The diagnostics of insulation are supported by R(t)/U(t), R(t)/I(t), U(t)/I(t), I(U) charts, available both after and during the measurement. In addition, the instrument calculates absorption coefficients and temperature coefficients. In addition, the Sonel MPI-536 enables automatic measurement of insulation resistance of 3-, 4- or 5-wire wires or cables using the optional AutoISO-2500 adapter.

Significant automation of measurements is enabled by the function of testing residual current circuit breakers in Auto mode, as well as pre-programmed by the manufacturer measurement sequences (so-called. au­totests), which can also be expanded with your own sequences.

Isolation resistance specialist

• Measurement of insulation resistance with voltage of 2,5 kV
• Visualization of RISO in the form of a chart
• The largest (7”) touch panel on the market – extraordinary ergonomics and ease of use
• Removable microSD card – easily increase memory capacity
• Li-Ion battery – longer operation of the meter
• Measurement of all parameters of shock protection – one instrument instead of several
• Quick short-circuit loop measurement with RCD switch without triggering (up to a few seconds) – saving time
• Self-tests – possibility of automatic measurements in sequence – simplification of measurements
• Fast track from measurements to report – saving time

The meter is characterized by wide possibilities in the field of functionality. It combines the measurement capabilities of several devices, while ensuring equally good accuracy.

The instrument can perform all acceptance measurements of electrical installations in accordance with applicable regulations:

• Short-circuit loop impedance (also in circuits with RCD circuit breakers),
• parameters of RCD circuit breakers,
• insulation resistance,
• ground resistance (4 measurement methods + ground resistivity measurement),
• continuity of protective and compensatory connections,
• intensity of lighting,
• phase order test,
• engine direction test.
