Daugiafunkcis matuoklis Sonel MPI-502F su WMPLMPI502F sertifikatu

Trumpai apie prekę

Prekė: Daugiafunkcis matuoklis Sonel MPI-502F su WMPLMPI502F sertifikatu. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMPI502F

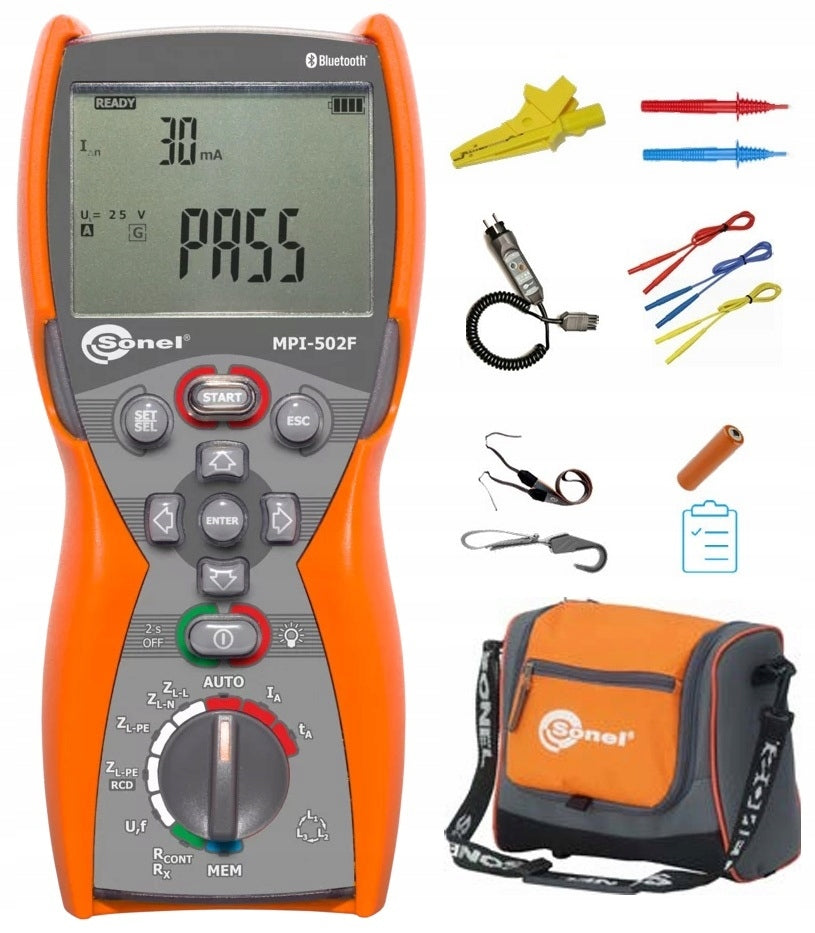

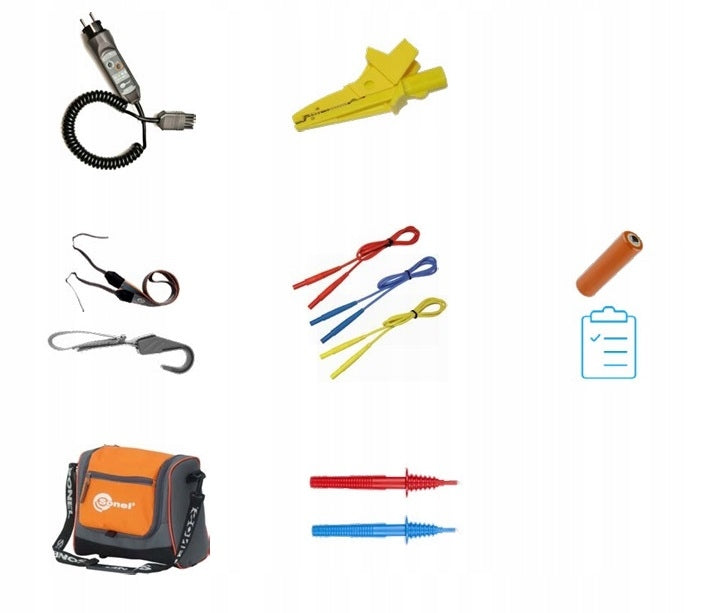

Multifunction meter MPI-502F with calibration certificate and standard equipment!

Catalog index: WMPLMPI502F

EAN 5907624005822

Calibration certificate is a document issued by the manufacturer in the production process of the meter confirming the granting of metrological properties and maintaining measurement consistency. This is a document issued only for brand new measuring instruments.

On the calibration certificate there is a place to enter the date of commissioning, this is the date of sale of the meter. Another execution of the metrological confirmation (calibration) is recommended to be carried out within 12 months from the date of purchase, but not later than 24 months from the date of manufacture. When purchasing at our auctions, you are entitled to a 10% discount on the next calibration in our laboratory.

AUTHORIZED DISTRIBUTOR OF SONEL - YOU RECEIVE SUPPORT, CONFIDENCE IN THE PURCHASE OF FULL-FLEDGED EQUIPMENT AND PROFESSIONAL ADVICE.

By purchasing a meter in Merazet, you receive a 10% discount on calibration in the Merazet laboratory.

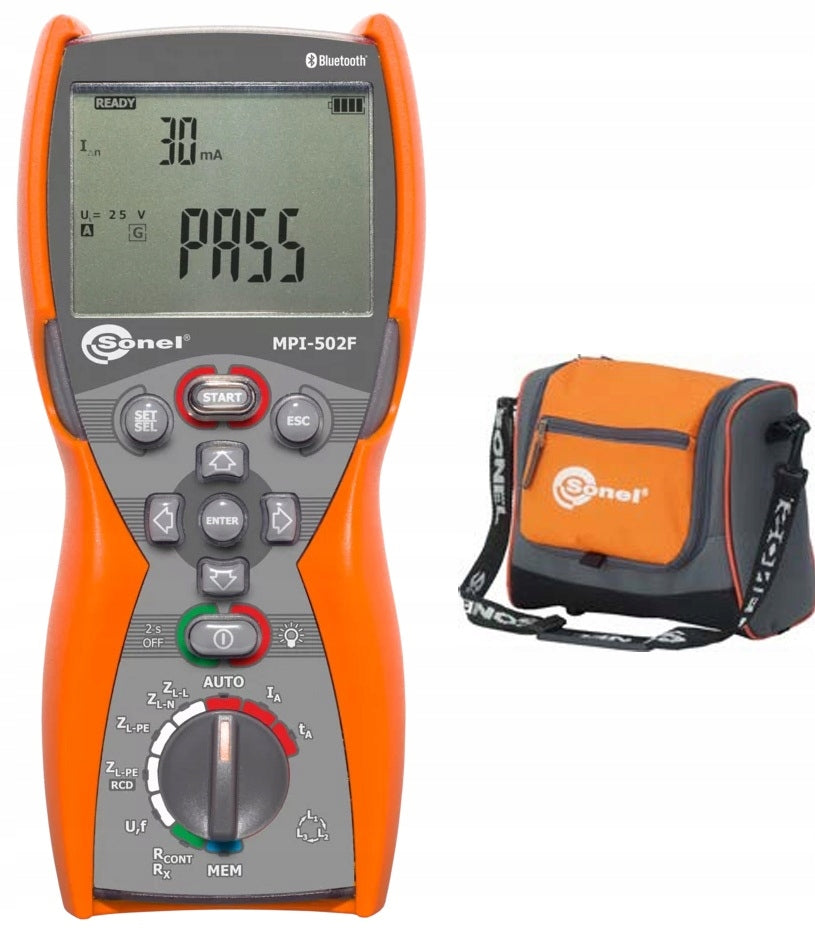

Multifunctional Sonel MPI-502F electrical system parameter meter is a unique model of a handheld meter used to perform precise measurements of electrical installation parameters. In its neat and small dimensions, the meter hides a wealth of measurement functions. An additional advantage of this device is an extremely handy and ergonomic form, which facilitates carrying and increases the comfort of work.

The Sonel MPI-502F meter is one of the smallest multifunctional measuring instruments on the market, surprising with its intuitive operation and extensive capabilities. It is a versatile instrument that is ready to work in any conditions. Developed for professionals in the installation and electrical industries, as well as for professional measurement engineers.

With the help of this device, it is possible to perform basic measurements of various types, including the measurement of short-circuit loop parameters, measurement of resistance of protective and compensatory connections, as well as testing residual current circuit breakers type AC and A. Due to its compact form and favorable price, the meter will appeal especially to novice users. Excellent precision of work means that its advantages will also be appreciated by advanced measurement specialists.

Thanks to the device, you can control home and industrial electrical installations in terms of safety. Its advantage is quick measurement (a few seconds! ) short-circuit loop impedance in circuits with RCD circuit breakers.

Research can be easily automated by:

• testing of residual current circuit breakers in Auto mode,
• use of a WS adapter to test the installation through a standard 230 V socket.

With Bluetooth wireless communication, you can transfer measurement data to your computer.

Measurement of short circuit loop parameters

• Measurement of fault loop impedance in networks with rated voltages: 220/380 V, 230/400 V, 240/415 V and frequencies of 45...65 Hz, operating voltage range: 180...460 V
• Indications of fault loop resistance R and fault loop reactance X
• Measurement of fault loop impedance with a current of 15 mA without tripping differential circuit breakers
• Maximum measuring current: 7.6 A (at 230 V), 13.3 A (at 400 V)

Testing of AC and A type differential circuit breakers

• Measurement of instantaneous, short-time delay and selective differential circuit breakers with rated differential currents of 10, 15, 30, 100, 300, 500 mA
• Measurement of the tripping current IA and the tripping time tA for currents 0.5 IΔn, 1 IΔn, 2 IΔn, 5 IΔn
• Measurement of RE and UB without tripping the RCD
• Extended AUTO RCD measurement function, with the ability to measure ZL-PE with low current
• Measurement of IA and tA with one RCD tripping

Measurement of resistance of protective and equipotential bonding connections

• Measurement of continuity of protective connections with a current of ±200 mA in accordance with the PN-EN 61557-4 standard
• Auto-calibration of measuring cables - any cables can be used
• Resistance measurement with low current

Additional features

• Checking the correct connection of the PE wire using a touch electrode.
• Voltage measurement (0...500 V) and network frequency.
• Memory 990 results.
• Wireless data transmission to a computer.
• Illuminated buttons.

Specifications
