CNC graviravimo staklės 3018 Pro 3 ašių 300x180x45mm 10000 aps./min

Trumpai apie prekę

Prekė: CNC graviravimo staklės 3018 Pro 3 ašių 300x180x45mm 10000 aps./min. Kategorija: Frezavimo staklės.

• Gamintojas: no brand
• Modelis: VG-S3018 Pro
• Įtampa: 24 V

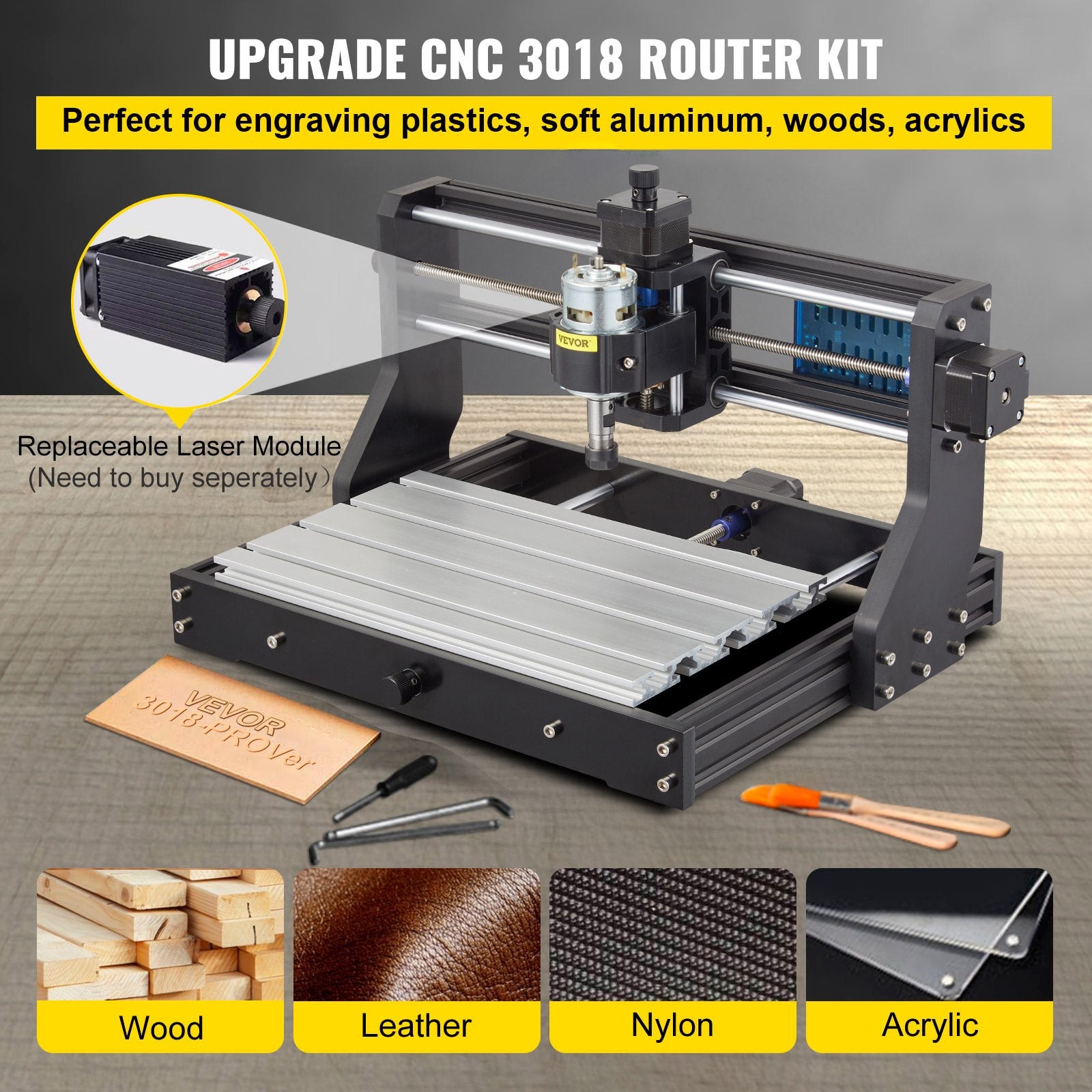

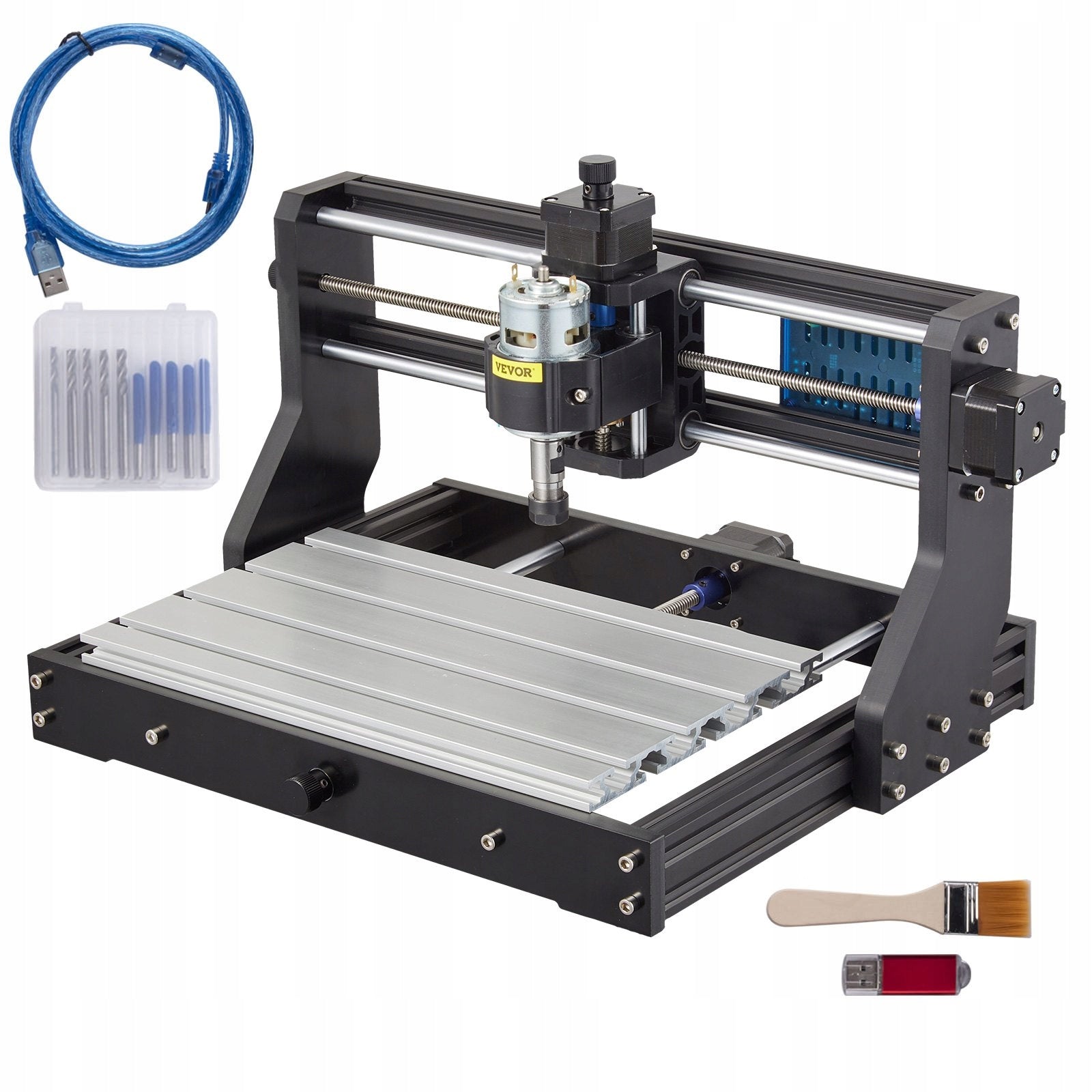

⭐ CNC 3018 PRO MILLING MACHINE FOR SELF-ASSEMBLY

Versatile 3-axis CNC 3018 Pro machine, ideal for hobbyists and small workshops. It offers a large working area of 300x180x45 mm and a strong spindle of 775 DC with a speed of 10 000 rpm /min. With an offline controller, you can work without connecting your computer for more flexibility.

✨ KEY ADVANTAGES

Build your own engraving machine and enjoy precision and versatility in material processing.

✅ Large working area 300x180x45 mm for a variety of projects.

✅ Powerful spindle with a speed of 10 000 rpm /min for efficient operation.

✅ Offline control allows you to work without a computer.

✅ Durable frame made of aluminum profile and bakelite ensures stability.

✅ Wide compatibility with GRBL software.

⭐ IMPROVED CONTROL SYSTEM

Integrated GRBL control and offline controller ensure full functionality and stability. The main advantages of offline control are:

✅ No need for a permanent connection to the computer.

✅ Any selection of engraving files directly from the controller.

✅ Manual adjustment of X, Y, Z axis position and spindle on/off.

✅ High positioning precision 0,08 mm.

⭐ APPLICATION

CNC milling machine 3018 Pro enables engraving and milling in many materials. It is ideal for machining:

☑ Wood and wood-based materials

☑ Plastics (plastic, acrylic)

☑ Foams and resin

☑ Carbon Fibers

☑ Soft metals

⚙ TECHNICAL PARAMETERS

• Series: 3018 Pro
• Maximum power: 24 V 5A
• Supply Voltage: 24 V
• Maximum number of rotations without load: 10 000 rpm /min
• Maximum milling depth: 45 mm
• Type of milling machine: specialized

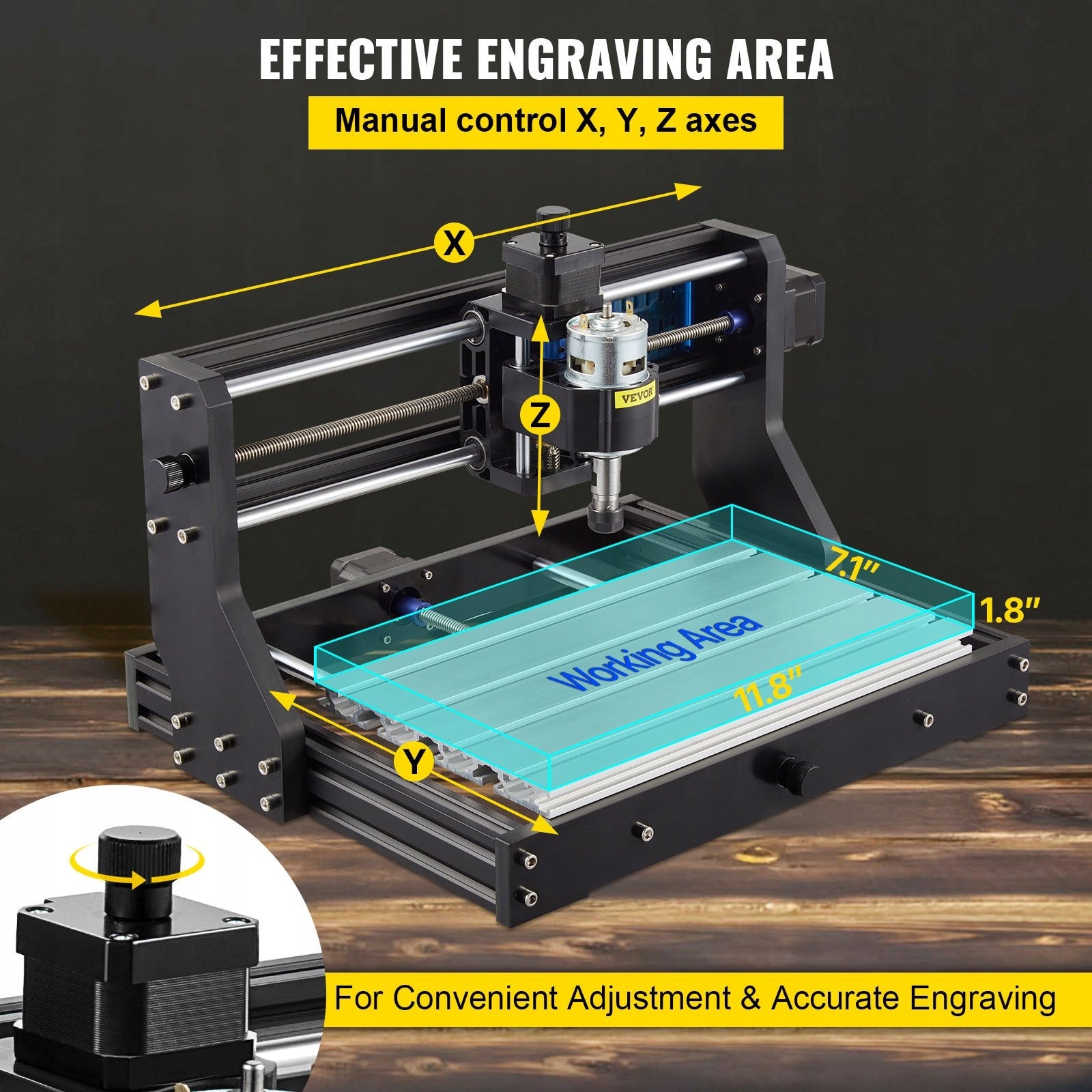

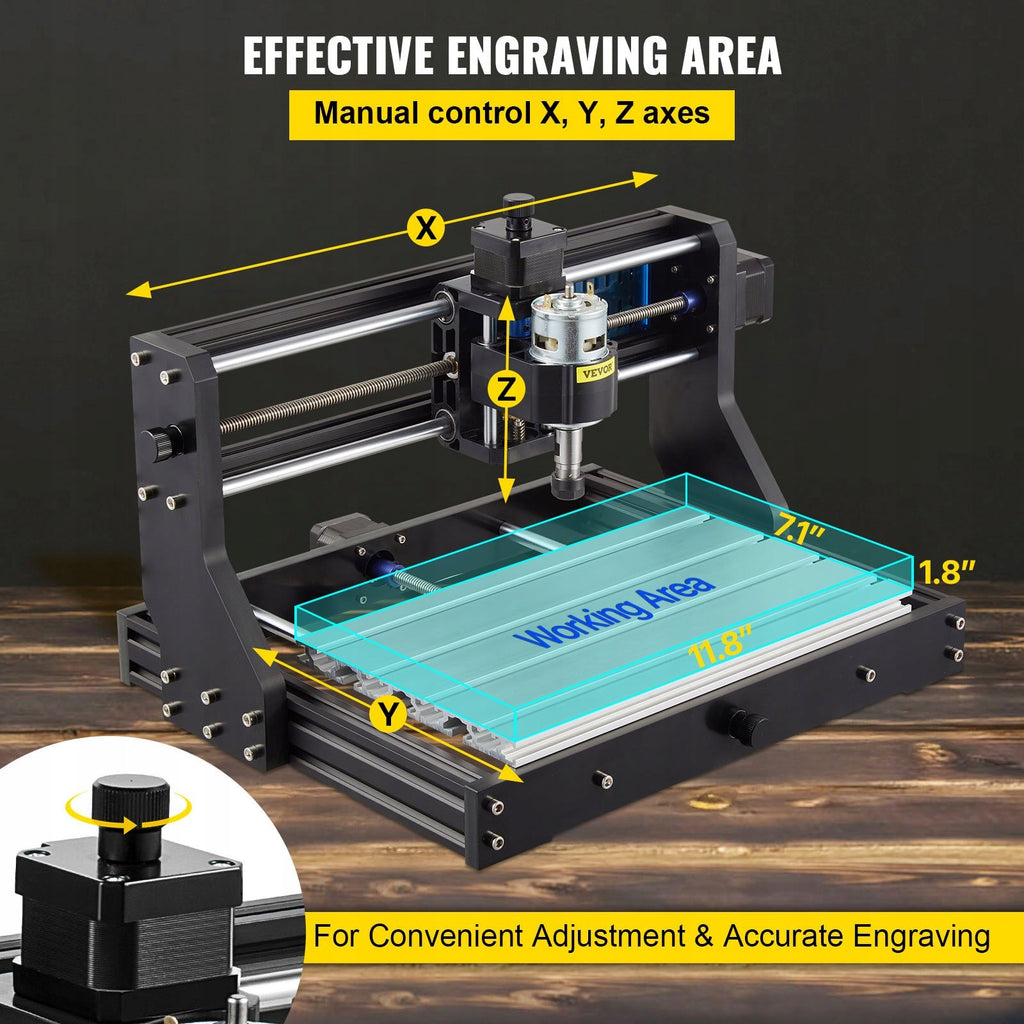

• Working area (X x Y x Z): 300 x 180 x 45 mm
• Control software: GRBL control
• Positioning accuracy: 0,08 mm
• Stepper motor: 12 V, torque 0,25 N/m

Frequently Asked Questions (FAQ)

✅ Is it difficult to assemble the machine?

No, the set includes a comprehensive instruction manual, assembly instructions, and an instructional video that guides you step-by-step through the assembly process.

✅ What software is needed to operate?

The machine uses GRBL control software and is compatible with Windows, Linux and macOS. You can import files in JPG, BMP, PNG and DXF formats.

✅ What does "offline controller" mean?

It is a small device with a screen and buttons that allows you to control the milling machine, load projects from the SD card and start working without having to connect the machine to the computer.

Specifications
