CNC frezavimo staklių komplektas 30*18 Pro GRBL, 3 ašys, su nepriklausomu valdikliu FU

Trumpai apie prekę

Prekė: CNC frezavimo staklių komplektas 30*18 Pro GRBL, 3 ašys, su nepriklausomu valdikliu FU. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 7806MDWI

Function:

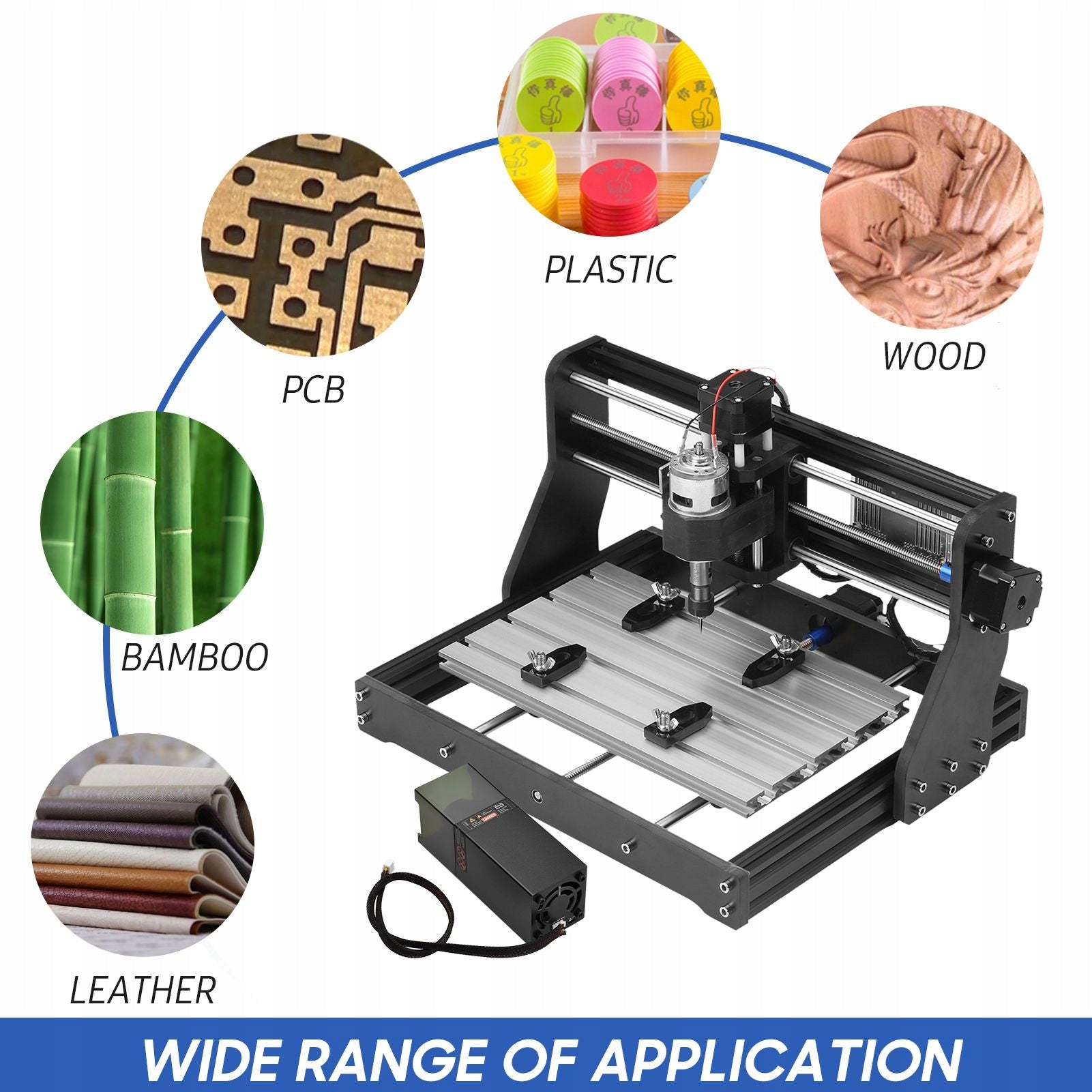

1. The router machine, operated by computer numerical control (CNC), can cut different axes, regardless of horizontal or vertical.

2. CNC engraving can create a precision part made of one soft solid material (such as wood), provide a strong whole part, better than 3D printing.

3. 775 Spindle motor with Chuck style ER11, effectively drive the machining process, determine it to reduce a wide range of materials.

4. The engraving machine uses ER11 COLLET (3,175mm), which is fast; it can easily attach the bit to the spindle for better work.

5. Three sophisticated axes to achieve flat engraving and provide a large effective working area of 300(x)x180(y)x40(z)mm (11,8inx7.1inx1,57in).

Specification:

• This professional CNC router machine has high precision and high stability. Provides flexible and precise engraving and carving. The working area of 300X180X40 mm realizes a truly unlimited area of sculpture with length, width and height by adjusting the machine. The powerful module helps you work on different types of material. It is suitable for CNC engineer, artist and more people to use.
• Characteristics:
• The router machine, operated by computer numerical control (CNC), can cut different axes, regardless of horizontal or vertical.
• CNC engraving can create a precision part made of one soft solid material (such as wood), provide a strong whole part, better than 3D printing.
• 775 Spindle motor with Chuck style ER11, effectively drive the machining process, determine it to reduce a wide range of materials.
• The engraving machine uses high speed ER11 COLLET (3,175mm); it can easily attach the bit to the spindle for better work.
• Three sophisticated axes to achieve flat engraving and provide a large effective working area of 300(x)x180(y)x40(z)mm (11,8inx7.1inx1.57in).
• The offline controller can download and save files (no need to connect to the computer), control the device to directly perform simple carving (no need to download any files).

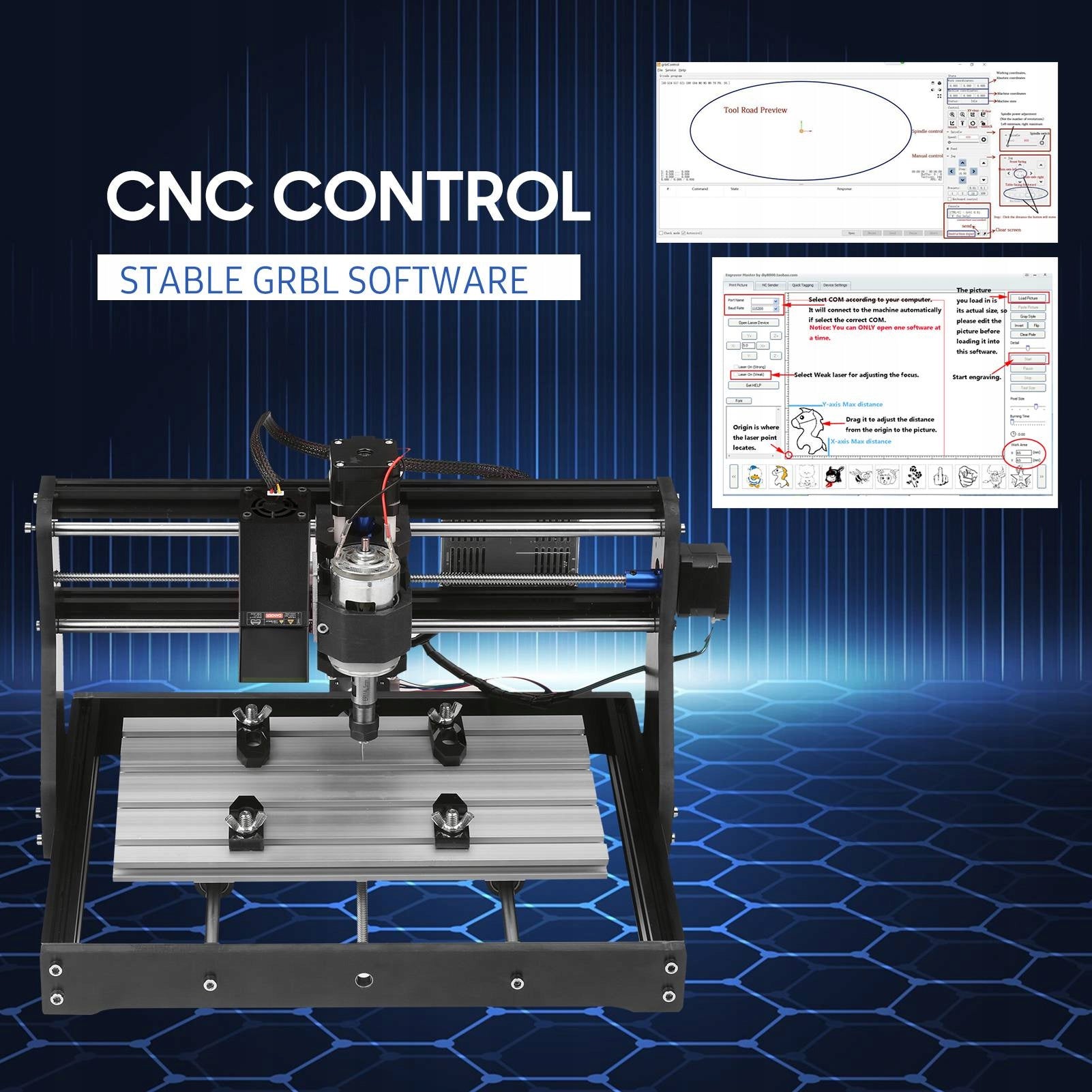

• You can connect the engraving machine to your computer using USB port, control its movement with stable GRBL software, very convenient.
• The machine body is made of high hardness aluminum and coated with black finish, which makes it look nice and last in the long run.
• Different modules can engrave or cut different types of material and different thicknesses. Suitable for CNC engineer, artist and other enthusiasts to use.
• Specifications:
• Head: 80W
• Color: Black
• Material: aluminum alloy + plastic
• Length: 450 nm
• Control Software: Compatible with GRBL
• Working area: 300*180*40 mm (11,8*7,1*1,6 inch)
• Frame Size: 420*355*280 mm (16,5*14*11 inches)
• Spindle: 775 Spindle (12-36 V), 24 V: 7000r/min, 36 V: 9000R/min
• Chuck spindle: ER11
• Stepper motor: 1,3a/ 0,25 n.m
• Power Supply: 24 V/ 5,6A
• Supported System: Compatible with Win XP/ for Win 7/ for Win 8/ for Win 10
• Supported formats: JPG/ BMP/ PNG
• Communication Port: Micro USB
• Package Size: 44 * 26,5 * 18 cm / 17,32 * 10,43 * 7.09in
• Package Weight: 7150G / 15.76 lbs

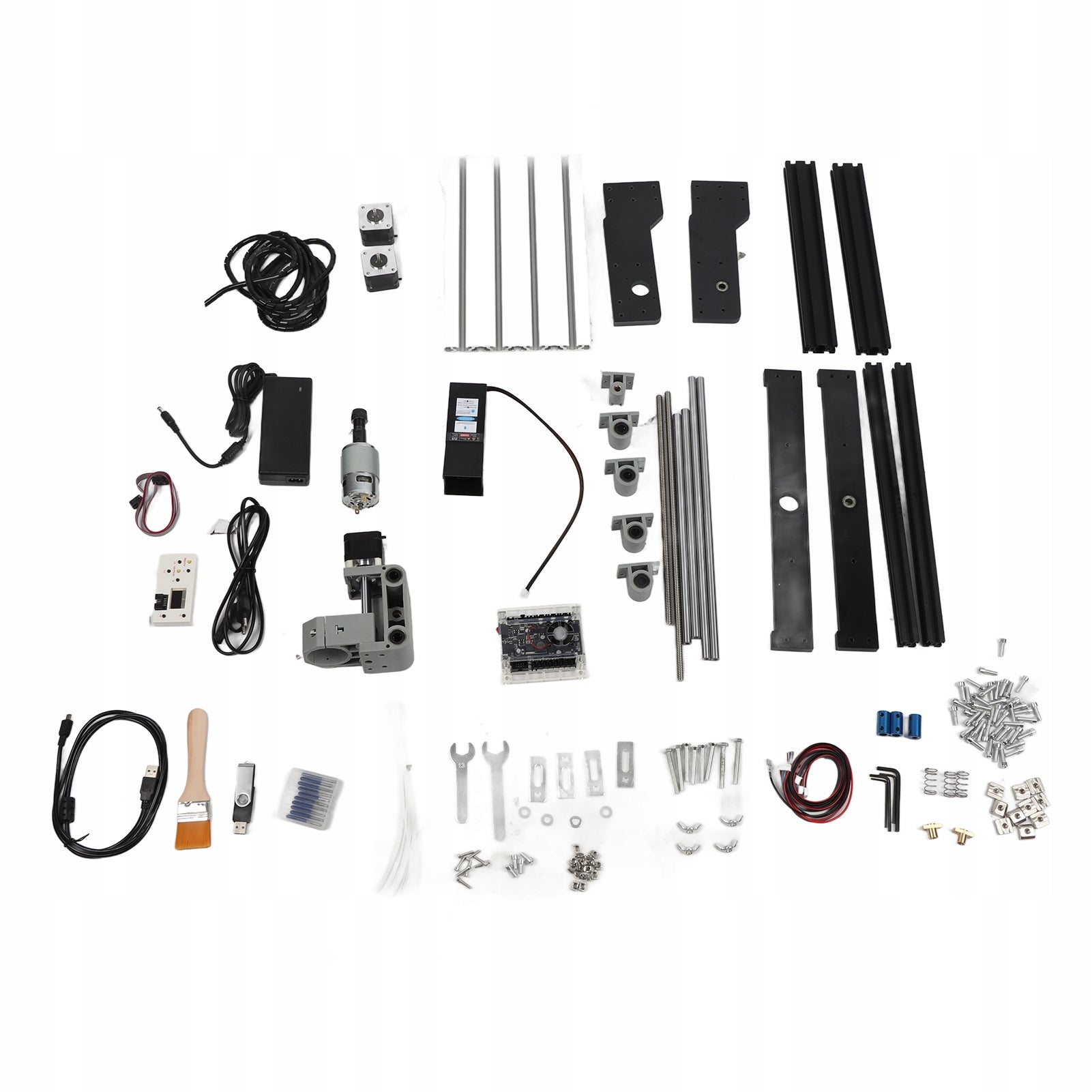

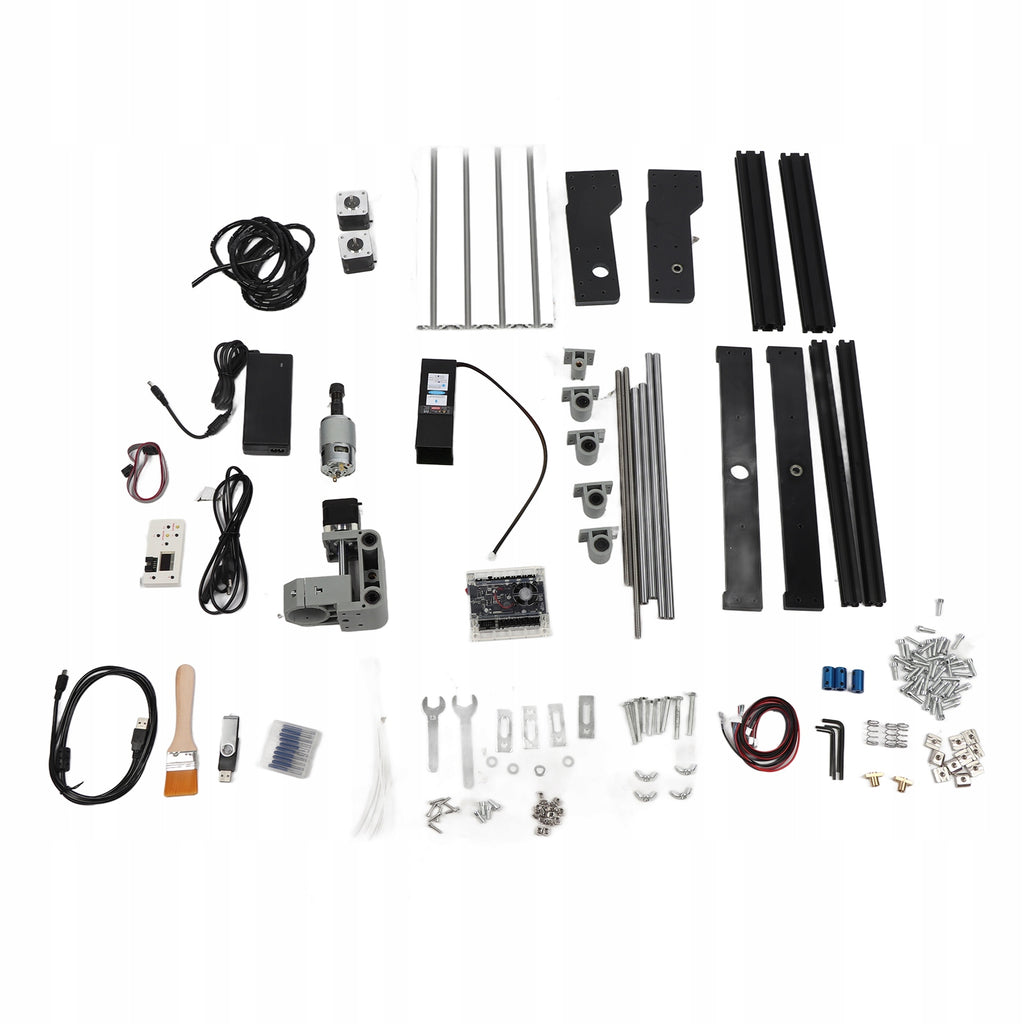

List of packages:

• 1 * CNC Router Machine Kit
• 1 * module
• 1 * Power Adapter
