CNC frezavimo staklių jungiamasis vyris, ištraukiama gręžimo staklių MDF jungtis

Trumpai apie prekę

Prekė: CNC frezavimo staklių jungiamasis vyris, ištraukiama gręžimo staklių MDF jungtis. Kategorija: Frezos.

• Gamintojas: FS
• Modelis: KC-333
• Įtampa: 230 V

Carpentry machine for small production and DIY furniture, stairs, tables, MDF doors, plywood, chipboard, solid wood and other wood and wood-like materials.

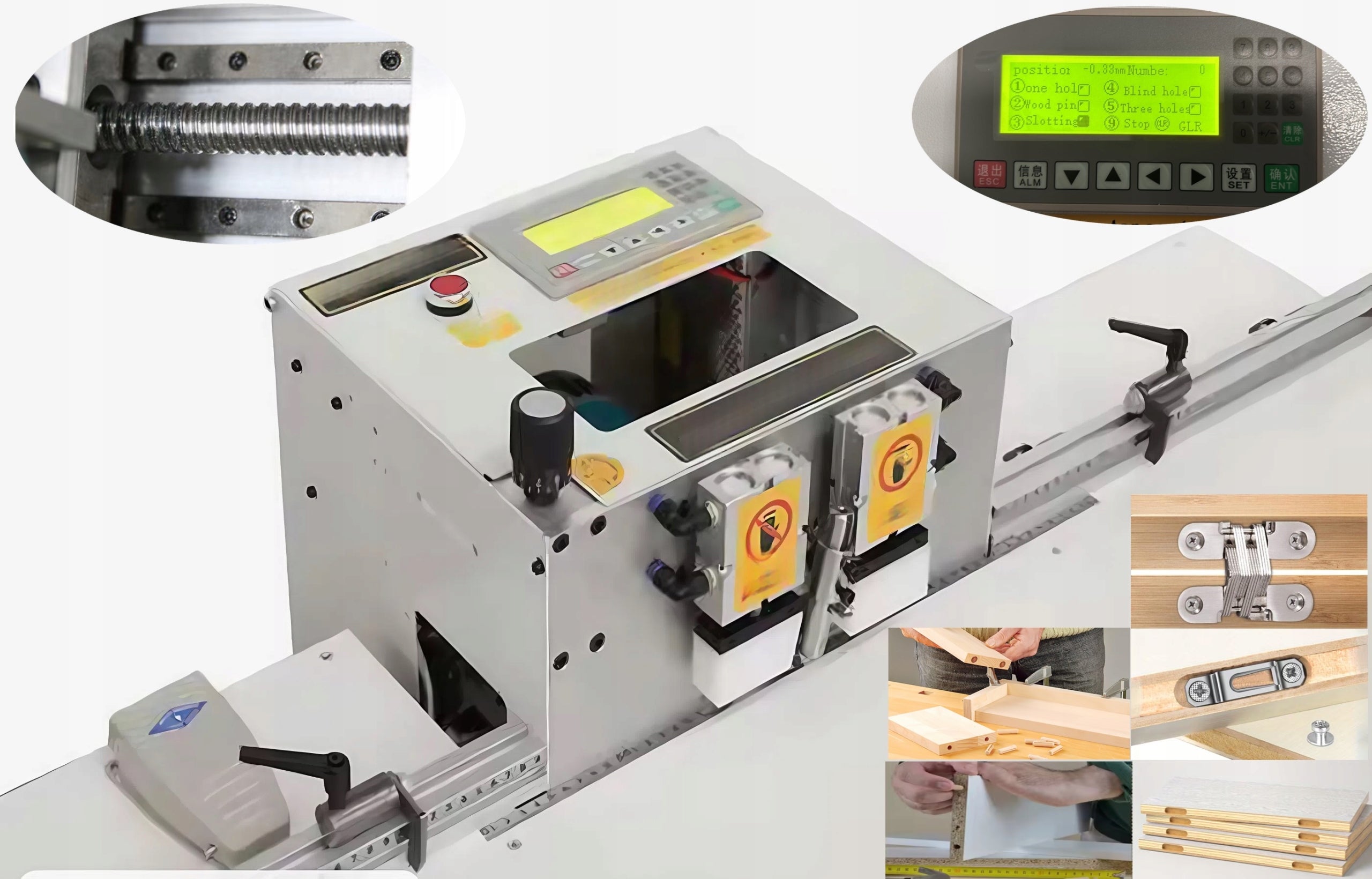

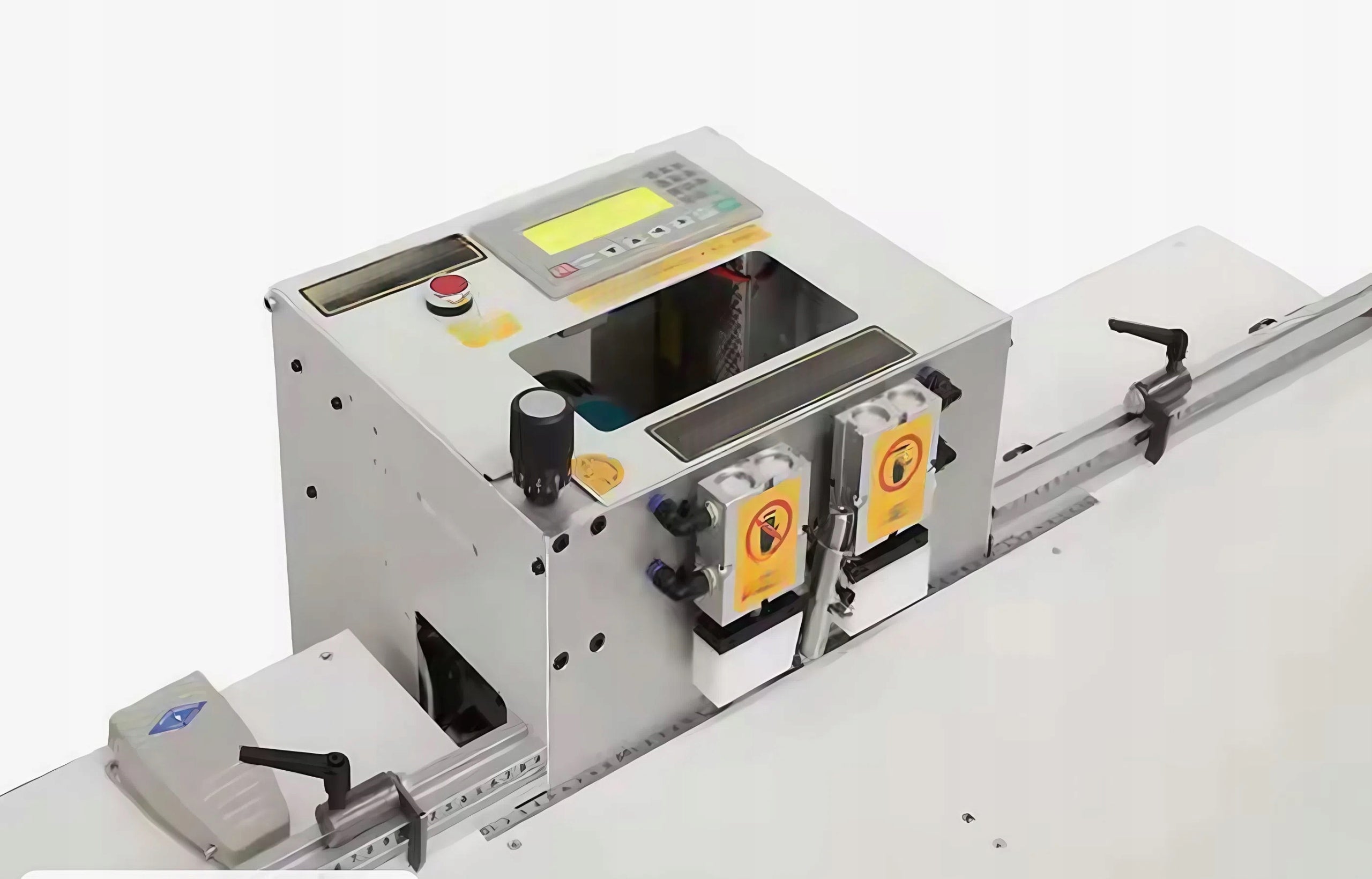

Modern tool CNC 3in1 (milling machine, chiseling machine, doweling machine) is a universal carpentry machine designed for making grooves, sockets, longitudinal holes and holes for dowels in wood and furniture boards.

The machine combines the functions of several devices:

✔ groove milling machines

✔ carpentry stud

✔ chisels

The principle of operation of the machine is based on rotating the shank cutter or pen drill with feed along the axis of indentation and in the edge plane of the workpiece.

Thanks to this, it allows you to perform many carpentry operations on one workstation, significantly speeding up production and maximizing the accuracy of joints.

The machine allows you to perform in the edge of the processed material:

• Structural grooves
• mounting grooves
• Rectangular lamellas with rounded corners
• holes for studs
• carpentry sockets
• long holes and milled pockets
• sockets for furniture fittings
• sockets for furniture connections

With hard materials, it is recommended to perform machining in several passes, which ensures high surface quality and stable operation of the tool.

The machine allows you to make edge sockets in several levels under:

• Hidden hinges for doors and fronts
• Recessed hinges
• carpentry buildings

Additional cutters tailored to the dimensions of the hinges are required for this application. Estimated machining in several passes.

The machine also works as a carpentry wheel.

Allows you to perform in the edge:

• holes for furniture pegs
• dowel connections
• mounting holes

Perfect solution for small production:

• furniture bodies
• cabinets
• carpentry structures

With controlled feed, you can perform:

• carpentry sockets
• sockets for connections
• longitudinal openings
• milled pockets
• Structural grooves

Included:

• CNC machine
• ruler - guide with stops
• cutter 11 mm shank 12,7 mm
• drill bit 8 mm shank 12,7 mm
• set of keys
• mounting hardware
• Instructions for assembly, operation and control in the language of the country of sale (Polish, Czech, Slovak, Hungarian, Romanian, etc. p.)

The machine table must be made by the user himself under his own conditions and requirements. Dimensional recommendations are given in the manual.

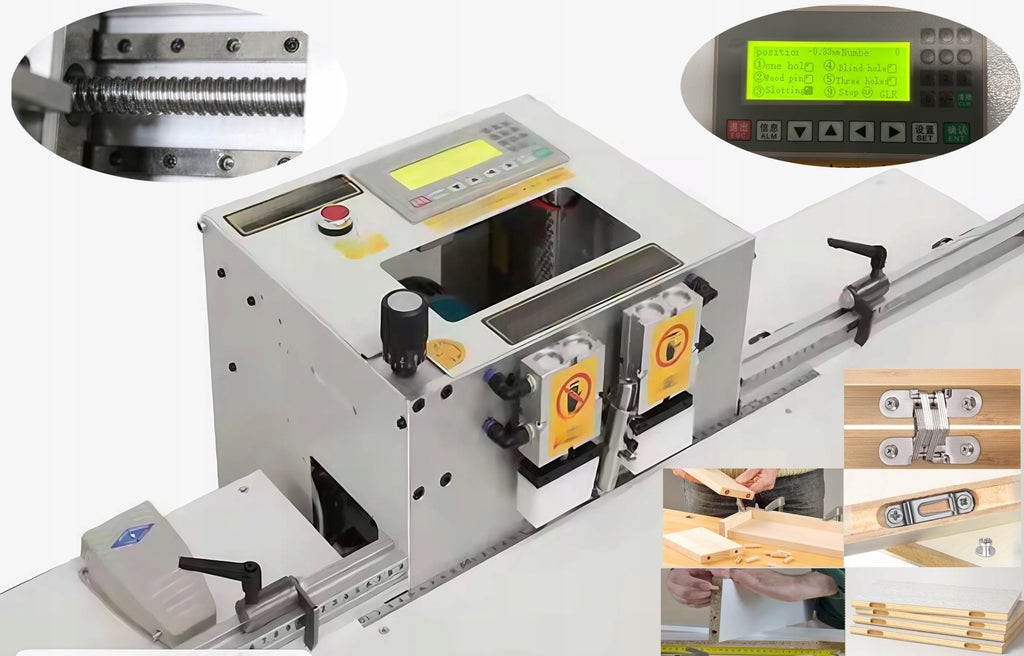

The machine uses:

• linear guides
• screw drive
• stable construction

Provides this:

✔ high accuracy

✔ repeatability of processing

✔ stable work

🛠 Technical data

✔. CNC control 2 axis (plane and depth)

✔ Additional manual adjustment of 3 axes:

Vertical,

in the depth of processing,

setting 0 in the plane.

✔ Control pedal in manual mode

✔ Voltage 220 V

✔ Engine power 1600 W

✔ Engine speed max 22 000 ob/min

✔ Adjustable workpiece thickness 15-50 mm

✔ Adjustable distance range between central openings 24-38 mm

✔ Adjustable groove length range up to 130 mm

✔ Adjustable groove width range up to 46 mm

✔ Sizes 470 x 420 x 410 mm

✔ Weight 28 kg

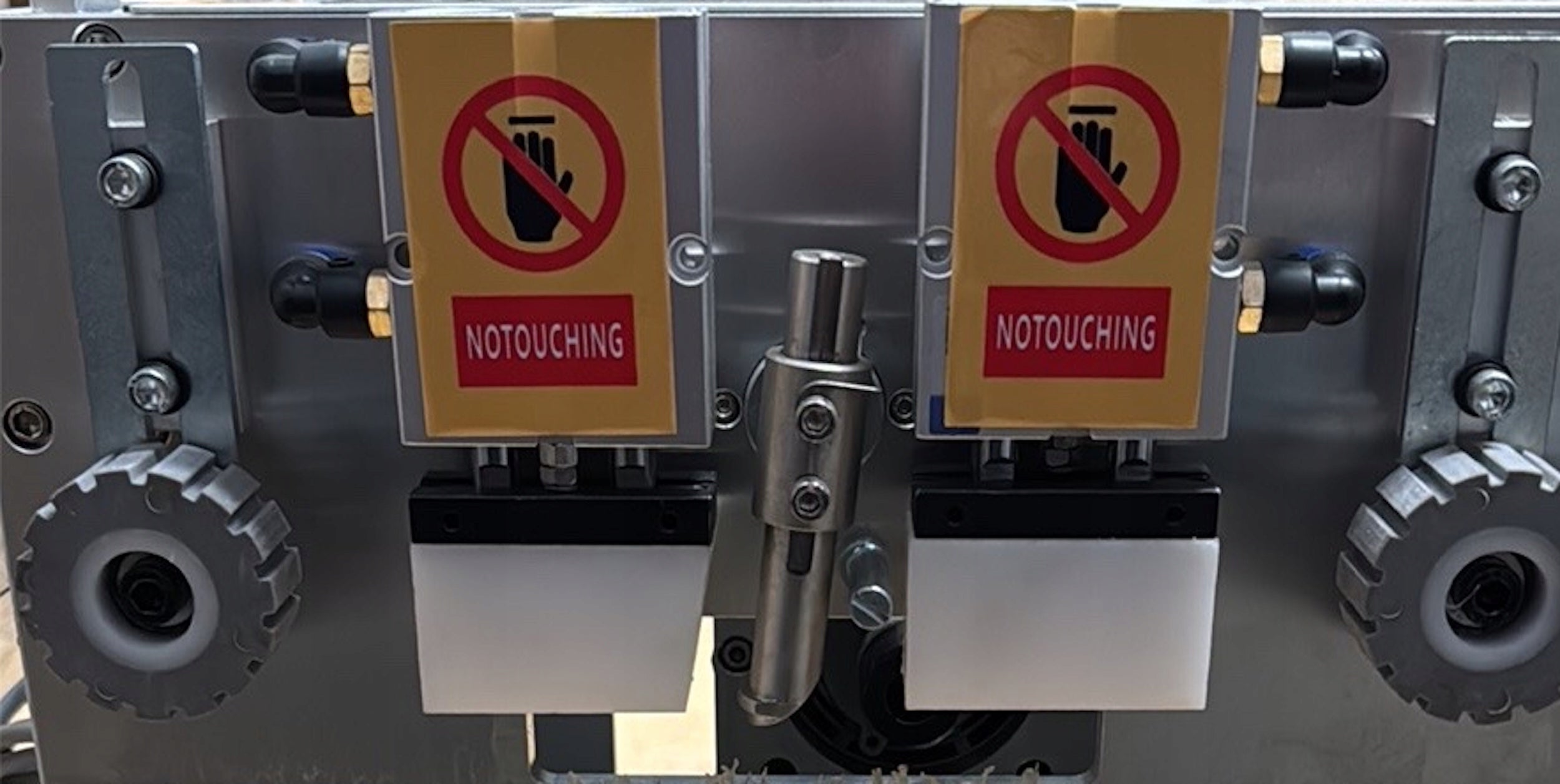

The machine has pneumatic material clamps which:

✔ stabilize the element during machining

✔ increase accuracy

✔ speed up work

⚡ Sensor with tip

Designed for precise automatic positioning of the zero position of the workpiece when drilling double and triple holes in one cycle or during multi-level milling of complex grooves.

✔ In manual mode, the pcontrol pedal is used

✔ 3 functions in one machine (milling machine, chiseling machine, doweling machine)

✔ high precision machining

✔ CNC control

✔ automatic pneumatic clamps

✔ possibility of machining various materials

✔ great versatility of use

The machine is designed for machining:

• solid wood
• MDF
• chipboard
• plywood
• furniture boards

It is also possible to process hard wood species, such as oak or beech.

For hardwood, it is recommended to:

✔ use of carbide cutters (HM)

✔ machining in several passes

This approach ensures high quality machining and long tool life.

💻 Control panel language - English. The manual provides a translation into the language of the country of sale.
