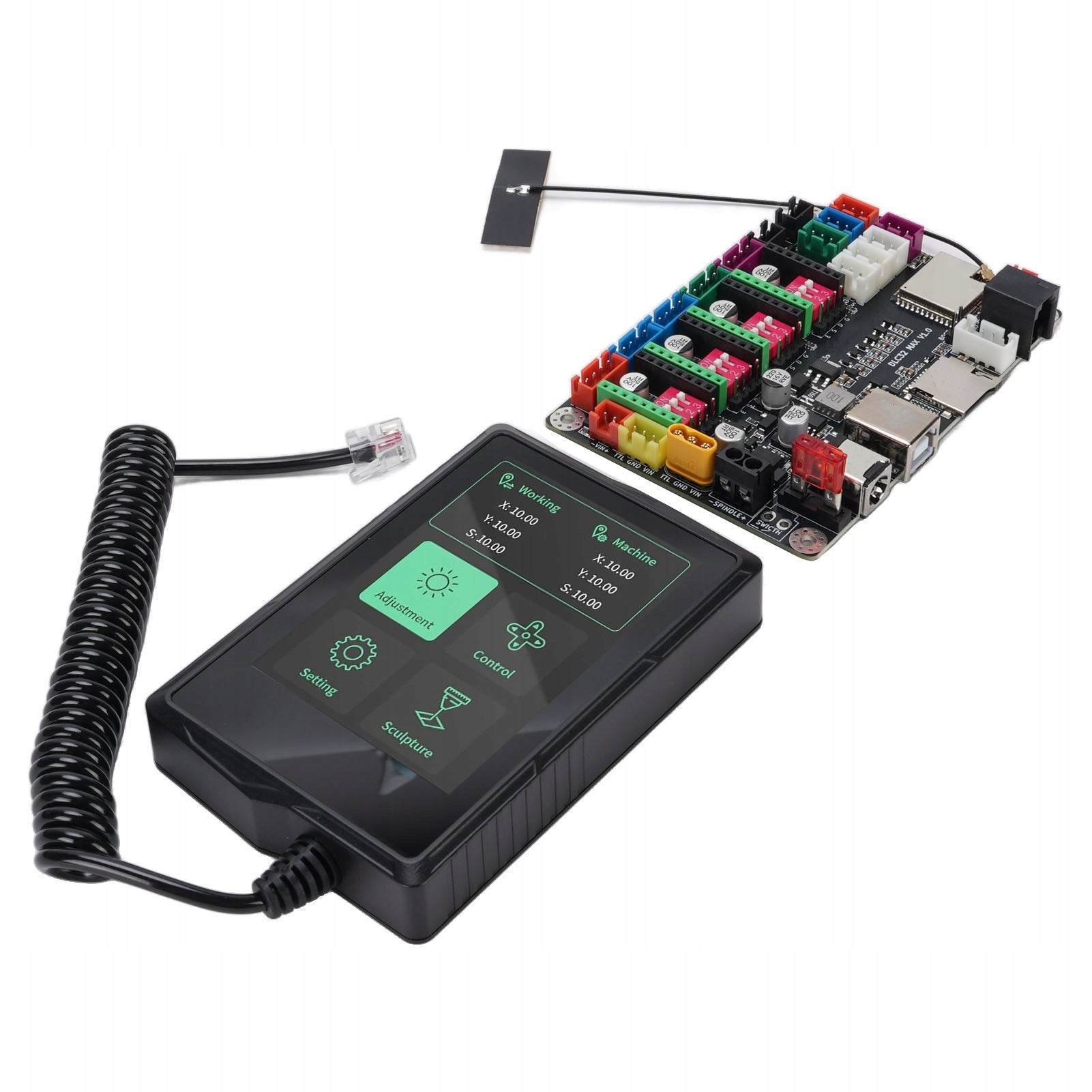

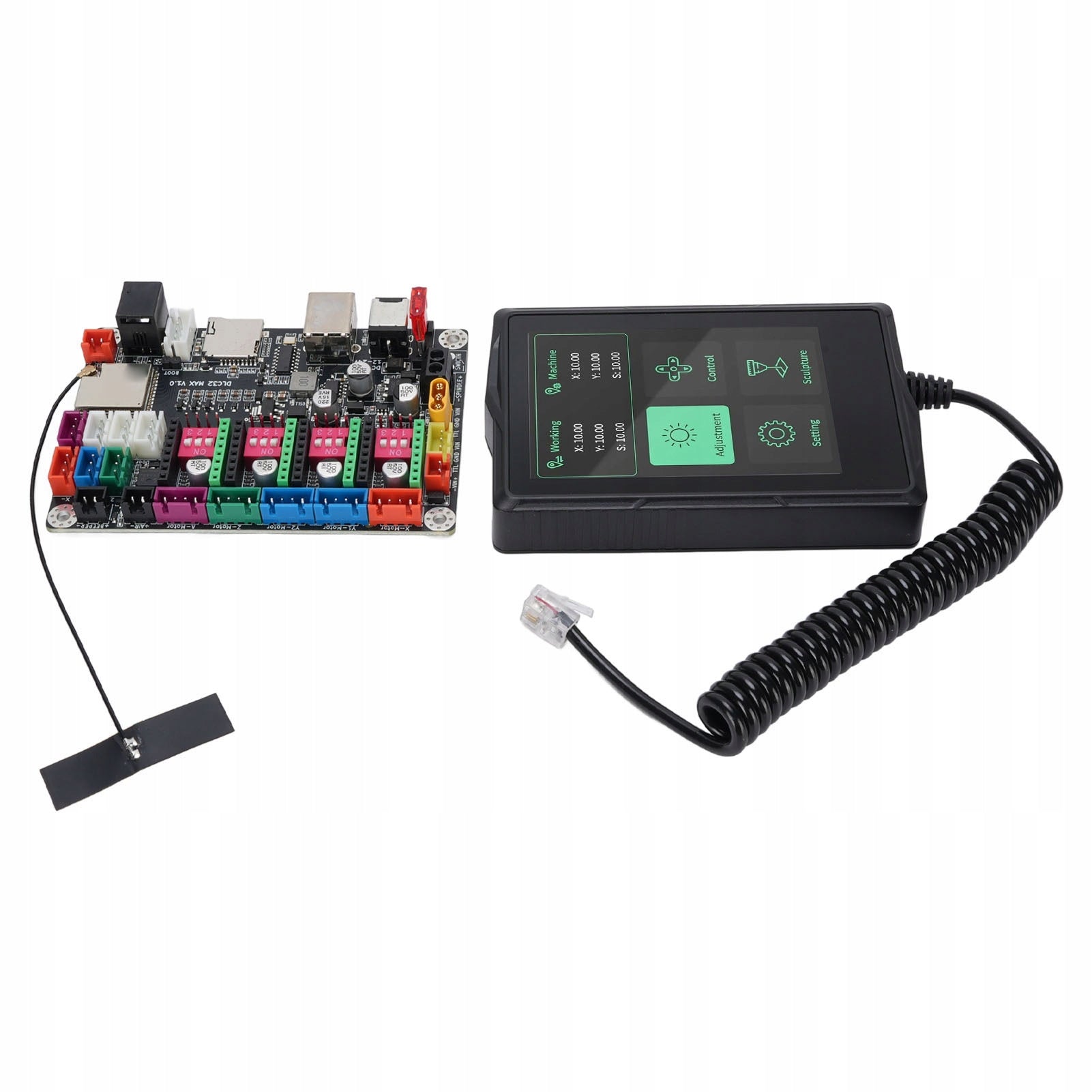

CNC 4 ašių valdymo plokštė GBL 32-bit 6Q graviravimo staklėms

Trumpai apie prekę

Prekė: CNC 4 ašių valdymo plokštė GBL 32-bit 6Q graviravimo staklėms. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 5943WZWS

Function:

1. Motherboard upgrade kit: It is a high performance, high scalability and intelligent control engraving solution, ESP32-S3 series chip functions, support both CNC and optical engraving, including CNC axis control. Offers optical power up to 60W and speeds up to 30000mm/min, meeting the needs of efficient creation

2. Compatibility: Fits Ultra Quiet TMC2209 controller and TB67S109 high current driver modules, offers strong scalability and seamless connection to external servo motors and spikes for higher output

3. Safe and convenient: Equipped with intelligent safety features such as shield detection and flame detection, this motherboard provides a safe experience. Support serial offline carving, no need to connect to computer for a long time; Support mobile application and LAN Web LAN remote control for flexibility and convenience

4. Stepper motor controller: Equipped with 4 ultra-quiet motor controllers, the improved design provides better heat dissipation, supports more current and supports sensor-free functionality. Replacement TMC2100, for A4988, for DRV8825, for LV8729

5. Versatile Accessories: Equipped with 3,5 inch capacitive touch screen, USB data cable and 4 -control room, this kit is suitable for a variety of optical and CNC engraving applications, meeting more extension and creating needs in terms of

Specification:

• Item Type: Engraving Motherboard Kit
• Power Input: 12-24V 10A
• Processor model: for ESP32 S3
• Main Frequency: 240 MHz
• Drive Type: Connect, External
• Axes: Support
• PC WiFi Interface: Support
• WiFi App Interface: Support
• Offline Engraving: Support
• CNC/Optical mode: one key switching
• CNC Controller: Operation
• Assist: Support
• Emergency Stop: Support
• Maximum engraving speed: 30000 mm/min
• Card slot on the main board: Small memory card (not included)
• Engraving Machine Screen: 3,5 Inch Capacitive Touch Screen
• Controlled Controller:
• Material: PCB, Aluminum Alloy
• Microstep: 256 subdivisions
• Drive Current: 2.8a
• Configuration: step/dir or UART
• Factory Default Current: 0,85a
• Load Drive Motor Voltage: 5,5-28v
• Logic IC Operating Voltage: 3-5v
• Product Application: Various 3D Control Boards
• Recommended current: no more than 1,7a

How to use:

• Follow the introduction of the list of points of sale

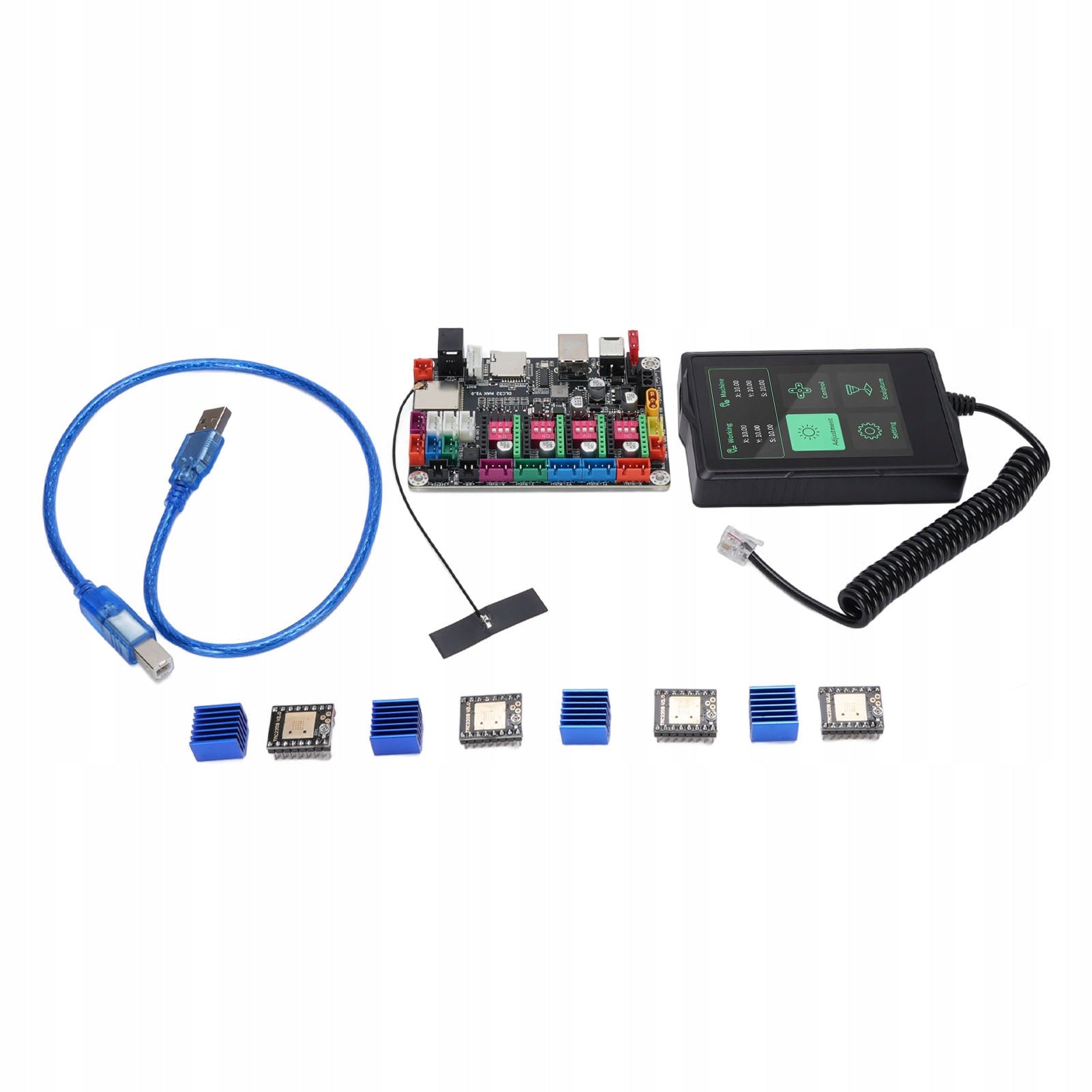

• List of packages

:

• Set of 1 x Main Board 1 x Blue USB Data Cable
• 1 x Display Screen
• 4 x Stepper Motor Drivers
• 4 x Driver Heatsink
