Trumpai apie prekę

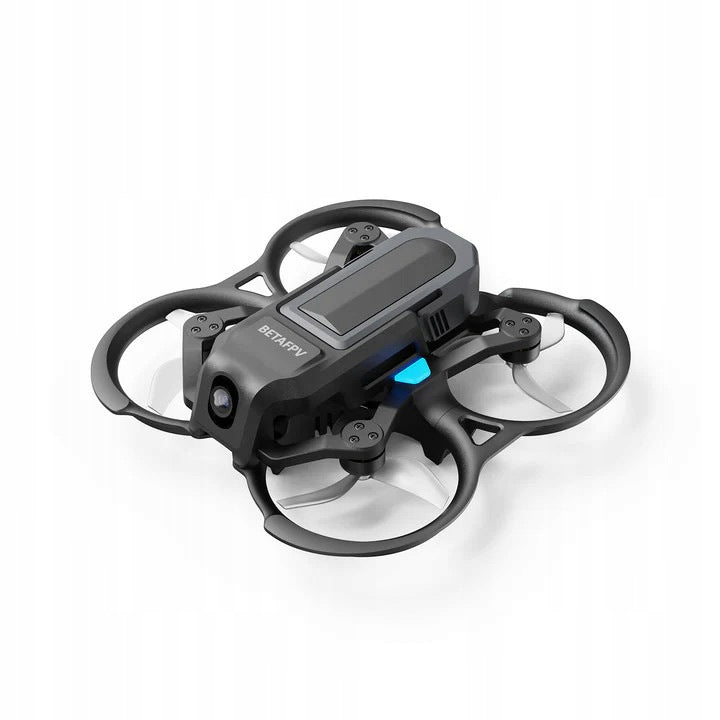

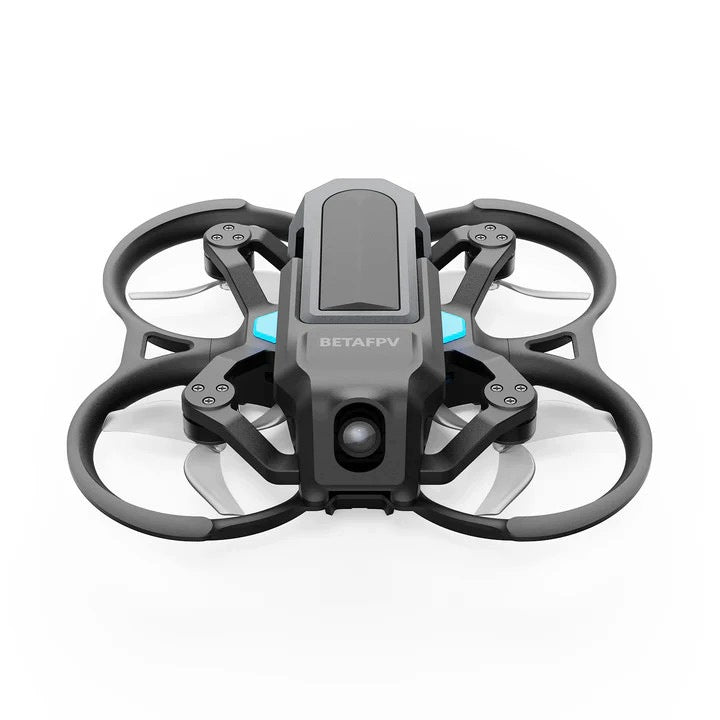

Prekė: Bepiločių orlaivių keturkopteris BetaFPV Aquila20 Brushless Whoop P1 Air Unit HD. Kategorija: Dronai ir multikopteriai.
- Gamintojas: BetaFPV
- Modelis: 01010046_2
P1 Air Unit HD
BetaFPV Aquila20 P1 - digital whoop FPV with ELRS
BetaFPV Aquila20 P1 is a ready-made whoop FPV drone with a digital P1 Air Unit system, 2S drive and ExpressLRS 2.4 GHz V3 receiver. 1080p image transmission at 60 fps. /s provides a clear view during learning and recreational flying.
Three flight modes allow you to start with a stabilized hover and then move on to full manual control.
The most important features
- Digital P1 Air Unit: 1080p image transmission at 60 fps. /s
- VTX power 200 mW: declared transmission range over 400 m
- Delay of about 60 ms: smooth model control during FPV flight
- ExpressLRS 2.4 GHz V3: compatible with ELRS devices
- 2S drive: 1103 10500KV engines and Gemfan 2218 propellers
- About 10 minutes flight: with dedicated LiHV 2S 1100 mAh battery
- N, S and M modes: possibility of gradual transition from stabilization to manual flight
- Turtle Mode: the ability to flip the drone after a rollover

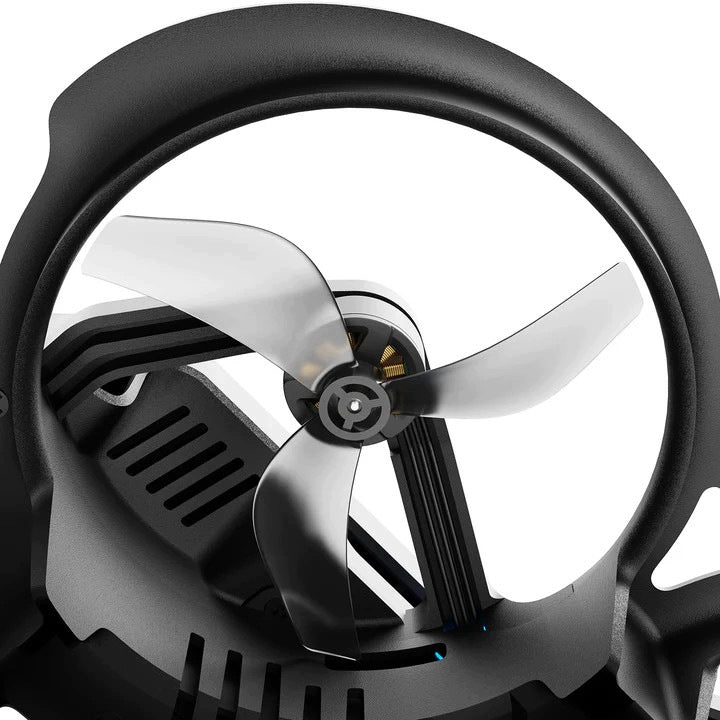

- Frame PA410: shielded propellers and protected camera and electronics
Digital image in the ArtLynk system
The P1 Air Unit version transmits 1080p video at 60 fps. /s. Camera with 1/2,9 inch CMOS sensor and a delay of about 60 ms provide a clear view when controlling the drone.
The system works in the ArtLynk protocol and is compatible with BetaFPV VR04 HD goggles, among others. Does not work with DJI, Walksnail or HDZero systems.
Technical specification
- Manufacturer: BetaFPV
- Model: Aquila20 Brushless Whoop Quadcopter
- Version: P1 Air Unit
- Video system: digital P1 Air Unit HD VTX
- Video Protocol: ArtLynk
- Transmission resolution: 1080p at 60 fps. /s
- VTX power: 200 mW
- Declared transmission range: over 400 m
- Delay: about 60 ms
- Camera sensor: CMOS 1/2,9 inch
- RC protocol: ExpressLRS 2.4 GHz V3
- Axle spacing: 100 mm
- Flight Controller: Aquila20 V1.0
- Engines: 1103 10500KV
- Propellers: Gemfan 2218, 3-blade
- Flight Modes: N, S, M and Turtle Mode
- Camera angle adjustment: 10-30 degrees
- Battery: LiHV 2S 1100 mAh, 7,6 V, 15C
- Battery connector: BT3.0
- Declared flight time: about 10 minutes
- Starting weight: 127 +/- 1 g
Contents of the set
- 1x BetaFPV Aquila20 P1 Air Unit drone
- 1x battery Aquila20 LiHV 2S 1100 mAh
- 1x charger and voltage tester 2S HV BT3.0
- 4x Gemfan 2218 3-blade propeller
- 1x Propeller Removal Tool
- 1x Phillips screwdriver
- 1x 4-pin adapter cable
- 1x USB Type-C Adapter Board
The kit does not include RC equipment or FPV goggles. The drone requires ExpressLRS 2.4 GHz and ArtLynk compliant goggles.
Before the flight, check the current geographical areas and the obligation to register the operator. Charge your LiHV battery under supervision using a compatible charger.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | BetaFPV |
| Parametry | Model | 01010046_2 |
| Parametry | EAN (GTIN) | 0738170353304 |
| Parametry | Manufacturer code | 01010046_2 |
