Bepiločio keturpropelerio dronas BetaFPV Aquila20 Brushless Analog

Trumpai apie prekę

Prekė: Bepiločio keturpropelerio dronas BetaFPV Aquila20 Brushless Analog. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: 01010046_1

Analog

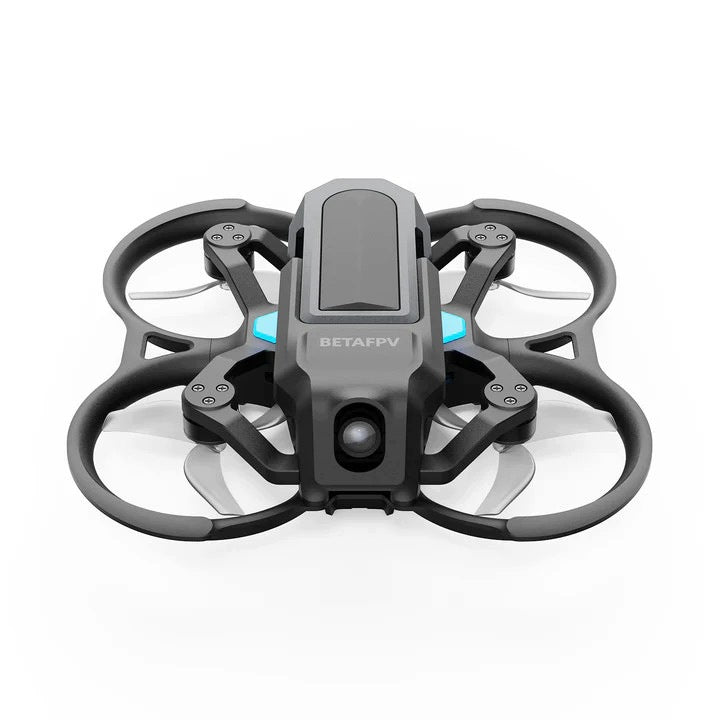

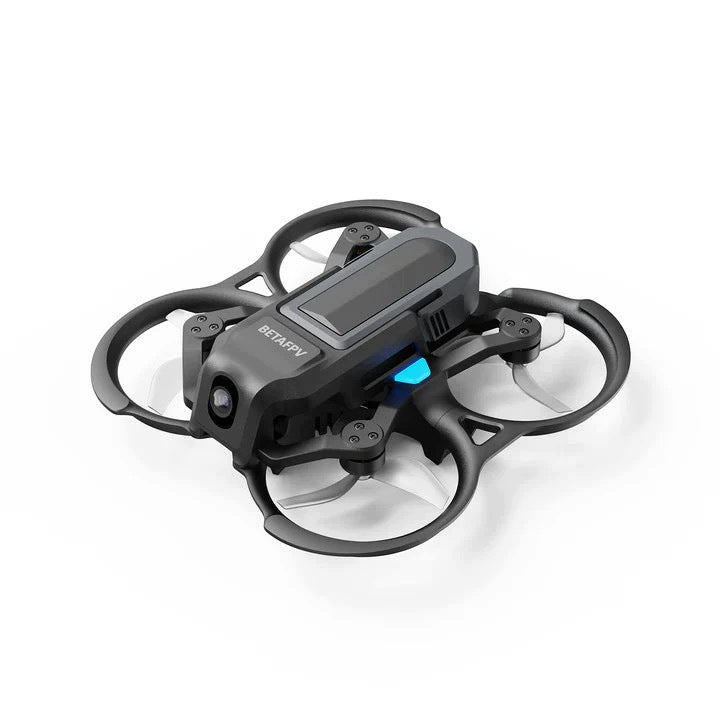

BetaFPV Aquila20 Analog - whoop FPV with 2S drive

BetaFPV Aquila20 Analog is a ready-made whoop FPV drone with an analog video transmitter, ExpressLRS 2.4 GHz V3 receiver and 2S drive. Adjustable VTX power from 25 to 350 mW allows you to adjust the transmission parameters to the flight location.

The stabilized N mode makes it easy to take your first starts, while the S and M modes allow you to move on to more dynamic flying.

The most important features

• Analog VTX 25-350 mW: the ability to adjust the power of the image transmitter
• Declared range above 200 m: stable viewing with properly selected goggles and antennas
• BetaFPV C04 camera: analog CMOS sensor 1/3 inch
• ExpressLRS 2.4 GHz V3: compatible with ELRS devices
• 2S drive: 1103 10500KV engines and Gemfan 2218 propellers
• About 10 minutes flight: with dedicated LiHV 2S 1100 mAh battery
• N, S and M modes: stabilization for beginners and modes for more advanced pilots
• Turtle Mode: the ability to flip the model after flipping over
• Frame PA410: integrated propeller guards to protect the structure during impacts

Adjustable analog video transmitter

The Aquila20 Analog uses a BetaFPV C04 camera with a 1/3 inch CMOS sensor and a transmitter with adjustable power from 25 to 350 mW. The user can choose the transmission power to the flight conditions and applicable regulations.

The analog video system allows you to use compatible 5.8 GHz FPV goggles without the need for a digital ArtLynk receiver.

Technical specification

• Manufacturer: BetaFPV
• Model: Aquila20 Brushless Whoop Quadcopter
• Version: Analog
• Video system: analog VTX Aquila20
• Camera: BetaFPV C04
• Camera sensor: CMOS 1/3 inch
• VTX power: adjustable 25-350 mW
• Declared transmission range: over 200 m
• RC protocol: ExpressLRS 2.4 GHz V3
• Axle spacing: 100 mm
• Flight Controller: Aquila20 V1.0
• Engines: 1103 10500KV

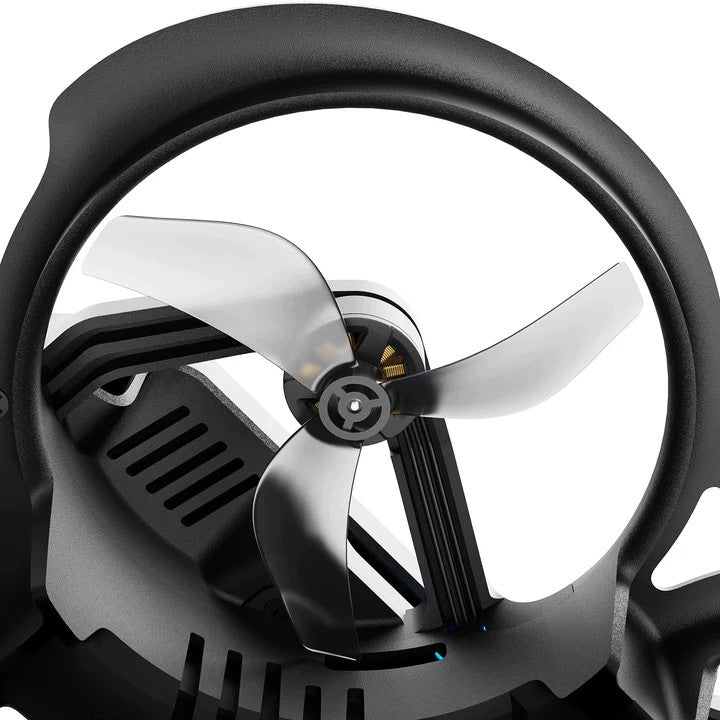

• Propellers: Gemfan 2218, 3-blade
• Flight Modes: N, S, M and Turtle Mode
• Camera angle adjustment: 10-30 degrees
• Battery: LiHV 2S 1100 mAh, 7,6 V, 15C
• Battery connector: BT3.0
• Declared flight time: about 10 minutes
• Starting weight: 122 +/- 1 g

Contents of the set

• 1x drone BetaFPV Aquila20 Analog
• 1x battery Aquila20 LiHV 2S 1100 mAh
• 1x charger and voltage tester 2S HV BT3.0
• 4x Gemfan 2218 3-blade propeller
• 1x Propeller Removal Tool
• 1x Phillips screwdriver
• 1x 4-pin adapter cable
• 1x USB Type-C Adapter Board

The kit does not include RC equipment or FPV goggles. The drone requires ExpressLRS 2.4 GHz and analog FPV goggles compatible with the band and channel used.

Before the flight, check the current geographical areas and the obligation to register the operator. Select the power of the video transmitter according to local regulations.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	BetaFPV
Parametry	Model	01010046_1
Parametry	EAN (GTIN)	0738170353434
Parametry	Manufacturer code	01010046_1
