Benzininis pjūklas NAC, 2,85 AG, 51,7 cc, 45 cm juosta

Trumpai apie prekę

Prekė: Benzininis pjūklas NAC, 2,85 AG, 51,7 cc, 45 cm juosta. Kategorija: Grandininiai pjūklai.

• Gamintojas: no brand
• Modelis: 40227

• Type of saw - chain
• Power supply - exhaust
• Engine capacity - 51,7 cm
• Rated engine power - 2,1 KW at 8500 rpm
• Maximum engine power - 2,85 hp at 8500 rpm
• Maximum engine speed - 12 500 rpm
• Maximum torque - 2,3 Nm at 6500 rpm
• Guide length - 45 cm
• Guide manufacturer - NAC
• Chain manufacturer - NAC
• Chain split - 325 "
• Chain width - 1,3 mm
• Number of chain links - 72 pieces
• Oil tank capacity - 260 ml
• Fuel tank capacity - 550 ml
• Chain lubrication - automatic
• Service in the system - "door to door"

• Automatic suction
• Additional fuel pump to help start the cold engine
• Floating chain drive wheel
• Reusable air filter
• Comfortable main handle
• Automatic chain lubrication with adjustable oil dosage
• Safety brake
• Metal resistance fangs
• Metal drive wheel
• Possibility of reversing the guide for even wear
• LOW KICKBACK anti-reflection system - The special shape of the chain cutting tooth protects against guide reflection during cutting.
• Chain guide equipped with needle bearing
• The set includes a guide guard and a handy toolbox with a candle wrench, service keys and a chain sharpening file.

The saw is equipped with a durable internal combustion engine with a chrome cylinder with a maximum power of 2,85 hp and a capacity of 51,7 cm. The device uses the highest quality cutting chain and guide with a length of 45 cm ( 18" ) from NAC, which guarantees a long time of their use.

A very precise carburetor with a suction system reduces fuel combustion and ensures that the start-up of the device does not cause any problems to the user.

The saw has a metal resistance comb, an automatic lubrication system with the possibility of its adjustment and built-in shock absorbers that minimize vibrations generated during normal operation.

The guide included in the set is equipped with needle bearings mounted on the rotary tip, thanks to which its service life is significantly increased and the design of lubrication holes allows it to be reversed, which extends the service life.

The main handle is coated with a non-slip material to make it more secure in the hand. The device is also equipped with a safety guard (anti-reflection) with a brake acting immediately in the event of the operator's hand slipping from the main handle.

• Device model - CST52-45-01AC-V
• Engine type - two-stroke combustion engine
• Engine capacity - 51.7 cm3
• Maximum engine power - 2.85 HP
• Rated power of the machine - 2.1 KW at 8500 rpm
• Maximum engine speed - 12,500 rpm
• Maximum torque - 2.3 Nm at 6500 rpm
• Cylinder type - chrome plated
• Guide length - 45 cm (18")
• Guide manufacturer - NAC
• Chain manufacturer - NAC
• Chain and bar size - 325" inch
• Guide groove width - 1.3 mm
• Number of chain links - 72 pieces
• Chain speed - approximately 23.8 m/s
• Fuel tank capacity - 550 ml.
• Oil tank capacity - 260 ml.
• Oil pump - automatic with dosage regulation
• Fuel - a mixture of gasoline and oil
• Mixture ratio - 40:1
• Saw weight - 5.8 kg
• Guaranteed sound power level - 114 dB (A)
• Housing - plastic
• Producer - NAC

1. Emergency starter for easy starting of the device
2. Simple chain tensioning system without having to remove the side guard
3. Metal engine carter
4. Comfortable handle to hold the device equipped with a safety brake acting immediately in the event of the operator's hand slipping off the handle.

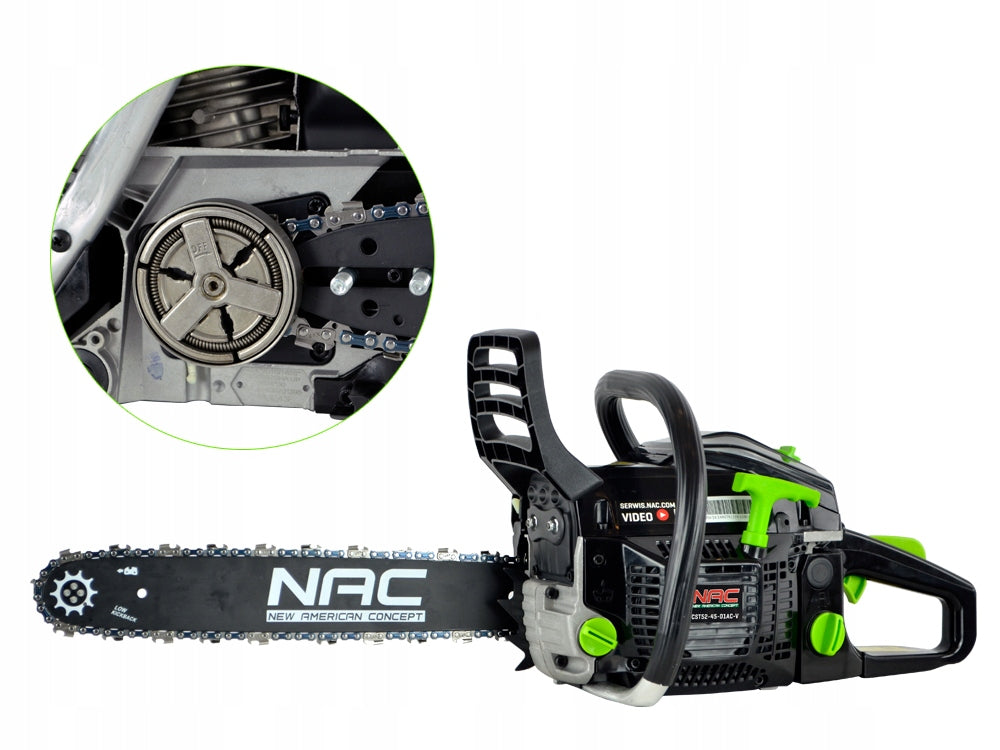

5. Floating drive wheel stabilizing chain rebounds
6. Convenient handle with easy access to ignition switch and suction lever
7. The saw has a anti-reflection system LOW KICKBACK - The special shape of the chain cutting tooth protects against the reflection of the guide when cutting.
8. Reusable air filter - reusable cleaning
9. Includes guide and chain by NAC, chain guard and key set

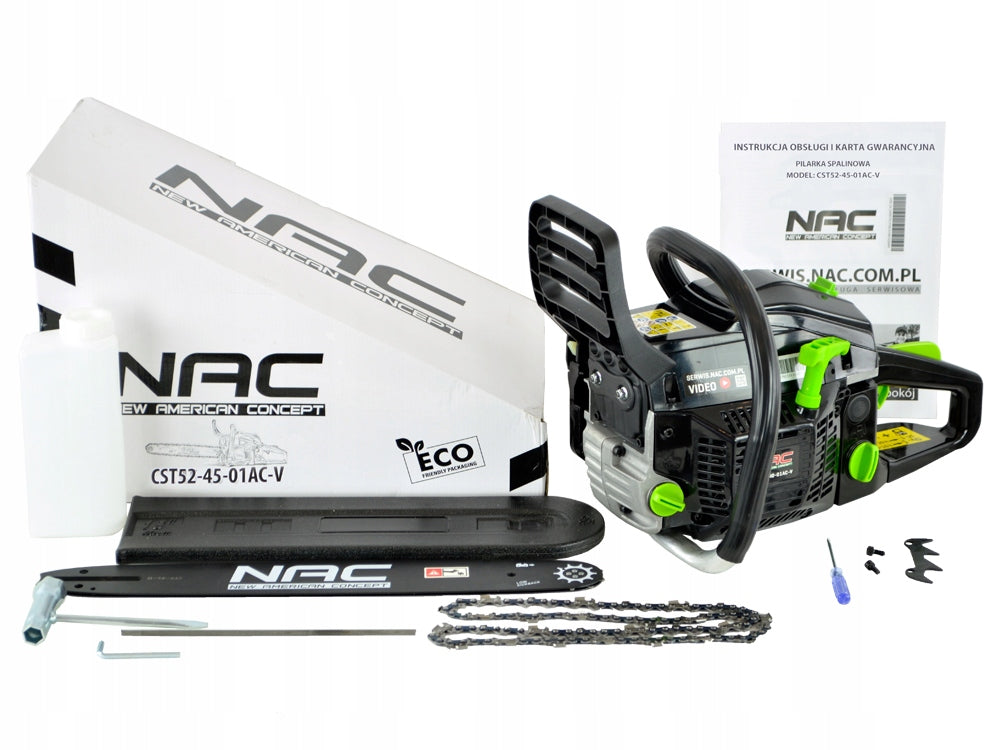

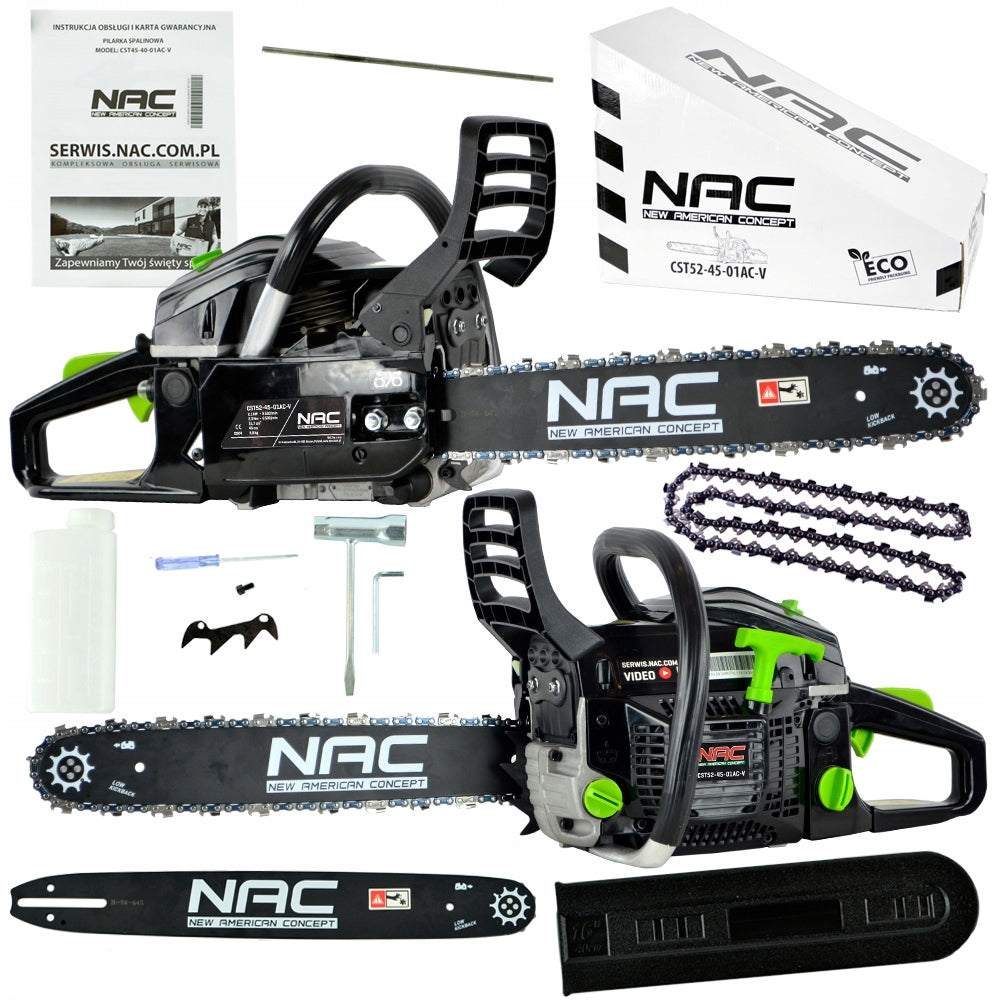

• Diesel Saw
• Chain guide
• Cutting chain
• Metal resistance fangs
• The Key to the Candle
• Container for making a fuel mixture
• Universal screwdriver
• Mounting Wrenches
• Chain Sharpening File
• Guide guard
• Mounting screws
• Warranty card
• EC declaration of conformity
• Instruction in Polish
• Original packaging
