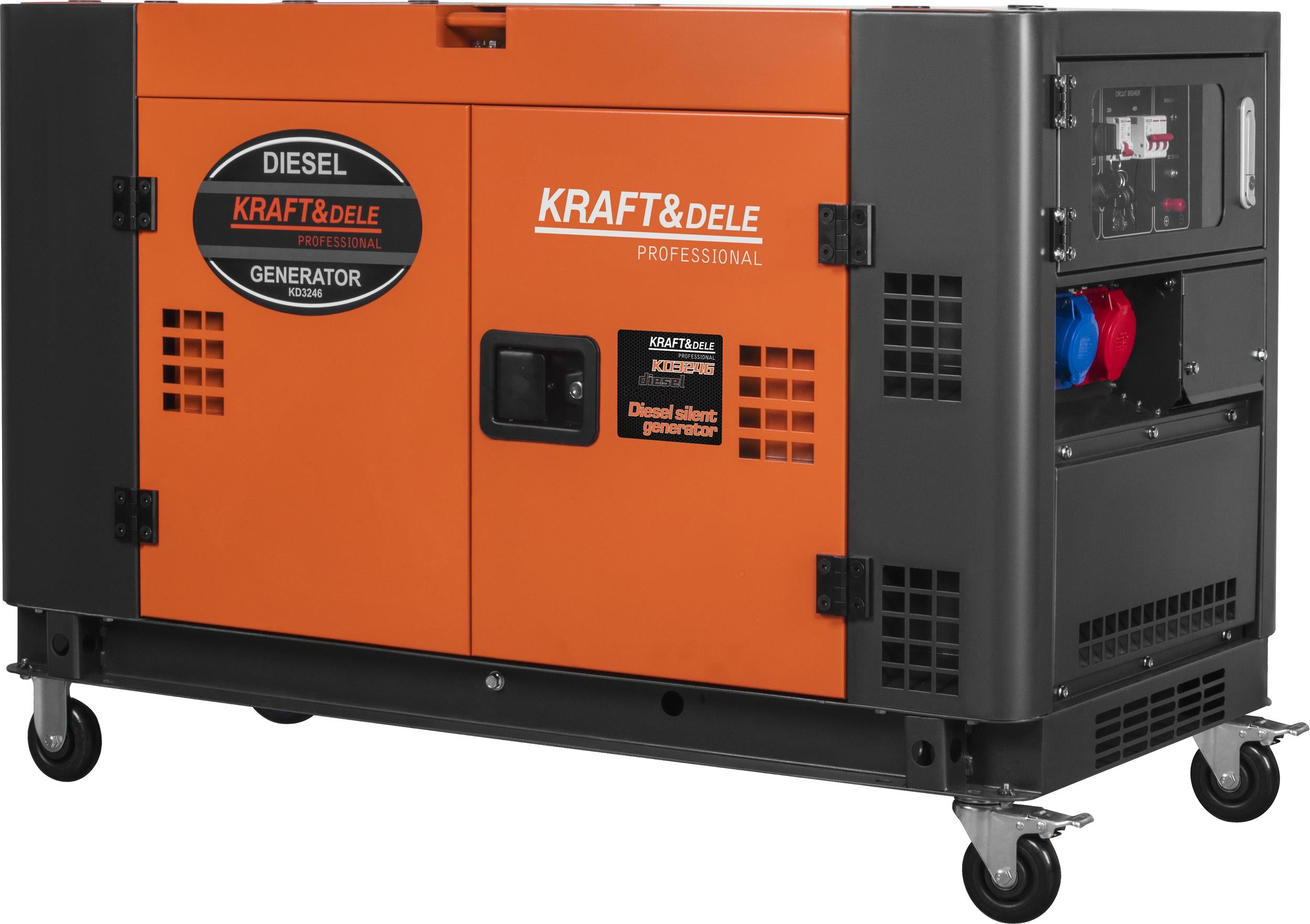

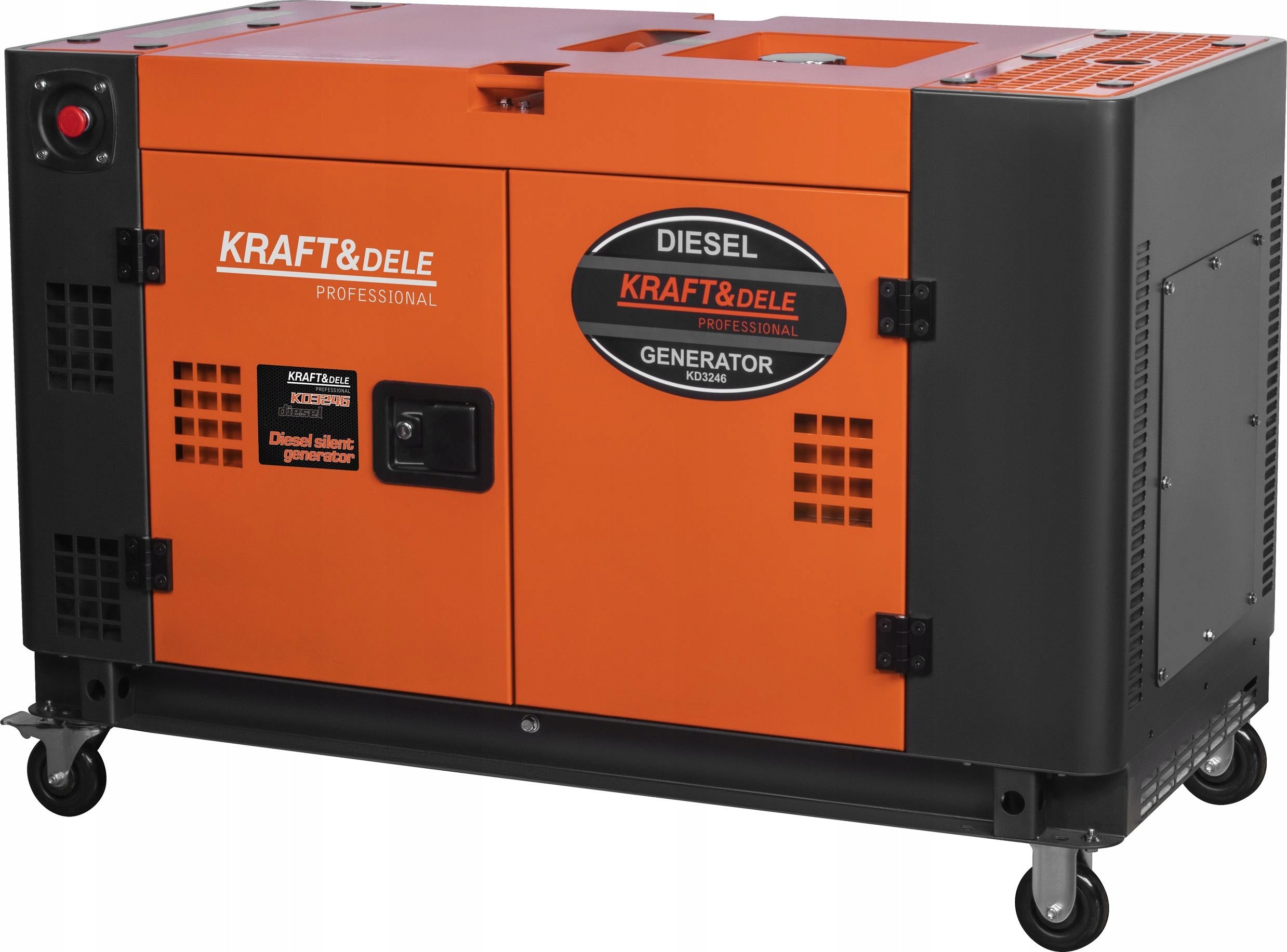

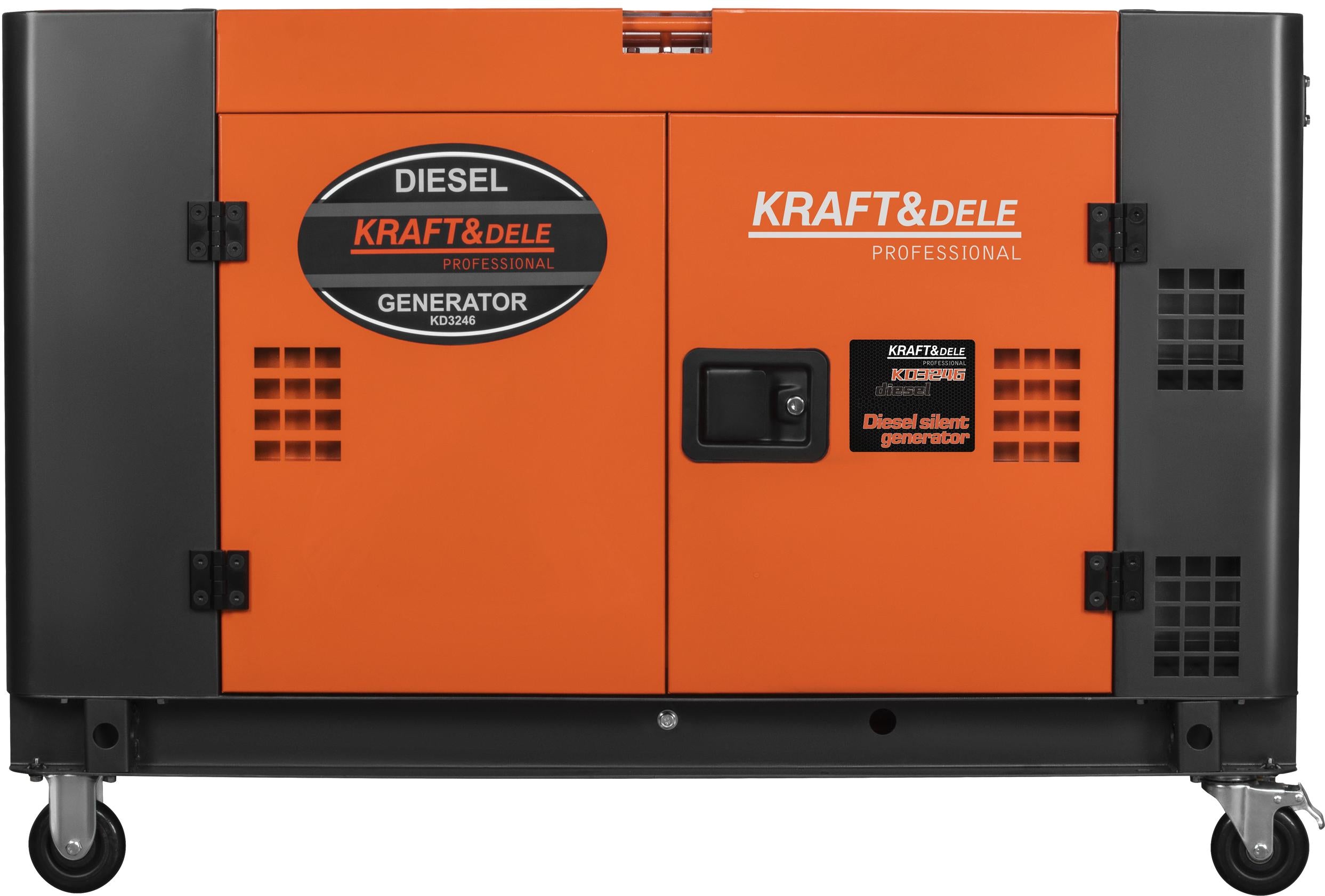

Benzininis generatorius KD3246, 20 kW, 230/400 V, 3000 aps./min, 25 l bakas

Trumpai apie prekę

Prekė: Benzininis generatorius KD3246, 20 kW, 230/400 V, 3000 aps./min, 25 l bakas. Kategorija: Elektros generatoriai.

• Gamintojas: Kraft&Dele
• Modelis: KD3246

KD3246 is a efficient KRAFT&DELE generator set designed for emergency power supply of buildings, farms, workshops, construction sites and devices requiring a stable source of electricity. The three-phase design, 19 kW rated power and a maximum power of 20 kW make the device perfect for both professional and industrial applications.

The KD3246 is equipped with an air-cooled two-cylinder diesel engine that ensures efficient and reliable operation even during prolonged use. The electric start allows you to start the device quickly, and the microprocessor smart throttle automatically adjusts the engine operation to the current load. Thanks to the presence of 230V and 400V sockets, the unit allows for simultaneous power supply to various types of electricity receivers.

PRODUCT CHARACTERISTICS

✅ Three-phase generator set – versatile use in emergency and professional power supply

✅ Diesel two-cylinder engine – efficient operation in demanding conditions

✅ 230V and 400V sockets – the ability to power various devices

✅ Microprocessor Intelligent Throttle – matching the engine operation to the load

✅ Reduced fuel consumption – more economical operation

✅ Extending the life of the engine – better operating conditions of the power unit

✅ Electric start-up – quick and convenient start-up of the device

✅ Transport wheels – easier movement of the unit

✅ Oil control – ongoing control of the operating status of the device

TECHNICAL DATA

⚙ Model: KD3246

⚙ Frequency: 50 Hz

⚙ Rotation speed: 3000 rpm /min

⚙ Power supply: 220V

⚙ Rated power: 19 kW

⚙ Maximum power: 20 kW

⚙ Power factor: 1.0

⚙ Type: Three-phase

⚙ Starting: Electric

⚙ Insulation class: F

⚙ Engine type: Two-cylinder, air-cooled

⚙ Degree of compression: 20:1

⚙ Fuel: Diesel

⚙ Recommended oil: SAE10W30 (CD class above)

⚙ Fuel consumption: 290 g/KWh

⚙ Fuel tank capacity: 25 L

⚙ Operating time at full tank: 8 h

⚙ Noise level: 73 dB

⚙ Dimensions: 1110 x 660 x 875 mm

⚙ Sockets: 1 x 230V, 2 x 400V

COMPOSITION OF THE PRODUCT

✅ Generator set 19/20 kW KD3246

✅ Plug 230V - 1 pc.

✅ Plug 400V - 2 pcs.

✅ Funnel

✅ Oil filter

✅ Mounting accessories

✅ User manual in Polish

✅ Original packaging
