Trumpai apie prekę

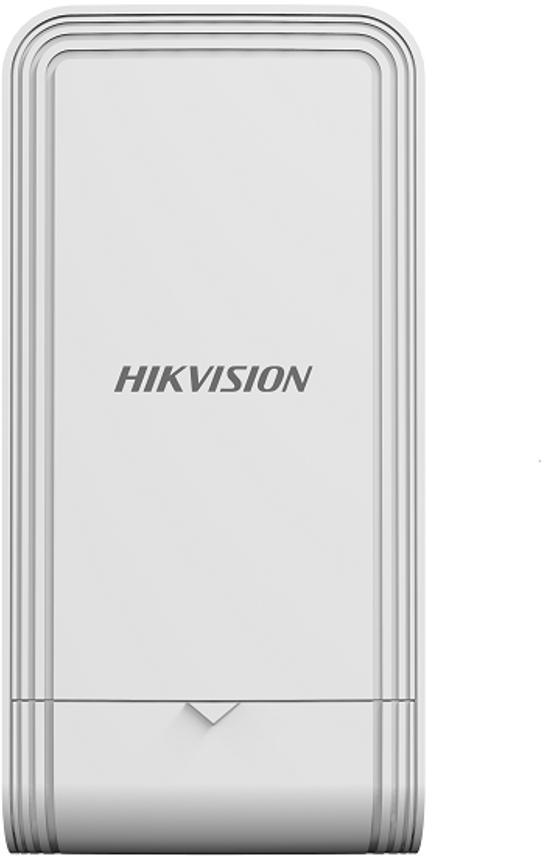

Prekė: Belaidis tinklo tiltas Hikvision DS-3WF3000S-EI-5AC/P. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: no brand
- Modelis: 63664
Model: DS-3WF3000S-EI-5AC/P
Technical specification
Model DS-3WF3000S-EI-5AC/P
Product Dimensions (S × W × G) 90,8 mm × 187,87 mm × 57,87 mm
Package Dimensions (S × W × G) 256 mm × 231 mm × 86 mm
Net weight 0,26 kg per device
Gross weight 1,1 kg
Package Contents Wireless Bridge × 1, PoE Power Supply × 1, Power Cord × 1, Quick Start Guide × 1, Compliance and Safety Information × 1, Mounting Tape × 2
Packaging method none
Operating temperature –30 °C to 65 °C
Operating humidity 5% to 95% (non-condensing)
Storage temperature –40 °C to 80 °C
Storage humidity 5% to 95% (non-condensing)
Mounting on pole
Protection class IP55
Power consumption 2,43 W typically (1-channel 2 MP camera), max. 3,6 IN
Wireless parameters
Max. Transmission speed ≤ 867 Mbps
IEEE 802.11 a/n/ac wireless standard
Operating band 5150 – 5250 MHz, 5250 – 5350 MHz, 5470 – 5725 MHz, 5725 – 5825 MHz
Antenna gain 8 dBi
Antenna angle (H) 50°, (V) 50°
22 dBm @ 11ac 80 MHz MCS0 transmitting power (may vary by local regulations)
Receiver sensitivity –84 ± 2 dBm @ AC80-MCS0
PTP throughput: 90 Mbps / 0,5 km (AC80), 90 Mbps / 1 km (AC80), 40 Mbps / 3 km (AC80); PTMP (1 to 4): 20 Mbps / 3 km (AC80)
PoE power supply
PoE AP port: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3af PoE OUT
PoE Budget 10 W
PoE distance 100 m
Hardware parameters
Network interface 2 × RJ45 10/100 Mbps ports
LEDs Power supply, LAN, signal strength
Reset Hardware Reset Button
48 V PoE / 12 – 24 V DC power supply
Software functions
Application functions IFM, IPM, DFS, TPC
Channel Width 20/40/80 MHz
Channel Selection Automatic/Manual
WPA2-PSK safety mode
Security mechanism Hiding the network name
Network protocols NTP, SADP, HTTPS/HTTP, SSH
HCP, Web, iVMS-4200, HPP management methods
Syslog system logs, management center logs
Update Web, iVMS-4200, HCP, HPP
Hik-Partner Pro – device restart functions; settings restart; topology preview; AP-CPE connection status; Wi-Fi configuration (mode, SSID, password, channel, power); bridge alignment; spectrum scanning; PoE management
Certificates
EMC CE-EMC, ICES-003, RCM
Safety CB, CE-LVD
Chemistry CE-RoHS, WEEE, REACH
Radio EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | no brand |
| Parametry | Mode of operation | Bridge |
| Parametry | Wireless operation standard | 802.11n (Wi-Fi 4) |
| Parametry | Band | 2,4 GHz |
| Parametry | Internal modem | no modem |
| Parametry | Management | website |
| Parametry | LAN port operating standard | 10/100/1000 Mbps |
| Parametry | Ports | RJ-11 |
| Parametry | Antenna | built-in |
| Parametry | Additional features | VPN server |
| Parametry | Product weight with unit packaging | 0.26 kg |
| Parametry | EAN (GTIN) | 5906832522947 |
| Parametry | Manufacturer code | 63664 |
| Parametry | Model | 63664 |
| Parametry | The highest standard supported | 802.11n (Wi-Fi 4) |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
