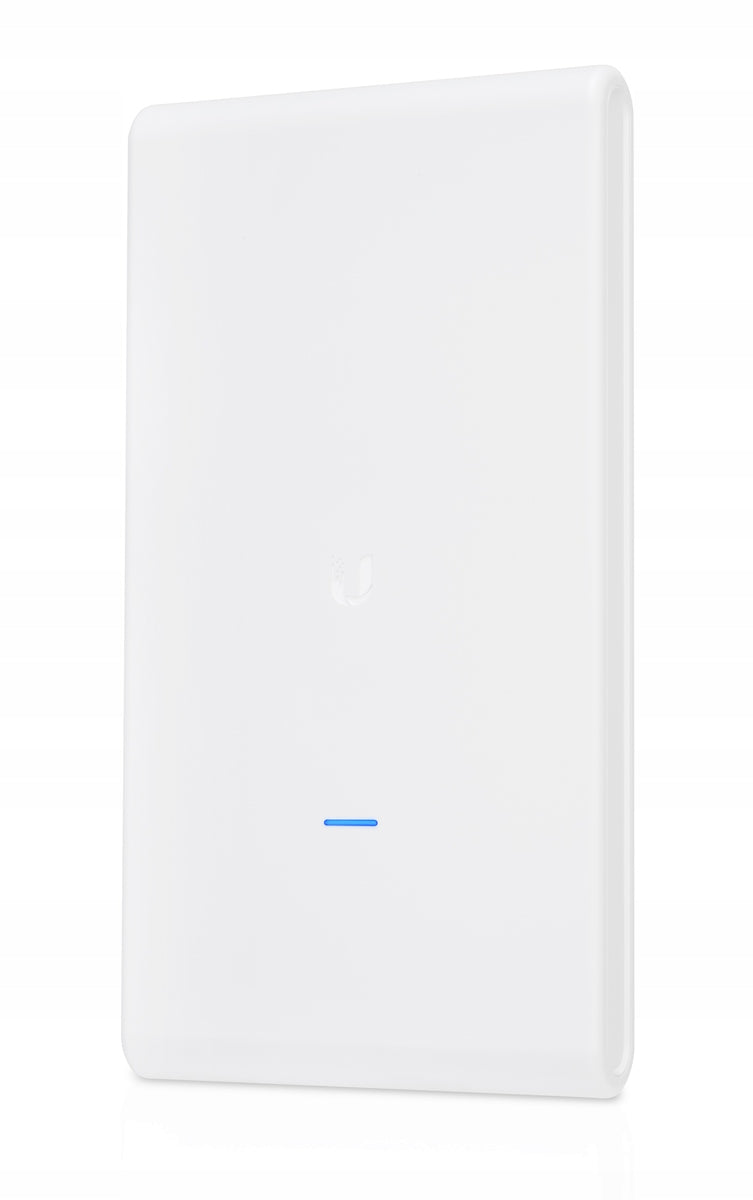

Belaidis tinklo prieigos taškas Ubiquiti UniFi UAP AC Mesh Pro, 802.11ac, su maitinimo šaltiniu

Trumpai apie prekę

Prekė: Belaidis tinklo prieigos taškas Ubiquiti UniFi UAP AC Mesh Pro, 802.11ac, su maitinimo šaltiniu. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Ubiquiti
• Modelis: UAP-AC-M-PRO Access Point Mesh
• Plotis: 343 mm
• Aukštis: 410 mm

Scalable WiFi system with software controller.

Ubiquiti Networks UAP AC Mesh Pro is a device that supports the 802.11ac standard and provides 1300Mbps bandwidth in the 5GHz band and up to 450Mbps in the 2.4GHz band.

Hardware features of the device

Thanks to two integrated 3x3 MIMO omnidirectional antennas with a gain of 8dBi UAP-AC-M-PRO enables simultaneous operation in both bands (2.4 and 5GHz), which enables e.g. Connecting 2.4GHz clients with a simultaneous, efficient 5GHz uplink connection.

The device has 2 Gigabit Ethernet ports.

UniFi UAP-AC-M-PRO power supply is carried out using PoE 802.3af (48V) technology, which limits the wiring to a single Ethernet cable and greatly simplifies the installation process.

The corresponding power supply is included with the device, however, it is possible to use a switch from the UniFi, EdgeSwitch or ToughSwitch Pro series.

Plug & Play Mesh technology allows you to create "multi-hop" uplink connections – wirelessly connected devices can support links for other wirelessly connected UniFi devices.

The mesh topology allows you to build an extensive WiFi network without the existing need to create additional cable infrastructure.

Thanks to the waterproof housing, the device is ideal for use in all outdoor conditions.

The included mounting hardware allows you to mount the UniFi AC Mesh Pro on a mast or directly to the wall.

UniFi Controller software

The distinguishing feature of UniFi products is the free and extremely intuitive UniFi Controller software, thanks to which you can add, configure and manage multiple UniFi devices from a web browser. In addition, in real time, the statuses of connected devices, network traffic and possible network problems are visible.

UniFi Controller can be installed on Windows, MAC or Linux systems. It is also possible to run the software in a private cloud service or use a public cloud service.

It is also possible to purchase a compact UniFi Cloud Key device with UniFi Controller software installed.

UniFi software and devices support “roaming”, which means that using several access points to cover the range of a given object, the user can move freely without losing even for a moment the network connection.

Radio environment map

Use the radio environment map to monitor and analyze available channels, choose the optimal location for the location of the access point or solve possible interference problems.

Detailed statistics

Configuration of individual reports and statistics allows you to control a large number of users and speed up the resolution of possible problems.

Wireless Uplink

Wireless Uplink functionality enables wireless connections between UniFi devices and extends their range without wires.

One wired UniFi device can handle up to four UniFi devices wirelessly in one transmission band (2,4/5GHz) allowing you to connect (adopt) new devices and change the configuration and topology of the network in real time.

For devices that support Plug & Play Mesh technology, it is possible to create "multi-hop" uplinks – wirelessly connected devices can support links for other wirelessly connected UniFi devices.

Guest Portal Support – Hotspot

The UniFi system is characterized by easy customization and a wealth of Guest Portal options, including authentication, Hotspot configuration and the ability to use your own portal server.

Set up paid offers, enter different speed bands (download/upload), control the limit of data transferred and the time of use of the link by guests – all from the UniFi controller.

All UniFi UAP devices have full Hotspot functionality:

- built-in support for payments using popular credit cards,

- built-in support for authentication using vouchers,

- Built-in Hotspot Manager for creating vouchers, user management and e.g. reimbursement of costs,

- full adaptation of Hotspot website pages to your needs.

Manage multiple places

A single UniFi Controller running in the cloud can manage devices in several locations, which enables distributed deployments and provides ease of management for an administrator or service provider.

Each location is logically separated and has its own configuration, map, statistics, Hotspot portal, write/read administrative accounts and read-only accounts.

WLAN Groups

The UniFi controller allows for flexible configuration for large system deployments. It is possible to create multiple WLAN groups and assign them to the radio module of the UAP device. Each WLAN can be tagged with a VLAN. Dynamic VLAN tagging for WiFi (or RADIUS VLAN) stations is also supported.

Most important features:

• Dual-band radio (2,4 and 5GHz) – simultaneous operation in both bands,
• Support IEEE 802.11ac technology,
• Elegant housing for mounting on a wall or mast (all accessories included),
• Power supply via PoE (passively (24V) or 802.3af PoE),
• UniFi Controller software,
• Intuitive installation and configuration of many advanced functions,
• Application inside and outside buildings,
• Scalable to hundreds of devices while maintaining a single unified management system.

The package contains:

• UniFi UAP-AC-M-PRO device,
• PoE 48V Power Supply, 0.5A Gigabit Adapter with Power Cable,
• instructions for quick installation,
• wall/ceiling mount bracket.

Specification:

• LAN Interfaces: 2 X 10/100/1000Mbit Ethernet
• Supported WiFi standards: IEEE 802.11a/b/g/n/ac
• Operating frequency: 2,4GHz and 5GHz
• Antennas: two dual-band MIMO 2x2 antennas with gain: 8dBi for 2,4GHz and 8dBi for 5GHz
• Internal range: up to 183m
• Maximum transmitting power:2,4GHz: 22dBm5GHz: 22dBm
• BSSID: up to 8 per radio module
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
• Support energy saving: yes
• Power supply method: IEEE 802.3af (voltage range: 44 – 57V DC)
• Included Power Supply: 48V, 0.5A PoE Gigabit Adapter
• Maximum power consumption: 9W
• Buttons: Reset
• Mounting: Comes with wall or mast mounting hardware
• Certification: CE, FCC, IC
• Dimensions: 343.2 x 181.2 x 60.2mm
• Weight: 633g
• Operating temperature: -40 to 70oC
• Permissible humidity: 5-95% (non-condensing)

Advanced traffic management:

• VLAN: 802.1Q
• Advanced QoS: bandwidth limiting for each user
• Guest Traffic Isolation: Yes
• WMM: Voice, Video, Best Effort, Background
• Simultaneously connected clients: 250+

Supported speeds:

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: 6.5 Mbps - 450 Mbps (MCS0 - MCS23, HT 20/40)
• 802.11ac: 6.5 Mbps - 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
