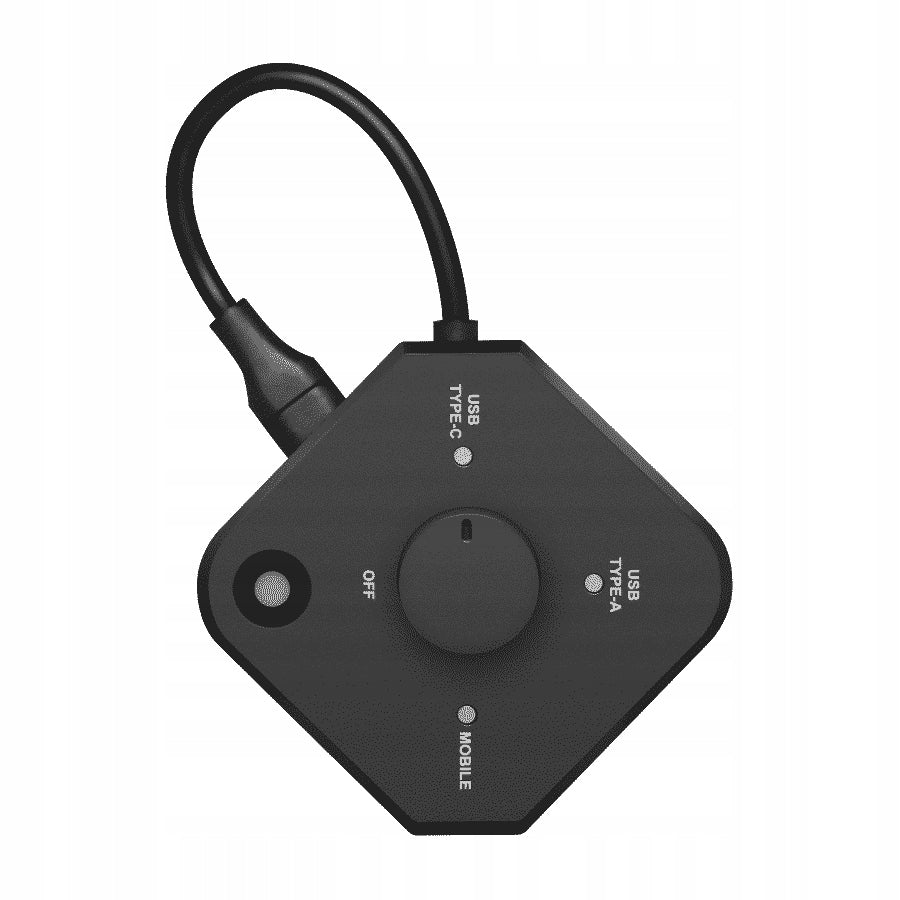

Belaidis pristatymų siųstuvas QuattroPod U01

Trumpai apie prekę

Prekė: Belaidis pristatymų siųstuvas QuattroPod U01. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: U01

The QuattroPod wireless presentation system is an ideal solution for small and medium-sized conference rooms and a great alternative to popular Barco ClickShare solutions. It allows you to wirelessly transfer video and audio from any device with any operating system. It enables innovative sharing of content with anyone by clicking a button on a previously connected transmitter. The system works on Mac and PC or mobile devices. The ease of use of this conference BYOD solution means that every user can cope with the presentation of content, even if they have not had contact with this type of device before. QuattroPod offers full support for Android and iOS devices and allows you to support up to 64 users (transmitters).

A unique feature of QuattroPod is the fact that it does not require software installation and is fully Plug’n’Play.

QuattroPod is the most innovative system of BYOD solutions – Bring Your Own Device in conference rooms, improving cooperation thanks to wireless screen sharing! Compared to other systems, e.g. Barco ClickShare or Benq Instashow, QuattroPod gives you the ability to send not only static presentations as in the case of competitive solutions, but also video clips without loss of quality and delays in audio streaming.

QuattroPod fully works with Windows, macOS, iOS and Android devices, which means it is compatible with almost every notebook, tablet and smartphone of almost every manufacturer. The presented presentation system offers wireless connectivity up to 30m (between the transmitter and receiver) when transferring video and sound to a TV, monitor or projector.

The offered U01 wireless transmitter supports resolutions up to Full HD and can work with state-of-the-art devices, allowing you to transfer video and audio in perfect quality.

CPU: 1Ghz RISC CPU

Memory: DDR3 256MB, NAND Flash 256MB

Supported output resolutions:

• 1920×1080@60Hz
• 1920x1080i@60Hz
• 1280×720@60hz
• 1280×720@50hz
• 1920×1080@30Hz
• 1920×1080@50Hz
• 1920x1080i@50Hz

Inputs/outputs:

• 1x USB Type-C Male (USB Type-A Male Adapter)
• 1x USB type A female to power the transmitter in cooperation with mobile sources

WiFi: 802.11ac 1T1R, max. 433Mbps (5Ghz) band

WiFi frequency: 5Ghz (5.150Ghz~5.825Ghz)

Power supply: 5V, 0,9A

HDCP : 1.4

Ethernet: 10/100/1000M, POE support

LEDs:

• 105mm
• WiFi status
• Status of work

Buttons:

• Choosing a Host
• Selection of source

Power Consumption:

• Standby: approx. 2W
• During work ok. 4W

Working temperature: 0-40 degrees C

Storage temperature: -20-70 degrees C

The wall decoration of the tree of life is made of high quality iron, with exquisite performance and burr-free, safe, strong, durable, effective against rust and thoroughly for cleaning.

• The given transmission distances refer to a situation close to the ideal – open space between devices, no obstacles, no external interference and the correct positioning of devices relative to each other.
• Wireless video transmission is always a very technically demanding solution. Despite all the implemented security measures, it may happen that there will be some image disturbances, a slight lack of fluidity, etc. Especially in the case of very dynamic scenes. This may be due to the characteristics of the environment in which the device operates, interference there, other signals, materials from which the walls and other elements of the environment are made.
• The process of starting wireless devices, establishing, reconciling and stabilizing the connection usually takes much longer than with wired solutions.
