Belaidis prieigos taškas Ubiquiti E7-Audience, Wi-Fi 7, 10 GbE

Trumpai apie prekę

Prekė: Belaidis prieigos taškas Ubiquiti E7-Audience, Wi-Fi 7, 10 GbE. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Ubiquiti
• Modelis: E7-AUDIENCE

Purpose

Wi‑Fi 7 access point designed to build high-performance, multi-band wireless networks in high-traffic facilities. The device is designed for environments where stable connections and high bandwidth are needed for multiple users at the same time, with support for 2,4 GHz, 5 GHz and 6 GHz bands.

Bands and performance

The device takes advantage of Wi‑Fi 7 (IEEE 802.11be) and offers a total maximum bandwidth of up to 11,5 Gbit/s with full use of available bands. For the 5 GHz band, the declared maximum speed is 8,6 Gbit/s. Support for up to 12 spatial streams and MU‑MIMO technology improves the simultaneous operation of multiple client stations, which translates into better use of radio resources in high-density networks of devices.

Connectivity and power

The device is equipped with RJ‑45 Ethernet ports and support for 10 Gigabit Ethernet connectivity, which facilitates integration with high-bandwidth network infrastructure. The power supply is implemented by PoE++ (4PPoE), and the maximum power consumption is about 51 W. Built-in security mechanisms include PPSK and support for transmission security at the network level.

Design and installation

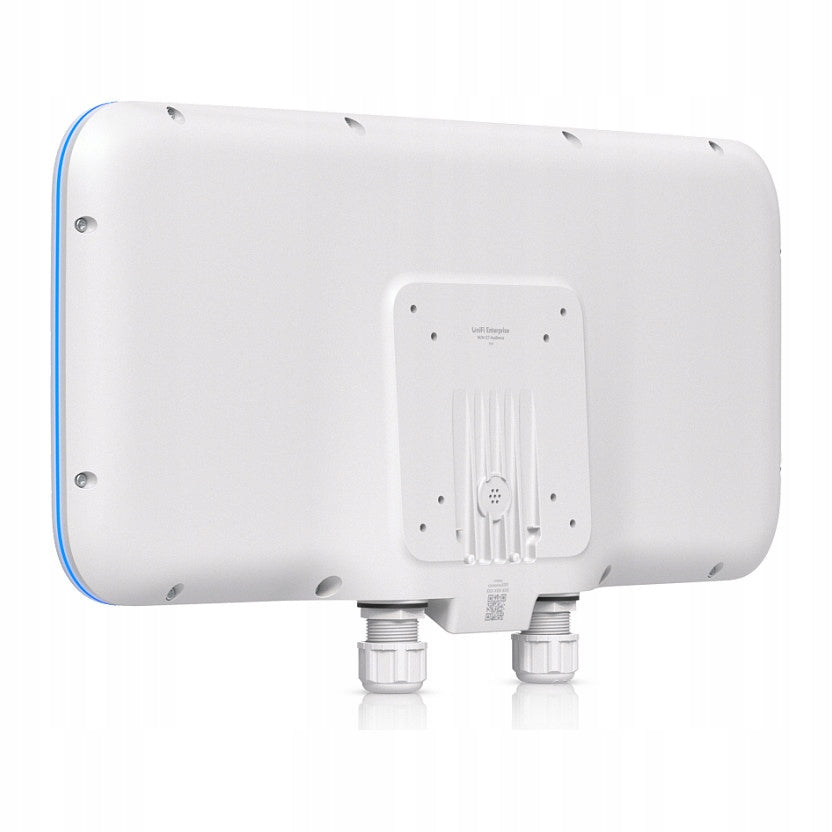

The aluminum and polycarbonate housing is designed for durability and efficient heat dissipation, and the antennas are placed internally in a directional system, with a maximum gain of up to 15 dBi. The dimensions of the device are approximately 474,1 mm wide, 239,4 mm high and 42,2 mm deep. There are options for mounting on a rod or wall and functions to help manage radio operation, such as work schedules (Wi‑Fi schedules).

Management and application

The model is designed for use in high-density environments, supporting hundreds of concurrent devices and covering fields with a large usable area. The device works with network management protocols, including TLS transport, and provides enterprise-class infrastructure-specific features such as Hotspot 2.0 support and advanced radio configuration options.

Specification

• Communication standards: IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
• MIMO type: Multi User MIMO (MU‑MIMO)
• Encryption / Security: PPSK
• Power Consumption: 51 W
• Antenna Type: Internal, Directional
• Antenna gain level (max): 15 dBi
• Housing Material: Aluminum; Polycarbonate (PC)
• Color: White
• Temperature range (operation): -40 - 60 °C
• Relative humidity range: 5 - 95 %
