Belaidis prieigos taškas TP-Link EAP673 Wi-Fi 6 (802.11ax) Omada

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-Link EAP673 Wi-Fi 6 (802.11ax) Omada. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP673
• Plotis: 220 mm

Manufacturer: TP-LINK

Multi-glinder, dual-band, wireless access point with ceiling mounting, AX5400 standard

• Incredibly fast Wi-Fi 6: Simultaneous support for speeds up to 574 Mbps in the 2,4 GHz band and 4804 Mbps in the 5 GHz band, resulting in a total of up to 5378 Mbps.
• High performance WiFi 6: More connected devices can benefit from higher speed.
• Centralized management in the cloud: Integration with the Omada SDN platform allows you to manage your network locally and remotely from the cloud via the Web interface or the Omada application.
• 160 MHz channel width: Double the amount of peak transmission data on a single stream with HE160.
• Smooth roaming: Video transmissions and ongoing voice calls are not interrupted when users change location.
• Omada Mesh: The ability to wirelessly connect access points to maintain long network coverage and location freedom.
• PoE+ power supply support: The selection of locations for the device and its installation do not cause much difficulty thanks to the support of PoE+ power supply (802.3at standard) and DC power supply (no power supply included).

Ceiling access point WiFi 6, AX5400

High-end, business WiFi 6 to power your business

AX5400 WiFi6

4804 Mbps in the 5 GHz band + 574 Mbps in the 2,4 GHz band

High performance WiFi 6

More connected devices, higher speed

Centralized management in the cloud

Manage your network locally and remotely through the cloud

Wired connection 2.5GE

Increased total bandwidth with 2,5Gb/s Ethernet port

160 MHz channel

Double the amount of peak transmission data on a single stream with HE160

Automatic channel selection and power regulation

Optimize performance by reducing Wi-Fi interference

Omada Mesh technology

Convenient and flexible wireless network distribution

Liquid Roaming

Continuous streaming when navigating between access points

PoE+ power supply

Support 802.3at PoE+ power supply and DC power supply (power supply not included)

Increased performance for multiple devices

Wi-Fi 6 offers access to features such as OFDMA and MU-MIMO, which translates into the ability to connect more customers also in environments heavily loaded with network traffic (office spaces, guesthouses or small clinics). This means faster speeds, more connected devices, and lower latency.

Integration with Omada SDN platform

The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, switches and routers to provide 100% centralized cloud management and highly scalable managed networking from a single interface.

Hardware or software controller

Centralized management in the cloud

Intelligent Monitoring

Automatic channel selection and power adjustment optimize performance

It provides high wireless performance while reducing WiFi interference by automatically adjusting channel settings and transmission power levels of adjacent access points on the same network.

Simple installation and high performance thanks to Omada Mesh

Easy pairing, less wires

Based on Mesh technology, Omada EAP does not require additional wires, thanks to the wireless transmission of your WiFi signal to facilitate installation in places where it is difficult to bring cables.

Optimizing network performance

Intelligent optimization chooses the best path between EAP access points, and Self-healing ensures that they stay online even when one access point stops working.

Smooth switching with Fast Roaming

It provides users with uninterrupted streaming as they move nearby by switching their devices automatically to access points with optimal signal.

Enhanced network security and performance

Secure guest network up to 16 SSID

The guest network provides enhanced security for users. Different SSIDs allow for easy management.

Guest network with Facebook WiFi and SMS login

The welcome page (including SMS, Facebook WiFi and Voucher) and 802.1x authentication help you maintain guest authorization and network access. Grow Your Business with a Custom Advertising Page

WPA3 for open public networks

With advanced enterprise-class security, WPA3 provides enhanced data security for previously unsecured WiFi hotspots.

Band control

Dual-band devices are automatically connected to the wider 5 GHz band, giving them access to faster connections.

Band Load Balancing

A heavily data-intensive network runs smoothly and without interruptions even when multiple devices are connected to it.

Airtime Fairness

Improves network performance by reducing inefficient bandwidth utilization.

Hardware Features:

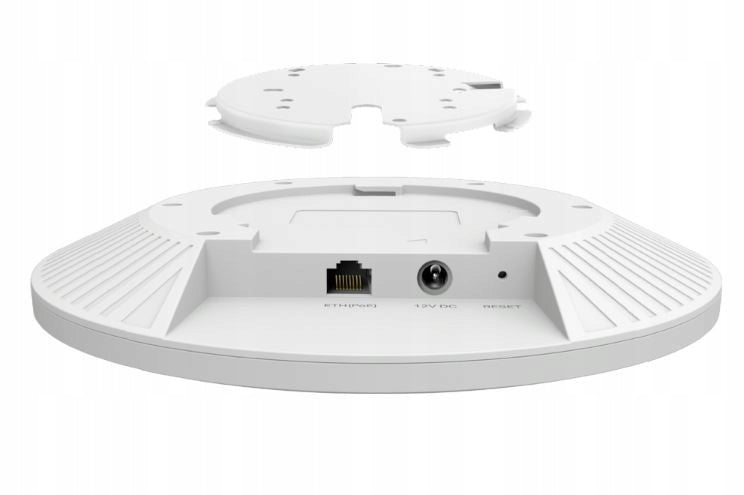

• Ports: 1× 2.5-gigabit RJ45 Ethernet port (PoE support IEEE802.3at)
• Buttons: Reset
• Power supply:
• 802.3at PoE
• 12V/1.5A DC (No Power Supply Included)
• Power consumption: 20,8W
• Dimensions (S x G x W):
• 220 × 220 × 32,5 mm
• Antenna type:
• Internal, omnidirectional:
• 2,4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
• Assembly: Ceiling/wall mounting (mounting kit included)

Properties of wireless transmission:

• Wireless standards:
• IEEE 802.11ax/ac/n/g/b/a
• Frequency of work:
• 2,4 GHz and 5 GHz
• Transmission speed:
• 5 GHz: up to 4804 Mbps
• 2,4 GHz: up to 574 Mbps
• Wireless transmission functions:
• 1024-QAM
• 4 times longer OFDM symbol
• OFDMA
• Multi-SSID (up to 16 SSIDs, 8 for each band)
• Permissible operating temperature: 0~40 (32~104) /off wireless transmission
• Automatic channel selection
• Transmission power control
• QoS (WMM)
• MU-MIMO
• HE160 (160 MHz channel width)
• Smooth roaming
• Omada Mesh
• Bandwidth control
• Bandwidth load balancing
• Airtime Fairness
• Beamforming
• Speed limitation
• Reboot schedule
• Wireless network scheduler
• Wireless network statistics based on SSID/AP/client
• Wireless transmission security:
• Authentication with the Welcome Page
• Access control
• Filter MAC addresses
• Isolation of wirelessly connected clients
• SSID to VLAN mapping
• Detection of unauthorized APs
• Support 802.1X
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Management:

• Omada app: Yes
• Central management: Omada hardware controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
• Cloud access: Yes (via OC300 controller, OC200 controller, Omada software controller or Omada cloud-based controller)
• Email notifications: Yes
• LED switch: Yes
• Access control by MAC addresses: Yes
• SNMP: v1, v2c, v3
• System log: Local and remote
• SSH: Yes
• Browser management: HTTP/HTTPS
• Management L3: Yes
• Multi-site management: Yes
• VLAN management: Yes
• Support-free ZTP configuration: Yes. Requires the use of a cloud-based Omada controller.

Height: 92.6 mm

• Certificates: CE, FCC, RoHS

Contents of the pack:

• EAP673
• Mounting kit
• Installation instructions

NOTE - there is no power supply included, the version with the power supply is model EAP670

• System requirements:
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Working environment: Permissible operating temperature: 0℃–40℃ (32℉–104℉)
• Permissible storage temperature: -40℃–70℃ (-40℉–158℉)
• Permissible air humidity: 10%–90%, non-condensing
• Permissible storage humidity: 5%–90%, non-condensing
