Belaidis prieigos taškas Cudy AP11000, Wi-Fi 7 (802.11be)

Trumpai apie prekę

Prekė: Belaidis prieigos taškas Cudy AP11000, Wi-Fi 7 (802.11be). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Cudy
• Modelis: AP11000
• Plotis: 310 mm
• Aukštis: 240 mm

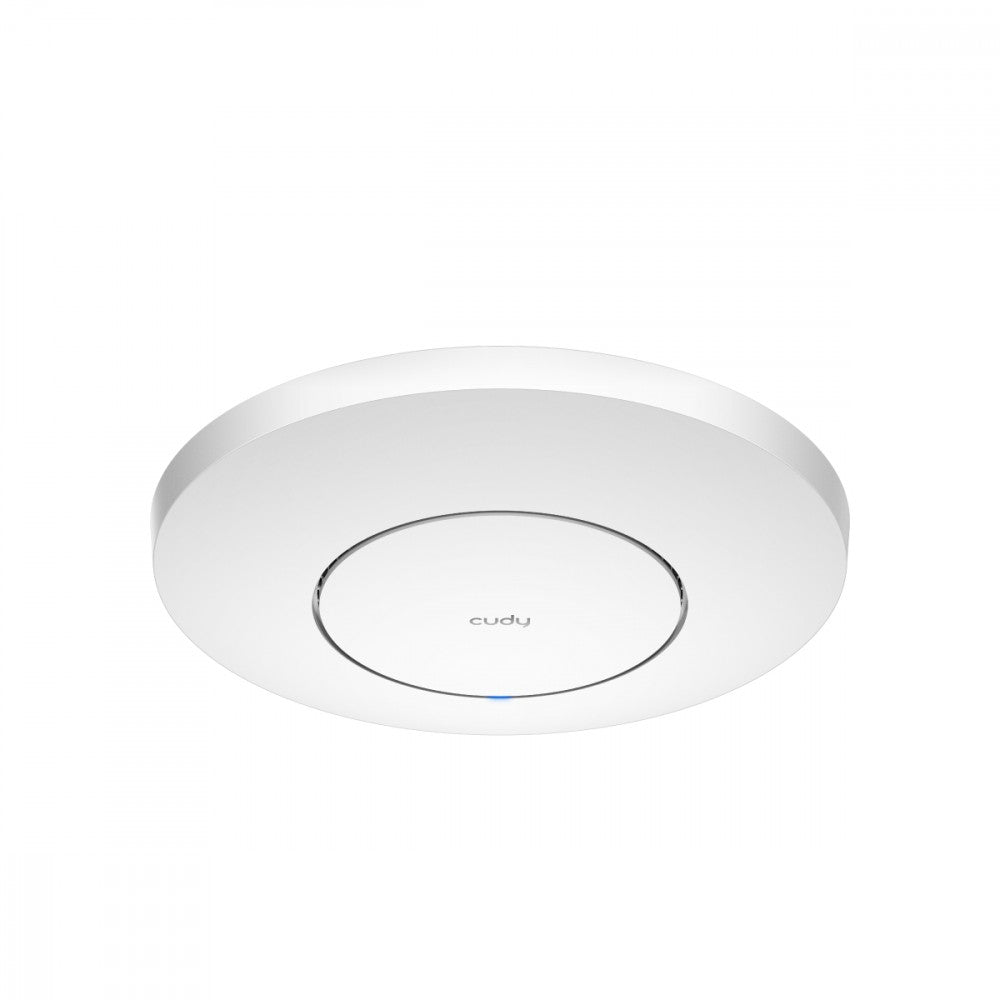

Cudy AP11000 – Wi-Fi 7 access point BE11000

Cudy AP11000 is an advanced Wi-Fi 7 access point (BE11000) designed for installation in environments with high device density and high bandwidth requirements, such as offices, conference centers, public facilities or large commercial spaces. The device enables wireless connections with a total speed of up to about 10,6 Gb/s and uses three bands: 6 GHz, 5 GHz and 2,4 GHz, which ensures a stable and fast network even under heavy loads. The AP11000 can be wall or ceiling mounted and works with the Cudy Mesh solution and the AP controller for centralized management.

The most important features

• Tri-band access point with Wi-Fi 7 (802.11be): 6 GHz, 5 GHz and 2,4 GHz – total speed up to 10,6 Gb/s.
• 1 × 10 G SFP+ port – high-speed fiber optic connection for uplink.
• 1 × port 2,5 GbE RJ-45 – Ethernet with PoE function (power over the network).
• Support up to ~300 connected devices and signal coverage up to approx. 260 m in open ground.
• Possibility of power supply: PoE (802.3at), Passive PoE and DC 12 V.
• Support advanced networking and optimization functions: auto channel selection, band steering, mesh backhaul, etc.
• Wall or ceiling mounting – mounting kit included.

Technical specification

Model: AP11000 1.0 – Wi-Fi 7 access point.

Wi-Fi standards: 802.11be (Wi-Fi 7), backward compatible with earlier standards.

Wi-Fi bandwidth and speed:

• 6 GHz – up to 5765 Mb/s
• 5 GHz – up to 4324 Mb/s
• 2,4 GHz – up to 688 Mb/s

Antenna streaming: 2T2R (2×2 MIMO) on each band.

Number of antennas: 6 × internal.

Processor: Qualcomm 1,5 GHz Quad-Core.

Memory: 512 MB RAM (DDR4), 128 MB flash.

Ports and interfaces:

• 1 × 10G SFP+ – fiber optic uplink.
• 1 × 2,5 GbE RJ-45 with PoE support.
• Power supply: PoE (802.3at), Passive PoE, DC 12 V 2 A.

  Security: WPA/WPA2/WPA3.

Range: up to 260 m in open space (depending on environmental conditions).

Device support: up to about 300 connected clients.

Assembly: wall/ceiling (handles included).

Working temperature: 0 to 40 °C.

Certificates: CE, FCC.

Dimensions: approx. 231,9 × 231,9 × 57,1 mm.

Weight: approx. 578 g.

Application

The product is designed to install high-performance Wi-Fi networks in environments with a large number of devices, such as:

• offices, open spaces
• public facilities
• shops, restaurants, hotels
• conference rooms and event centres

The AP11000 provides fast, stable wireless connections and supports modern network management and optimization functions, and thanks to the 10G SFP+ port, it can work with fiber optic solutions.

Contents of the set

• Access point Cudy AP11000
• Mounting kit (handles)
• Ethernet cable
• User manual for the device Cudy
