Belaidis prieigos taškas Cudy AC1200 Gigabit, montuojamas ant sienos

Trumpai apie prekę

Prekė: Belaidis prieigos taškas Cudy AC1200 Gigabit, montuojamas ant sienos. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Cudy
• Modelis: AP1300
• Plotis: 0 mm
• Aukštis: 0 mm

Cudy AC1200 Gigabit Wall-Plate Access Point

Cudy AC1200 Gigabit Wall-Plate Access Point

Cudy AC1200 is a compact access point designed for installation in an installation box, which provides a stable wired and wireless connection in hotel rooms, offices, apartments and dormitories.

Discrete access point mounted directly on the wall

• Cudy AC1200 uses a compact wall design designed for aesthetic installation without the visible tangle of wires. The white housing with rounded edges blends easily with the modern interior of a hotel room, office or home.
• The device is designed for indoor use only, and thanks to the flush-mounted design, it does not take up space on the desk or shelf. The discrete LED provides basic information about the operating status and can be managed via the Cudy platform.

Central management via browser and mobile application

• The access point can be managed via the web interface and the Cudy mobile application, so that wireless network settings are available from both your computer and phone. One environment allows you to conveniently change Wi-Fi parameters and LED settings.
• The device can be incorporated into the Cudy Mesh system, making it easy to create a unified wireless network in a larger facility. After proper configuration of the main Cudy Mesh router, access points can be incorporated into the system without complicated separate configuration.

Two-band Wi-Fi for more stable operation

• The access point operates simultaneously in the 2,4 GHz and 5 GHz bands, which allows the devices to be separated according to the requirements for range and transmission speed. The 2,4 GHz band offers speeds of up to 300 Mbps, while the 5 GHz network reaches up to 867 Mbps.
• The total wireless speed is up to 1 167 Mbps, and MU-MIMO support helps you operate multiple connected devices more efficiently. In the less loaded 5 GHz band, you can simultaneously reduce interference and latency when video conferencing, streaming or working with cloud services.

Wireless and wired connectivity at one point

• Cudy AC1200 can simultaneously provide Wi-Fi for laptops, phones and tablets, and a gigabit wired connection for other network devices. A total of five LAN ports allow you to connect, for example, a computer, printer, IPTV, VoIP phone or IoT gateway.
• All LAN ports support 1 Gbps speed, so the device is not limited to wireless operation only. This solution will work especially in rooms and offices where you need to combine stable Ethernet with the convenience of Wi-Fi.

Connecting multiple devices simultaneously

• The access point is designed to serve multiple wireless clients simultaneously and allows up to 40 devices to be connected, according to the manufacturer. Thanks to this, it will work in places where phones, laptops, TVs, smart electronics and other network devices connect to one network.
• Support for 802.11a/b/g/n/ac standards ensures compatibility with a wide range of older and newer Wi-Fi devices. Connection security is supported by WPA, WPA2 and WPA3 encryption standards.

Suitable for hotels, offices and living spaces

• The wall design allows you to create separate access points directly in individual rooms. This solution will work well in hotel rooms, apartments, dormitories and offices, where a stable signal is desired without unnecessary overlap of the range of remote access points.
• The manufacturer declares to cover an area of up to 60 m² depending on the installation conditions and the environment. Two internal, non-replaceable antennas with a gain of 5,6 dBi are responsible for distributing the wireless signal in the room.

Compact design with thoughtful cooling

• The access point measures 8,6 × 14,3 × 2,76 cm and weighs 261,2 g, so that it does not look massive when mounted. The minimalist look will work well in spaces where network equipment should remain as little visible as possible.
• The design includes ventilation holes to dissipate heat during long-term operation. The device thus combines a compact built-in design with passive cooling without the need for an active fan.

Power supply and data with one Ethernet cable

• Cudy AC1200 supports PoE according to IEEE 802.3af and 802.3at standards at 48 V. The Ethernet cable can therefore simultaneously transmit network data and electrical power, without the need to bring a separate power supply to the access point.
• PoE passthrough support allows you to additionally power through the access point another compatible network device, such as an IP phone. For stable operation of such a configuration, the manufacturer recommends power supply in accordance with the standard 802.3at or higher.

Aesthetic solution without visible wiring

• Wall mounting helps to hide the network wires behind the access point itself and maintain the aesthetic appearance of the interior. This solution will work especially where a classic access point or router set on a desk would be too visible.
• Discreet LED signaling informs about the condition of the device without intensive illumination of the room. In hotel rooms or bedrooms, its operation can be managed via the Cudy platform.

Assembly in standard installation box

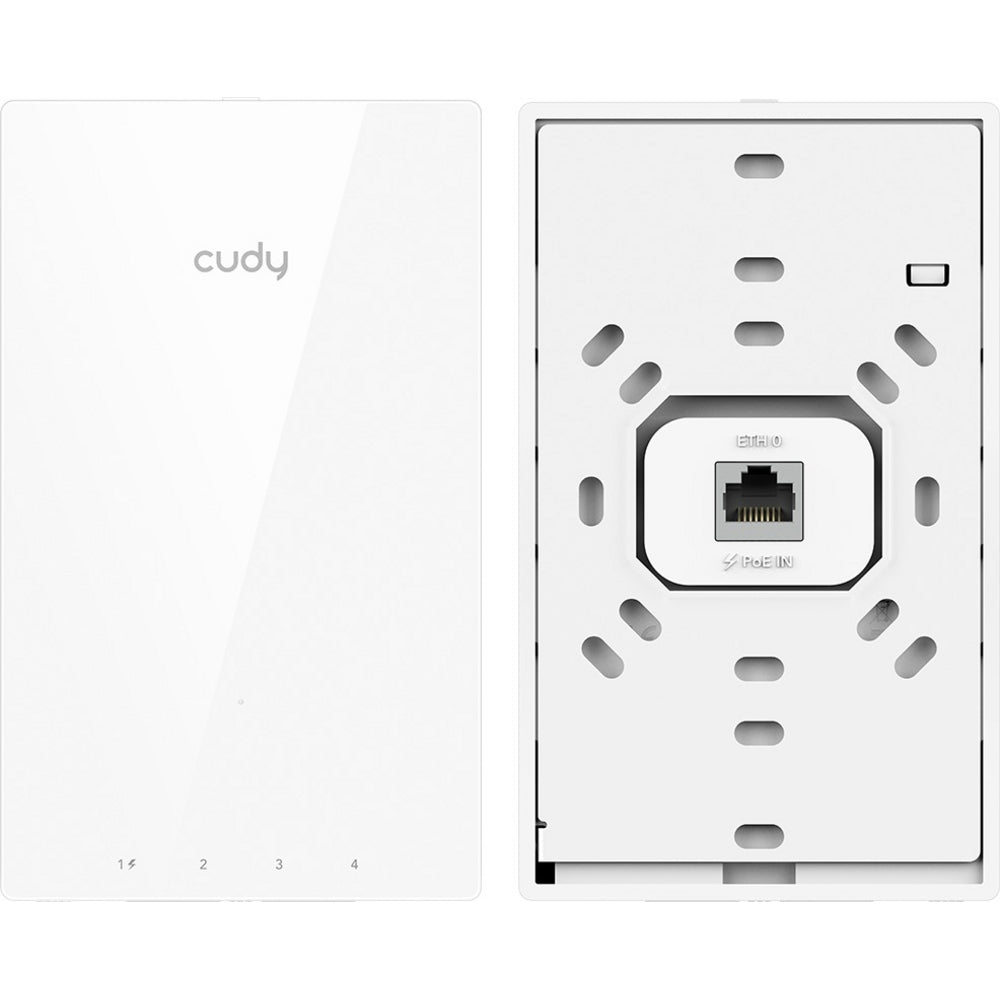

• The access point is designed to be installed in a standard 86 mm European and American type installation box. The mounting design allows you to attach the device directly to the wall and hide the lead of the network cable behind its housing.
• The necessary mounting kit is included in the package, so there is no need to buy basic fasteners separately. After installation, the access point remains available for servicing while maintaining a compact profile.

The most important features

• Built-in Wi-Fi 5 access point for indoor use.
• Dual-band operation in the 2,4 and 5 GHz bands.
• MU-MIMO support for more efficient communication with multiple clients.
• Possibility of integration with Cudy Mesh system.
• Management via web interface and mobile application Cudy.
• PoE and PoE passthrough power supply for another compatible device.
• Possibility to turn off or configure the LED.
• Installation in a standard 86 mm installation box.

Technical parameters

• Wi-Fi standards: 802.11a/b/g/n/ac.
• Wi-Fi Type: Wi-Fi 5.
• Total Wi-Fi speed: up to 1 167 Mbps.
• 2,4 GHz speed: up to 300 Mbps.
• 5 GHz speed: up to 867 Mbps.
• LAN: 5× gigabit port.
• Encryption: WPA, WPA2, WPA3.
• Internal antennas: 2×.
• Antenna gain: 5,6 dBi.
• PoE type: passive.
• PoE standards: IEEE 802.3af/802.3at.
• PoE Voltage: 48 V.
• Width: 8,6 cm.
• Height: 2,76 cm.
• Depth: 14,3 cm.
• Weight: 261,2 g.

Contents of the pack

• Cudy AC1200 Gigabit Wall-Plate Access Point.
• Mounting kit.

*Photos are illustrative, texts and images were created using AI.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Cudy
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Number of LAN (RJ-45) ports	5
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	built-in
Parametry	Width	0 mm
Parametry	Height	0 mm
Parametry	Depth	23 mm
Parametry	Product weight with unit packaging	0.37 kg
Parametry	EAN (GTIN)	6971690793432
Parametry	Manufacturer code	6971690793432
Parametry	Model	AP1300
Parametry	Packaging status	original
Parametry	The highest standard supported	802.11ac (Wi-Fi 5)
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
