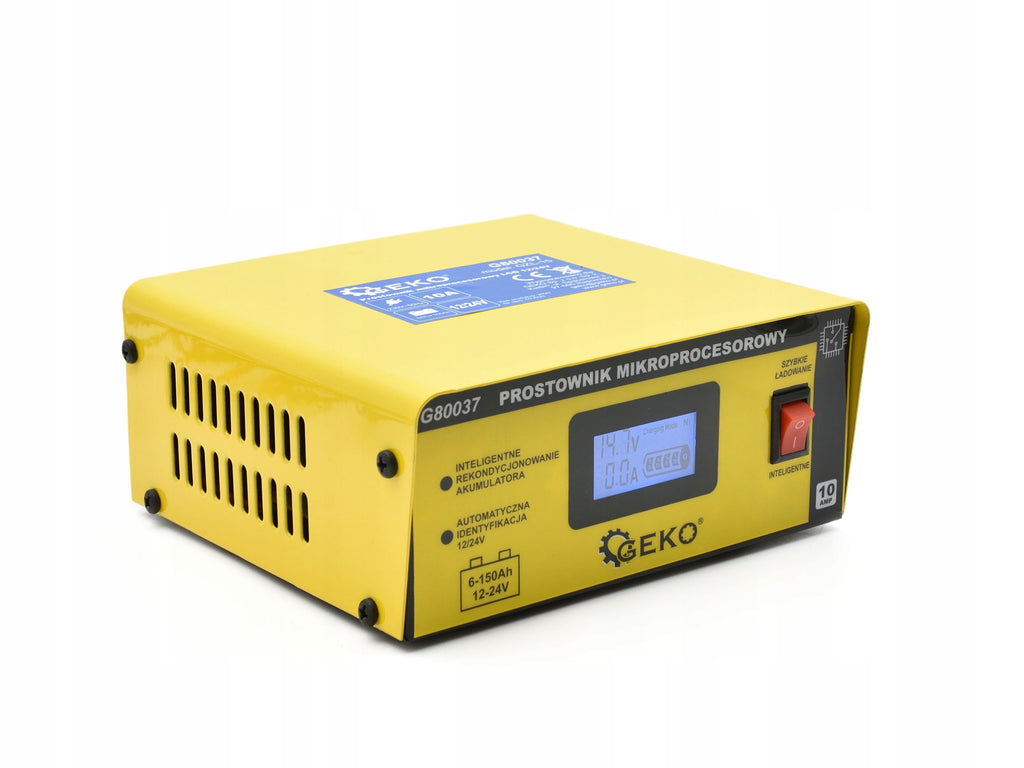

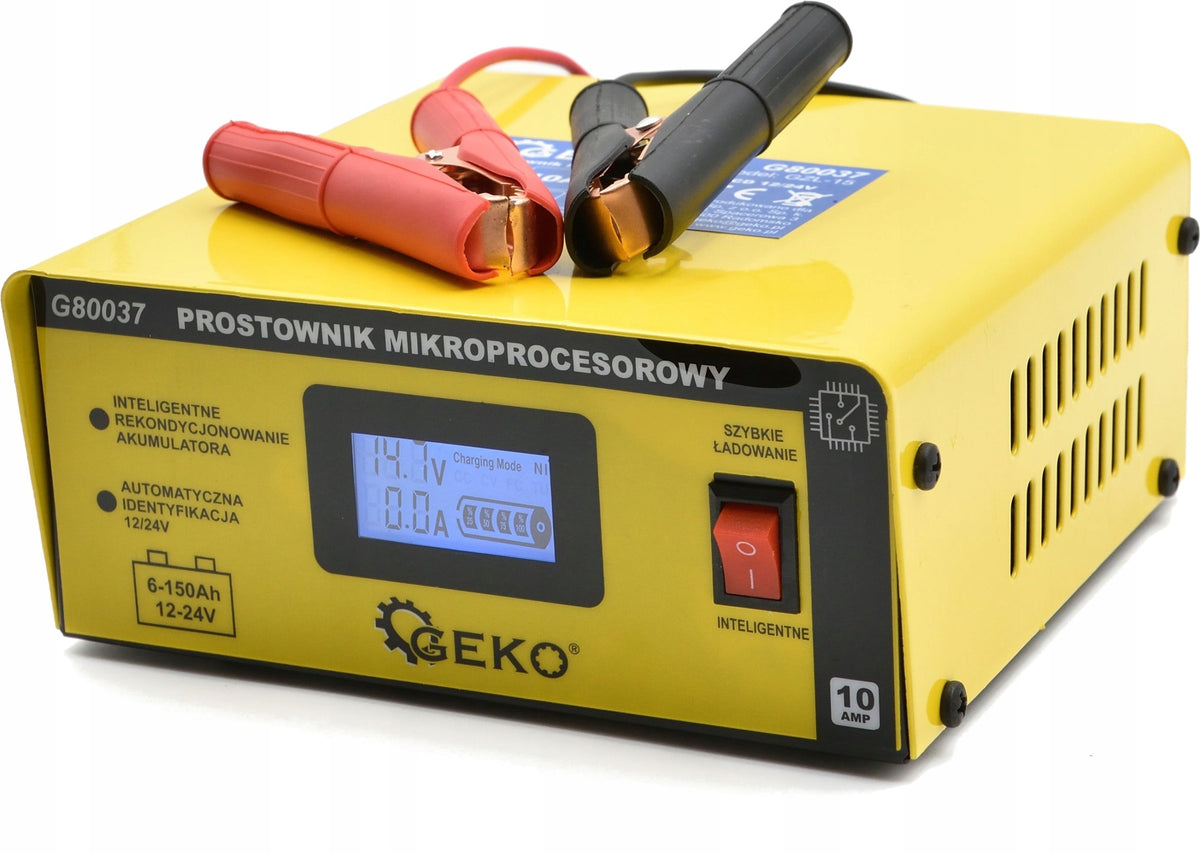

Belaidis mikroprocesorinis lygintuvas, 12V/24V, 2 vnt.

Trumpai apie prekę

Prekė: Belaidis mikroprocesorinis lygintuvas, 12V/24V, 2 vnt.. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Geko
• Modelis: mikroprocesorowy

High-quality battery rectifier from the renowned brand GEKO. The operation of the device is based on a microprocessor control and control system.

PWM technology () Pulse-Width Modulation) is a method of adjusting a current or voltage signal, with a constant amplitude and frequency, consisting in changing the signal filling. The PWM system powers the device directly or through a low-pass filter smoothing changes in electrical current and voltage.

The microprocessor rectifier by GEKO is characterized by extremely high charging efficiency at positive temperatures. Thanks to advanced technology controlling all charging processes, the efficiency of the rectifier is maintained at 98%.

state of charge of the battery.

Product characteristics:

• high quality of workmanship
• Pulse width modulation technology - Pulse-Width Modulation (PWM)
• electronically controlled fan - MCU technology
• 0A - 10A current charging
• battery indicator displays four values: 20%, 50%, 75%, 100%
• a number of safeguards guaranteeing safe maintenance-free use of the rectifier

Constant Voltage: Using DC voltage to charge the battery to check that the charging current is not too high reducing it during the process.

Constant Current (Constant Current): This means that the battery voltage is lower than the set voltage of the charger, but the charger will support the constant charging current of the battery.

Trickle Charge Modulation: When the battery voltage approaches the rated voltage and the charging current is already low to the set current, it will switch to floating charge modulation mode. This means that the battery is charged, but it is constantly checked for voltage drops and recharged automatically with alternating current.

Floating Charge Modulation: The mode will maintain the state of full charge of the battery.

MAINTENANCE-FREE CHARGING

8-step maintenance-free battery charging

• STEP 1: Diagnostics: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier.
• STEP 2: Desulfurization: recognizing the sulphurized battery, charging with low voltage and high intensity pulsating current allows the sulphate to be removed from the battery plates, thus restoring its initial capacity.
• STEP 3: Analysis: checking whether the battery is not damaged and whether it can accept charging current - prevents charging the damaged battery.
• STEP 4: Soft start: if the battery is not damaged, a relatively low current charge (about 15%), gradually increasing its value, begins.
• STEP 5: Primary charging: constant current maximum charging with an automatically adjustable value depending on the state of charge of the battery, until 80% of the battery capacity is reached.
• STEP 6: Final charging: charging with decreasing current and constant voltage until 100% of the battery capacity is reached.
• STEP 7: Analysis: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed.
• STEP 8: Pulse: monitor the battery voltage and maintain an optimal charge of 95-100% capacity through charging current pulses.

Technical specification:

Type of rectifier: automatic microprocessor

Operating voltage: 220 - 240V / 50Hz

Suitable for batteries: lead-acid, starter, maintenance-free

Voltage identification for 12V: 8V - 14,5V

Voltage identification for 24V: 18V - 29V

Charging Intensity: 10A

12/24V battery capacity: 3Ah – 150Ah

Power cord length: 130cm

Wire length "+" and "-": 140cm

Protections: overvoltage protection, battery diagnostic function, overheating protection, short circuit protection, reverse connection protection

SAFETY OF USE – MCU CONTROL

Security:

• Overvoltage protection - protection is activated when setting the charging voltage other than the detected parameter.
• Battery diagnostic function - the rectifier constantly monitors the condition of the battery.
• Overheating protection: When the temperature of the charger exceeds 150°C, the charger will stop charging. When the temperature is reduced to 80°C, or the rectifier turns off for about 10 minutes, after this time you can charge the battery again.
• Short-circuit protection: When a short circuit occurs, the circuit will automatically stop working. This will be manifested by a long beep. Just plug in the charger thoroughly, then it will charge again automatically.
• Reverse-connecting protection: While the terminals (+/-) will be connected by mistake in reverse, the charger will alert you in the form of intermittent long beeps. After properly connecting the terminals, it will be recharged.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	mikroprocesorowy
Parametry	Brand	Geko
Parametry	Maximum amperage	10 A
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5901477160165
Parametry	Batteries included	no
