Belaidis maršrutizatorius TP-LINK MERCUSYS MW302R, 2.4 GHz, 300 Mbps

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius TP-LINK MERCUSYS MW302R, 2.4 GHz, 300 Mbps. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: MW302R
• Plotis: 114 mm
• Aukštis: 26 mm

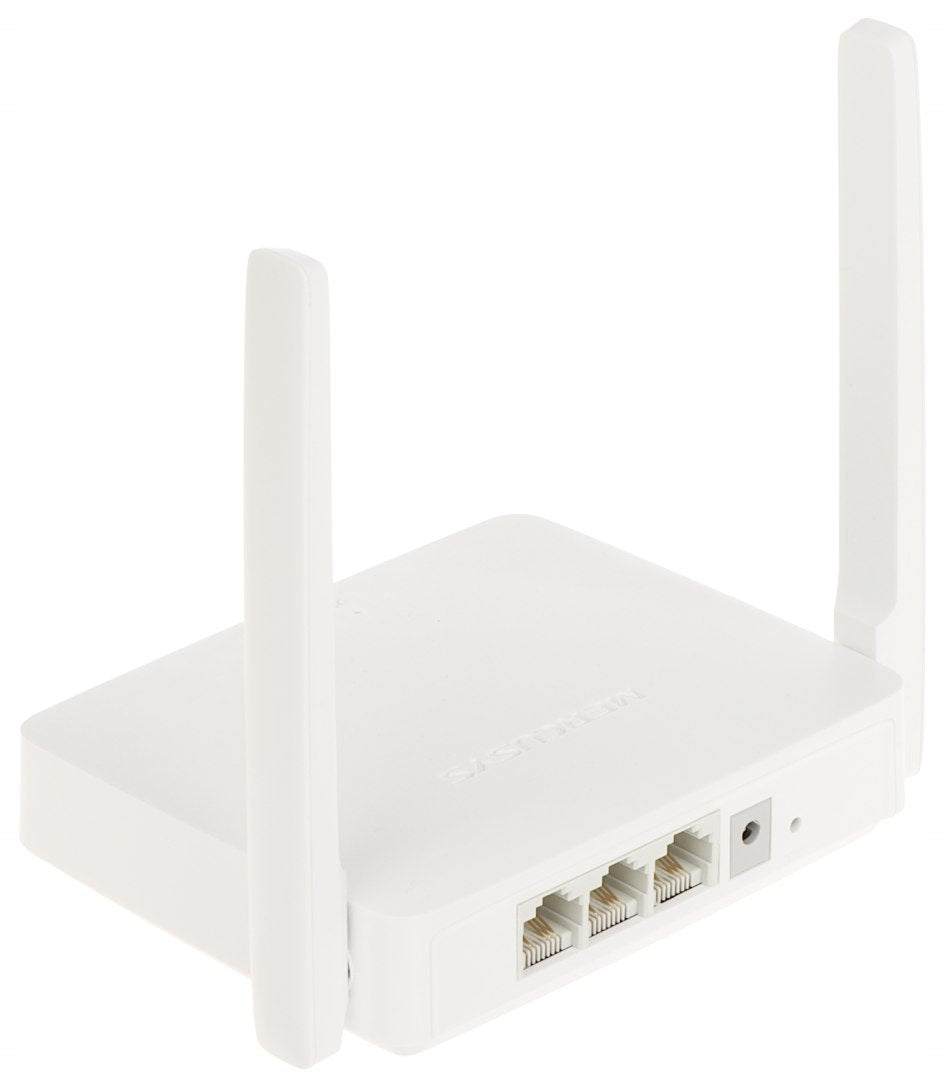

TL-MERC-MW302R ROUTER 2.4 GHz 300 Mbps TP-LINK / MERCUSYS

TL-MERC-MW302R is a broadband router (for cable modem) and 2-port FastEthernet switch

The main area of application of this device are small and medium-sized offices and single-family houses and apartments

TL-MERC-MW302R provides advanced access control and its DHCP server supports static IP address assignment

Virtual servers, DMZs and remote management and logging are also supported

Frequency Range:

2.4 GHz ... 2.4835 GHz

Antenna Type:

2 x 5 dBi Omnidirectional Antenna

Standards:

IEEE 802.11 b/g/n

Transmission speed:

300 Mbps

LAN ports:

• 1 x 10/100 Mbps - WAN,
• 2 x 10/100 Mbps - LAN

LED Indicators:

Power / WLAN / WAN / LAN

Receiver Sensitivity:

• 270M : -73 dBm @ 10% PER
• 130M : -75 dBm @ 10% PER
• 54M : -77 dBm @ 10% PER
• 11M : -90 dBm @ 10% PER
• 6M : -94 dBm @ 10% PER
• 1M : -96 dBm @ 10% PER

Transmitter power:

< 20 dBm

DDNS:

No-IP, DynDNS

DHCP Server:

Firmware Update:

Operating modes:

Router, Range Extender, Access Point, WISP

Security:

• WPA-PSK/WPA2-PSK
• IP-MAC binding

Interface for management:

Web browser

Selected features:

• RESET button
• Built-in 2-port switch
• Guest Network - Separate and Secure Guest Network
• Remote management
• Firewall
• Parental control
• Access control
• Static / Dynamic Routing
• WAN: PPPoE, PPTP, L2TP
• Port forwarding: Virtual Server, UPnP, DMZ
• DHCP server
• IPv6 Compliance

Power supply:

5 V DC / 0.6 A (power supply included)

Operating temperature:

0 °C ... 40 °C

Permissible relative ambient humidity:

10 % ... 90 % (non-condensing)

Weight:

0.11 kg

Dimensions:

114 x 94 x 26 mm

Manufacturer / Brand:

TP-LINK / MERCUSYS
