Belaidis maršrutizatorius Planet IAP-2400AX, pagal užsakymą

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius Planet IAP-2400AX, pagal užsakymą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: IAP-2400AX

Planet IAP-2400AX on request

Planet

Ultra-fast Wi-Fi-6 wireless LAN solution with enhanced design.

PLANET IAP-2400AX Industrial 5GHz 802.11ax 2400Mbps Wireless Access Point with 5 10/100/1000T LAN Ports is equipped with a rugged IP30 metal case for stable operation in heavy industrial environments. IAP-2400AX supporting MU-MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring provides a maximum wireless speed of 2400Mbps in the 5GHz band. The maximum number of customer users is up to 150, providing more secure and robust connectivity with the adoption of Wi-Fi 6 technology.

Because the IAP-2400AX is capable of operating in a wide temperature range from -40 to 75 degrees C, it can be placed in almost any harsh environment. The IAP-2400AX also allows mounting on a DIN rail or wall for efficient use of cabinet space.

Super power and reliable 5GHz WLAN solution

IAP-2400AX, adopting IEEE 802.11ax Wi-Fi 6 standard, ensures fast transmission. The maximum wireless speed in the 5GHz band is up to 11AXA_AHE80 with 1201Mbps.

Benefits of MU-MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring

The IAP-2400AX can be installed in public places such as hotspots, airports and conferences because OFDMA, a multi-user version of OFDM, enables simultaneous APs to communicate (uplink and downlink) with multiple clients by assigning lift subsets called resource units (RUs) to individual clients. With MU-MIMO and Seamless Roaming technologies, it provides a better experience for Wi-Fi users, reducing the likelihood that users will turn off Wi-Fi and put more strain on their cellular network. Beamforming is designed to improve Wi-Fi signal when the user is away from the router. The BSS color is the numeric identifier of the BSS. 802.11ax radios are able to distinguish BSS using the BSS color identifier when other radios broadcast on the same channel.

These technologies can also solve Wi-Fi congestion problems in open workspaces and conference rooms. IAP-2400AX can offer more efficient bandwidth coverage for up to 150 client users.

Advantages of OFDMA (Orthogonal Frequency Division Multiple Access)

• Helps transfer small and large packets together to reduce bandwidth load and improve data transmission efficiency
• Simultaneous data transfer can effectively reduce transmission delay for longer frames and low-speed transmission
• Improves overall traffic quality and effectively uses bandwidth in an environment where many people use the internet
• Increases the number of devices that can be connected to AP
• Reduces power consumption of the device by using low bandwidth

Beamforming

Beamforming is designed to improve your Wi-Fi signal when you are away from your router. When you use beamforming, Wi-Fi beamforming narrows the focus of this router signal by sending it directly to your devices in a straight line, thereby minimizing ambient signal interference and increasing the signal strength that ultimately brings you the following benefits:

• Extending Wi-Fi coverage
• Providing a more stable Wi-Fi connection
• Improved Wi-Fi bandwidth
• Reducing router interference

Colours of BSS

The BSS color is the numeric identifier of the BSS. 802.11ax radios are able to distinguish BSS using the BSS color identifier when other radios broadcast on the same channel. If the color is the same, it is treated as a frame transmission inside the BSS. In other words, the broadcast radio belongs to the same BSS as the receiver. If the detected frame has a different BSS color than its own, then STA considers this frame to be an inter-BSS frame from the overlapping BSS.

WPA3 Next-generation security for your WLAN solution

WPA3 is a next-generation Wi-Fi security technology that provides the most advanced security protocol on the market. WPA3 makes the connection more secure because it prevents hackers from easily cracking the password, no matter how simplified it is. WPA3 can also provide reliable password-based authentication, so it can better protect the security of individual users.

Advanced security and rigorous authentication

IAP-2400AX supports WPA/WPA2/WPA3 wireless encryption, suitable for WPA2 Enterprise and WPA/WPA2 Enterprise, where you can effectively prevent eavesdropping and unauthorized users or bandwidth occupancy by unauthorized wireless access. Moreover, an administrator can pre-determine whether users have access to a wireless LAN based on an access control list (ACL).

Multiple operating modes for different applications

The device supports simplified AP and Gateway modes, giving users more flexibility when creating a wireless network. Compared to general wireless access points, the IAP-2400AX offers more efficient and flexible capabilities for wireless clients.

Optimal performance in access point management

The new GUI configuration wizard helps the system administrator easily configure IAP-2400AX step by step. Plus, the built-in Wi-Fi analyzer ensures that you can use real-time channels to prevent overlapping channels for greater performance. With automatic transmission power mechanism, distance control and schedule restart setting, the IAP-2400AX is easy for administrator to deploy and manage without the need for on-site maintenance. In addition, you can use the AP PLANET NMS-500 or NMS-1000V control function to deliver wireless profiles to multiple APs simultaneously, making central management simple.

Network solution to minimize security risks

IAP-2400AX supports TLS protocols to provide strong protection against advanced threats. It includes a cybersecurity feature such as SNMPv3 authentication and so on to complement it as a security solution.

Friendly and secure management

For efficient management, IAP-2400AX is equipped with Web and SNMP management interfaces.

With its built-in Web-based management interface, IAP-2400AX offers an easy-to-use, platform-independent management and configuration facility. With support for the standard SNMP protocol, the switch can be managed using any SNMP-based management software. In addition, IAP-2400AX offers secure remote management with support for TLS protocols and SNMP v3 connections that encrypt packet content in each session.

Dual power input for high availability network system

The IAP-2400AX features a powerful dual power input system with a wide voltage range (9V~54V DC) incorporated into the customer’s automation network to increase system reliability and uptime. In the following example, when power supply 1 is not working, the hardware failover function will be activated automatically to maintain the IAP-2400AX power supply through power supply 2 alternatively without losing operation.

Effective alarm for better protection

The IAP-2400AX supports Fault Alarm, which can alert users when something is wrong with the device. With this ideal feature, users won’t have to waste time finding where the problem is. This will help save time and human resources.

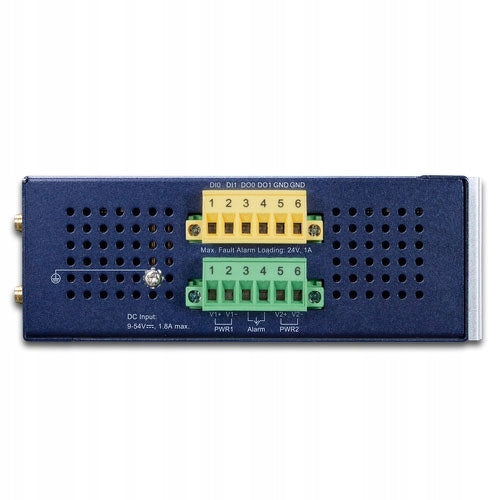

Digital input and digital output for external alarm

The IAP-2400AX supports Digital Input and Digital Output on its top panel. This external alarm enables users to use the digital input to detect and record the status of external devices (such as a door intrusion sensor), as well as send event alerts to administrators. The digital output can be used to alert administrators if the IAP-2400AX port shows a down link, link up, or power failure.

Flexible and easy installation with limited space

The compact size of the IAP-2400AX is specifically designed for installation in a narrow environment such as a wall enclosure. It can be installed through a fixed wall mount or DIN rail, making its usability more flexible and easier in any location with limited space.

Extremely high speed and Wi-Fi 6 technology make wireless transmission more efficient

The IAP-2400AX provides 5GHz bandwidth and higher bandwidth to avoid signal interference and ensure the best Wi-Fi performance. This allows you to check your email and surf the web and watch movies in full resolution (HD) or other multimedia applications simultaneously through a single 5GHz band. Besides, many client users can be connected to Wi-Fi at the same time. The maximum number of client users is up to 150. In addition, the Gigabit Ethernet port in the IAP-2400AX offers ultra-fast wired connections that take advantage of the maximum bandwidth of the wireless network; therefore, users will experience high-speed wireless speeds of over 900Mbps. With its exceptional fast wireless transmission stability, the IAP-2400AX can provide users with an excellent media streaming experience with mobile devices anytime, anywhere.

Smooth roaming and better coverage

Moving between a traditional Wi-Fi access point or router and range extender, your Wi-Fi signal may experience delays or connection interruptions. With seamless roaming and intuitive technology, navigating to another area is never an issue now that your devices are switched to the strongest Wi-Fi signal automatically.

The IAP-2400AX features advanced 4T4R MU-MIMO technology, which reduces the blind spot effect, so it can get better coverage of your existing wireless network. In addition, the repeater mode supported by IAP-2400AX helps minimize installation effort, thereby reducing wiring costs.

• Main Ports: RJ45
• Device Type: Access Point
• Managed: Yes
• Application: Data Transfer
• Quantity per Multipack: 5 units
• Height: 13.5 cm
• Width: 5 cm
• Depth: 13.5 cm
• Weight: 0.787 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolandPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	16
Parametry	EAN (GTIN)	4711605286640
Parametry	Manufacturer code	IAP-2400AX
