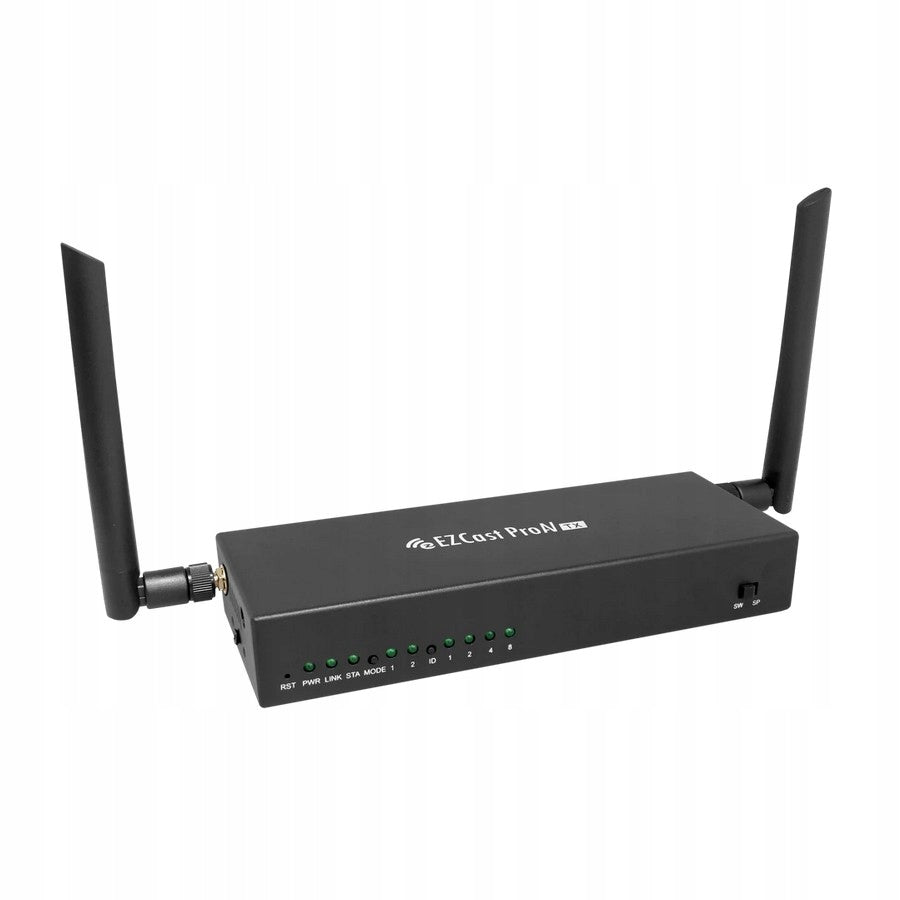

Belaidis HDMI USB KVM prailgintuvas EZCast Pro AV (WT02+WR02)

Trumpai apie prekę

Prekė: Belaidis HDMI USB KVM prailgintuvas EZCast Pro AV (WT02+WR02). Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: EZCast
• Modelis: EZCAST-PRO-AV-WIFI-WT02+WR02

EZCAST Pro AV is a wireless HDMI 4K 30Hz extender up to 200m in open space, WT02 transmitter + WR02 receiver. It also supports IR, RS-232, audio, USB (keyboard, mouse) signal transmission. It has KVM function, splitter and switch.

HDMI extender for smooth wireless transmission up to 200 meters in open space, without noticeable delays with maximum supported 4k 60Hz input and output resolution up to 4k 30Hz.

Control of the CMS system

A centralized management system helps users control an unlimited number of devices. With an Ethernet connection, EZCast ProAV can take advantage of its current network infrastructure without additional configuration.

Wide application and Plug and Play

EZCast ProAV operates in the following modes: point-to-point /1 to multiple / multiple to one and has KVM and USB functionality. Just use the HDMI cable to pair the transmitter and receiver and everything is ready!

Support for multiple interfaces

Equipped with HDMI, USB Type-A, Aux, RJ45 and RS-232 inputs, the EZCast ProAV is widely used.

Extremely cost-effective design for devices, backbone networks and deployments

EZCast Pro AV WT02/WR02 can transmit data wirelessly, providing a cost-effective long-distance transmission plan. IP connectivity also avoids conventional issues such as limited I/O interfaces and thus offers high scalability for future upgrades.

• Wireless HDMI extender 4K 30Hz and 1080p 60Hz to 200m
• Audio, IR, RS-232 and USB signal transmission
• Support for HDCP 1.4
• Wifi 802.11ac 2T2R
• Supports Gigabit Ethernet
• USB2.0 Host for HID devices
• KVM mode and splitter one to many
• HDMI loop output on transmitter for preview

Notes:

• The given transmission distances refer to a situation close to the ideal – open space between devices, no obstacles, no external interference and correct positioning of devices relative to each other.
• EZ Cast Pro AV wireless video transmission is always a very technically demanding solution. Despite all the implemented security measures, it may happen that there will be some image disturbances, a slight lack of fluidity, etc. Especially in the case of very dynamic scenes. This may be due to the characteristics of the environment in which the device operates, interference there, other signals, materials from which the walls and other elements of the environment are made.
• The process of starting wireless devices, establishing, reconciling and stabilizing the connection usually takes much longer than with wired solutions.

Transmitter connectors WT02:

1x HDMI input

1x HDMI loop output

1x AUX audio stereo mini jack input 3,5mm

1x IR output

1x Rj45 port

1x USB PC

1x RS-232 port

Receiver connectors WR02:

1x HDMI output

1x AUX output stereo mini jack 3,5 mm

1x IR input

1x Rj45 port

2x USB KVM

1x RS-232 port

Contents of the WT02/WR02 kit:

• 1x transmitter WT02 / 1x receiver WR02
• 1x USB-A cable for data transfer – for connecting PC only in the transmitter
• 1x IR cable
• 2x Wifi Antenna
• 1x 12V/1A power supply
• 2x mounting bracket + 4x screw
• 1x Quick Start Guide in English

Specifications
