Belaidės reguliuojamos dirbtuvių kėlimo kolonos INVENTO EL 85, 8,5 t, 8 vnt.

Trumpai apie prekę

Prekė: Belaidės reguliuojamos dirbtuvių kėlimo kolonos INVENTO EL 85, 8,5 t, 8 vnt.. Kategorija: Keltuvai stulpams.

• Gamintojas: Invento
• Modelis: INVEL85.8

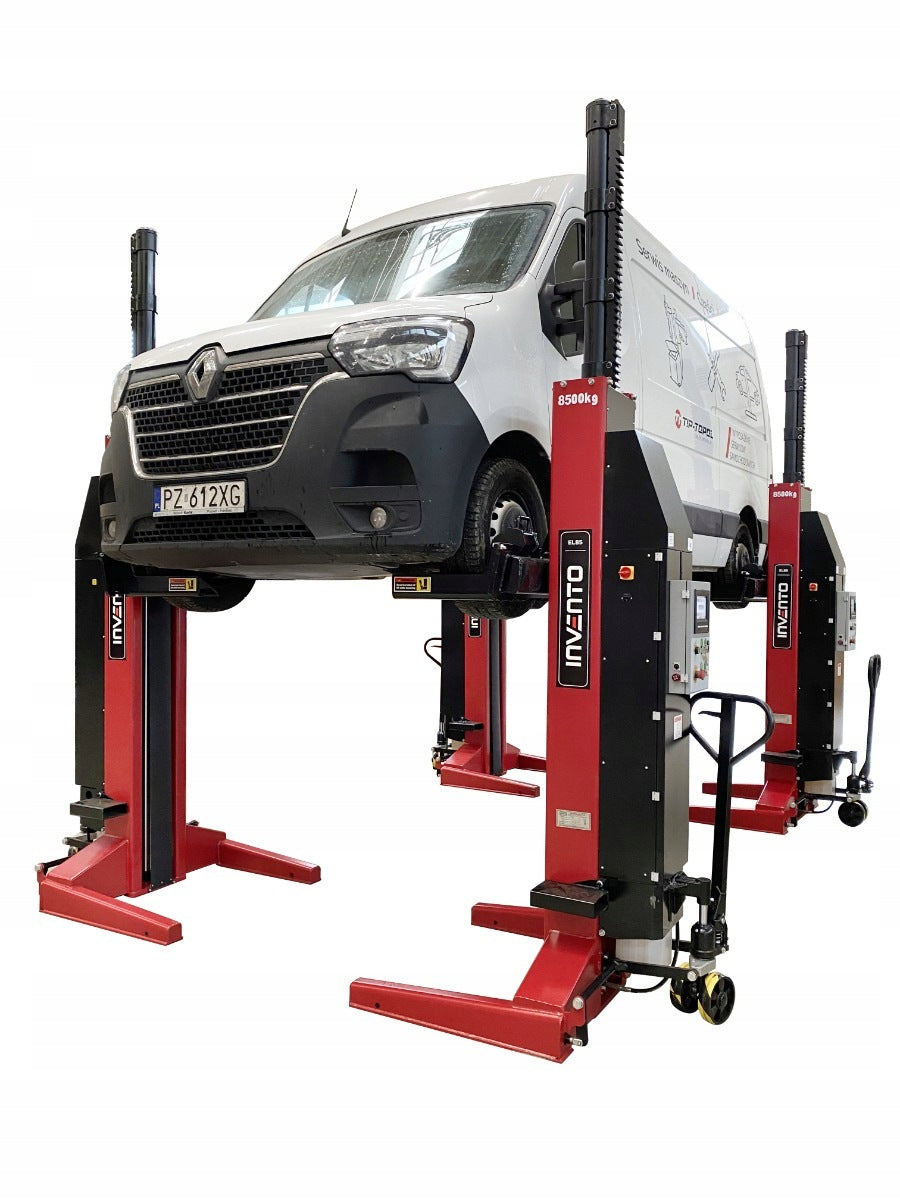

INVENTO EL 85 is a professional set of 8 mobile electrohydraulic columns designed for lifting trucks, semi-trailers and machinery. Each column offers a lifting capacity of up to 8 500 kg, which in an 8-column configuration provides a total lifting capacity of up to 68 tons.

Cordless power supply and wireless communication between columns eliminate the need for wires during standard operation. The microprocessor system is responsible for synchronizing the entire set, and control can be carried out from any column.

⭐ The most important advantages

✔ 8 columns included – total lifting capacity 68 000 kg

✔ Lifting capacity of a single column up to 8 500 kg

✔ Battery powered – 2 batteries in each column

✔ Wireless communication between columns

✔ Possibility to connect columns also wired – cables included

✔ Microprocessor control and synchronization of kit operation

✔ Control possible from any column

✔ Adjustable fork spacing 240 – 624 mm

✔ Maximum lifting height 1700 mm

✔ Possibility to set different height between pairs of columns

✔ Possibility to expand the system with additional columns

✔ Mobile design for easy movement of columns

✔ Mechanical and electronic safety systems

💪 Up to 68 Tons Lifting Capacity

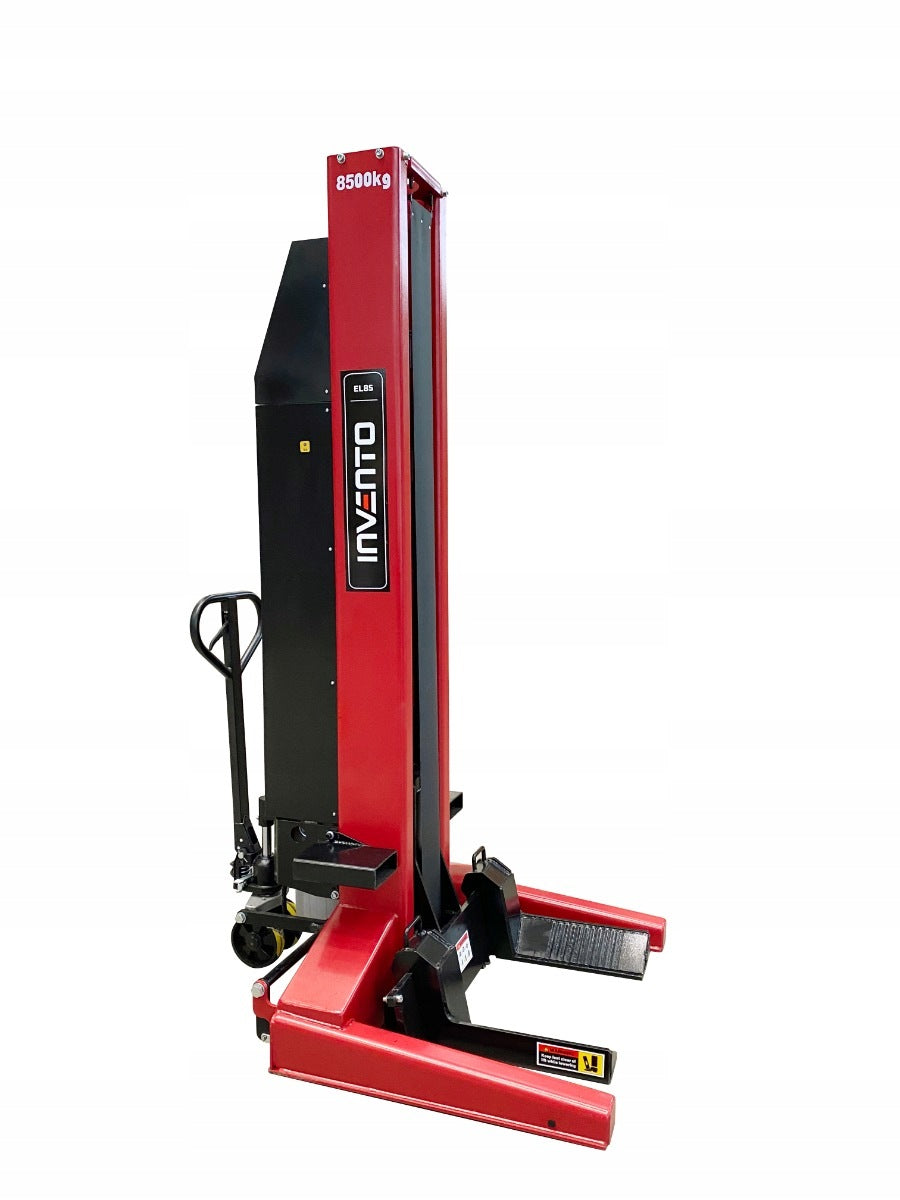

Each INVENTO EL 85 column can lift 8.5 tons.

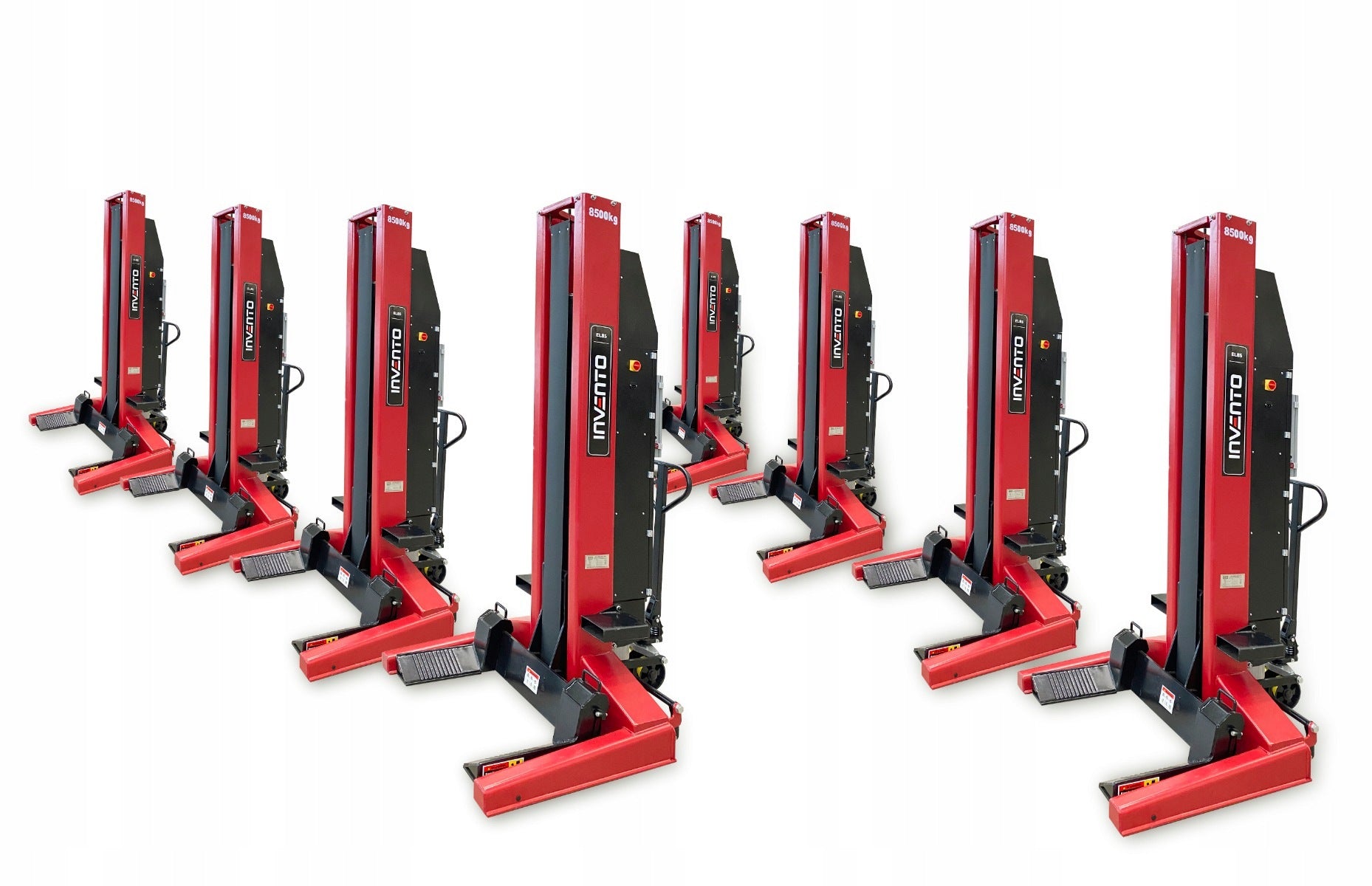

A set of 8 columns therefore provides:

8 × 8,500 kg = 68,000 kg lifting capacity

This high load capacity allows the system to be used for servicing heavy vehicles and machinery, including:

✔ trucks

✔ semi-trailer tractors

✔ trailers

✔ buses and large commercial vehicles

✔ heavy machinery

🔋 Battery power – without wires between columns

Each column is equipped with 2 high-capacity batteries, so that the entire system can work without constant connection to the electrical network.

The batteries are charged from the 230 V network.

The absence of wires connecting the columns during standard operation means:

✔ more freedom to set up the set

✔ easier movement of columns

✔ less wires in the workspace

✔ more convenient organization of the position

📡 Wireless column synchronization

Communication between the columns takes place wireless, and the microprocessor control system is responsible for synchronizing their operation.

The set also includes wires that allow cable connection of columns when necessary.

The electrohydraulic control system controls the operation of the entire set, and the maximum alignment error between the columns is 50 mm.

🖥 Advanced control

Each column is equipped with a color control panel, so that the operation of the set can be carried out from any column.

The system enables m.in.:

✔ controlling the lifting and lowering process

✔ selection of columns participating in the operation

✔ setting lifting parameters

✔ controlling the current state of the system

✔ display of messages and information about irregularities

↔ Adjustable spacing of forks 240 – 624 mm

One of the most important advantages of the INVENTO EL 85 is the adjustable lifting fork spacing in the range of 240 – 624 mm.

This allows you to adjust the column to different wheel sizes without the need for multiple additional adapters.

The solution increases the versatility of the system and facilitates the preparation of the station for handling various vehicles.

📊 Technical data

• Model: INVENTO EL 85
• Number of columns included: 8
• Leverage of one column: 8 500 kg
• Total load capacity of the set: 68 000 kg
• Lifting range: 0 – 1700 mm
• Adjustable spacing: 240 – 624 mm
• Max. Equalization error between columns: 50 mm
• Total height after lifting arms: 3730 mm
• Lifting time: 120 s
• Leaving time: 70 s
• Power supply for columns: Cordless
• Number of batteries: 2 for each column
• Charging power: 230 V
• Communication: Wireless / Wired
• Noise level: 80 dB(A) / 1 m
• Working temperature: 0°C–40°C
• Weight of one column: 780 kg
• Application: Trucks, semi-trailers, machinery

🔄 Different height between pairs of columns

The system allows you to set different lifting height between pairs of columns.

This feature is particularly useful when operating complex vehicle sets, e.g. tractor with semi-trailer.

🛞 Mobile design

Despite the high lifting capacity, each column is mobile and can be moved around the station.

The columns move on synthetic wheels, and the hydraulic pallet mechanism makes them easy to position at the wheels of the vehicle.

The system is additionally equipped with overload protection.

🛡 Safety systems

INVENTO EL 85 uses a number of solutions to increase safety when lifting heavy vehicles.

✔ Microprocessor column synchronization

✔ Mechanical safety locks

✔ Automatic control of locks by electromagnet

✔ Safety valves located inside hydraulic cylinders

✔ Overload valves

✔ Electrical protection

✔ Information about incorrect column connection

✔ Communications regarding the current state of the system

✔ Mechanical fixed height lock

➕ A system that can be expanded

INVENTO EL 85 is not limited to one configuration. The system enables expansion with additional columns, thanks to which you can adjust the station to handle increasingly demanding vehicles and machines.

This is particularly important for truck services, transport bases and plants servicing extensive sets of vehicles.
