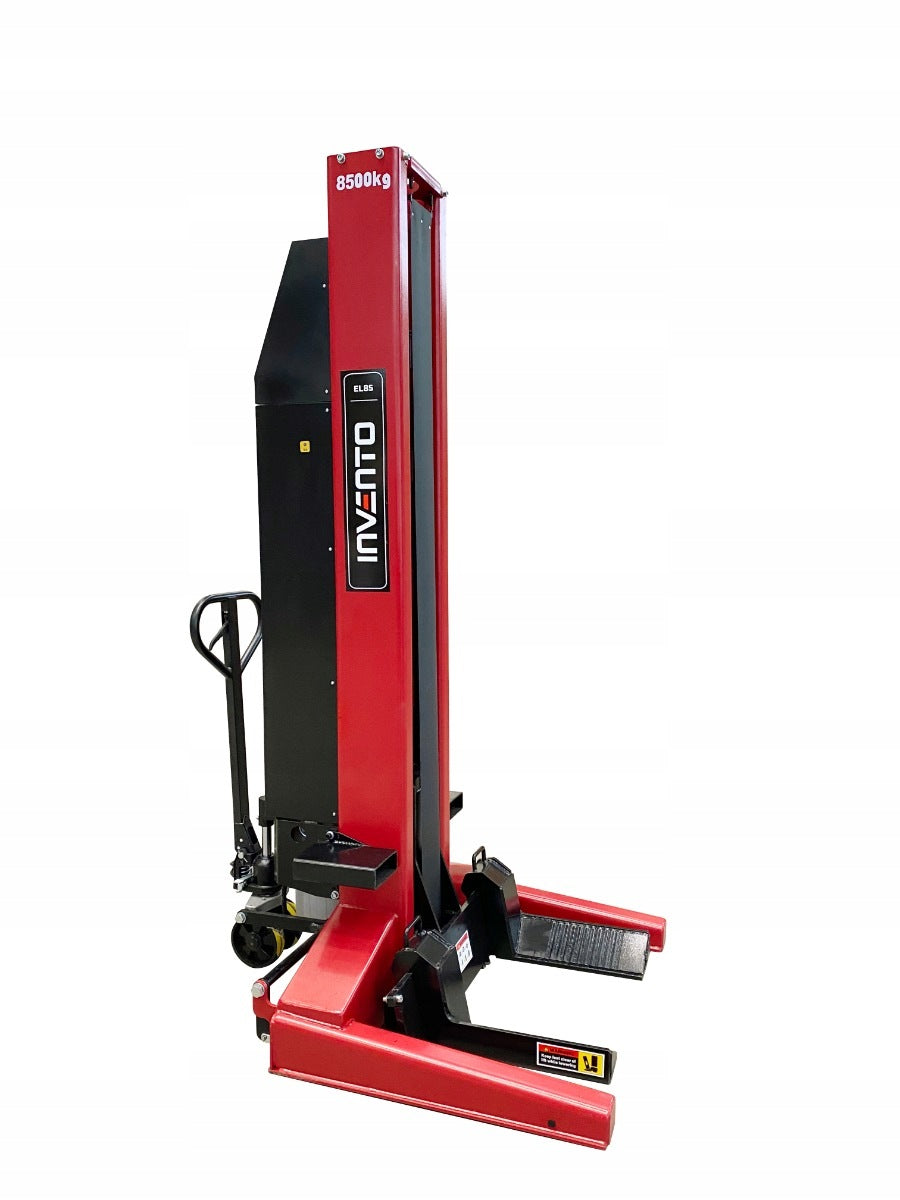

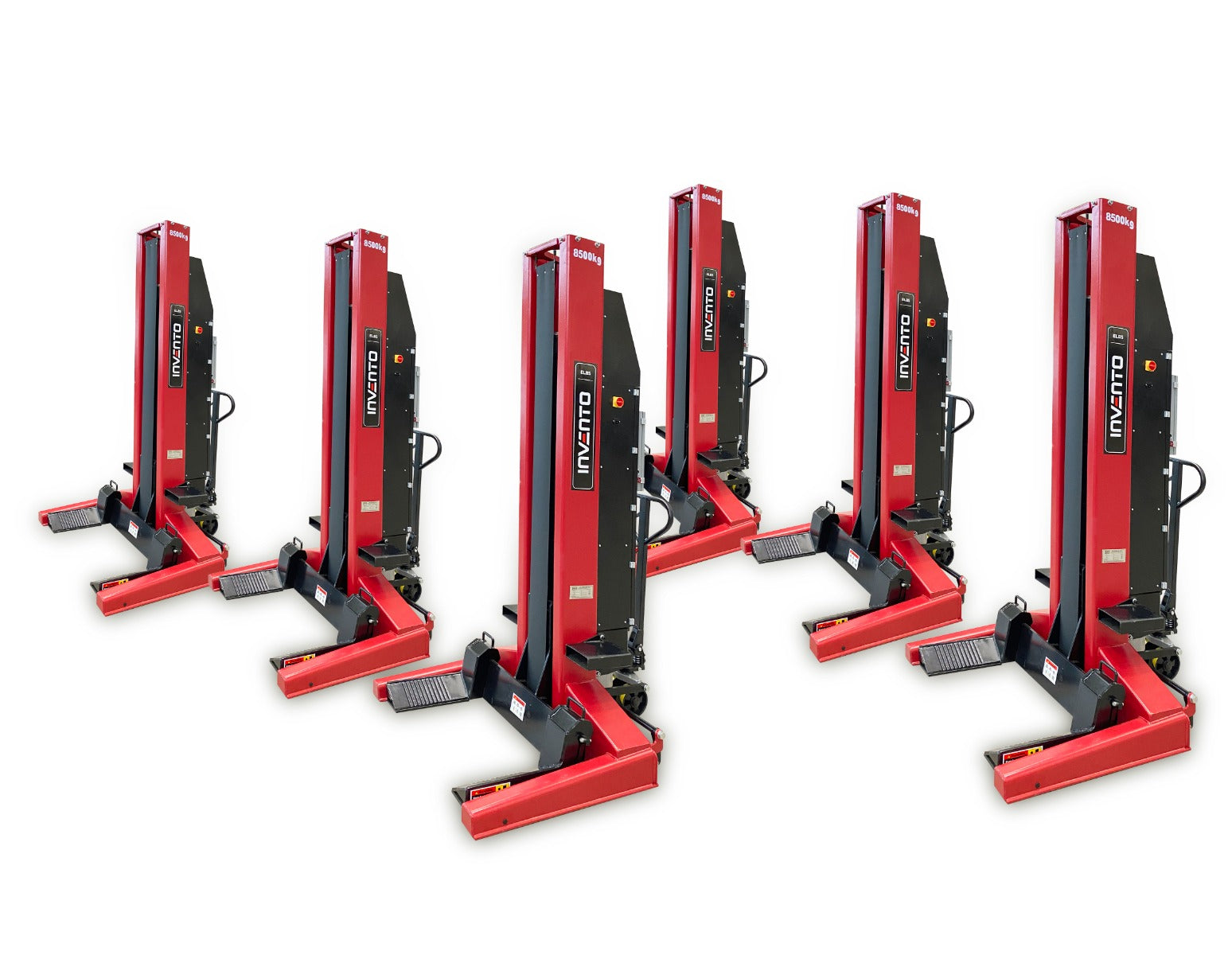

Belaidės reguliuojamos dirbtuvių kėlimo kolonos INVENTO EL 85, 8,5 t, 6 vnt.

Trumpai apie prekę

Prekė: Belaidės reguliuojamos dirbtuvių kėlimo kolonos INVENTO EL 85, 8,5 t, 6 vnt.. Kategorija: Keltuvai stulpams.

• Gamintojas: Invento
• Modelis: INVEL85.6

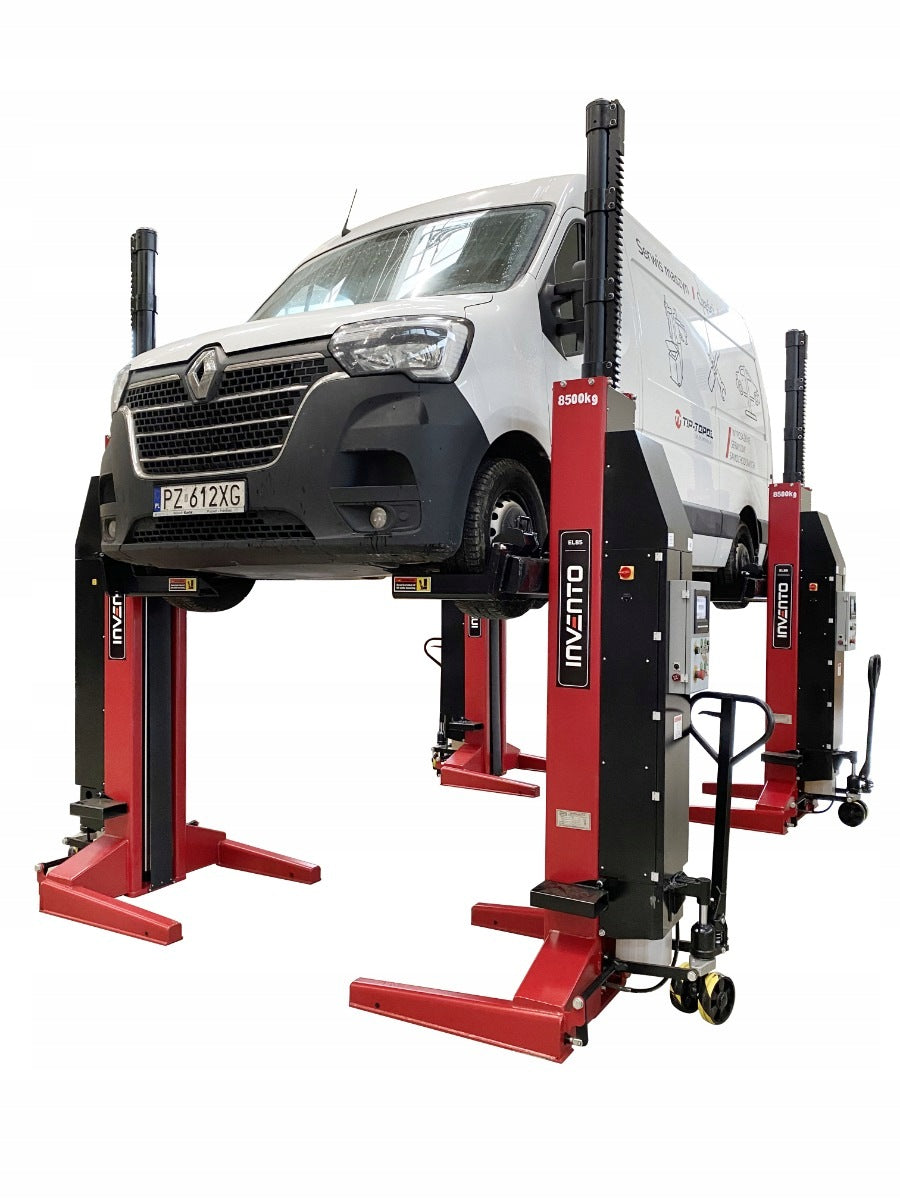

INVENTO EL 85 is a mobile adjustable column lift with a lifting capacity of 8,5 tons per column, which in a set of 4 columns gives a total of 51 tons!

The speakers are battery powered, and wireless communication between the speakers ensures high comfort and convenience of work!Additionally, they have an adjustable fork spacing and can be expanded at any time with additional speakers.

The INVENTO EL 85 adjustable column lifts are "mobile", i.e. they can be moved very easily on synthetic wheels using a hydraulic pallet mechanism with overload protection.

Specification:

• Designed for trucks, semi-trailers and machinery,
• Communication between the columns takes place wirelessly (cables are included for cable connection),
• A set of mobile columns made of high quality materials, with thick steel cross-sections, guaranteeing strength and stability,
• Expandable with more columns (up to 96 in total),
• Possibility to set different heights between pairs of columns, e.g. for lifting a tractor with a semi-trailer,
• Lifting with hydraulic pistons equipped with a safety valve located inside the cylinder to prevent accidental damage and overload,
• Electrohydraulic control system, ensuring alignment and synchronization of trolleys, controlled by a control panel with a color display on each column (control possible from any column included),
• The system is equipped with overload valves,
• Mechanical safety locks with electromagnetic automatic function,
• The control column has a large touch screen for setting the lifting parameters of the entire set, including the lifting height, the number of columns involved in a given operation. The screen visualizes the current situation and displays advice and messages about problems,
• Each of the columns is equipped with a set of 2 own high-capacity batteries, charged with 230V current, giving the entire system great autonomy (no wire connections between the columns).



Features of the lift:

• The speakers have microprocessor control which ensures full synchronization of the set and safety,
• The lifts have a number of electrical protections m.in. informing about incorrect connection of columns and about the operation of the lift,
• Mechanical lock of fixed height,
• Columns with a lifting capacity of 8.500 kg per column,
• Adjustable fork spacing replacing adapters,
• Possibility to set different height between pairs of columns.



The price does not include commissioning/assembly.

Lifting capacity of each column 8 500 kg Lifting range 0 - 1700 mm Adjustable width between two lifting arms 240 - 624 mm Max. alignment error between columns 50 mm Total height(after lifting the lift arms) 3 730 mm Lifting time 120 s Lowering time 70 s Noise level 80 dB(A) / 1 m Operating temperature 0°C - 40°C Column weight 780 kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Invento
Parametry	Manufacturer code	INVEL85.6
Parametry	EAN (GTIN)	5906288302636
Parametry	Drive	electrohydraulic
Parametry	Overall width	1145 mm
Parametry	Overall height	3730 mm
Parametry	Total length	1384 mm
Parametry	Power supply	230 V
Parametry	Lifting capacity	8500 kg
Parametry	Minimum lifting height	1 mm
Parametry	Maximum lifting height	1700 mm
