Belaidės perdavimo sistemos DJI SDR imtuvas

Trumpai apie prekę

Prekė: Belaidės perdavimo sistemos DJI SDR imtuvas. Kategorija: Dronai ir multikopteriai.

• Gamintojas: DJI
• Modelis: DJI SDR Transmission

⬇ See more ⬇

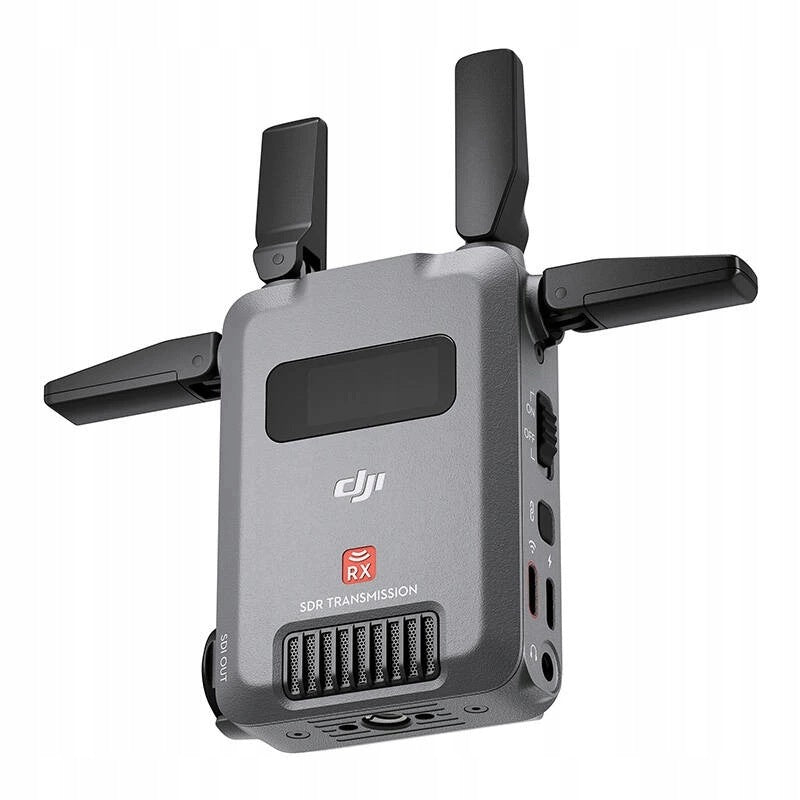

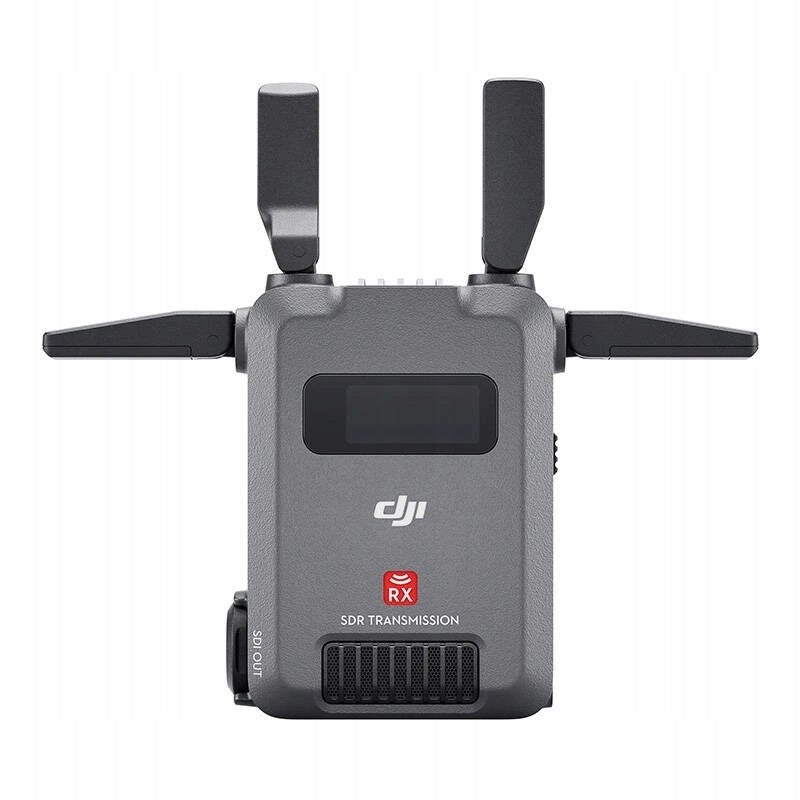

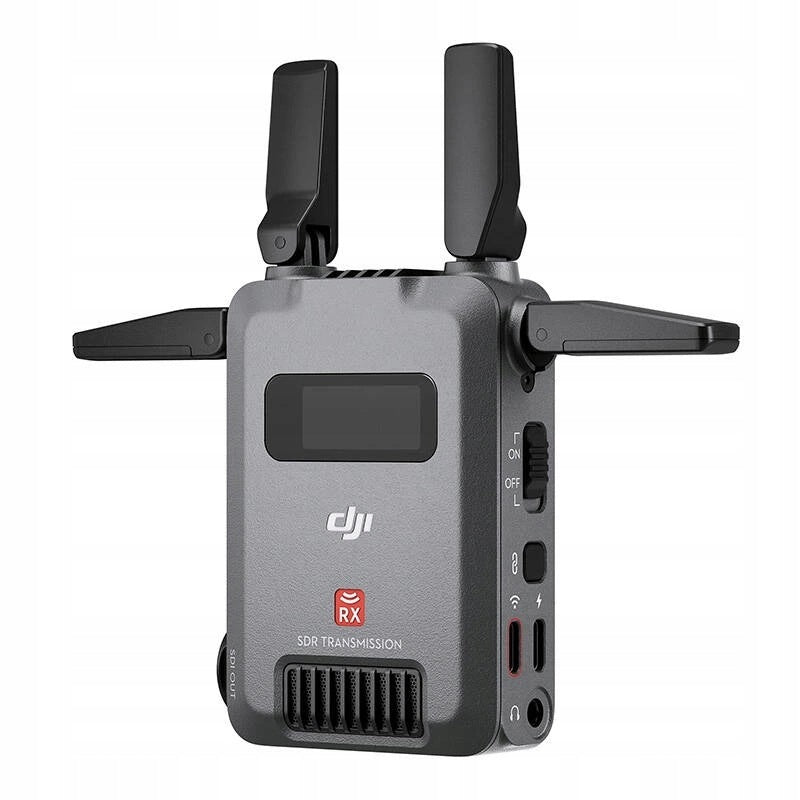

The DJI SDR Transmission receiver is a professional component of a wireless video transmission system, designed to work on a film set. It provides stable image reception in high quality, low latency and wide compatibility with monitors and mobile devices.

The most important advantages of the device:

• video transmission up to 1080p / 60 fps,
• working range up to 3 km,
• SDI and HDMI outputs for connecting monitors,
• image monitoring also via USB-C on a smartphone or tablet,
• SDR technology increasing resistance to interference,
• compact and lightweight design with foldable antennas.

The model is perfect for film productions, broadcasts, and teamwork. It supports Broadcast mode, thanks to which the transmitter can work with multiple receivers at the same time, which makes it easier to view the image by different team members.

The receiver also offers support for transmitting metadata from professional cameras and voice communication in the system. Compatibility with the DJI Ronin application allows you to use additional monitoring tools, such as LUT, peaking, waveform or false color, as well as conveniently manage transmission parameters.

Specification and performance characteristics:

• weight approx. 145 g,
• maximum bitrate up to 20 Mbps,
• video encoding format H.264,
• PCM audio output format,
• power supply via USB-C or NP-F battery,
• adapted to work at temperatures from -10°C to 40°C.

The set includes a DJI SDR Transmission (RX) receiver and an RX connection cable for a 22 cm USB-C to USB-C phone. Note: The kit does not include a transmitter.
