Trumpai apie prekę
Prekė: Baldų lankstų šablonas, paviršinis, įleidžiamas, lygiagretus, eco. Kategorija: Šablonai, trafaretai.
- Gamintojas: no brand
- Modelis: 3DEK

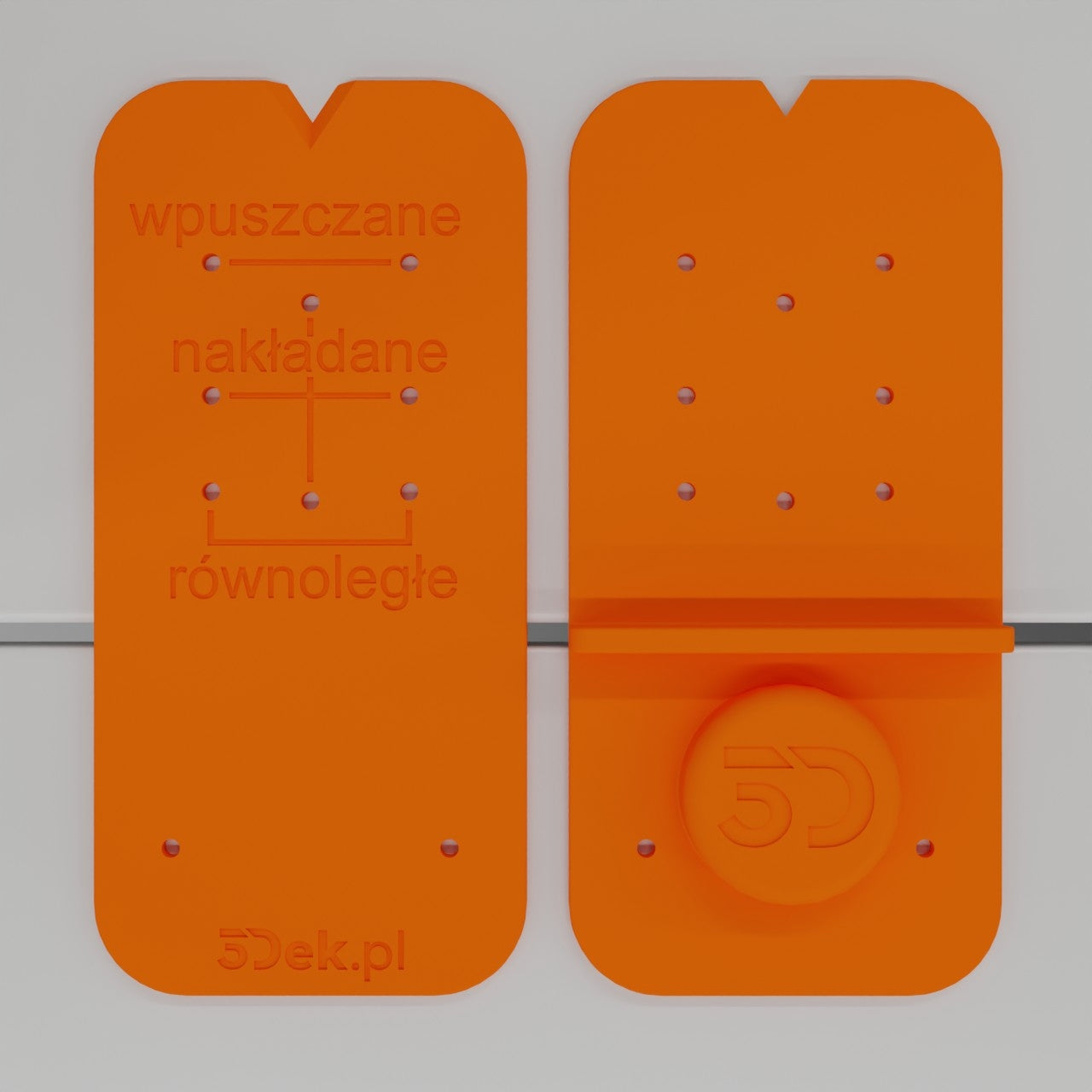

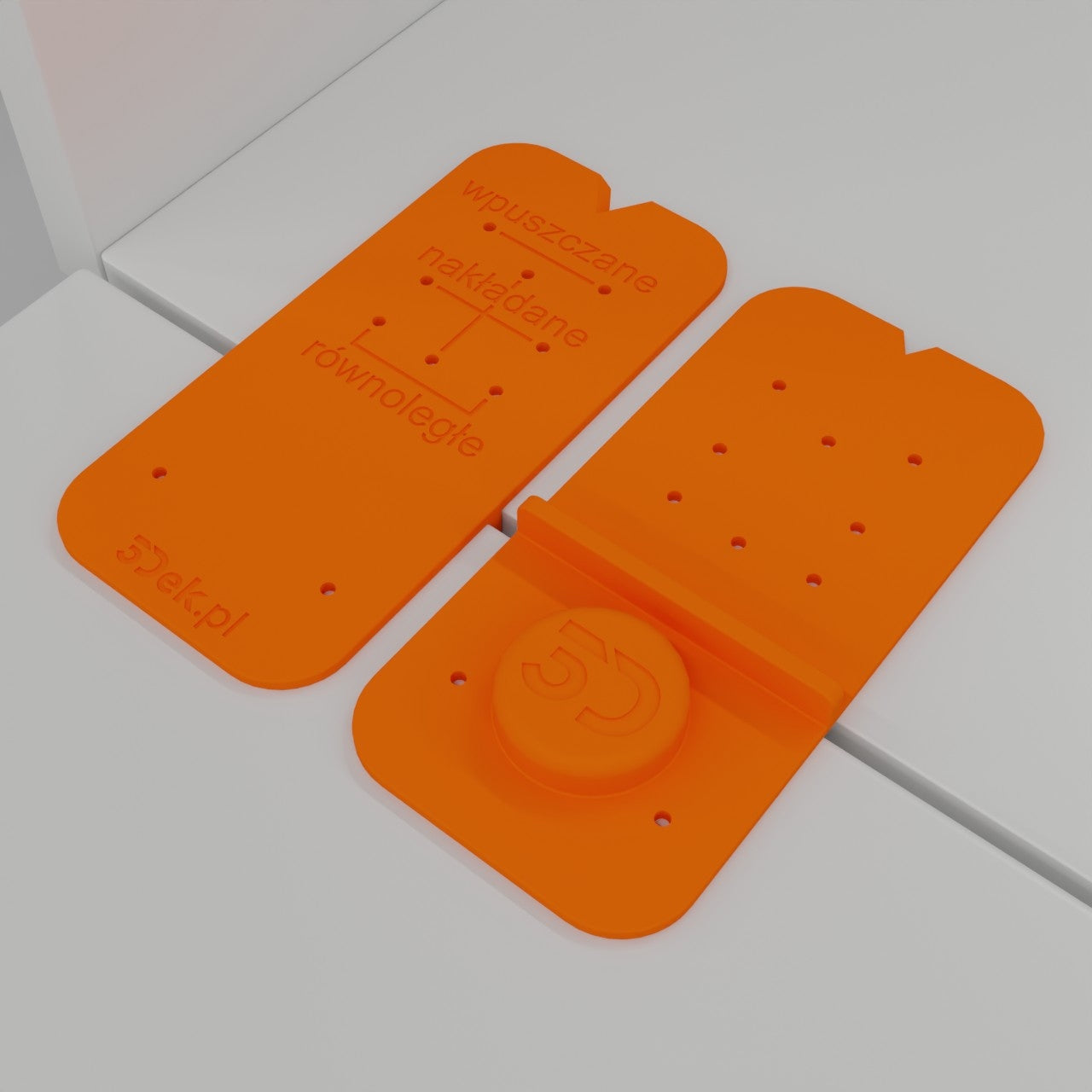

Universal mounting template for furniture hinges is a practical tool for quick and repeatable determination of guide mounting points and hinge can screws. This is an extended version with more holes – it supports hinges applied, recessed and parallel.
It is an economic version – without steel sleeves – designed mainly for routing and scoring. Professional version with guide sleeves is available in other 3DEK offers.
Designed and tested in real carpentry work.
What the template allows
The template allows you to set up in one setting:
- designate points for straight guides (overlaid)
- designate points for cross guides
- mark points for recessed and parallel hinges
- mark the places of the hinge can screws – for the perfect setting of the hinge under 90°
Simply insert it into the finished hinge can hole and slide it to the side of the body.
The most important features
- universal — right and left side
- 10 routing holes fi 3 mm
- clear descriptions at the openings
- compatible with the mounting standard of most hinges
- Fast work without measuring and counting
- ideal for workshop and assembly at the customer
- lightweight, durable and resistant PETG material
- made in Poland — 3DEK
Technical data
- Material: PETG - FDM 3D Printing
- colour: orange
- dimensions: 70 × 148 × 12 mm
- Number of holes: 10
- Hole diameter: 3 mm
- Version: economical — without metal sleeves
- set: 1 × template
Quick instructions for use
- Drill a can of hinge in the front.
- Put the template in the can.
- Put the front to the side of the body.
- Slide the template to the edge of the body.
- Mark the mounting points (with a pencil, point or drill).
- Drill holes and install a guide.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | 3DEK |
| Parametry | EAN (GTIN) | 5908453131553 |
