Baldų durelių lankstų montavimo šablonas

Trumpai apie prekę

Prekė: Baldų durelių lankstų montavimo šablonas. Kategorija: Trafaretai, šablonai.

• Gamintojas: no brand
• Modelis: 3DEK

Referring to the opinion with a falling out sleeve - the template without a defect was immediately sent at our expense, without the need for a return. We try to make every template we make free from defects, but sometimes it is difficult to avoid it. If a defect is detected, please contact us in advance (before leaving feedback), then we will correct our error as soon as possible :)

Looking for a quick and repeatable way to install furniture hinges with precision?

Introducing the professional template for hinge guides – easy to use, ready right out of the package.

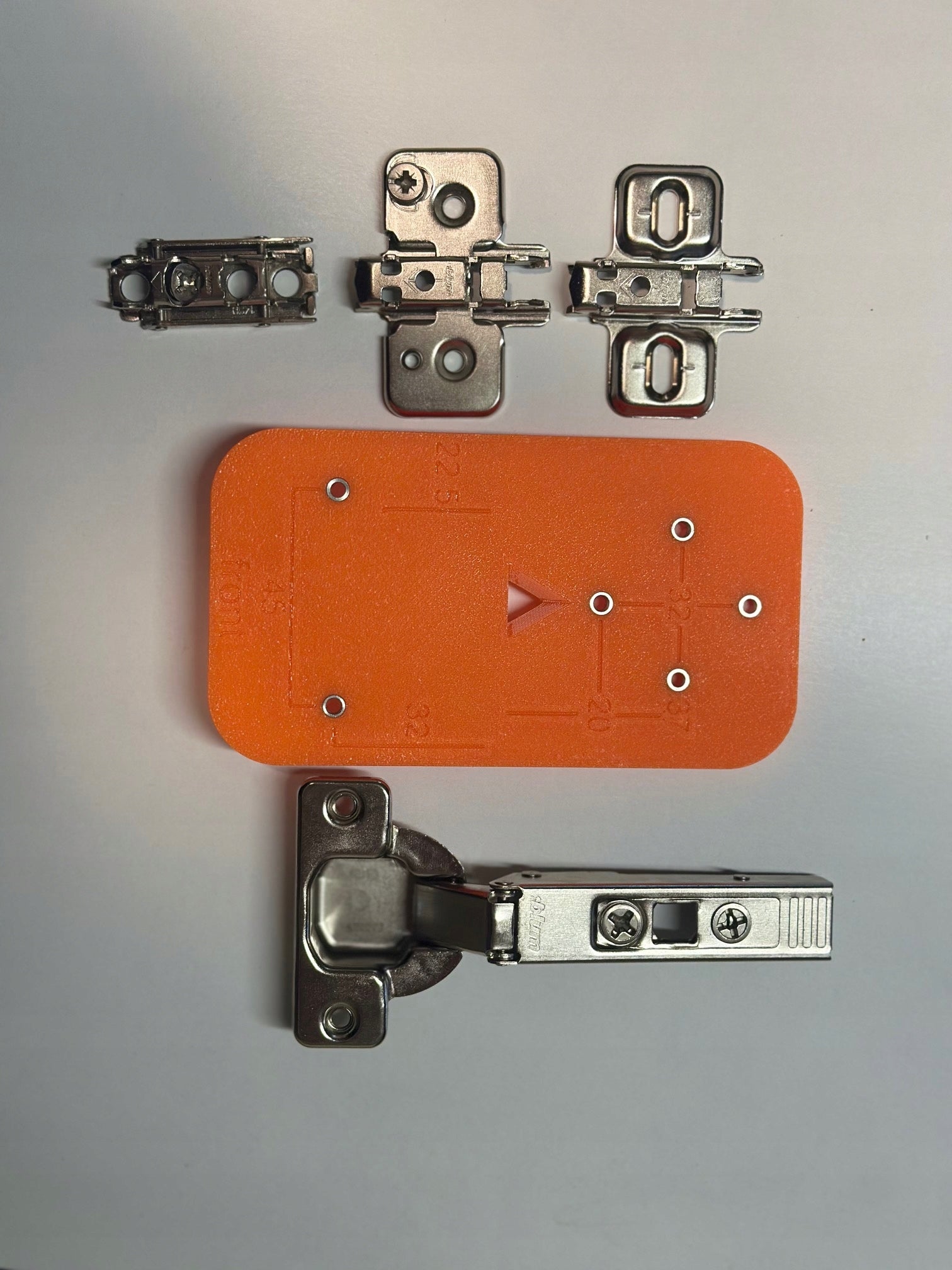

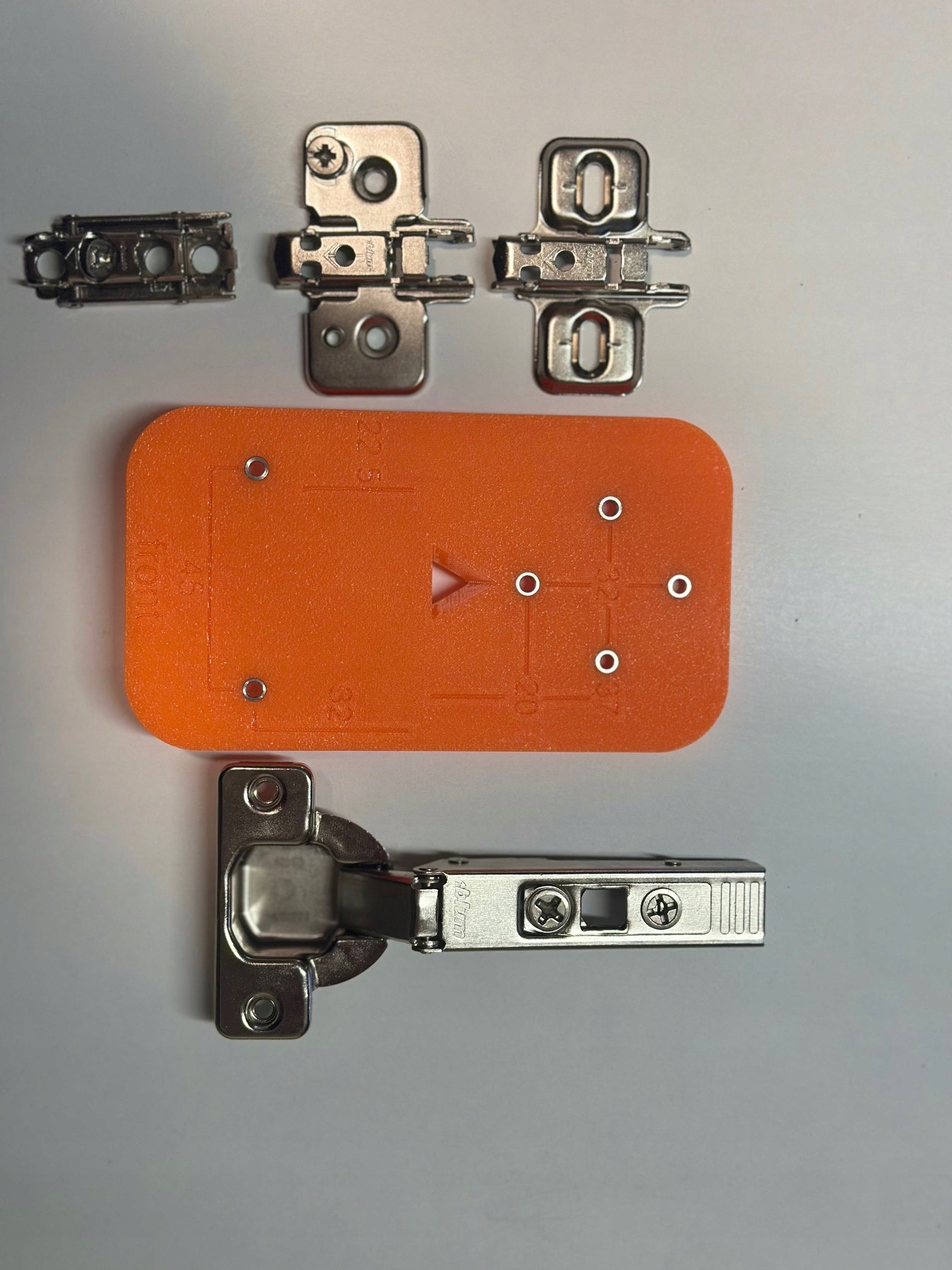

Product Features:

✔ Suitable for straight and cross guides

✔ Universal – left and right side

✔ No carpentry clamps required

✔ 6 steel bushings Ø3 mm – precise points for guides

✔ Clear distance markings from the edge

✔ Compatible with fi35 mm can hole (5 mm from edge)

✔ Made of durable PETG in orange

Dimensions:

Length: 125 mm

Width: 75 mm

Overall height: 15 mm

Working part height: 5 mm

? How to use?

1. Insert the template into the hole of the fi35 mm can
2. Put the front to the side of the cabinet
3. Mark or drill holes for guides
4. Screw on the guide – ready!

🧠 Pro tip: Use two templates at the same time to speed up work and get 100% symmetry.

📦 Ready to use product, shipped in bulk without packaging.

❗ Keep away from children – bushings can be swallowed.

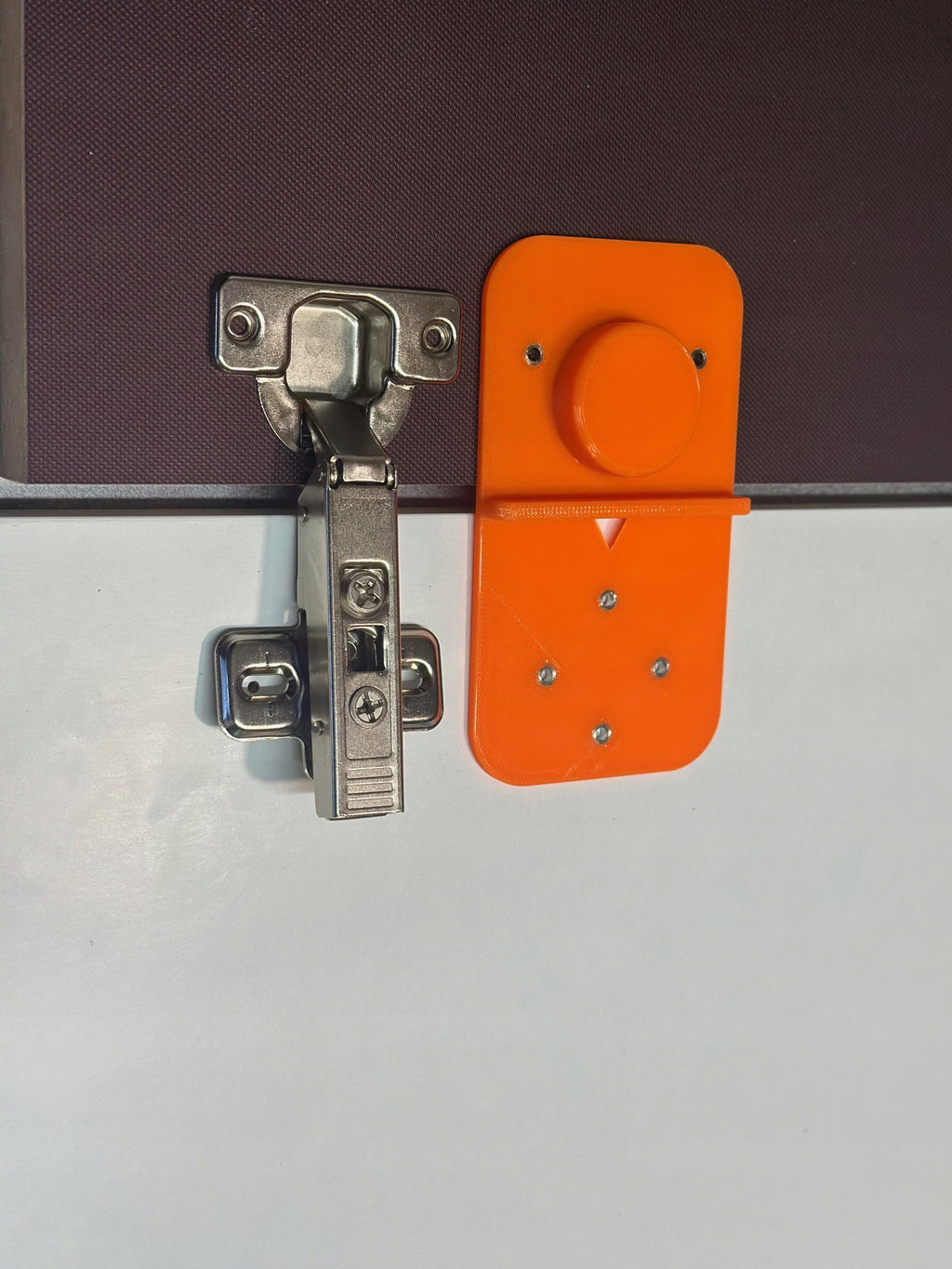

How to use the template to mount hinge guides?

1. Prepare the front:

   Drill a hole fi35 mm under the hinge can (recommended distance from the edge: 5 mm). You can also order a front with ready-made holes in the warehouse.

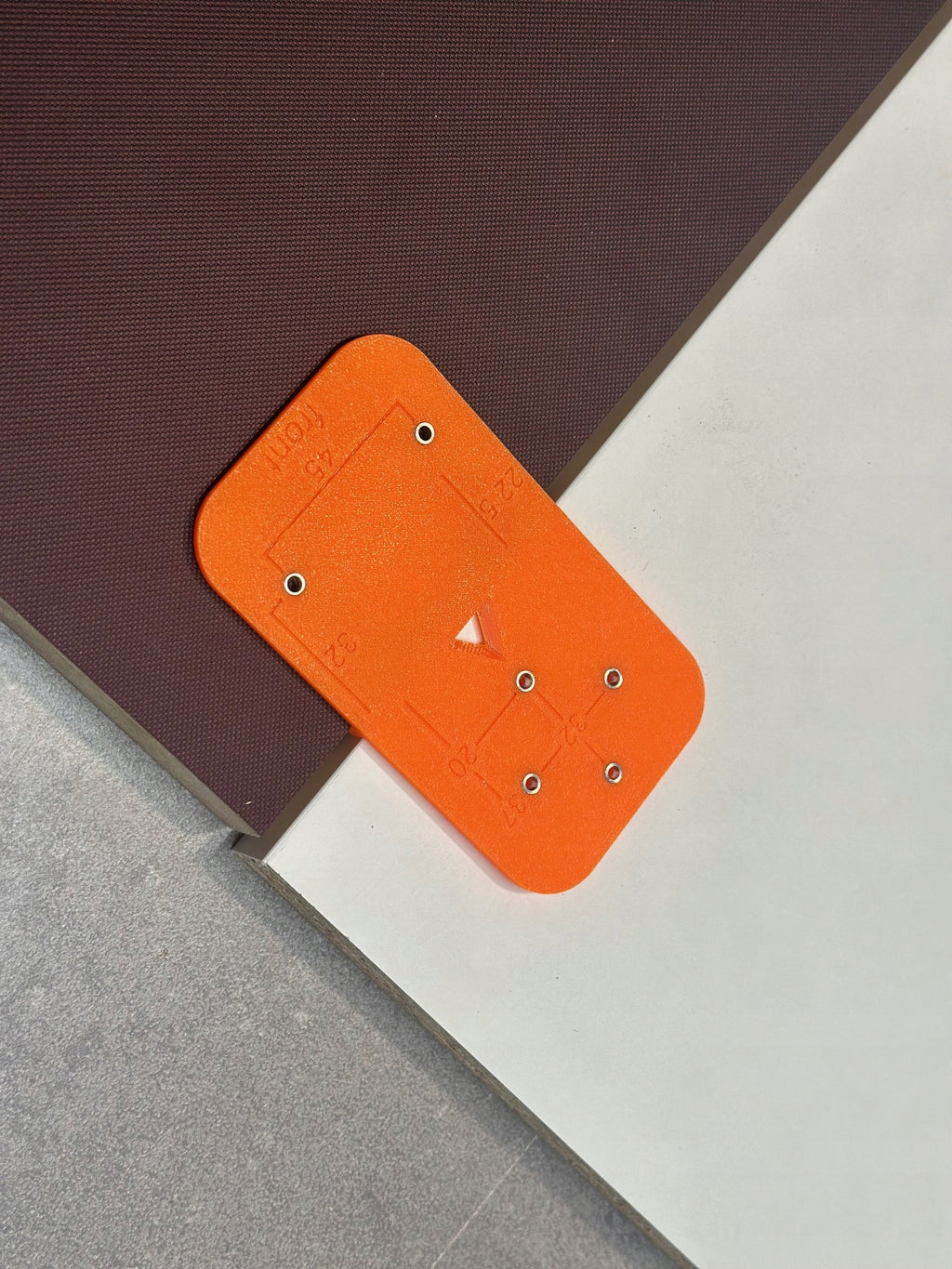

2. Place template:

   Insert template into hinge hole fi35 mm. For faster work, use two templates at the same time – one for each hinge.

3. Select mounting points:

   Apply the front with embedded templates to the side of the cabinet where the hinges are to be. Draw or drill a place for guides (straight or cross).

4. Remove template:

   Remove template from front. Now you can fix the hinge guide in a precisely designated place.

5. Additional function:

   The template also allows you to mark screw holes for mounting the hinge in the front – exactly in a line perpendicular to its edge.

Ready! Precision, speed and repeatability of assembly – without additional help.
