Autoservisų žirklinis keltuvas 5T RAVAGLIOLI RAV650N.2.55.ISI

Trumpai apie prekę

Prekė: Autoservisų žirklinis keltuvas 5T RAVAGLIOLI RAV650N.2.55.ISI. Kategorija: Keltuvai stulpams.

• Gamintojas: Ravaglioli
• Modelis: RAV650.2.55ISI Ravaglioli

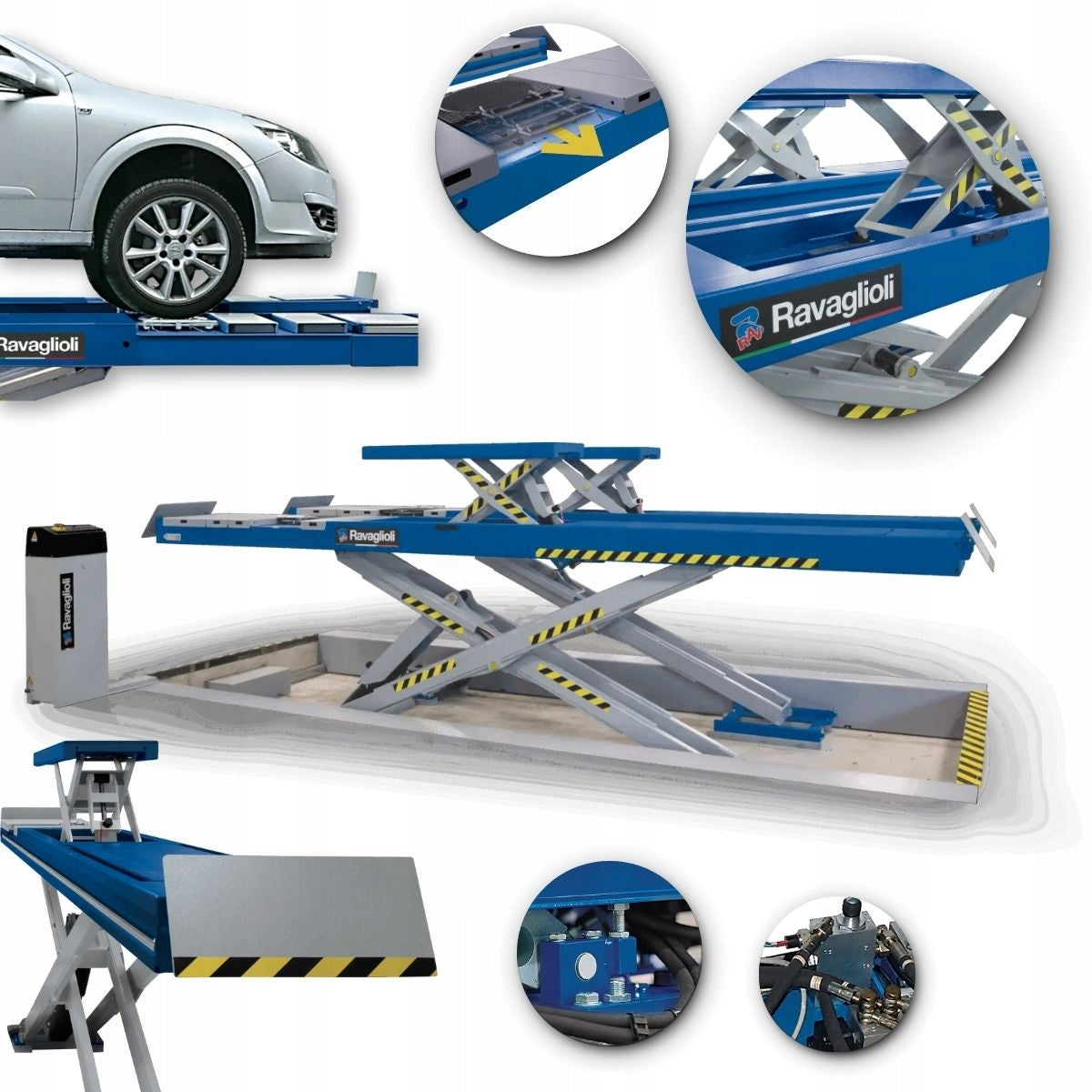

Electrohydraulic scissor lift RAVAGLIOLI RAV650N.2.55. ISI with a lifting capacity of 5000 kg is a professional solution for wheel diagnostics and geometry.

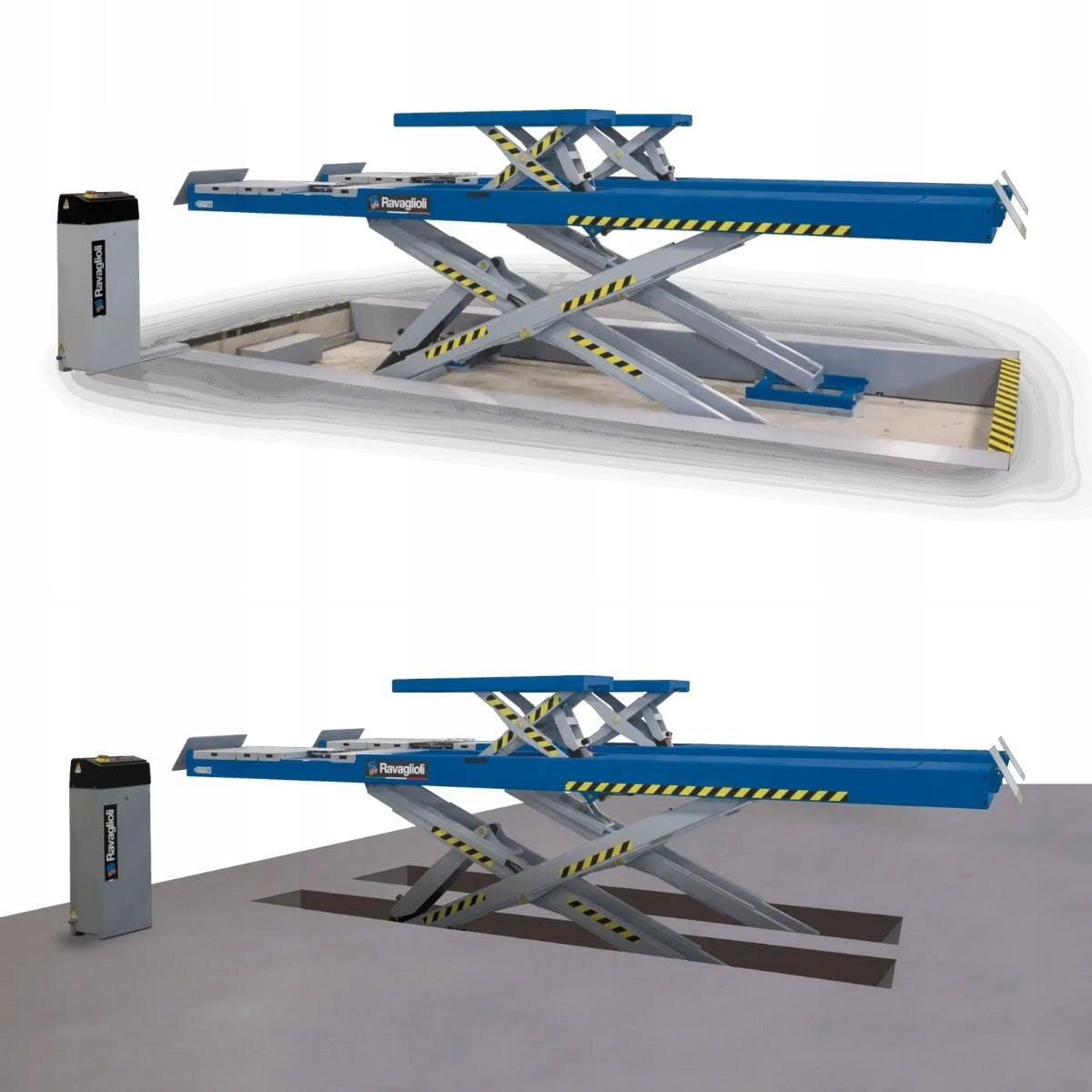

The model is designed for installation in the floor (in the moat) is equipped with platforms with a length of 5500 mm, a subliminal lift 4000 kg and factory preparation for roof geometry systems Ravaglioli 3D.

It guarantees maximum safety thanks to pneumatic release of mechanical locks, automatic hydraulic synchronization and sound signal in the final lowering phase.

The lift is equipped with modern technical solutions:

• Hydraulic synchronization – the patented system guarantees even lifting regardless of load distribution.
• Mechanical locks – automatic, pneumatically released, ensure safety during operation.
• Self-lubricating bushings – all rotary points are equipped with maintenance-free bushings, which reduces maintenance costs and extends service life.
• Flat platforms with mounting holes – prepared for the installation of turntables and measuring brackets for Ravaglioli 3D geometry.
• Sound signal – warns in the final phase of lowering the lift.
• Lifting beam guide – galvanized, factory mounted, facilitates quick and smooth movement.

Features and functions of the lift:

• Leverage 5000 kg – support for passenger cars, SUVs and vans
• Platforms 5500 mm – stability and wide diagnostic capabilities

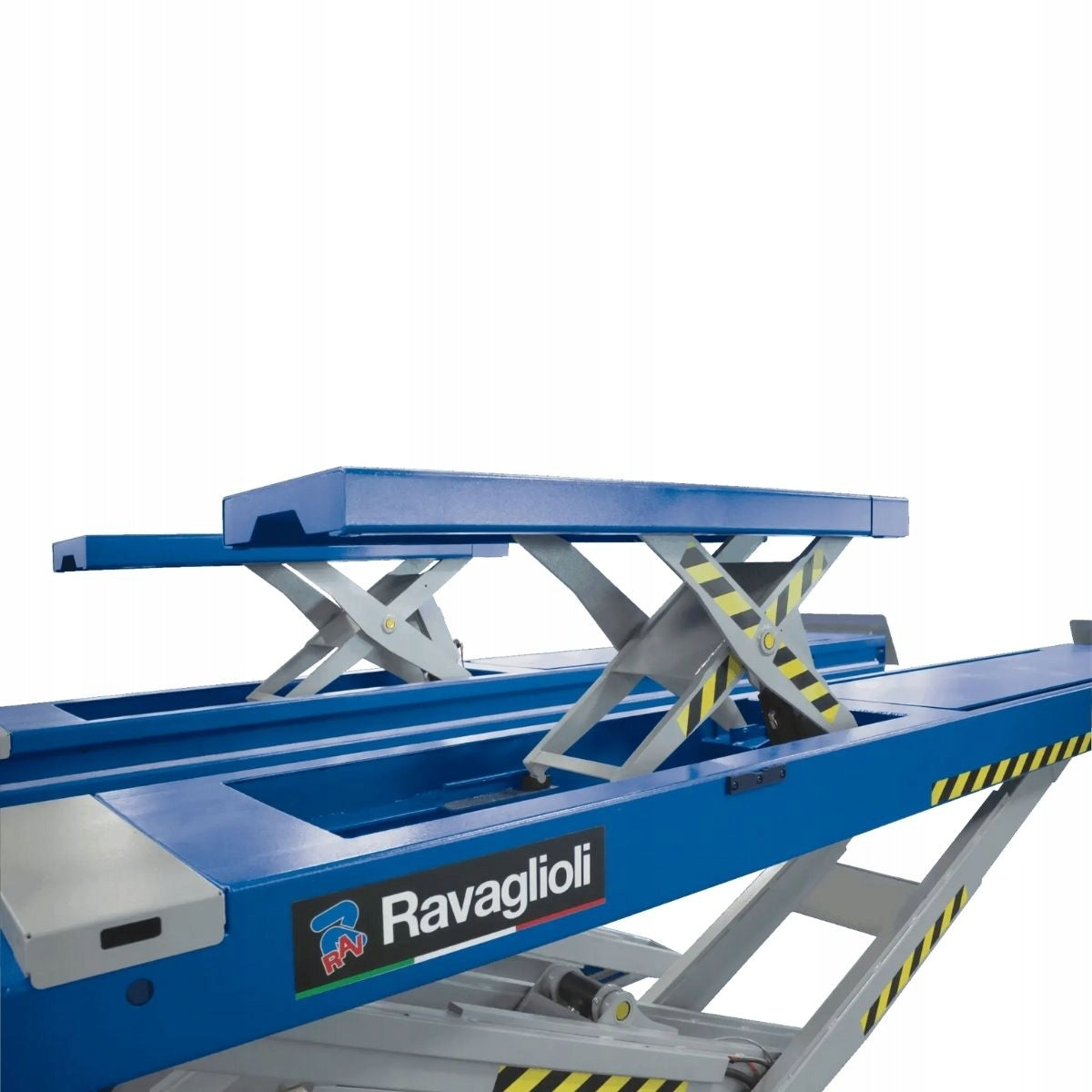

• Integrated subliminal lift – lifting capacity 4000 kg
• Suitable for geometry 3D Ravaglioli
• Hydraulic synchronization independent of mass distribution
• Pneumatic release of mechanical locks
• Platforms without side edges – easy positioning of turntables even with narrow track width
• Self-lubricating sleeves – no additional maintenance required
• Safe control low voltage 24 V
• Sound signaling in the final phase of lowering
• Large wheel stops for added safety

Technical data:

• Parameter: Value
• Catalog number: RAV650N.2.55. ISI
• Total lift capacity: 5000 kg
• Power supply (network): 400V / 50Hz
• Power supply (air): 8 bar max
• Engine power: 2,6 kW
• Lifting height: 2100 mm
• Platform dimensions: 650 × 5500 mm
• Noise level: < 70 dB (A)
• Weight: 1783 kg
• Limit lifter: 4000 kg (included)
• Manufacturer: Ravaglioli (Made in Italy)

Benefits for the user

• Universality – servicing vehicles from passenger cars to vans
• Safety – pneumatic locks, warning signal, control voltage 24 V
• Ergonomics – flat platforms with preparation for geometry and turntables
• Durability – self-lubricating bushings and galvanized guides reduce wear of components
• Easy installation – simplified mounting bay design and freestanding mounting option
