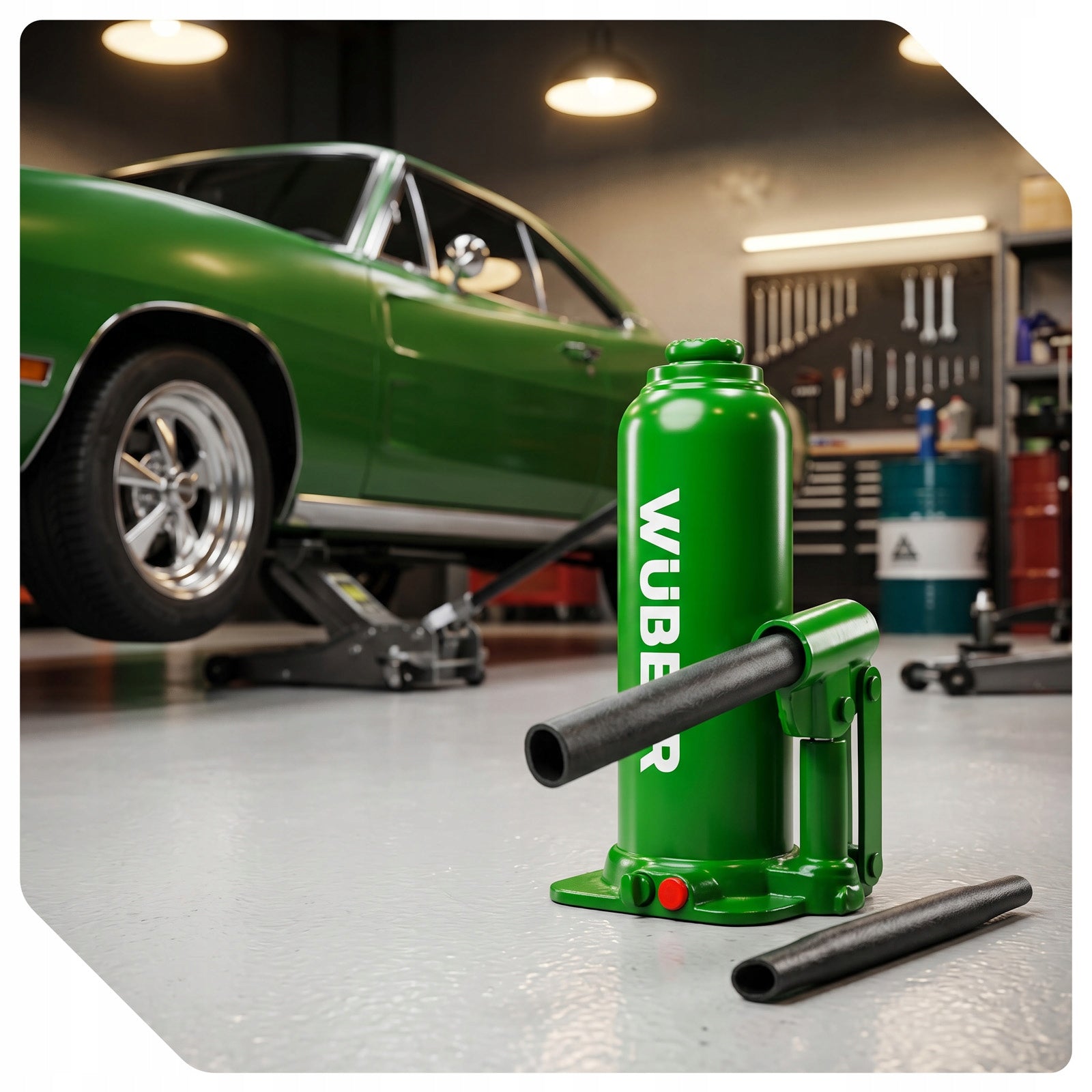

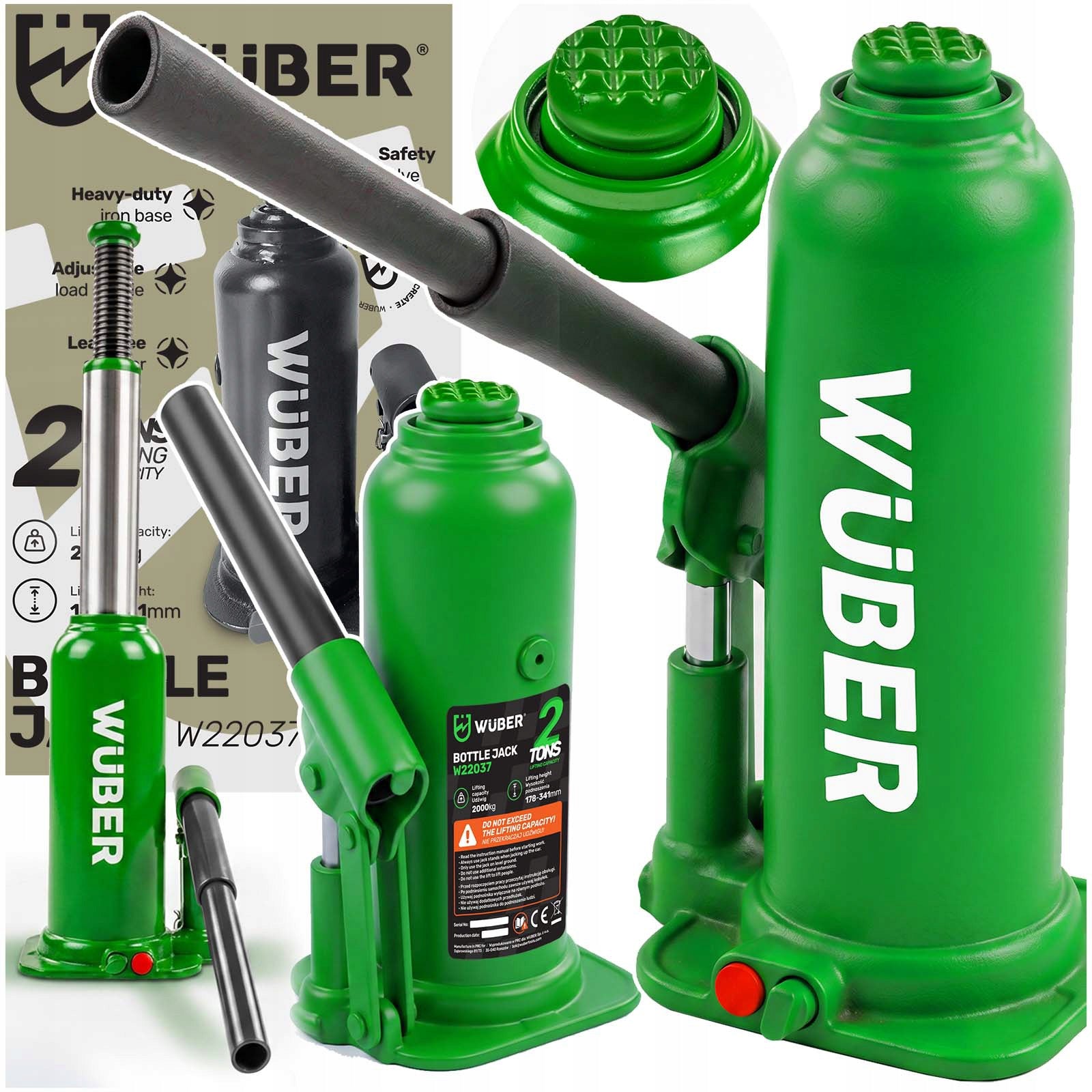

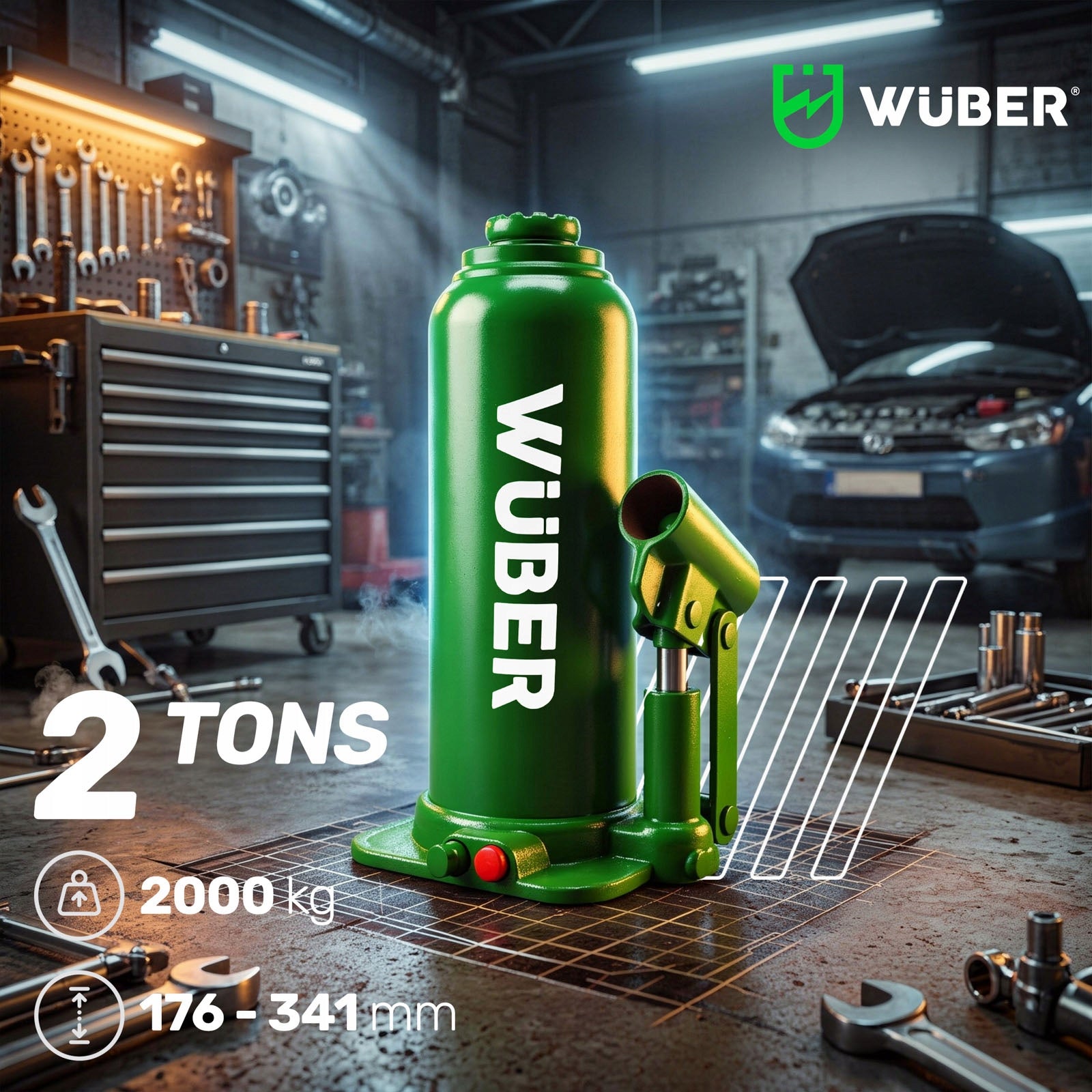

Automobilio keltuvas 178–341 mm hidraulinis butelinis, 2 t

Trumpai apie prekę

Prekė: Automobilio keltuvas 178–341 mm hidraulinis butelinis, 2 t. Kategorija: Butelių kėlimo įtaisai.

• Gamintojas: Wuber
• Modelis: W22037 PODNOŚNIK SŁUPKOWY 178-341 MM

✅ LIFTING CAPACITY 2000 KG

✅ RANGE 178-341 MM

✅ TWISTED GROOVED SADDLE 48 MM

✅ SADDLE THICKNESS 8 MM

✅ MASSIVE, WIDE BASE 85 x 85 MM

✅ SAFETY VALVE

✅ HARDENED STEEL PISTON

✅ ENHANCED TIGHTNESS OF THE HYDRAULIC SYSTEM

✅ LONG, FOLDABLE HANDLE

✅ PISTON STROKE 115 MM

✅ HIGH STRENGTH IN A COMPACT HOUSING

Compact high-strength hydraulic device, designed for tasks requiring stable lifting of heavy loads.

✔ Passenger cars with higher ground clearance and crossovers ► trouble-free handling of heavier family cars and crossovers.

✔ Workshop work ► ideal for supporting structures, beams or suspension components.

✔ Light trailers ► suitable for servicing wheels in boat or cargo trailers.

⭐ WHY CHOOSE OUR MODEL?

✅ Real lifting capacity 2 Ton ► work efficiently with a power reserve, effortlessly lifting passenger cars with higher ground clearance and light trailers.

✅ Wide cast iron base ► ensure stability of operation thanks to the low center of gravity

✅ Hardened steel piston ► use a robust and hard working surface that is highly resistant to dangerous bending and scratches during intensive work.

✅ Saddle height adjustment 48mm (included in max. range) ► twisted screw allows you to level the distance between the support point without having to pump

✅ Hydraulic safety valve ► give yourself peace of mind knowing that the safety system protects you from accidental overloading of equipment.

✅ Lifting range 178 - 341 mm ► easily slide the device under your passenger car with higher ground clearance and lift it to the optimal height, allowing for convenient replacement of each wheel.

✅ Double cylinder seal ► forget about oil leaks and pressure drops during longer maintenance

⚡ LIFTING OPERATING PARAMETERS

► Minimum height: 178 mm – free insertion under most crossovers and passenger cars with higher ground clearance.

► Maximum height: 341 mm – allows you to freely remove the wheel even with a large suspension stroke.

► Screw adjustment: 48 mm – height included in the maximum lifting range, obtained by unscrewing the saddle screw.

⭐ HEAVY-DUTY MACHINE FOR YOUR WORKSHOP

✅ 115 mm Cylinder Stroke ► This is the actual lifting distance using the cylinder alone. This ample range allows you to easily lift a wheel off the ground.

✅ 2 kg Weight ► Easily move your new jack to any desired location thanks to its compact design.

✅ Hydraulic System ► Precise force control allows for controlled and smooth lifting of loads.

✅ Two-Piece Handle ► The long lever makes pumping easier and allows you to operate the jack from a safe distance, without needing to get too far under the vehicle.

✅ 8 mm Thick Serrated Saddle ► Minimize the risk of the support point slipping off the vehicle's chassis with the saddle surface that increases friction.

✅ Nickel-Plated Piston ► The protective coating shields the working part from corrosion and seizing.

✅ Base Release Valve ► Intuitive and safe vehicle lowering by slowly turning the handle.

✅ High-Grade Hydraulic Oil ► The system is factory-filled with good quality fluid.

⚙ TECHNICAL SPECIFICATION:

Producer: WUBER

Model: W22037

Maximum lifting capacity: 2000 kg (2 Tons)

Piston stroke: 115 mm

Minimum height: 178 mm

Maximum height: 341 mm

Screw adjustable height: 48 mm

Base dimensions: 85 x 85 mm

Base thickness: 6 mm

Type of construction: Post (Bottle)

Saddle diameter: 20 mm

Saddle thickness: 8 mm

Lift weight: 2 kg

Safety valve: YES

❗❗ Remember: Always keep the lift upright

⭐ WHY SHOULD YOU CHOOSE OUR EQUIPMENT?

✔ Our lifts are made of high quality materials and using proven technological solutions,

This makes them the most advantageous in their price range

► High quality

► Attention to the smallest details technical and visual

► Brand equipment with established market position

► Full access to spare parts and fast service

► Door to door - we will do everything for you!

⭐ BET ON PROVEN EQUIPMENT FROM THE RENOWNED BRAND WUBER ⭐

💡 WHAT AND HOW TO LIFT?

The lifter is for lifting only. Never work under a vehicle without workshop mare.

First, unscrew the screw so that the saddle touches the support point in the car, and only then use the hydraulic lever.

In our offer you will find mares that will provide you with stability and safety during such works as:

• ► ✅ Efficient wheel change

• ► ✅ Oil change

• ► ✅ Exhaust system repair

• ► ✅ Regular inspection of vehicle condition

• ► ✅ Suspension Repair

• ► ✅ Replacement of vehicle consumable parts

⭐ HYDRAULIC SYSTEM WITH A LIFTING CAPACITY OF 2 TONS

• ✔ Precision hydraulic cylinder ► core of the device made with the utmost attention to detail.

• ✔ Stability and safety ► thanks to high-quality oil and sealants, the lift maintains its desired position for a long time.

• ✔ Optimal lifting capacity of 2 tons ► will handle both passenger cars with higher ground clearance and many crossovers.

• ✔ Extended service life ► operation on minimum load with lighter vehicles protects the system from wear and tear.

⚡ LIFTING RANGE 178 - 341 MM

• ✔ You can easily slide this lift under the standard suspension of a crossover car and a passenger car with higher ground clearance.

• ✔ You reach the perfect height, allowing for a very convenient wheel change or a thorough inspection of the braking and exhaust system.

• ✔ Your movements become immediately free, and the work goes much smoother and without unnecessary frustration.

• ✔ You forget about the need to put wooden boards under low jacks, because this model has enough piston stroke.

💡 WHAT GIVES YOU A PISTON STROKE OF 115 MM?

The stroke of the actuator is the lifting distance with hydraulics alone (without a screw being unscrewed). This lift offers you up to 11,5 cm of actuator operating range:

Sure detachment of the wheel ► the jump stock easily overcomes the stretching suspension, which is crucial in crossovers.

Safety ► you reach the target height in one cycle, without putting boards or blocks under the lever.

Saving time and effort ► the right range means that you can pick up your car quickly, smoothly and without unnecessary effort.

⭐ SADDLE EXTENSION BY 48 MM

• ✔ Special, twist-off screw in the saddle allows you to level the empty clearance before starting the proper pumping.

• ✔ With this facilitation you save your time.

• ✔ This mechanism makes the entire initial lifting process even half as short.

The extension range of the saddle is within the maximum lifting range. This is not a value above the maximum range on which the lift operates.

⚡ HARDENED STEEL PISTON

• ✔️ Hardened steel offers **high resistance to shearing side forces** and daily wear in a workshop environment.

• ✔️ The smooth, **polished piston surface protects internal** rubber seals from premature wear.

• ✔️ This is an investment in top material quality that **will never let you down** under standard home use conditions.

⭐ HYDRAULIC SAFETY VALVE

• ✔ This key element of will automatically cut off excess hydrostatic pressure if you mistakenly try to lift too much weight.

• ✔ Security effectively protects the entire internal system from uncontrolled tearing of seals.

• ✔ You can be sure that this tool will forgive you for any errors in your assessment of the weight of the vehicle.

• ✔ In this way, you eliminate the most common cause of serious accidents during self-repair at home.

⚡ REINFORCED BASE

• ✔ Solid base 85 x 85 mm ► made of thick cast with a wall of 6 mm provides the highest strength.

• ✔ Resistance to deformation ► rigid structure does not bend even under maximum load.

• ✔ Lower centre of gravity ► guarantees stability and prevents the lift from wobbling during operation.

💡 SIMPLE MAINTENANCE AND VENTING

• ✔ This lift has been designed for long-term operation. The system is fully available for self-service.

• ✔ There is an easily accessible oil filler cap in the body. This allows you to replace the hydraulic fluid yourself or replenish its level after a long time of intensive work.

• ✔ The venting procedure is intuitive and described in the manual, which allows the user to restore the full functionality of the device in a few minutes, without having to visit the service.

✔ SET INCLUDES:

► Hydraulic bollard lift WUBER W22037 2T

► Folding pumping handle

► Original manufacturer packaging

► Clear instruction manual in Polish

⭐ JOIN HUNDREDS OF SATISFIED USERS AND FOCUS ON RELIABILITY! ⭐

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	2.36 kg
Parametry	Brand	Wuber
Parametry	Manufacturer code	W22037 PODNOŚNIK SŁUPKOWY 178-341 MM
Parametry	EAN (GTIN)	5905873307360
Parametry	Lifting capacity	2000 kg
Parametry	Minimum lifting height	178 mm
Parametry	Maximum lifting height	341 mm
