Automobilio dviejų kolonų keltuvas 4T 4000KG, 3 segmentų svirtys, 400V

Trumpai apie prekę

Prekė: Automobilio dviejų kolonų keltuvas 4T 4000KG, 3 segmentų svirtys, 400V. Kategorija: Kolonų keltuvai.

• Gamintojas: Euro Trade
• Modelis: 5903968607708

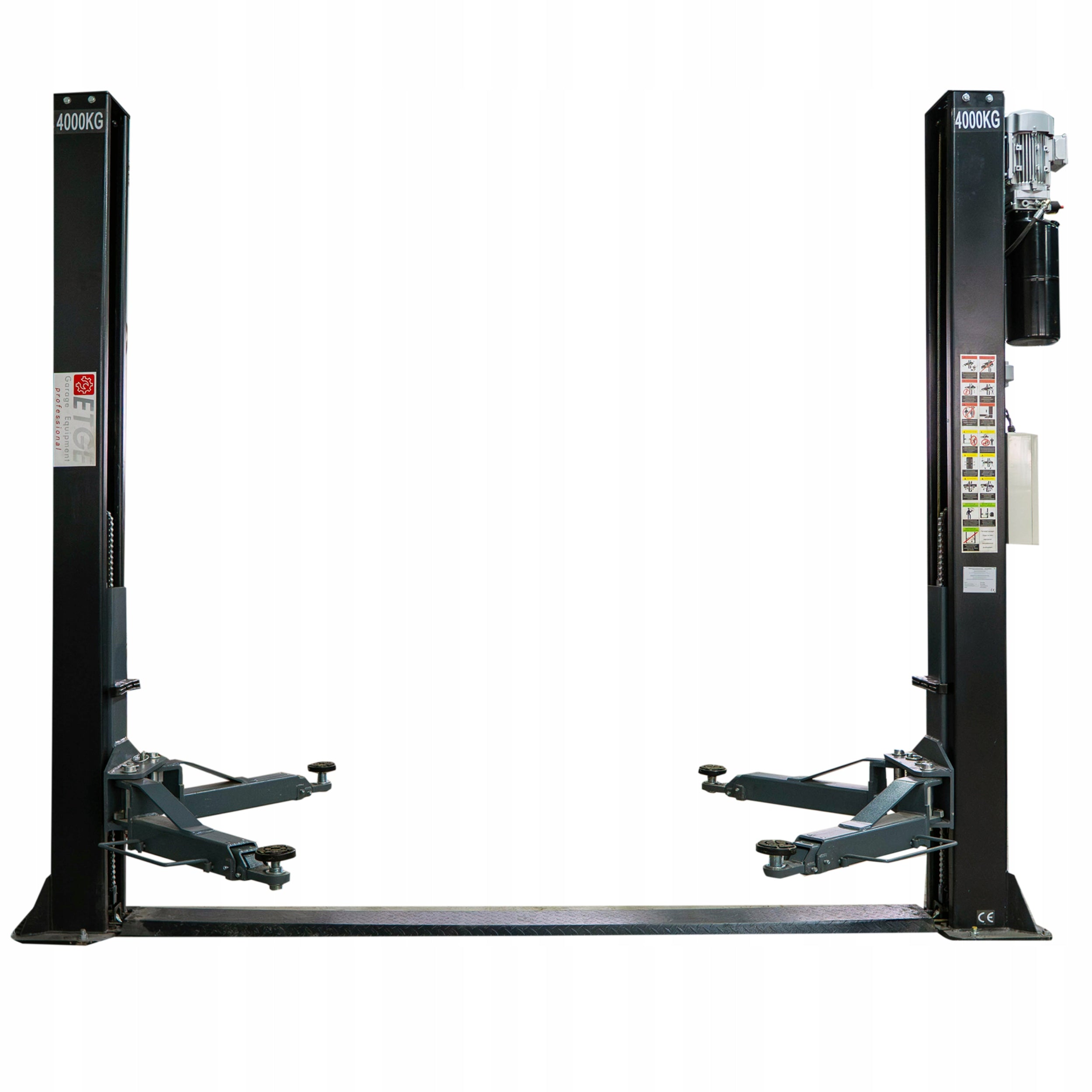

Here is the column lifter Euro Trade ETGE SAE-40 BLACK with a lifting capacity of up to 4000 kg. It is an advanced, electrohydraulic device designed for services that do not compromise on safety and convenience.

This ETGE SAE40 column car lift can easily handle both low city cars and long, heavy vans.

• Lift type: two-column, electrohydraulic
• Maximum lift capacity: 4000 kg
• Maximum lifting height: 1920mm
• Minimum lifting height: 140mm
• Drive: electrohydraulic
• Power supply: 400 V / 50 Hz / 3 phases
• Control: 24V
• Control: automatic, push button (full automatic)
• Safety lock system: electromagnetic
• Removing ratchets: automatic – without the use of cables and levers
• Number of cylinders: 2 hydraulic
• Sync system: chain + synchronization ropes
• Arms: symmetrical, telescopic
• Shoulder adjustment range: I degree: 793 mm , II degree: 1124 mm , III degree: 1500 mm
• Shoulder spacing lock: mechanical
• Control panel: ergonomic, control from one place
• Certificates: CE
• Documentation: declaration of conformity to UDT, instruction manual in Polish
• Application: passenger cars and vans

The lifter is operated only by means of control buttons located directly on the panel.

The whole process of lifting, lowering and releasing locks is carried out from one ergonomic control panel, which significantly speeds up work and increases user comfort.

Time is money, a manual unlocking of ratchets in the twenty-first century is a waste of time! Often in cheaper competition lifts the mechanic must run around the columns and tug on the links or levers to leave the car.

This ETGE SAE40 column car lift is a full automatic.

You can operate the entire process of lifting, lowering and locking from one ergonomic control panel.

Advanced electrohydraulic system with solenoid valve enables fully automatic control of the lift.

Precise operation of the system ensures smooth lifting and controlled lowering of the vehicle, which translates into reliability and long service life of the entire mechanism

You press the button – the ratchets release themselves, and the vehicle smoothly and control goes down or moves up.

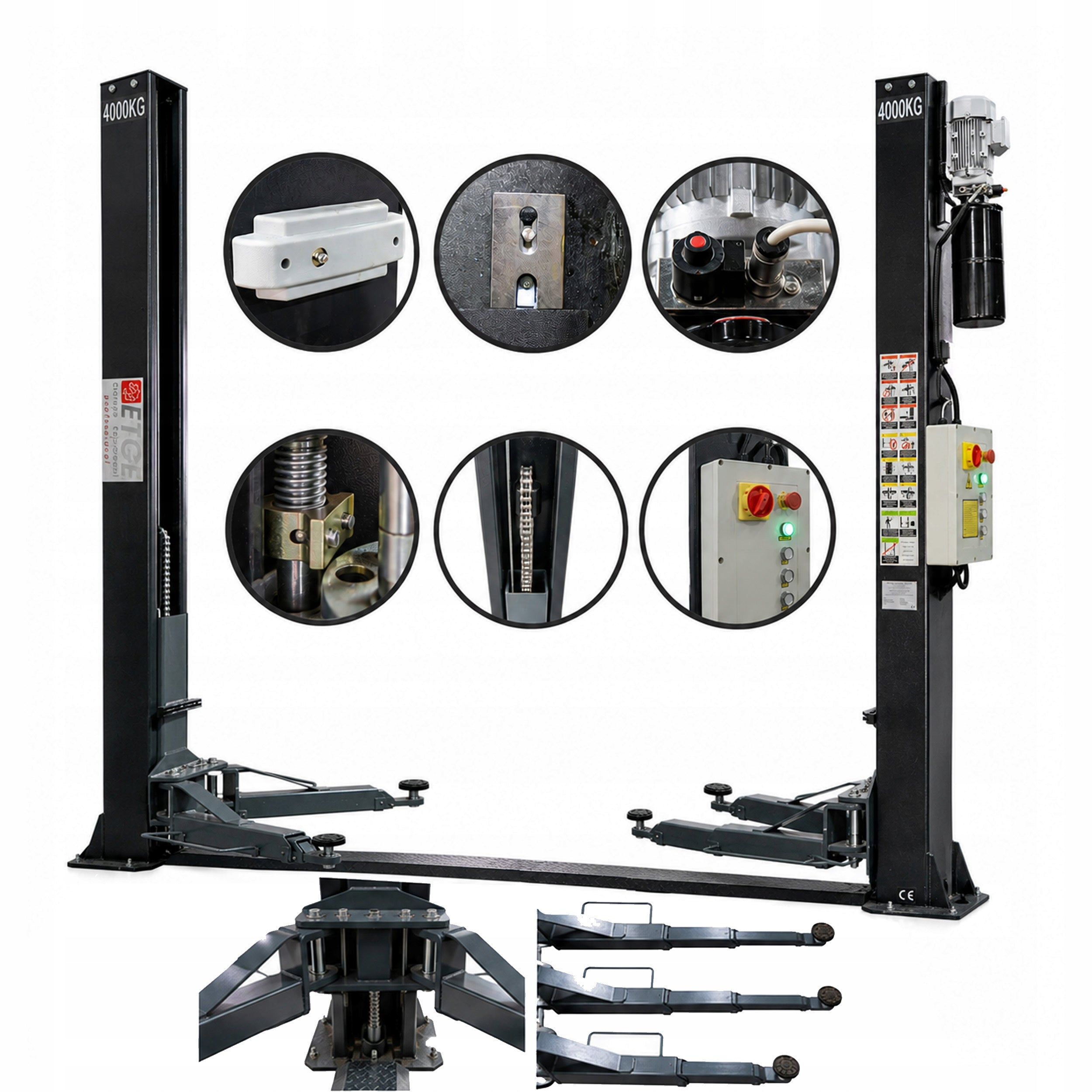

The Euro Trade ETGE SAE-40 BLACK lifter is equipped with a modern safety ratchet system controlled by an electromagnet with external covers!

This solution guarantees full control over the process of lifting and leaving the vehicle and eliminates the risk of accidentally falling down the car.

Automatic ratchet release increases work safety and comfort of use.

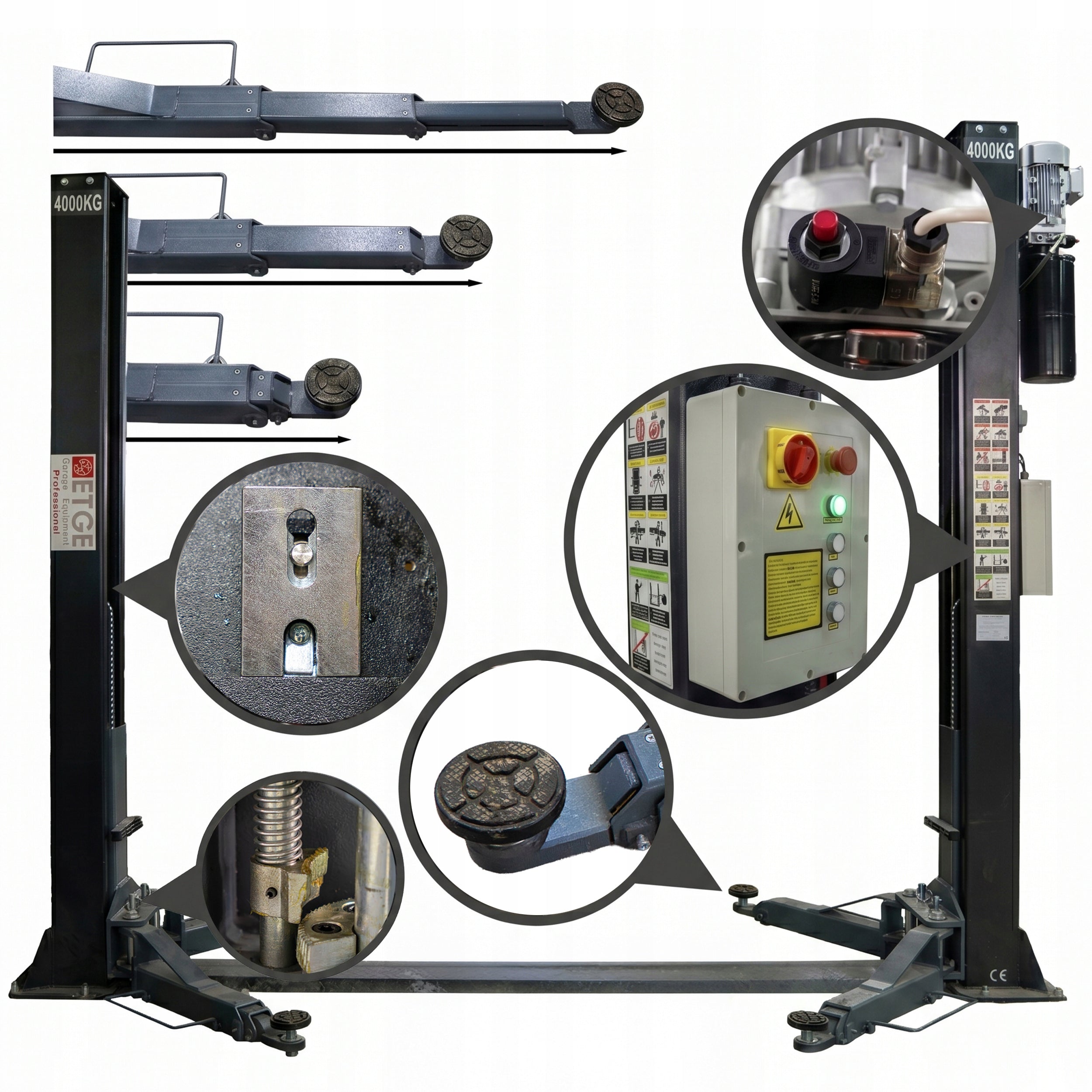

The biggest advantage of our SAE40 two-column lift over competitors’ offers is the unique 3-degree extendable telescopic arms at the front and rear.

While other lifts in this price class limit you mainly with 2-stage arms or asymmetrical arms, the ETGE-SAE40 offers full freedom of adjustment of the front and rear arms:

• I degree: 793 mm
• II degree: 1124 mm
• III degree: 1500 mm

One lift will handle extremely different vehicles.

Instantly and precisely you can adjust the support point for a small compact car, as well as for vans L1H1 (e.g. Volkswagen Transporter, Renault Trafic) or buses (L2H2) (e.g. Mercedes Sprinter, Opel Movano, Fiat Ducato, Renault Master).

The set also includes screwable adjustable adapters (elevating feet), which allows you to safely work with cars with higher clearance or deep-seated points in the chassis.

Most manufacturers install a hydraulic unit at the bottom or half the height of the column, so that the machine takes up valuable space on the stand and is exposed to tool trolleys.

In the ETGE SAE-40 BLACK hydraulic pump model was moved to the very top of the column. With this design, you get:

• Maximum spaciousness – the workstation around the car is completely free of protruding elements.
• Safety of accessories – the engine and oil tank are protected against accidental mechanical damage in the heat of operation.
• Silent operation and cleanliness around the workstation.

The design of the lift is based on two durable hydraulic cylinders, supported by the chain and synchronizing ropes.

The rope synchronization system is responsible for even lifting of both columns, which guarantees stability, precision and safe operation even with heavy vehicles.

To ensure safe and correct operation of the Euro Trade ETGE BLACK SAE-40 two-column lift, it is necessary to properly prepare the substrate before installing the device. Meeting the following requirements is crucial for the stability of the structure and maintaining the full performance of the lift.

• Minimum floor area: 2,0 m × 4,0 m
• Minimum floor thickness: 25 cm
• Type of concrete: concrete class B25
• Substrate: maximum level, leveled
• Floor construction: uniform, monolithic concrete slab
• Concrete ripening time: minimum 28 days for fresh spout

The user is obliged to bring the power cord to the device on their own.

🛻 Is the ETGE SAE-40 BLACK lift suitable for commercial vehicles? 👉 Yes. Thanks to the real lifting capacity of 4000 kg and 3-stage symmetrical arms (maximum range is up to 1500 mm), the lift easily and stably lifts long buses, vans and SUVs, while maintaining the ability to handle low passenger cars.

⚡ What power supply is required to install the device? 👉 Stable three-phase power supply with a voltage of 400V (50 Hz / 3 phases) is required. The 400V power lift guarantees a high engine operating culture and trouble-free lifting of heavy vehicles under maximum load.

🪢 Do I have to pull the links to leave the car? 👉 Absolutely not. This ETGE SAE40 column car lift is equipped with an automatic electromagnet system. All release of safety latches is carried out without the use of cables or levers – just press one button on the control panel.

📍 Where is the hydraulic pump and what does it give? 👉 The electrohydraulic unit (pump with motor) is mounted at the very top of the column. This makes the entire workshop station more spacious, and the pump itself does not interfere with everyday work and is not exposed to mechanical impacts.

📑 Will I get the documents needed to submit to UDT? 👉 Yes. Each ETGE lift is accompanied by a full set of in Polish, including an instruction manual and a CE declaration of conformity. It is a set 100% accepted by inspectors of the Office of Technical Inspection.

⚔ How is the ETGE lift different from other lifts on the market? 👉 Most of the competing brands at this price offer two-stage arms and manual unlocking of ratchets with cables. Our SAE40 two-column lifter offers 3-stage arms as standard, twist-off adapters, a pump at the top of the structure and fully automatic control with solenoid valve, which is a powerful technological and functional advantage.

🛢 What hydraulic oil should be poured into the system and how many liters do you need? 👉 The electrohydraulic system of the lift holds about 10 liters of oil. For proper operation, it is recommended to use standard, generally available hydraulic oils with viscosity class HL 32 or HL 46.

⛓ How does the trolley synchronization system work in this model? 👉 The ETGE SAE-40 BLACK uses an advanced mechanical synchronization system. The durable chain and powerful steel ropes force both trolleys to rise perfectly evenly on the columns, preventing the car from tilting even if the vehicle’s center of gravity is not perfectly centered.

🔩 What are the unscrewable adapters in the lift arms used for? 👉 The twist-off adjustment adapters allow you to quickly adjust the height of the support point. They are crucial when operating vehicles with high ground clearance, framework or with deep-seated mounting points in the chassis, protecting the thresholds from damage.

🛡 Does the 24V low voltage control on the panel matter? 👉 Yes, this is a key element of work safety in the workshop. The use of 24V control voltage protects the operator against high voltage electric shock in case of mechanical damage or accidental dampness of the control panel.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Euro Trade
Parametry	Manufacturer code	5903968607708
Parametry	EAN (GTIN)	5903968607708
Parametry	Number of columns	2
Parametry	Drive	electrohydraulic
Parametry	Overall width	3426 mm
Parametry	Overall height	2820 mm
Parametry	Power supply	400 V
Parametry	Engine power	2.2 kW
Parametry	Lifting capacity	4000 kg
Parametry	Minimum lifting height	140 mm
Parametry	Maximum lifting height	1920 mm
