Automobilio diagnostikos skeneris OBD-2 T100

Trumpai apie prekę

Prekė: Automobilio diagnostikos skeneris OBD-2 T100. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: T100

• This product has obtained CE, RoHS and FCC certifications.
• The menu of this product is supported by Polish.

What can T100 do?

The T100 is a multifunctional car scanner that can quickly read engine faults, clean faults and view vehicle data streams in real time. With it, you can easily maintain, check your car regularly yourself.

• Cars can be up to 97%
• Automatically recognizes the year of the vehicle

It does not require manual selection of make and model.

Supports up to 9 different protocols of different makes and models. Compatible with 97% of vehicles.

1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. 1s09141-2(5 baud init, 10.4 Kbaud)
4. IS015765-4 CAN (11bitlD, 500 kbaud)
5. 1S015765-4 CAN (29bit lD, 500 kbaud)
6. 1S015765-4 CAN (11-bit lD, 250 Kbaud)
7. IS015765-4 CAN (29bit lD, 250 Kbaud)
8. 1S014230-4 KWP (fast init, 10.4 Kbaud)
9. IS014230-4 KWP (5 baud init, 10.4 Kbaud)

L/M and VlN keys are hotkeys that allow quick one-touch access to specific functions.

• [L/M status] - is used to check the operation of the exhaust emission system in OBD compliant vehicles, and is an excellent function for checking the compliance of the vehicle with national exhaust emission tests.
• [VlN status] - allows you to quickly identify the year of the vehicle, as well as preview the vehicle identification number.

Browse car data in real time, car condition data at a glance, guarding driving safety.

• Engine coolant temperature
• Ignition timing
• Engine speed
• State of the fuel system
• Intake pressure

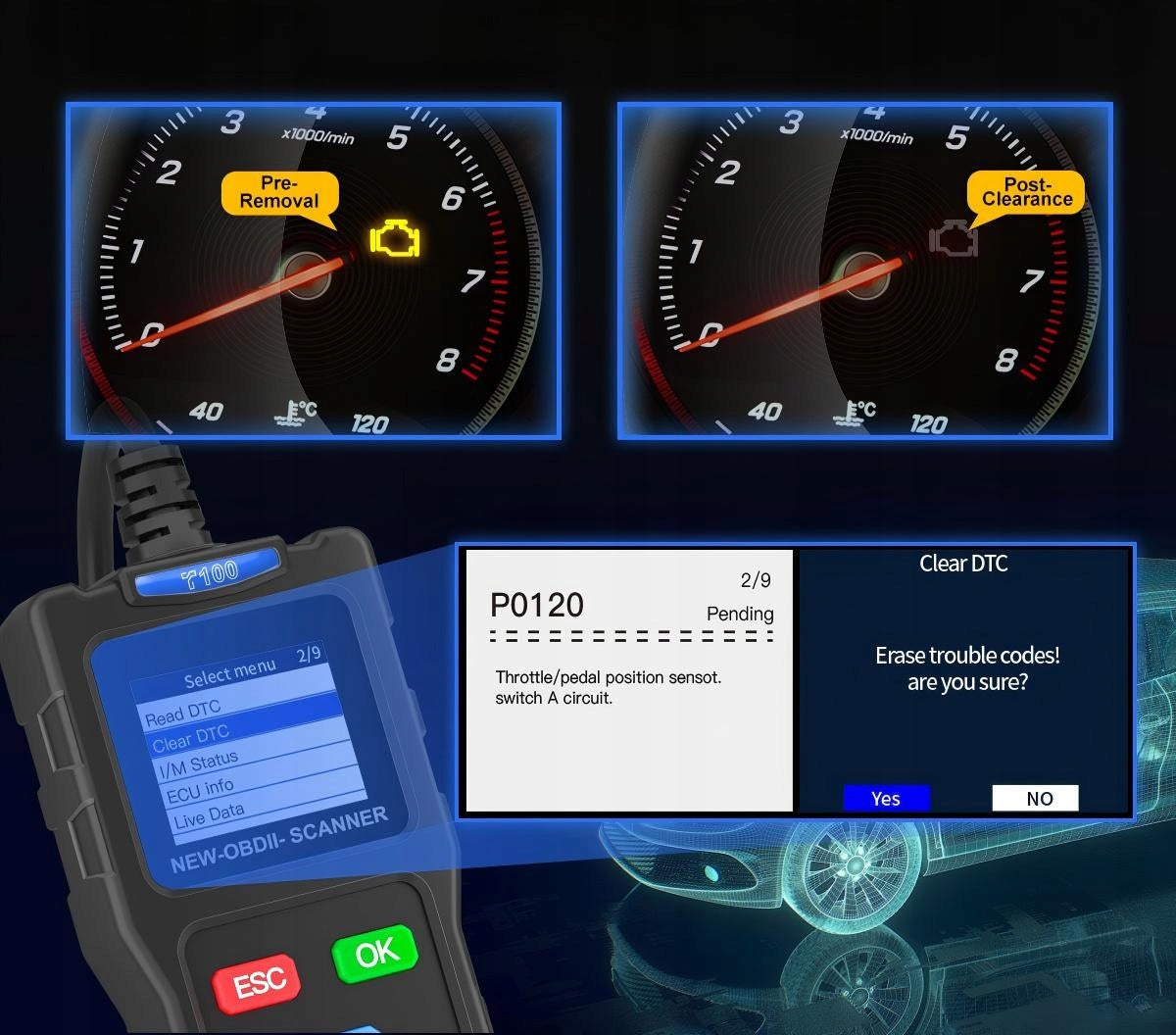

Quickly read car faults and clean the engine fault light.

The OBD port is usually located under the dashboard on the driver side of the car, some vehicles need to open the cover or drag it outside to see it for more accurate information, please refer to the vehicle manual.

Operational steps

1. Locate the OBD port
2. Connect the device OBD cable to the vehicle OBD port
3. Press the power button to start working

The update program can be downloaded from your PC, just connect your device to your computer using a Type-C cable for updates.

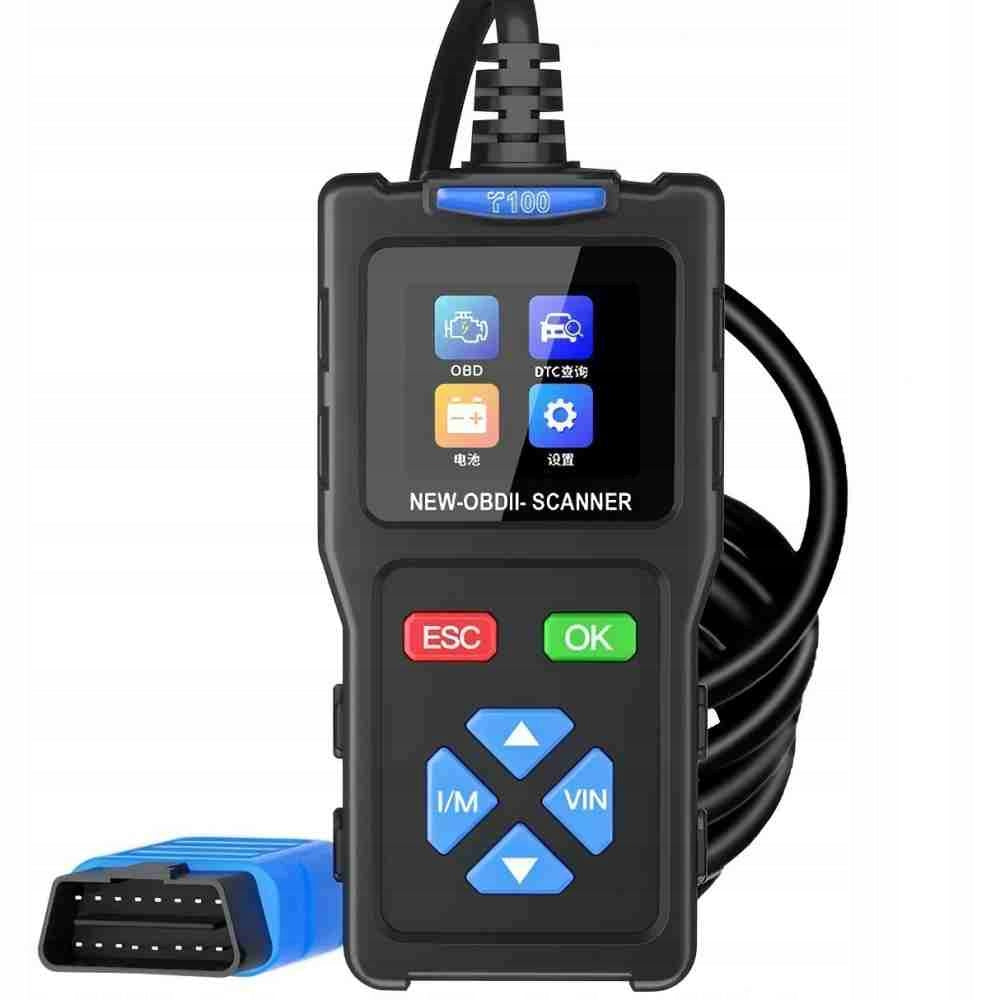

• ESC button
• Button OK
• I/M button
• VIN button
• 1.7 inch TFT backlit display
• USB interface
• Arrow↑ button
• Arrow↓ button
• OBD Ⅱ connector

1. Soft rubber buttons with a comfortable feel
2. ABS housing robust and durable
3. Left and right anti-slip design
4. Pure copper core for faster transmission

• Read the fault codes
• Clear fault codes
• Reading data streams
• Read information about the vehicle
• I/M readiness test
• Mode 6
• Mode 8
• DTC query
• Freeze the frame
• Oxygen sensor test
• Fault Code Library
• Data Reproduction
• Inquiry about the year of the vehicle
• Battery Voltage Test
• Language switch

• Model: T100
• Color: Black
• External power supply: 8V-30V DC
• Operating temperature: 20-60°C
• Storage temperature: 20-70°C
• Package Dimensions: 130*170*35mm
• Weight: 0.3kg
• Display: 1.7 inch TFT color screen
• Manual: English

Specifications
