Automobilio diagnostikos monitorius OBDII OBD2 DPF FAP GPF Turbo Boost

Trumpai apie prekę

Prekė: Automobilio diagnostikos monitorius OBDII OBD2 DPF FAP GPF Turbo Boost. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: SDPROG
• Modelis: SDDASHPL

✅ 10 most important functions of SDPROG DASH:

1. Monitoring of key vehicle operating parameters

   The device allows you to keep track of parameters such as DPF filter status, engine temperature, oil and coolant, turbo boost pressure or engine speed.

2. Audio notifications

   SDPROG DASH informs the user about the start and end of the DPF firing process and other important events, such as exceeding certain parameters.

3. Supports different types of engines

   Compatibility with gasoline, diesel, hybrid and other power units, thanks to regular database updates.

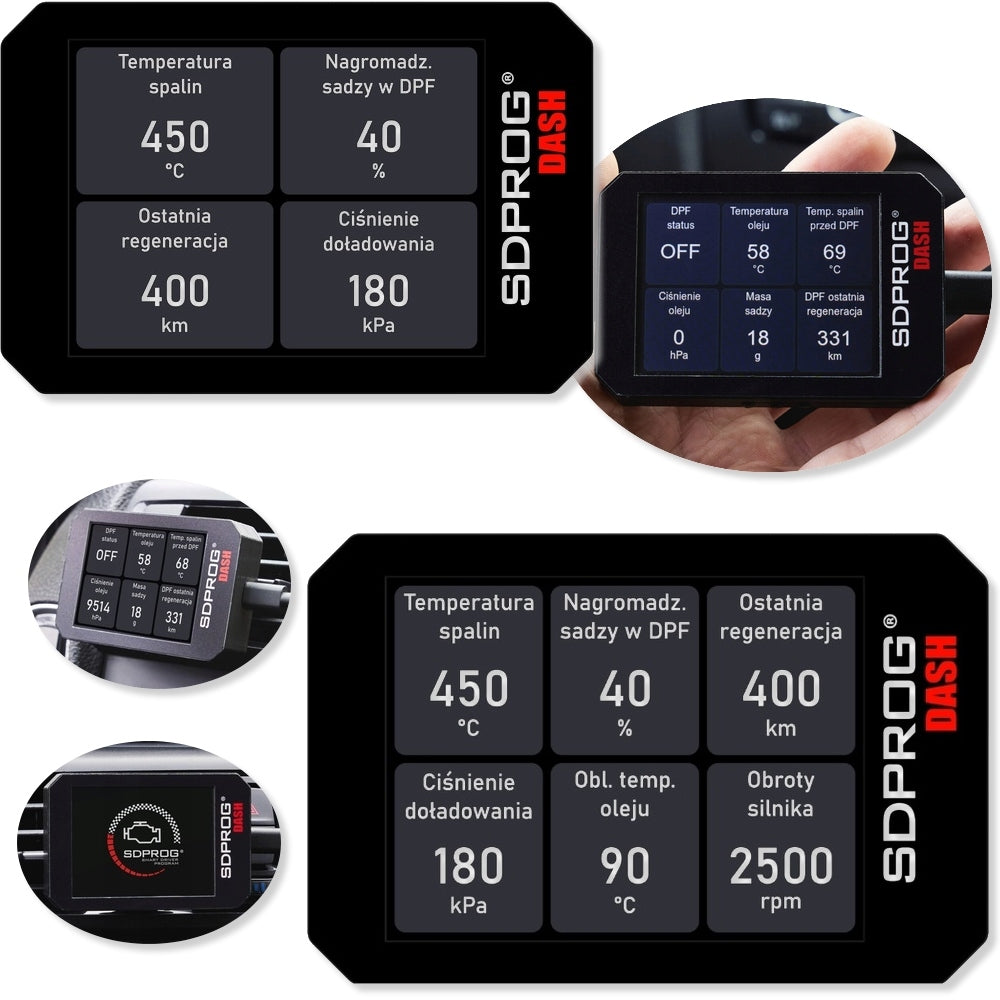

4. Personalization of displayed data

   The ability to adjust the number of monitored parameters (2, 4 or 6) and their type according to the user's preferences using the application on the computer.

5. Multi-functional touch screen

   Intuitive interface provides convenient operation, with adjustable brightness to adjust visibility to driving conditions.

6. RACE

   Indicator of optimal gear shifting torque to improve dynamics and efficiency of sports driving.

7. The regeneration history of the DPF

   The device allows you to monitor the soot level in the DPF filter and the regeneration history, which avoids performance problems.

8. Automatic start-up and shut-down

   The device works only during the operation of the vehicle, which ensures efficient use and energy savings.

9. Regular system updates

   Thanks to them, the device is constantly being developed, which increases its functionality and compatibility with new vehicles.

10. Simple installation and operation

    The launch of SDPROG DASH only requires connection to the OBD-II socket and power supply, and the configuration is carried out using a Bluetooth-enabled Windows application.

✅ SDPROG DASH – Your Smart Vehicle Monitor

Monitor the most important parameters of engine operation without unnecessary switching and settings. SDPROG DASH automatically displays the parameters of your choice, eliminating the need for monotonous configuration and manual selection of the vehicle model in the application.

The device is equipped with audio notifications, which inform the user about the start and end of the DPF burning process. Moreover, any significant event, such as exceeding the selected parameter or reaching a certain value, can also be signaled audibly, after appropriate configuration from the computer application.

SDPROG DASH is a universal and fully configurable system. With the ability to customize the settings through the app on your computer, you can personalize how you monitor your vehicle's parameters according to your needs. The system regularly receives new updates that introduce additional features and improvements, ensuring that you always take advantage of the latest capabilities of technicznych.Pozwól to make SDPROG DASH your reliable vehicle monitoring partner, giving you control over the DPF burning process and all key engine parameters – without complicated settings.

✅ The set includes:

1. Device SDPROG DASH
2. Diagnostic interface
3. Instructions
4. Access to update
5. Original packaging

Video showing SDPROG DASH devices

https://www.youtube.com/results?search_query= sdprog +dash

✅ Advantages

• Easy-to-read display: The intuitive user interface provides easy access to all parameters,
• High Precision: Accurate measurements and data analysis allow for quick detection of irregularities,
• Versatility: The ability to display 6, 4, or 2 parameters simultaneously, displayed according to the user's needs,
• Ease of Installation: Simple installation and integration into your vehicle's diagnostic system.

✅ SDPROG DASH is an innovative diagnostic device designed specifically for drivers who want to monitor the key functions of their vehicle on an ongoing basis. Thanks to the clear display and the ability to personalize parameters, SDPROG DASH provides full control over the technical condition of the car, which increases safety and comfort of driving. In addition, SDPROG DASH helps reduce operation costs, avoid costly repairs and check vehicle performance.

A particularly important aspect of monitoring is the condition of the DPF (particulate filter), the correct operation of which is crucial for engine life and vehicle efficiency. Thanks to SDPROG DASH you can keep track of the DPF firing process on an ongoing basis, which prevents costly failure and ensures longer hassle-free operation car.

✅ Installation and commissioning

Installation and commissioning of SDPROG DASH comes down to a few simple steps:

1. Interface Connection: Connect the diagnostic interface to the OBD-II socket in the vehicle,
2. Power Connection: Connect the power supply to the display, preferably the power supply after ignition, e.g. from the cigarette lighter socket,
3. Automatic Startup: When the ignition is turned on, the display and interface will automatically start and connect to the car. When the ignition is turned off, the devices will automatically turn off, so they only work when needed.

Contact and personalization

After purchasing SDPROG DASH, you should configure the device by selecting the appropriate make, car model and preferred parameters. The device configures the user himself using the application available for Windows. A device with Windows and Bluetooth 4.0 LE module is required. The device allows full customization to ensure maximum functionality and convenience.

✅ Supported cars

SDPROG DASH supports most cars thanks to the continuous development of a database with current vehicle parameters. Regular updates ensure compatibility with an increasing number of makes and models. At the moment, SDPROG DASH supports gasoline, diesel, hybrid and other power units, allowing drivers from different market segments to effectively monitor the technical condition of their vehicles.

Audi, Seat, Skoda, Volkswagen

CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFC, CFCC, CFCC, CFC, CFCC, CFC, CFC, CFC, CFC,

Opel

Z18XE, Z18XER, Z16XER, Z22YH, Z16XEP, Z16XE1, Z20NET, A16XER, A18XER, A10XEP, A14XEL, A14XER, A14NEL, A16LET, A18XEL, Z17DTH, Z17DTL, Z19DT, Z19DTL, Z19DTH, Z20DM , Z20DMH, Z28NEH, Z28NEL, Z28NET, Z32SE, A20DT, A20DTC, A20DTH, A20DTJ, A20DTL, A20DTR, A13DTE,2.0 VCDI LNP, B16DTH, B16DTE, B20DTH, A17DT.

BMW, Mini

216d B37C15U0, 216d B37C15U0, 1.5 D B37C15U0, 1.5 D B37C15U0, 330d M57D30O1, 330xd M57D30O1, 335d M57D30T2, 325d M57D30U2, 325d M57D30 U2, 330d M57D30O2, 330d M57D30O2, 330xd M57D30O2, 330xd M57D30O2, 525xd M57D30U2, 525xd M57D30U2, 530d M57D30O1, 530d M57D30O1, 530xd M57D30O2, 530xd M57D30O2, 535d M57D30T1, 635d M57D30T2, 730d M57D30O1, 730Ld M57D30O2, 3.0d M57D30O2, 3.0d M57D30O1, 3.0sd M5 7D30T2, xDrive35d M57D30T2, 3.0d M57D30O1, xDrive30d M57D30T1, xDrive30d M57D30O2, 1.6 D N47C16U1,118d N47D20U1, 118d N47D20U1, 218d N47D20U1, 218d N47D20U1, 318d N47D20U1, 318d N47D20U1, 318d xDrive N47D20U1, 418d N47D20U1, 418d N47D20U1, 518d N47D20U1, 518d N47D20U1, 120d N47D20O0, 120d N47D20O0, 116d N47D20K1, 116d N47D20K1, 118d N47D20U0, 118d N47D20U0, 123d N47D20T0, 123d N47D20T0, 125d N47D20T1 , 125d N47D20T1, 120d N47D20O1, 120d N47D20O1, 116d N47D20K0, 118d N47D20U0, 316d N47D20U1, 316d N47D20U1, 316d N47D20U1, 318d N47D20U1, 3 18d N47D20U1, 318d N47D20U1, 320d N47D20U1, 320d N47D20U1, 320d N47D20U1, 320d N47D20U1, 320d N47D20U1, 320d N47D20U1, 518d N47D20U1, 518d N47D20U1, 518d N47D20U1, 520d N47D20U1, 520d N47D20U1, 520d N47D20U1, 520d N47D20U1, 520d N47D20U1, 520d N47D20U1, 3 16d N47D20O1, 316d N47D20O1, 316d N47D20O1, 318d N47D20O1, 318d N47D20O1, 318d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 518d N47D20O1, 518d N47D20O1, 518d N47D20O1, 520d N47D20O1, 520d N47D20O1, 5 20d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1, 316d N47D20K1, 316d N47D20O1, 316d N47D20O1, 318d N47D20O1, 318d N47D20O1, 318d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 320d N47D20O1, 518d N47D20O1, 5 18d N47D20O1, 518d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1, 520d N47D20O1, xDrive40d N57.

Renault, Dacia, Nissan

1.5 dCi, 2.0 dCi, M9T 702, M9T 700, M9T 704, 2.3 dCi, 2.5 dCi, 3.0 dCi.

KIA, Hyundai

1.7 CRDi, 1.6 TCI, 2.2 TCI, 1.7 16v CRDi 2WD, 1.6 TCI, 2.0 CRDI, 1.4 CRDi, 1.6 16v CRDi (D4FB); 1.6 16v CRDi VGT (D4FB); 1.1 TCI-U2, 1.6 16v CRDi (D4FB, D4FB) -L)1.5 MPI, 1.5 TCI, 1.5 G T-GDI KAPPA PE, 1.5 G T-GDI KAPPA PE MHEV, 1.0 T-GDI KAPPA PE, 1.6 TCI-NEW U, 1.6 TCI NEW U MHEV, 1.6 CRDi mHEV, 1.7 16v CRDi (D4FD).

Ford

2.0 TDCi 6MT (G6DG, UKDA) 2.0 TDCi 6MT (QXW, UFWA, UKWA, AZWA), 2.0 TDCi 6MT (YNF, YMF, YLF), 2.0 TDCi (G6DG, G6DD, G6DB, G6DA, IXDA), 2.0 TDCi 6AT ( KLBA, AZBA, QXBA, UFBA, TYBA, LPBA);2.0 TDCi 6MT (KLBA, UFBA, QXBA, TYBA, LPBA), 1.6 Duratorq TDCI, 3.5 V6 6AT, 3.7 V6 6AT, 2.7 6AT,1.6 TDCi (T1B);1.6 TDCI, 1.5 TDCi EcoBlue, 2.0 TDCi EcoBlue.

Mazda

2.0 MZR-CD 6MT.

Peugeot, Citroen, DS

1.6 HDi 9HP;1.6 HDI 9HP DV6DTED, 2.0 HDI, 1.5 BlueHDi, 1.6 BlueHDI, 2.0 BlueHDi.

Alfa Romeo, Fiat, Lancia, Jeep, Dodge, Chrysler

1.3 Multijet,1.6 Multijet, 1.6 JTDm, 2.0 JTDm, 2.0 Multijet, 2.2 MultiJet, 2.9 V6 24V TwinTurbo, 1.4 Turbo 16V, 1.2, 2.3 Multijet, 3.0 Multijet.

Honda, Acura

2.0 16v i-VTEC R20A, 2.0 16v i-VTEC R20A1, R20A2, 2.0 i-VTEC 4WD R20A, 2.0 16v i-VTEC K20Z3, 2.2 i-DTEC N22B1, 2.2 i-DTEC N22A2, 2.2 i-DTEC N22A2, 2.2 16v i-DTEC N22B2, 2.2 16v i-DTEC N22B4, 2.2 16v i-DTEC N22B3, N22B4.

Volvo

D5244T4, D5244T5, D5244T6, D5244T7, D5244T8, D5244T9, D4204T, D4204T2, D4204T8, B8444S, D5244T16, D4204T4, D4204T14.

Mercedes

2.1.

✅ SDPROG DASH allows you to display and monitor advanced vehicle parameters such as DPF filter status, engine temperature and many others, with full access to OBDII system data. The device offers a configurable clock that shows the values read from OBDII mode in real time, allowing even more accurate tracking of parameters. In addition, the RACE mode signals the optimal moment to change gears, which can increase the dynamics and efficiency of sports driving. The device also allows for full personalization thanks to the settings window, which allows you to configure the displayed data according to the user's preferences. You can display 6, 4 or 2 parameters simultaneously, adjusting the device to individual potrzeb.Przykładowe readings include:

• DPF Status: Monitoring the condition of the particulate filter (DPF) and its efficiency,
• Engine, Oil and Coolant Temperature: Precise temperature control to prevent overheating,
• OBDII reading: Get current data such as turbo boost pressure, engine speed (RPM), vehicle speed and battery voltage,
• Soot mass in DPF and Last Regeneration: Check the soot level and regeneration history of DPF to avoid problems with its performance.

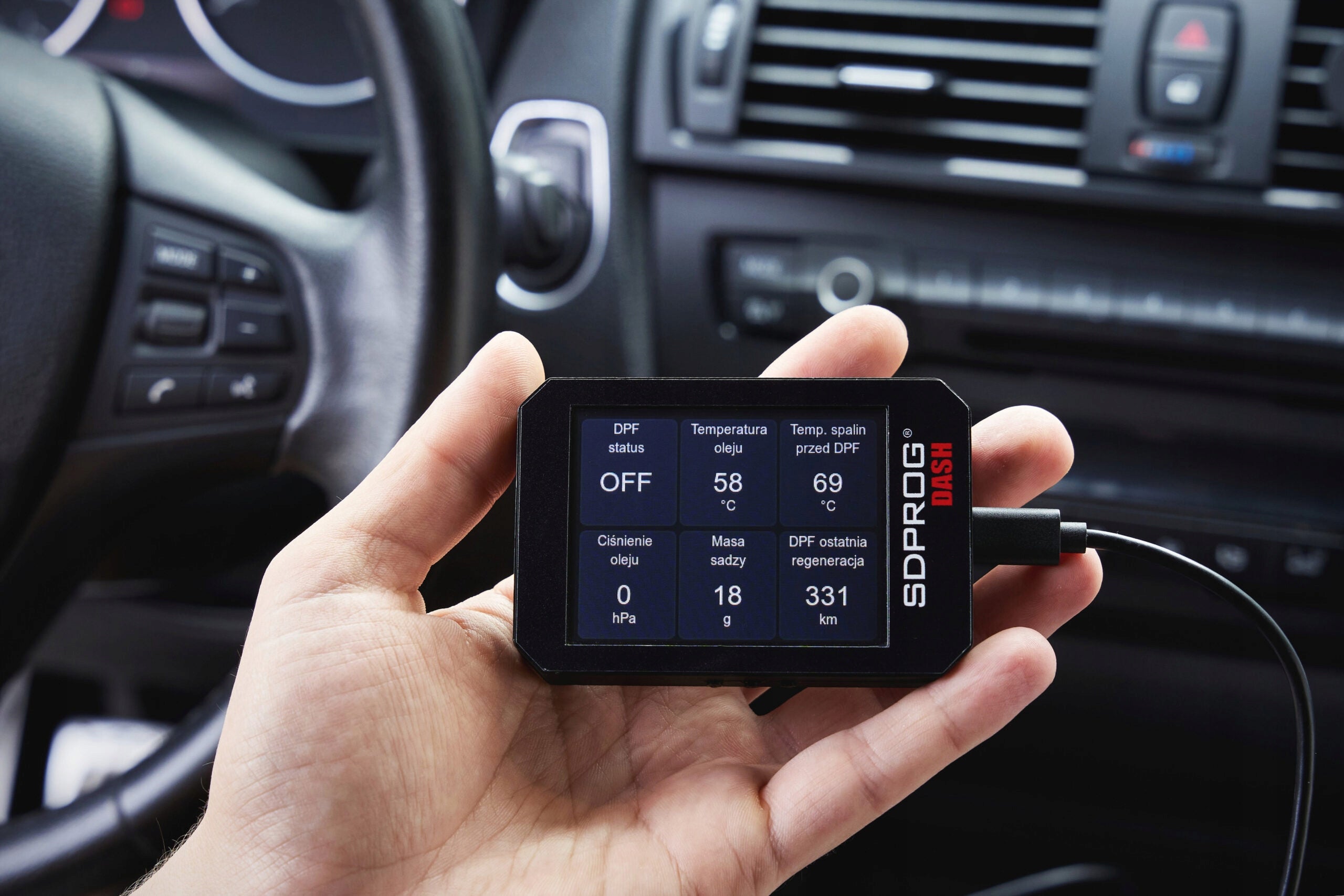

✅ The device is equipped with a modern touch screen, which provides many benefits to drivers. First of all, the touch interface makes operating the device in the car more intuitive and fast – just one touch is enough to change the mode of operation of the device.

In addition, the screen has a brightness adjustment function, which allows you to adjust the level of lighting to the driving conditions, ensuring comfortable use both on a sunny day and during night driving, without excessive driver distraction.

✅ Examples of application

Individual drivers

• Safety and Comfort: With the SDPROG DASH, drivers can keep track of the technical condition of the vehicle, which increases safety and driving comfort,
• Fuel Savings: Controlling parameters such as turbo boost pressure and engine speed allows you to optimize fuel consumption,
• Reduced operating costs: Regular monitoring of key parameters allows for early detection and repair of defects, which reduces operating costs,
• Avoiding Costly Repairs: By detecting problems early, SDPROG DASH helps you avoid costly repairs and prolongs the life of your vehicle,
• Vehicle Performance Check: Automotive enthusiasts can monitor and optimize the performance of their vehicle by controlling key engine parameters.

Car fleets

• Effective Management: SDPROG DASH allows fleet managers to monitor the key technical parameters of each vehicle on an ongoing basis, which increases the efficiency of fleet management,
• Minimize downtime: Monitoring the technical condition of vehicles allows you to plan maintenance and repairs, which minimizes downtime.

Car lovers

• Tuning and Optimization: Automotive enthusiasts can use SDPROG DASH to monitor vehicle parameters during engine tuning and optimization,
• Performance Tracking: Monitoring parameters such as turbo boost pressure and oil temperature helps to maximize engine performance.
