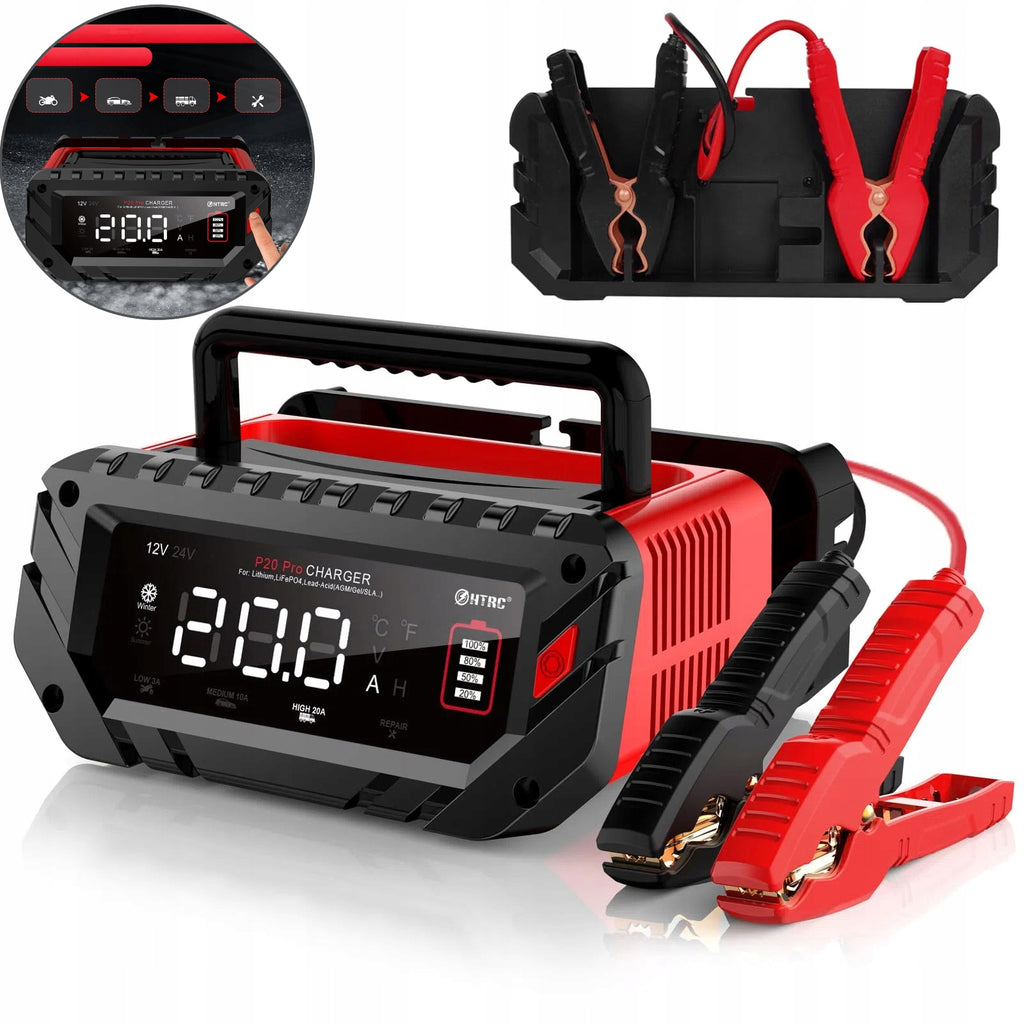

Automobilio akumuliatoriaus įkroviklis 6V/12V/24V su lygintuvu

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus įkroviklis 6V/12V/24V su lygintuvu. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand

🚗【Wide Application】Car battery charger is only suitable for LiFePo4 6V/12V/24V batteries, lithium batteries and lead-acid batteries (AGM, calcium, gel, MF, EFB, SLA, VRLA, WET, etc. ). It is widely used for safe and efficient charging of cars, motorcycles, boats, lawn mowers, etc.

🛵【Intelligent car battery charger】The car charger uses 9-stage automatic charging, including battery detection, desulfurization, maintenance charging, etc., to get the best and most efficient charging. Repair mode is used to repair and activate old and weak batteries.

🛠 【Multiple protection】Spark protection, short circuit protection, reverse direction protection, undervoltage protection, overvoltage protection, overcurrent protection and overheating protection. Housing made of fireproof material. The sturdy power cord and crocodile clamp ensure safety.

🚤【One-button start】The 6V/12V/24V charger automatically detects the battery voltage and can switch between 4 charging modes at the touch of a button. It features an LCD screen that displays battery voltage, charging current, charging temperature, and a full battery, among other features. The car charger automatically adjusts the charging power to the ambient temperature.

🎁【What you get】1 x car charger 6 V/12 V/24 V (AC power cable 1,6 m, terminal cable 1 m), 1 x user manual.

Parameters P30

AC input: 100 V-240 V ~ 50/60 Hz.

Output voltage: 6 V/12 V/24 V. (Normal - max.: 5,4 V-7,5 V/13,2 V-14,6 V/26,5 V-29,2 V). Lithium/LiFePO4/lead-acid (AGM, GEL, EFB, MF, flooded, VRLA, SLA and wet batteries...).

Output current: 6 V 10 A, 12 V 30 A and 24 V 16 A

Supports AH: 2 Ah-500 Ah... can accommodate larger capacities; the larger the capacity, the longer the charging time.

Minimum initial voltage > 2,0 V

Power and load: MAX.; 420 W

Size: 22 x 19 x 12 cm (8,6 x 7,5 x 4,7 inches).

Net weight: 1,5 kg

FAQ

Question 1: Can the maximum charging current be reached?

Answer: To protect the battery, the system automatically detects the battery voltage and selects the most suitable current to charge the battery. When the battery voltage is low (e.g. when the battery voltage of 12 V is less than 11 V), the system automatically charges the battery with maximum current. (3 gears can adjust charging current: high current, fast charging)

Question 2: Is the LiFePO4 battery not fully charged?

Answer: When the battery is fully charged, it has a callback function, which reduces the charging current by about 1 to 2V, which is normal. After a full charge and uninterrupted charging, a small current will be added.

Question 3: Fan noise?

Answer: It is normal for a fan to have wind.

Attention:

1. Charge the lithium battery only with the battery protection plate (BMS).

Question 3: Does the fan make any noise?

... 2 Charge the battery with a minimum current of less than 15 Ah.

Tips:

If the battery has not been used for a long time, is old or cannot be recharged, select the “REPAIR” mode to try to activate it.

(1) Before charging, check that the battery is not damaged or if there are any unusual phenomena, such as leakage of fluid around the battery. If unusual phenomena occur, charge the device carefully.

(2) Do not charge in an environment where there is gas melting.

(3) Avoid high temperature and high humidity environments when charging.

(4) When charging, the surface of the battery must not be covered with objects, and the battery must be positioned vertically, not tilted.

(5) If the sulphide material at both ends of the positive and negative electrode of the battery is too high, the sulphide material must first be removed to improve the charging efficiency of the battery. (6) If the voltage of the charged battery is very low, it should be repaired before charging.

(7) Charging batteries with a voltage above 24 V is prohibited with this charger.

(8) This is a battery charger, not an emergency starter.

1 x 6V/12V/24V Car Battery Charger

1 x 1,6 m AC power cable

1 x 1 m terminal cable

1 x Manual

Specifications
