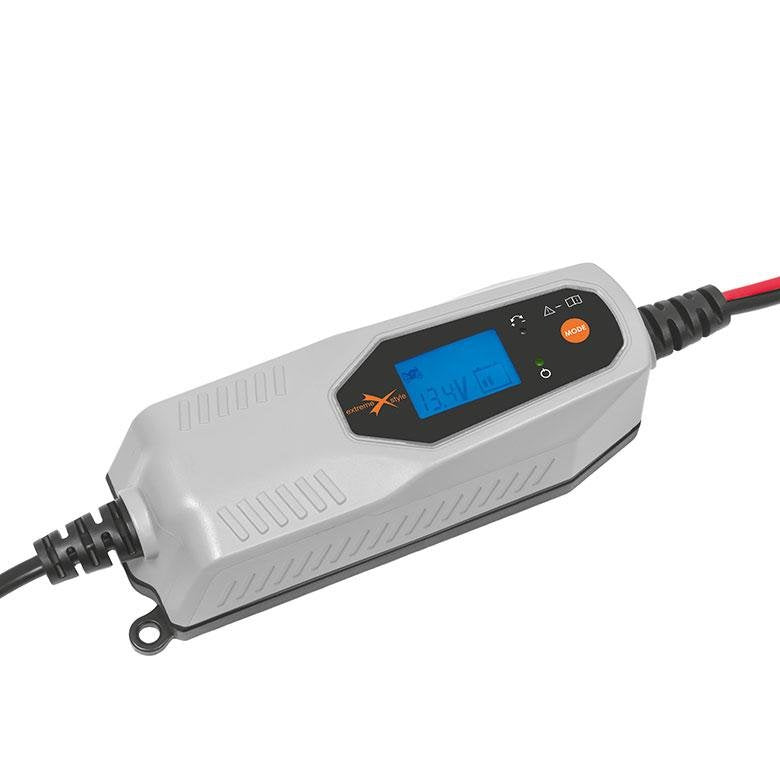

Automobilio akumuliatoriaus įkroviklis, 6/12V, 2 vnt.

Trumpai apie prekę

Prekė: Automobilio akumuliatoriaus įkroviklis, 6/12V, 2 vnt.. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Extremestyle
• Modelis: SBC-LI144

eXtremestyle SBC-61238

• controlled by microprocessor

• Works with VRLA, AGM, VLA, SLA, EFB, WET, GEL, LEAD-ACID batteries

• automatic control of battery charge

• winter mode

• reactivation/resuscitation mode

• Detachable cable equipped with SAE type quick-connector

• Short-circuit protection

• 8-Stage Charging

• Supports 6V batteries: 1.2 - 14 Ah, 12 V: 1.2 - 120 Ah

Comes with

• Rectifier eXtremestyle SBC-61238

• Eyelet terminals

• Crocodiles

• User manual in Polish

Technical data

Model: SBC-61238

Compatible batteries: 6 V / 12 V | VRLA, AGM, VLA, SLA, WET, GEL, LEAD-ACID

Supported capacity: 6 V: 1.2 - 14 Ah | 12 V: 1.2 - 120 Ah

Input: AC 220 - 240 V, ≤ 0.6A, 50 / 60 Hz

Output: DC 7.3 V, ≤ 0.8 A / 14.4 - 14.7 V, ≤ 4.0 A

Efficiency: 75 - 80%

Working temperature: -10 - 40°C

Weight: 532 g

Microprocessor

The use of a microprocessor in the charger means the convenience of using the rectifier. The device selects the current itself, depending on the level of battery discharge.

In addition, the microprocessor is programmed with 8-steps of charging and will adjust the appropriate mode for a given type of battery.

Most importantly, the rectifier turns itself off when the battery is fully charged, if it detects a voltage drop, it will automatically resume operation.

Works with a variety of batteries

One of the biggest advantages of the eXtremestyle SBC-61238 rectifier is its use.

It can charge batteries such as: VRLA, AGM, VLA, SLA, EFB, WET, GEL, LEAD-ACID.

The charger is marked 6V/12V, which means that it will work with batteries used for salinity: passenger vehicles, motorcycles, scooters, quads or forklifts.

Automatic battery charge control

Rectifier itself controls the charge level of the battery, adjusting the appropriate charging current (A). Therefore, the more charged the battery, the charging current (A) will decrease.

The charger also monitors the state of charge of the battery, after charging. If the rectifier detects a voltage drop, it will resume its work.

Reactivation/resuscitation mode

This mode is designed to save the battery by the rectifier. If the battery is extremely discharged, the charger will use single pulse charging until the appropriate voltage on the battery is reached.

Then the rectifier will go into fast charging mode.

It is worth noting that the rectifier is equipped with winter mode, which means that the charger can charge even at negative ambient temperatures.

Detachable cable equipped with SAE type quick-connector

Cables allow you to adjust the charger to your needs, standard equipment includes crocodile tips and eyelet terminals.

Short-circuit protection

The rectifier is equipped with a set of protection against short circuits, against incorrect connection of poles, against overheating, overloading, overcharging, etc.

8-Stage Charging

The 8-degree charging process ensures optimal charging parameters:

STEP 1: DIAGNOSTICS: analysis of the battery, its state of charge and the correctness of connections between the battery and rectifier

STEP 2: DESULPHURISATION: recognition of the sulphurized battery, charging with low voltage and high intensity pulsating current allows the removal of sulphate from the battery plates, so that its initial capacity is restored

STEP 3: SOFT START: checking whether the battery is not damaged and whether it can accept charging current (prevents charging the damaged battery); if the battery is not damaged, charging begins gradually increasing the charging current

STEP 4: ESSENTIAL CHARGING: constant current maximum charging with a value automatically adjusted depending on the state of charge of the battery, until 80% of the battery capacity is reached

STEP 5: FINAL CHARGING: charging with decreasing current and constant voltage to reach 100% battery capacity

STEP 6: ANALYSIS: battery charge test lasting about 2 minutes – if the battery charge level does not decrease after stopping charging, the charging process is completed

STEP 7: MAINTENANCE: Keeping the battery charged at maximum level by charging with constant voltage current

STEP 8: PULSING: monitoring the battery voltage and maintaining an optimal charge of 95-100% capacity through charging current pulses

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Model	SBC-LI144
Parametry	Brand	Extremestyle
Parametry	Maximum amperage	3.8 A
Parametry	Product weight with unit packaging	0.483 kg
Parametry	EAN (GTIN)	5901445620103
Parametry	Batteries included	no
